Specifications

1,DC 600V 4 poles isolator price

2,with mc4 solar connector

3.CE ROHS IEC CB,SAA Attestation

4.The Most Comparative

DC 600V 4 poles isolator price

1. DC 600V 4 poles isolator price information

2. DC 600V 4 poles isolator price technical data and features

1. IP66 rated enclosure.

2. Ample internal space for easier wiring.

3. Polycarbonate flame retardant TUV SAA ROHS compliant plastic.

4. 10A,16A,20A,25A and 32A 40A 50A 63A all rated up to 1500V DC.

5. Unique spring loaded switching mechanism for high speed switching.

6. Knife edge self-cleaning contacts for increased switch life.

7. Long arc chambers to help rapid arc suppression.

8. 16mm2 rising clamp terminals for easy wiring.

9. The switch has 4 separate poles.

10. Links can be used to change the way that the poles are connected.

11. Poles can be connected in series parallel or a variation of both series and parallel.

12. Interconnection of the poles dictates the load that the switch can make and break.

13. As the number of poles used increases so the total load switching capacity of the device increases.

All photo voltaic installations must have a dc switch to disconnect the dc/ac inverter from the photovoltaic

panels in accordance with IEC60947-3

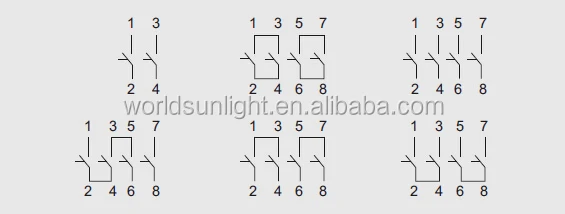

3. DC 600V 4 poles isolator price Contact Configuration

DC isolators switch instructions:

1. It is important to ensure that all electrical connections(including factory connections) are tight, ensure that all terminal screws are tightened firmly.

2. It is recommended that for DC, multi-stranded cable, crimp ferules are used to ensure

that the wires do not become loose,loose cables can cause

excessive watt loss and generate excessive heat causing severe damage to the switch.

3. After installing and wiring the switch carry out the following test: switch on and off several times making sure

that a positive snap action can be felt and heard.

4. If the switch cannot be felt and heard to operate correctly then it is important that che switch is not used.

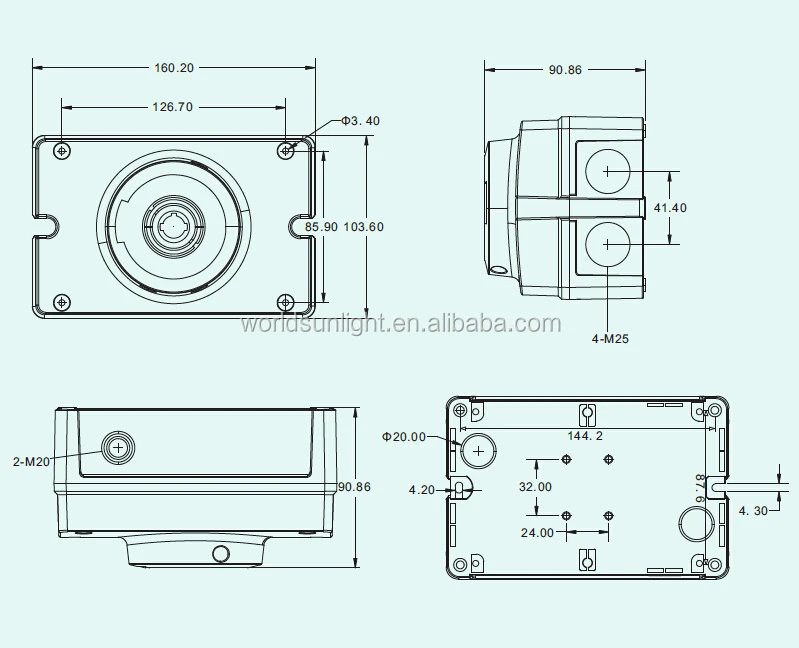

3. DC 600V 4 poles isolator price External Dimensions

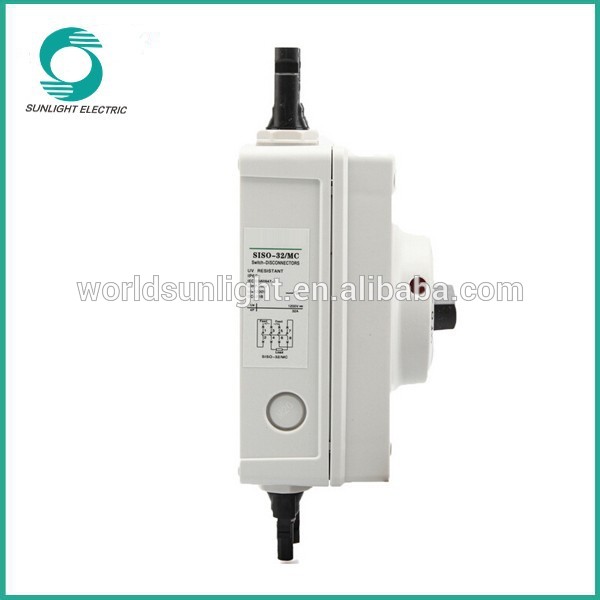

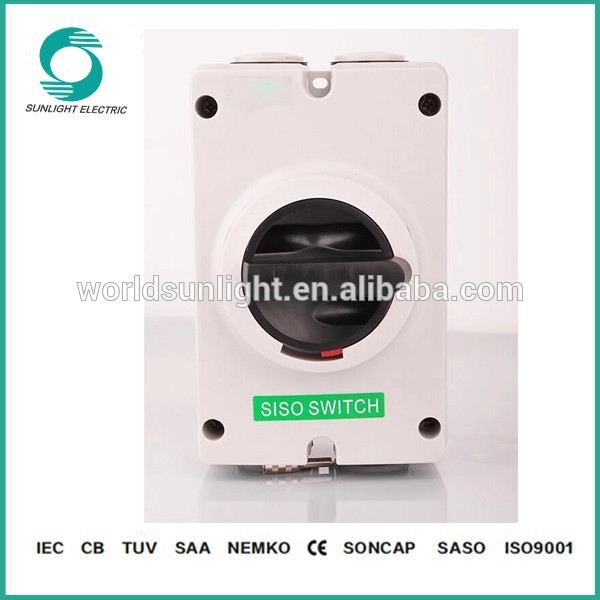

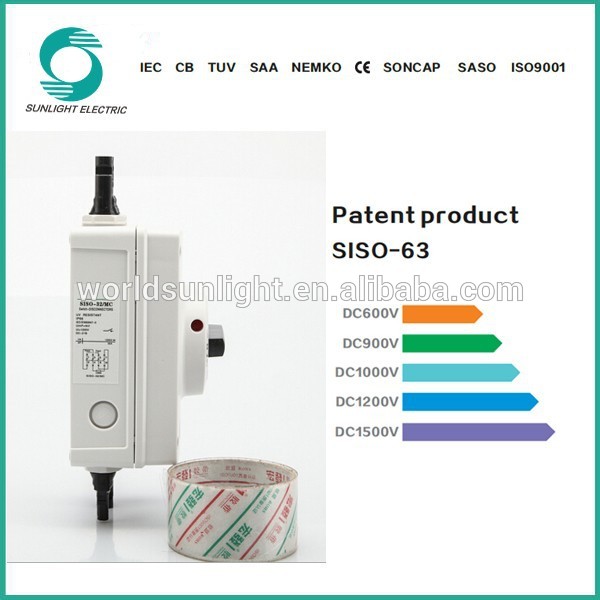

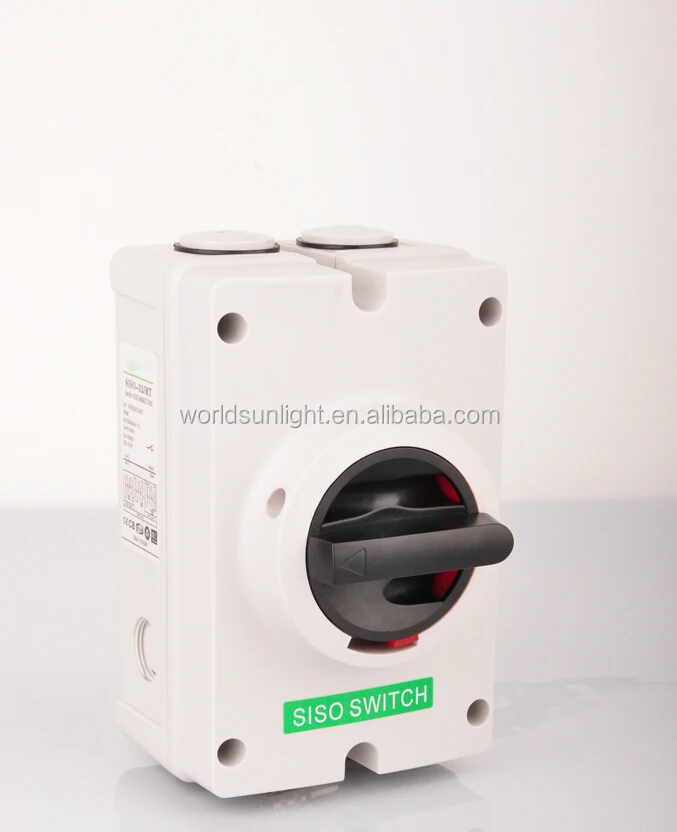

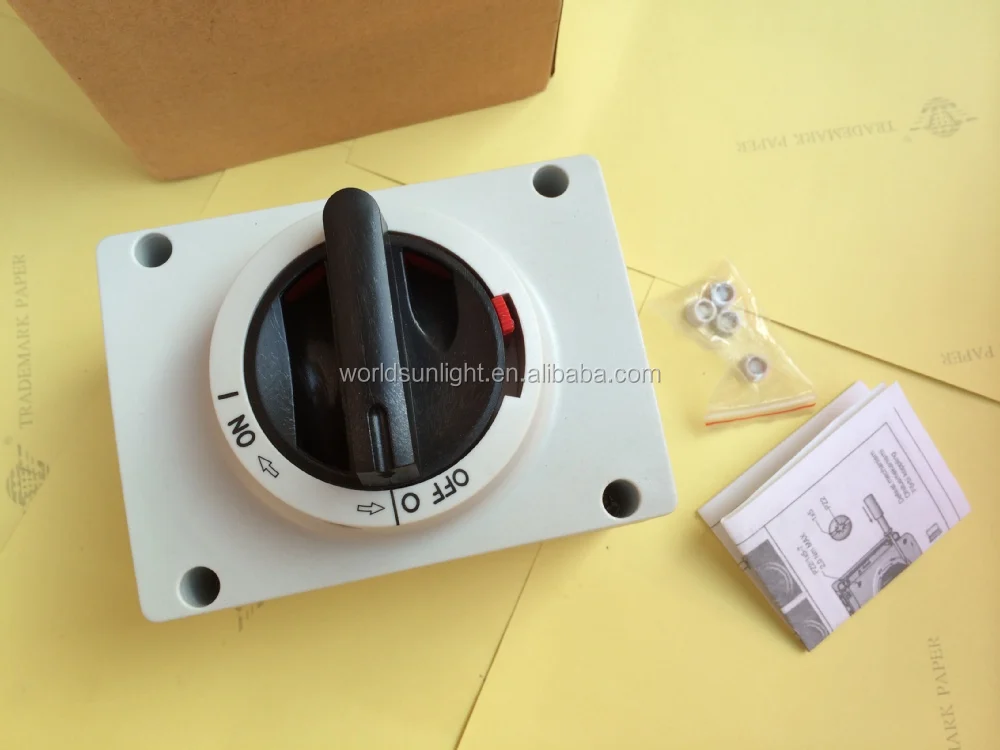

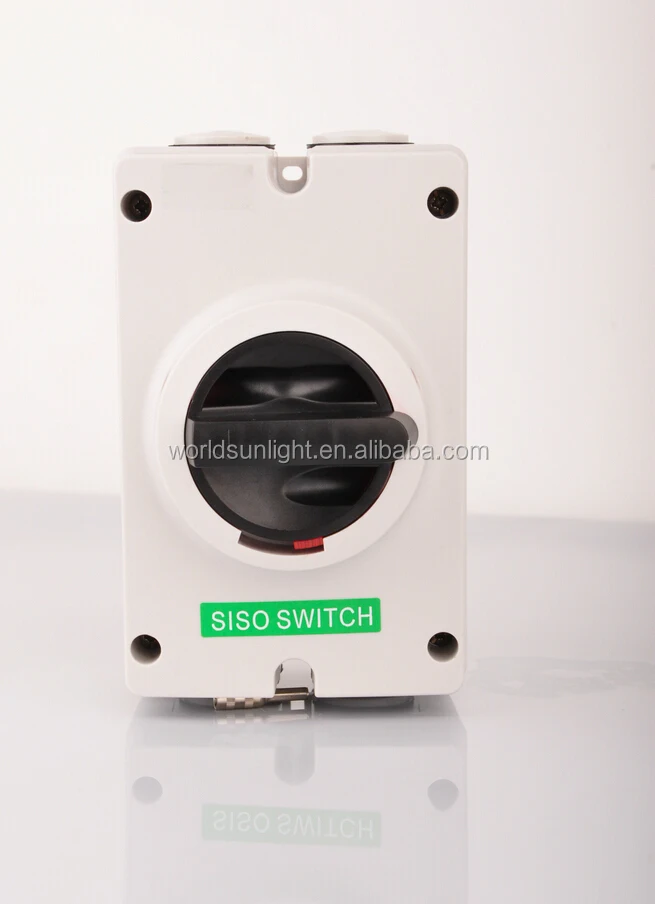

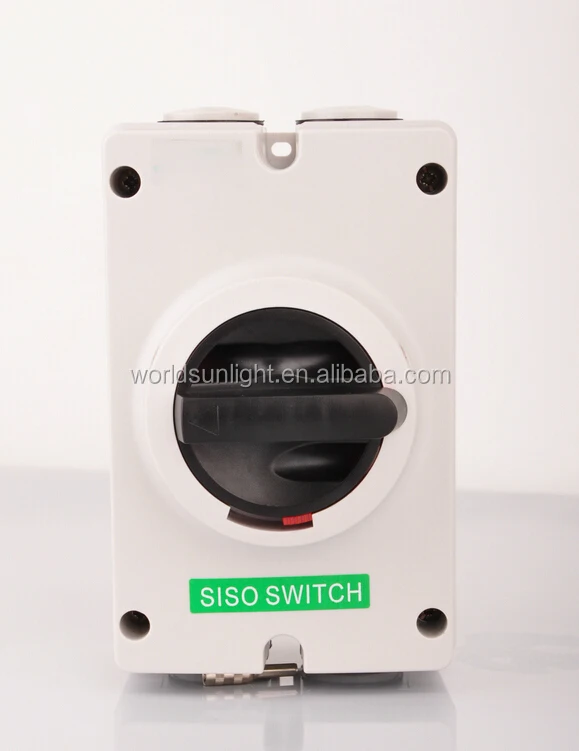

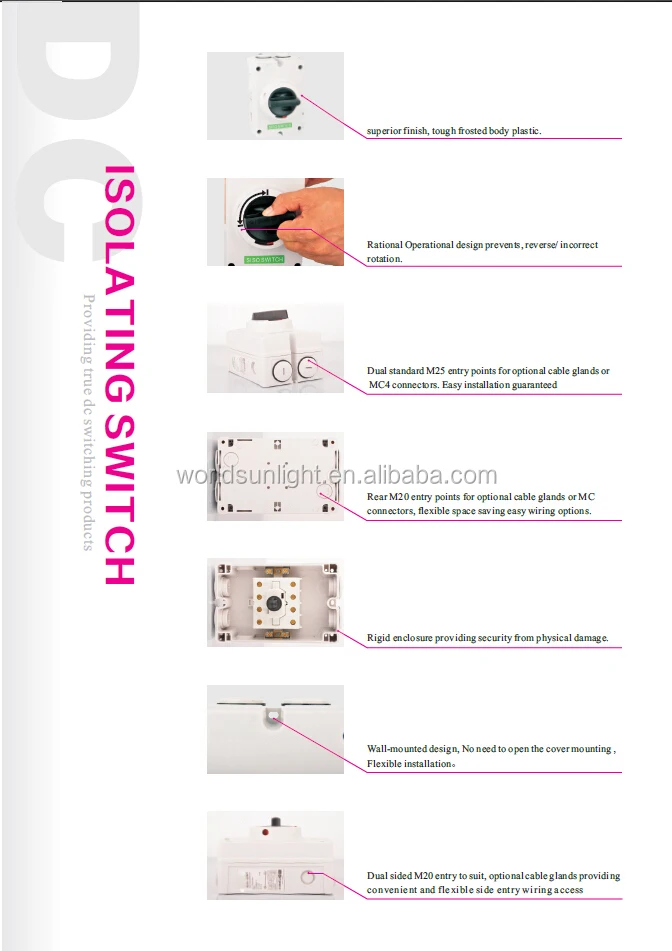

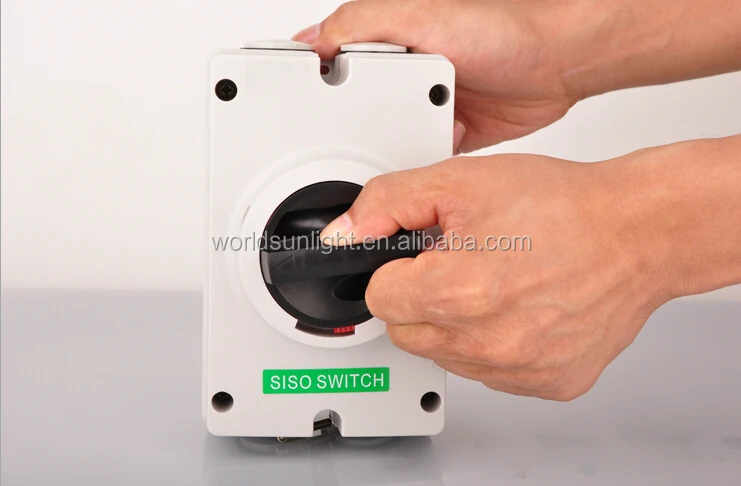

4. DC 600V 4 poles isolator price Pictures

5. DC 600V 4 poles isolator price certificate

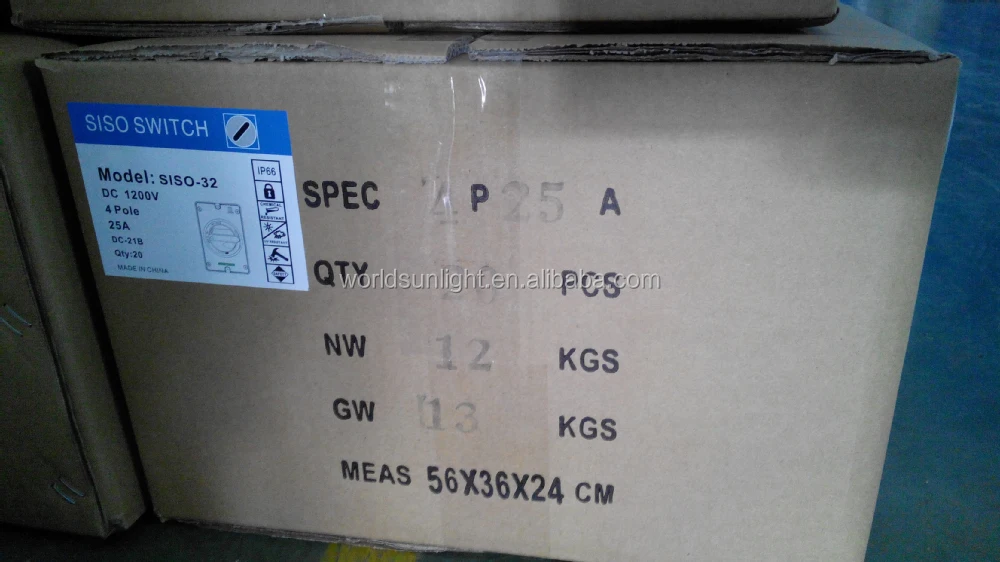

6. DC 600V 4 poles isolator price Packing

7. DC 600V 4 poles isolator price Shipping

8. DC 600V 4 poles isolator price After sale services

1.Reply inquiry in 24 hours.

2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon

receipt of your new inquiry ASAP.

3.Answer your question detailed.

4.Solved the problem with you during using our products.

5.Welcome to visit to our company and technology communication.

    XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing

of solar products and electronic environmental protection products.

    These lines cover solar panel, solar charge controller, on/off solar inverter, solar home system, solar light kit, solar cable etc. We focus on all types of solar products.

    We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well

received by our customers from all over the world.

 Q1: Are you a manufacturer?

A1:yes. We have 3 years export exprience.

Q2: Delivery time?

A2:Will send the goods out within 72 hours after the order confirmed.

Q3: After Sales Service?

A3: if u have any questions about the receuved product, we will try our best to solve it.

Q4: Return the goods?

A4: If the product really has quality problem, we will accept return the old one and send again.
