drilling rig spare parts
1 Drill Capacity
Drill Rod Varieties | Drill Rod Type | Drill Depth | |
Drill Rod Made In China | Φ50X4.75 | 2200m | |
Φ50X5 | 2000m | ||
Φ60X6 | 1450m | ||
Φ71X5 | 1650m | ||
Φ73X7 | 1000m | ||
Φ89X5 | 1300m | ||
Φ89X10 | 600m | ||
DCDMA (Diamond Core Drill Association) DrillRod | Thickened Inner Drill Rod | BW Drill Rod | 2200m |
NWD rill Rod | 1700m | ||
HWD rill Rod | 1150m | ||
WireLine Coring DrillRod | BQ Drill Rod | 2200m | |
NQ Drill Rod | 1700m | ||
HQ Drill Rod | 1150m | ||
PQ Drill Rod | 800m | ||
BCQ Drill Rod | 2500m | ||
NCQ Drill Rod | 2000m | ||
HCQ Drill Rod | 1550m | ||
2 Drilling Angel----------------------------------------------0~360°
3 Power Unit
Electric Motor Y280S-4 75KW 1480rpm
Diesel engine YC6A240-33 177KW 2300rpm
4 Rotator
Type:Feeding with double oil cylinders hydraulic pressure.Cylinder diameter:100mm.
Spindle I.D----------------------------------------------96mm
Spindle Rotation Speed
With electric motor(1480rpm):
Forward Speed:74; 106; 150; 208; 300; 431; 609; 845 rpm
Reserve Speed:74rpm
With diesel engine(2300rpm):
Forward Speed:110; 157; 222; 309; 445; 640; 905; 1256 rpm
Reserve Speed:110rpm
Max.Torque of spindle------------------------------------8000Nm
Spindle stroke-----------------------------------------------800mm
Max.lifting force of spindle-------------------------------180KN
Max.thrust of spindle--------------------------------------110KN
5 Winch
Type:Planetary gear drive, hand brake.
Wire rope caliber---------------------------------------------21.5mm(6X19)
Drum capacity for rope-------------------------------------120m
Max.lifting force(single rope)------------------------------60KN
Lifting speed of the wirerope
Power unit rotary speed 1480rpm:0.48; 0.68;0.96;1.34;1.96; 2.81;3.96;5.51m/s
Power unit rotary speed 2300rpm: 0.71; 1.01; 1.42; 1.99; 2.91;4.17;5.88; 8.19m/s
6. Transmission:Shanxi Fast Gear 8JS118 transmission and ancillary clutch, safe and reliable.
7. Oil Pump
Type:gear oil pump Model:CB-32
Rotary speed-----------------------------------------------2500r/min
Displacement-----------------------------------------------32 ml/r
Work pressure----------------------------------------------20Mpa
Max.pressure-----------------------------------------------25Mpa
Direction of rotation----------------------------------------Right(see from shaft end)
8. Water brake
Work rotary speed-----------------------------------------700—1800r/min
Single rope compensational speed--------------------3—8m/s
Single rope compensational load----------------------45KN
9. Drill Fram
Form:skids type(with sliding base)
Rig backward stroke--------------------------------------530mm
10. Dimensions(LXWXH)--------------------------------3800X1500X2460mm
11. Rig weight----------------------------------------------------6500Kg

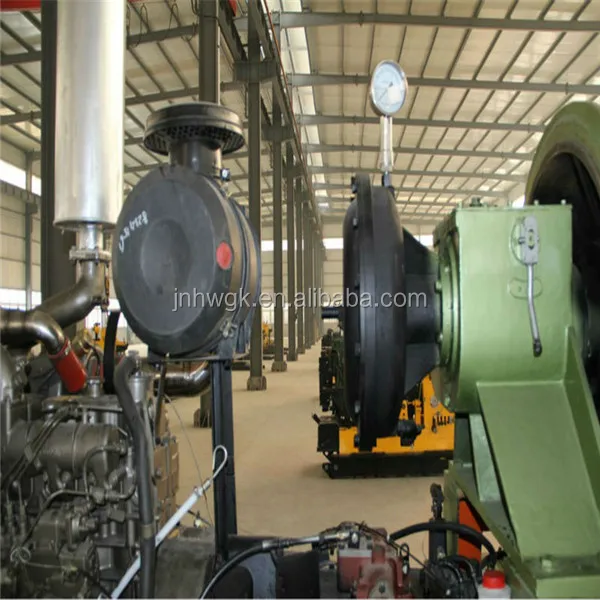

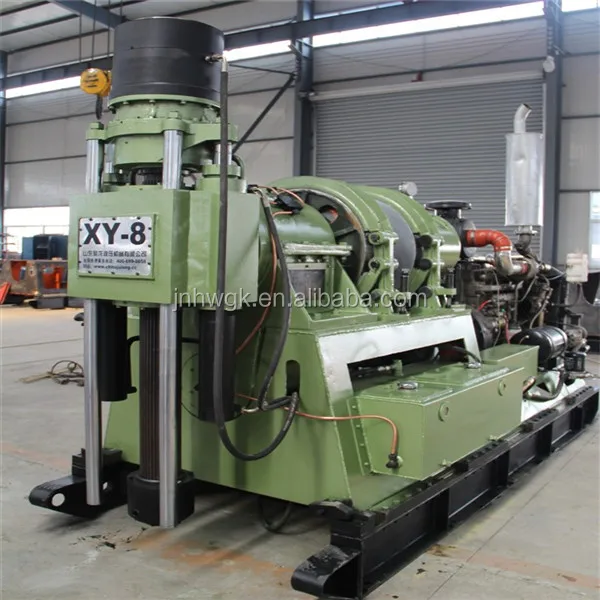

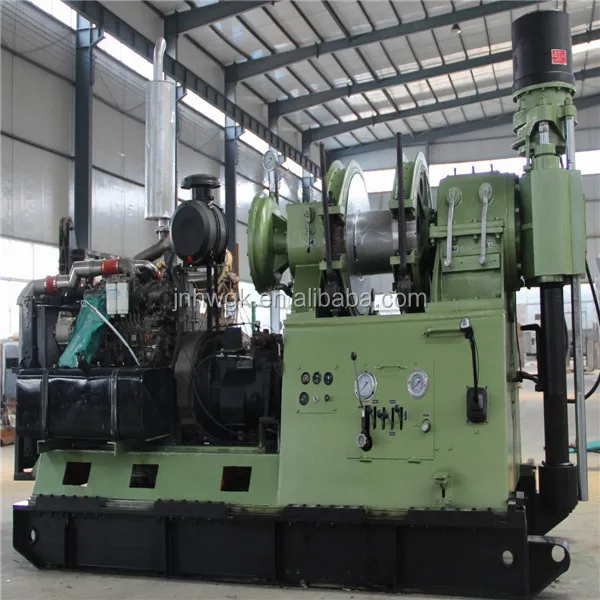

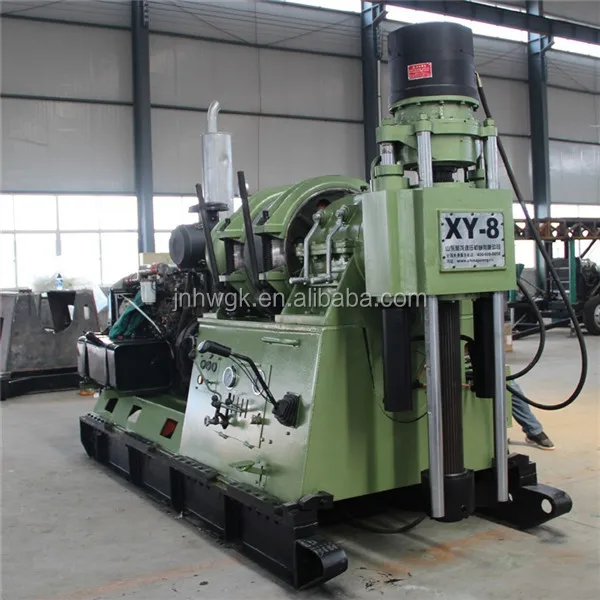

diamond core drilling machine picture
