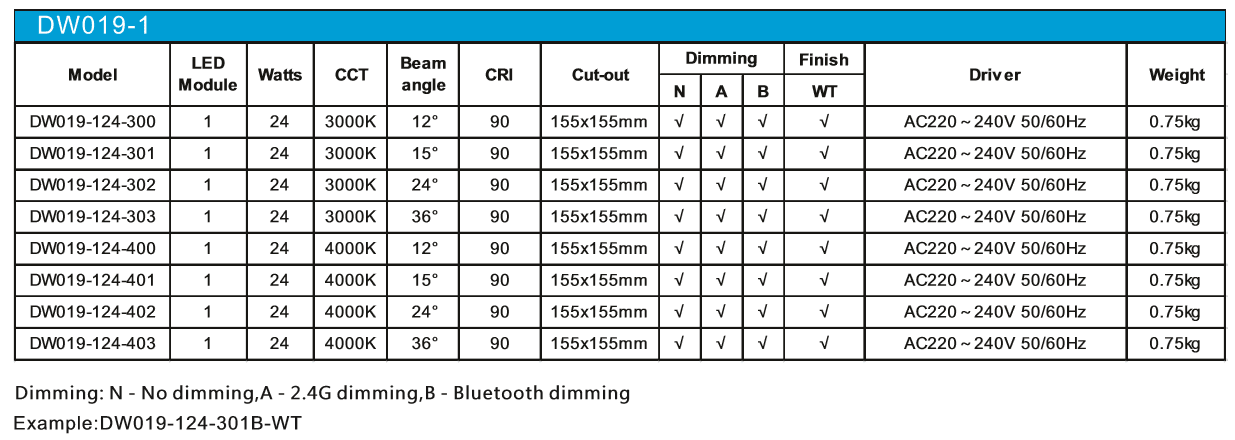

Specification:DW019-1 24w

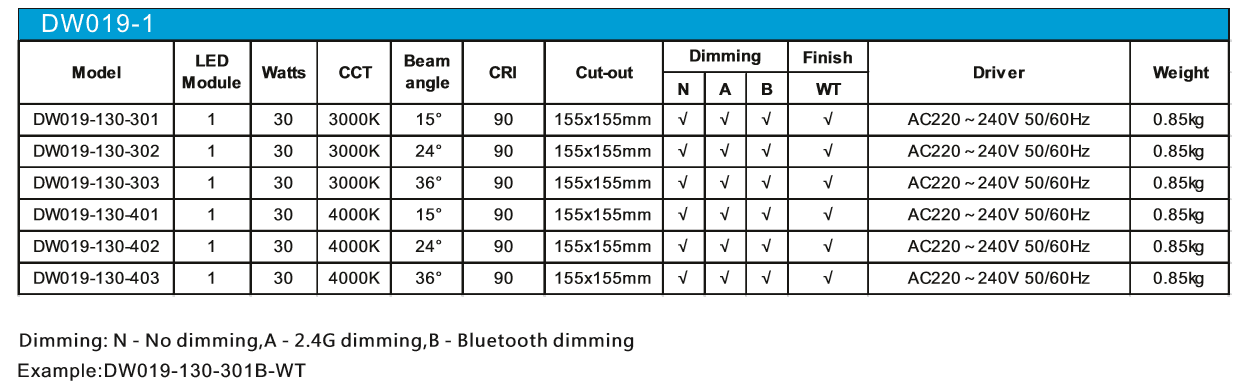

Specification:DW019-1 30w

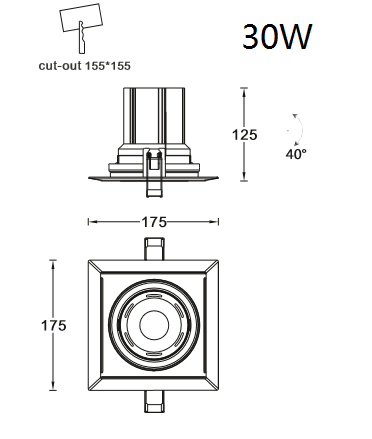

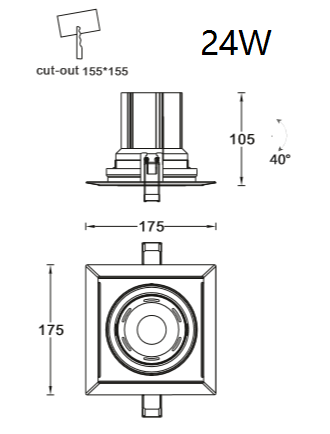

Product Sketch:

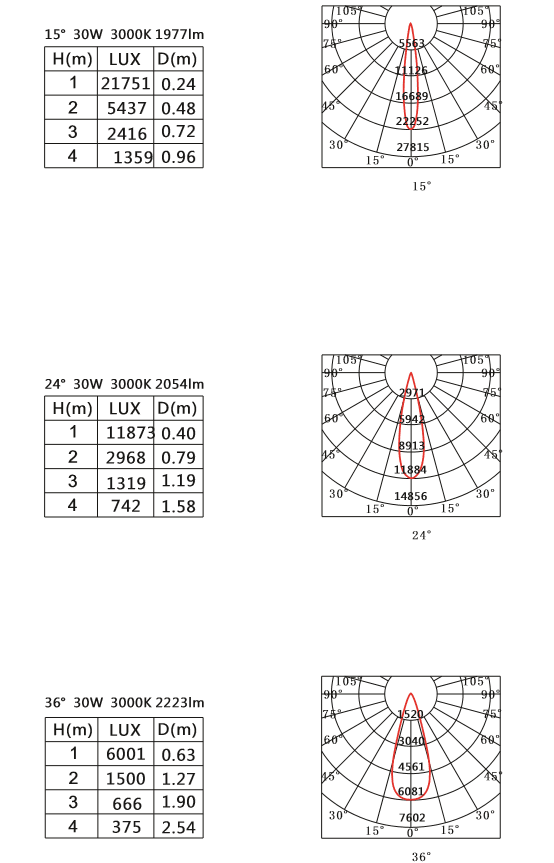

Photomatric Data:

Product Feature:

1.COB LED technology for maximum brightness

2.ANSI Compliant warm/neutral LED bins for a finer color consistency

3.40° vertical adjustment from which two cross rings

4.20°cut-off angle for glare control

5.Replaceable lens

6.Aluminum heat sink ,minimum profile trim in beautiful powder coated finishes

7.2mm thick trims mount to ceiling for thin profile look

8.Suitable for 5mm~25mm thick ceilings

9.Smooth and continuous 2.4G dimming and Bluetooth dimming

Installation:

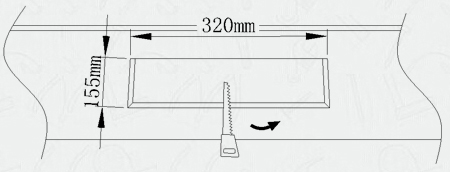

On the carrier (ceiling) according to the above size square shaped hole.	To the above picture, make the driving connected to the grid. (Electrical should turn off the power switch)

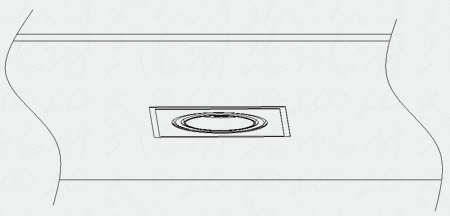

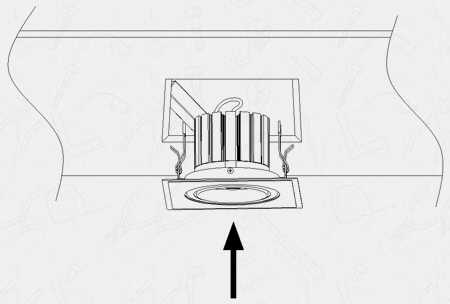

To show above, make the spring clamp pull up, pushing spring tongue up next to the square hole wall, until the lamp panel close to the ceiling.	Here the installation is completed. When you want to regulation, please use hand hold the lamp, and push it up to complete the adjustment of need angle.
