brand： |
Array |
type： |
Array |
size： |
152X150mm |
Product Details
Specification:
| Type | LED | Wattage (W) | Beam | Temperature | CRI | Voltage (Vac) | Life (H) | Size (mm) | Cutout (mm) |
| DW034 | LUMINUS COB | 18/24 | 12°/15°/20°/33° | 2700K/3000K/3500K/4000K/5000K | >80 | 220-240 | 30,000 | ∅152X150 | φ143 |
| SHARP COB | 18 | 12°/15°/20°/33° | 2700K/3000K/4000K/5000K | >80 | 220-240 | 30,000 | ∅152X150 | φ143 | |
| CREE COB | 30 | 15°/20°/22°/33° | 2700K/3000K/3500K/4000K/5000K | >80 | 220-240 | 30,000 | ∅152X150 | φ143 |

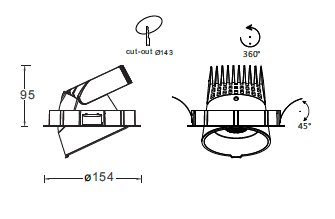

Product Size:

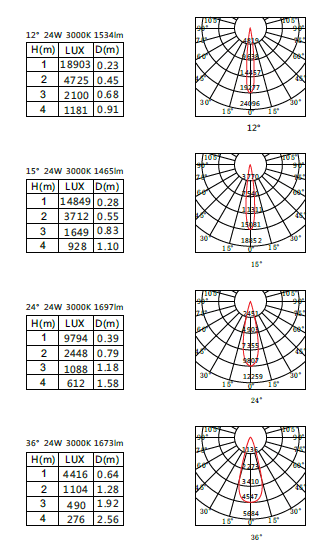

Photomatric Data

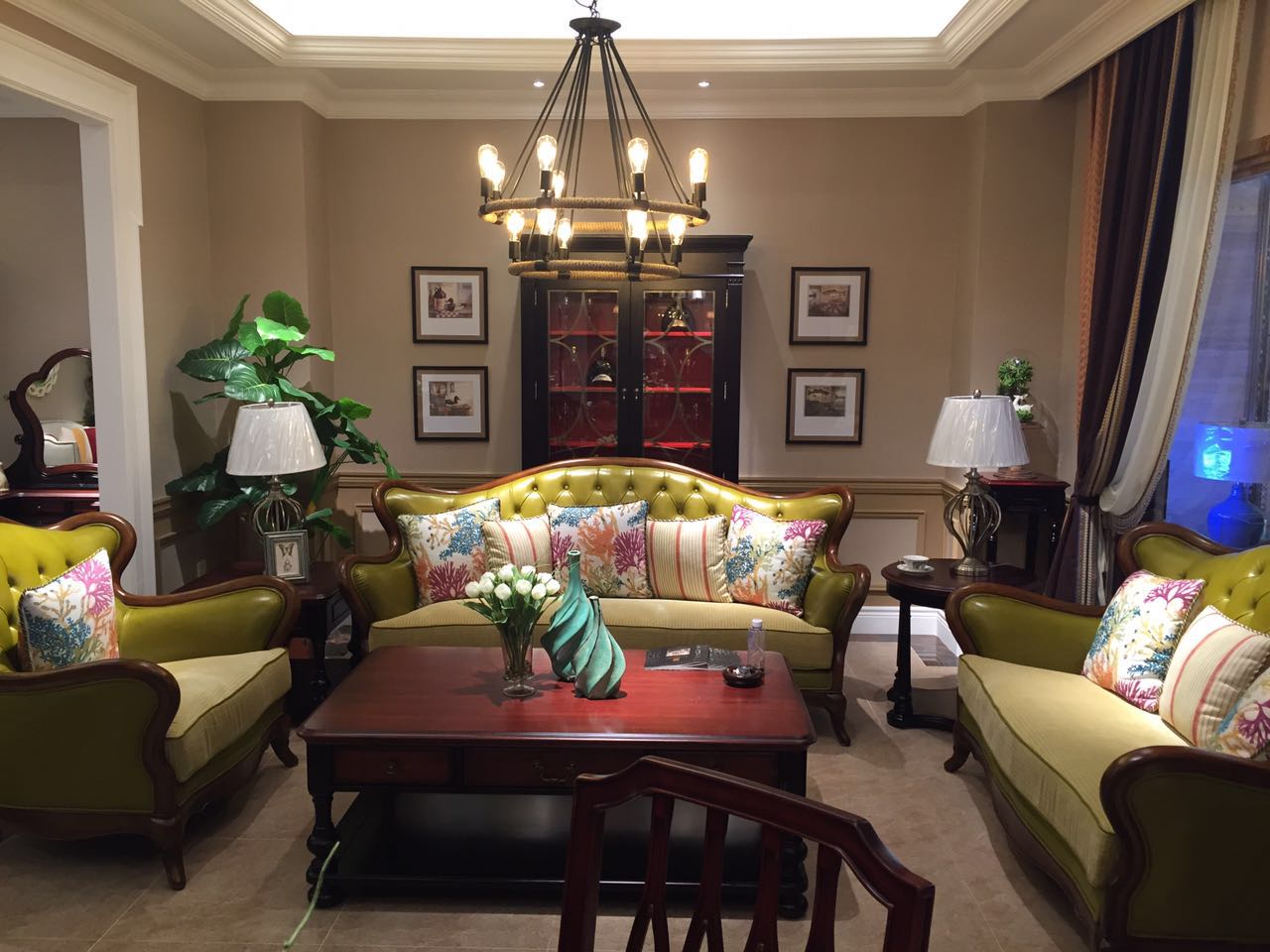

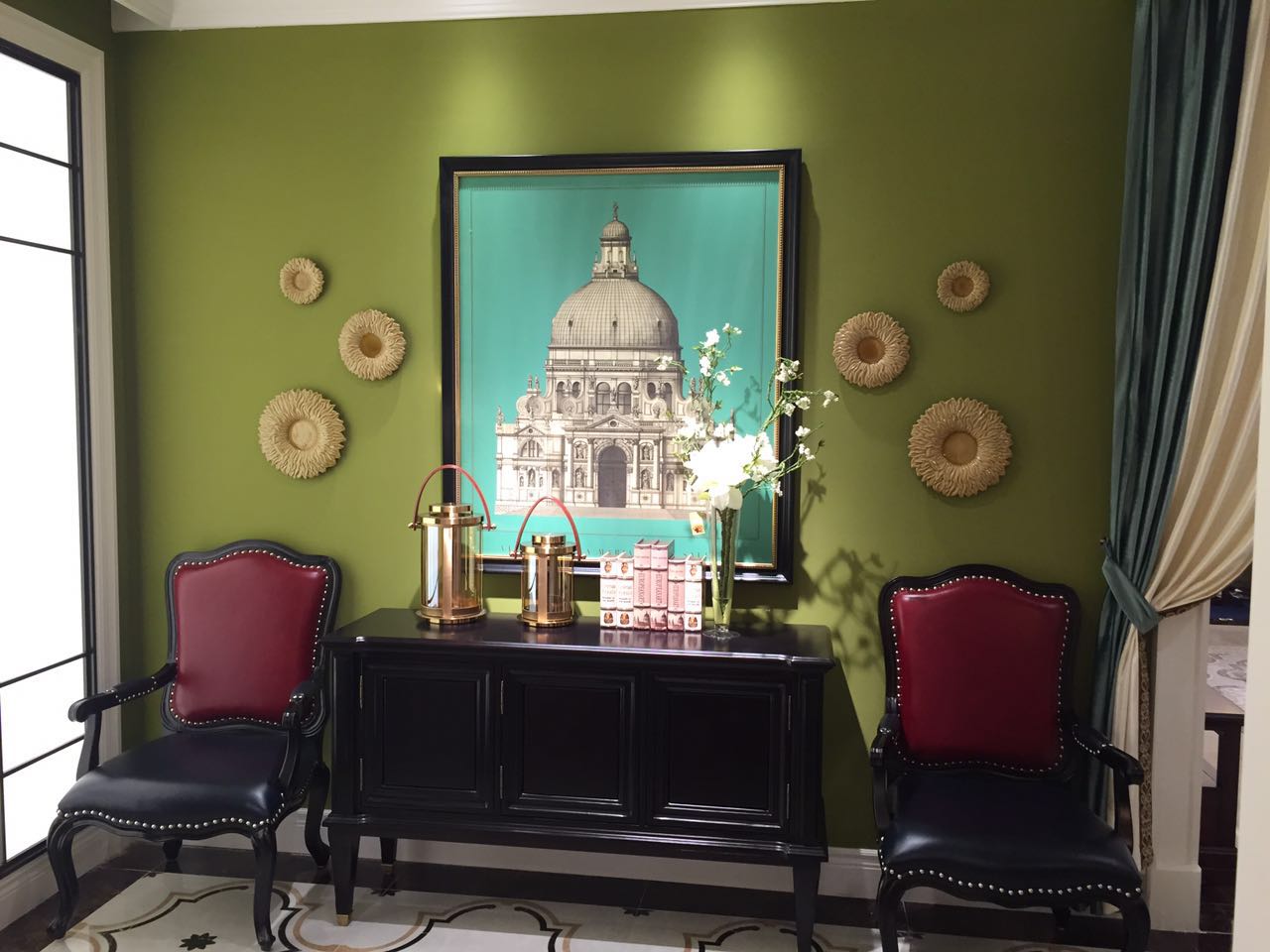

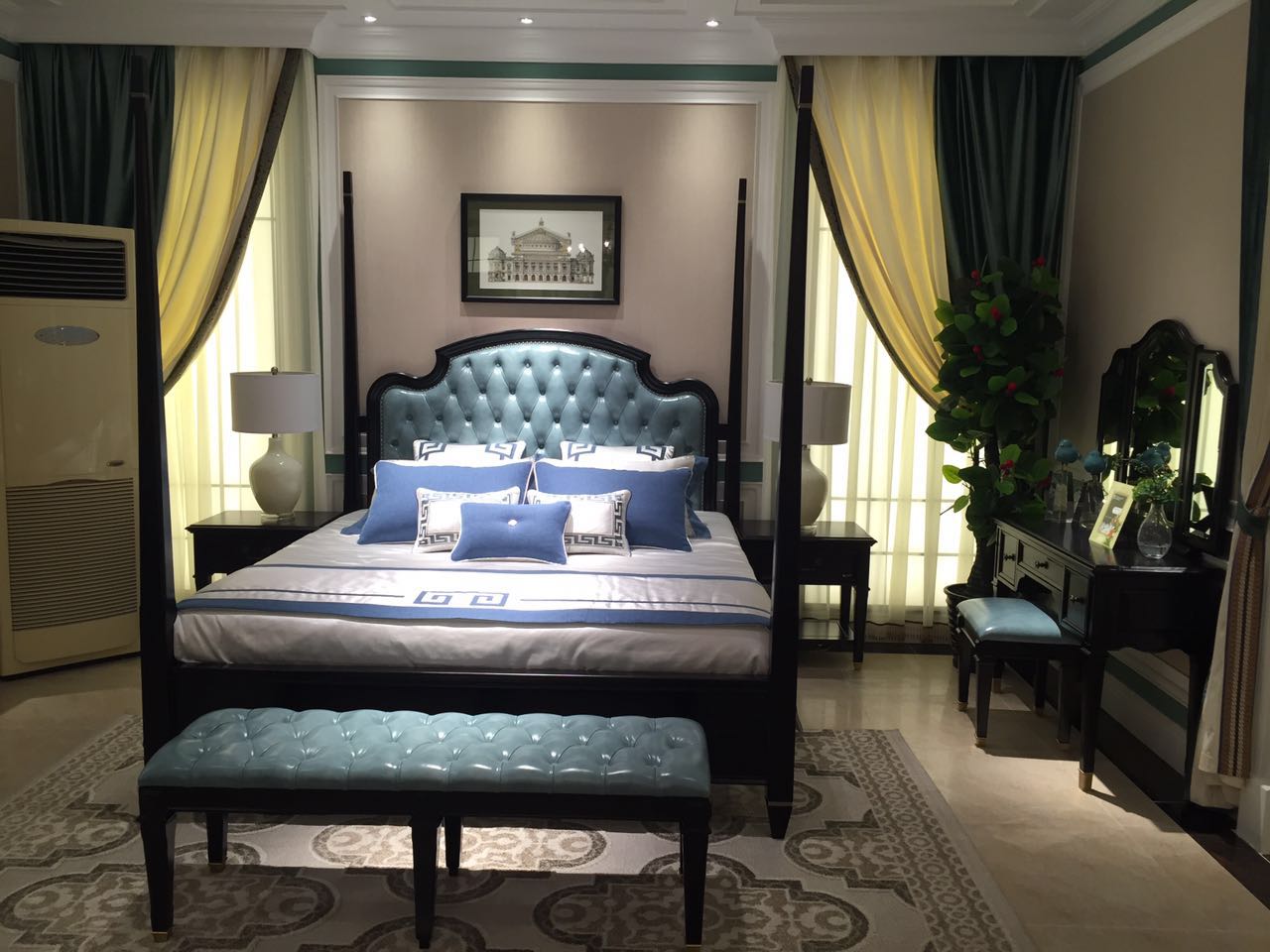

Application Cases:
Product Features:
1.COB LED technology for maximum brightness
2.ANSI Compliant warm/neutral LED bins for a finer color consistency
3.45° vertical adjustment from which two cross rings 4.20°cut-off angle for glare control
5.Replaceable lens
6.Aluminum heat sink ,minimum profile trim in beautiful powder coated finishes
7.2mm thick trims mount to ceiling for thin profile look
8.Suitable for 5mm~15mm thick ceilings
9.Smooth and continuous 2.4G dimming and Bluetooth dimming
- Delicate appearance, modeling unique, with deep modern breath.
- Lamp is made of industrial pure Al with sophisticated technology and durable quality.
- Imported LED light source of high luminous efficacy high color rendering and consistency the lighting is soft.
- Green light source and material no radiation no harmful substances saving energy and protecting environment.
- Low energy cost the energy saving is at least 8 times of same incandescent lamp.
- LED is low in power, less in energy cost, long in life high in reliability, good at heating dissipation and stability.
- Universal hinge can turn comprehensive adjustment high impact resistance features high durability.
- Easy installation simple and fast to adjust. More safety to use.
Our Projects:
DW034-24W-3000K-12°
| 0 degree |
| |||
| D(M) | LUX | W | L | |
| 1 | 23599 | 0.22 | 0.22 | |
| 2.5 | 3775 | 0.55 | 0.55 | |
| 3 | 2622 | 0.66 | 0.66 | |
| 5 | 943 | 1.09 | 1.09 | |
| 6 | 655 | 1.31 | 1.31 | |
