High Performance Flexible Linear Neon Light (DOTLESS) LG10S1225

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    Guangdong Shenzhen

  • Categories:LED Landscape Lamps
  • Validity Period:

    Long Term

  • Published on:

    2019-09-03 08:46

Other Products
Flexible 16.4’ 300 Diodes Pink Color LED Strip Light - DR-5050FX60-24P
¥Negotiable 6Views

Flexible 16.4’ 300 Diodes P

Recommend
Flexible 16.4’ 300 Diodes Amber Color LED Strip Light - DR-5050FX60-24A
¥Negotiable 5Views

Flexible 16.4’ 300 Diodes A

Recommend
Flexible 16.4’ 300 Diodes UV LED Strip Light - DR-5050FX60-24UV
¥Negotiable 17Views

Flexible 16.4’ 300 Diodes U

Recommend
Flexible 16.4’ 300 Diodes 420nm LED Strip Light - DR-5050FX60-24-420nm
¥Negotiable 24Views

Flexible 16.4’ 300 Diodes 4

Recommend
Flexible 16.4’ 300 Diodes 470nm LED Strip Light - DR-5050FX60-24-470nm
¥Negotiable 7Views

Flexible 16.4’ 300 Diodes 4

Recommend
You may like
  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

Guangdong Shenzhen

Min.Order:

none

Supply:

none

Valid until:

Long Term

Product Details

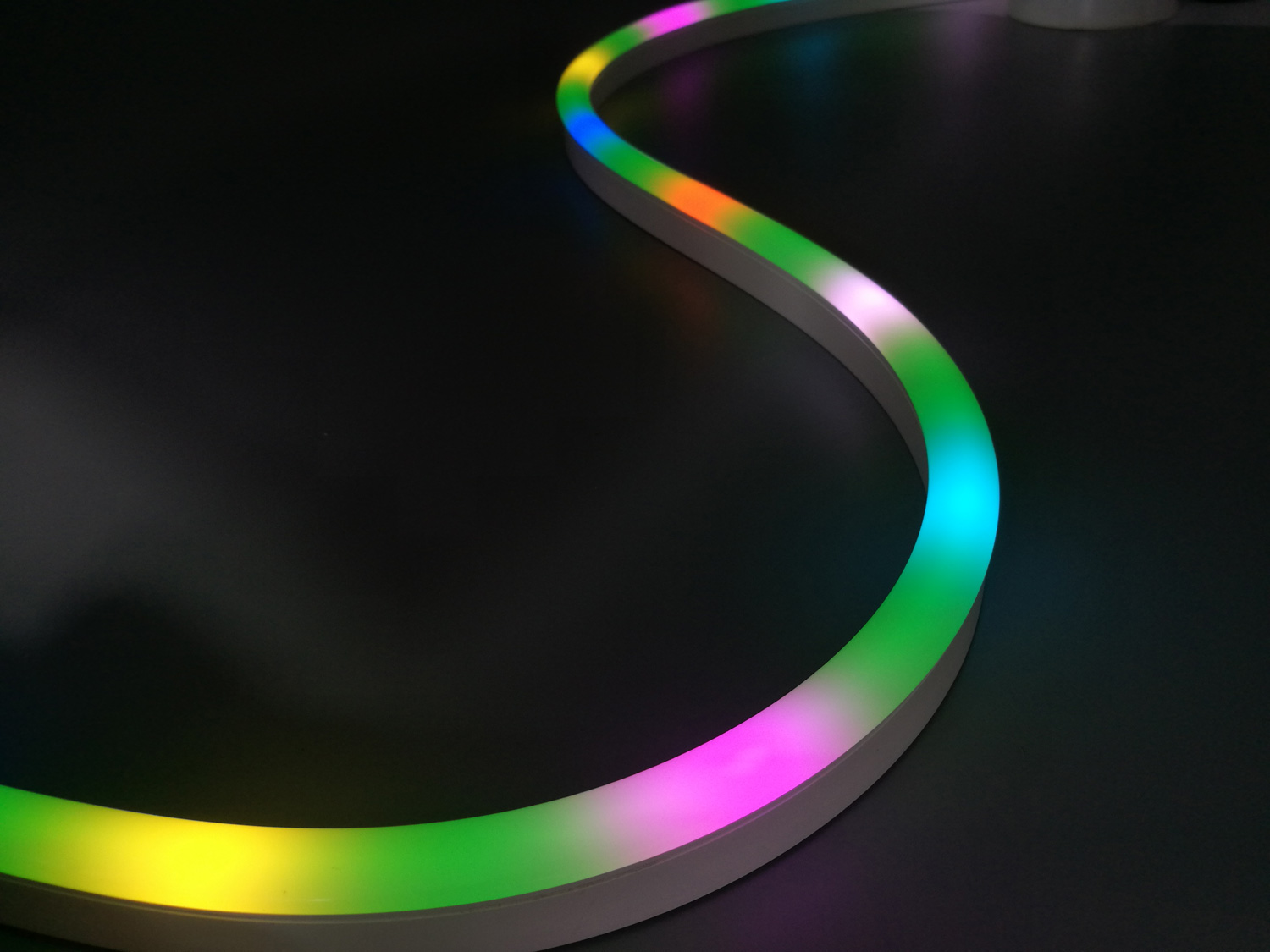

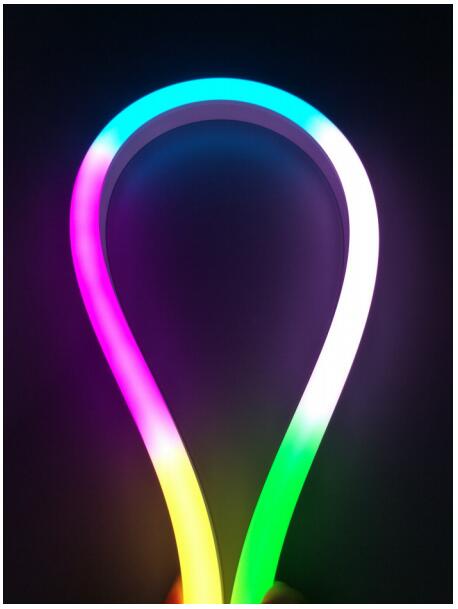

/  PRODUCT Description

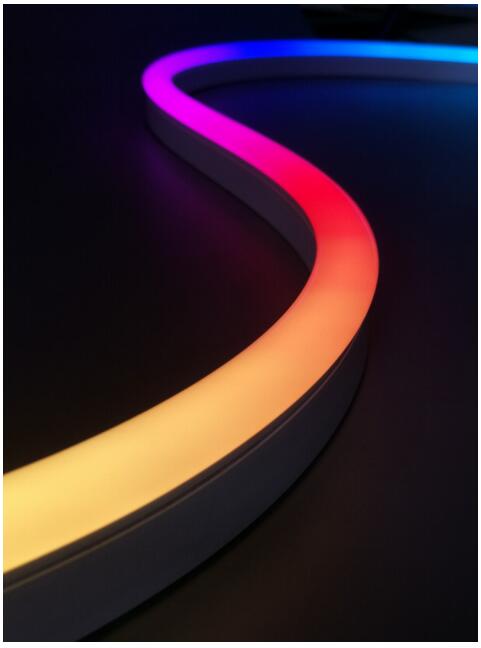

◆ High performance flexible linear neon light are Ip67 protected.



◆ It has efficient heat dissipation,brilliant color fidelity and is highly resistant to external influence due to it’s high quality, fully encapsulated finishing and silica’s stable performance compared to other materials.



◆ They have been extensively tested in numerous tests and provides robust resistance to salt, water, UV radiation,abrasion and chemicals.

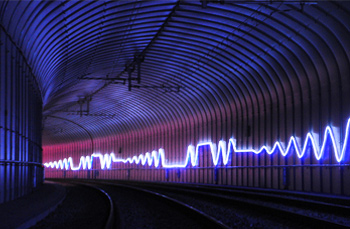

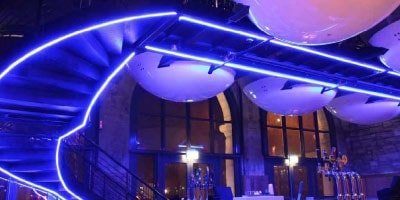

◆ As a result, this led neon light is ideally suited for numerous interior and exterior applications: from wellness,garden and landscaping, through to architectural lighting,maritime lighting and many more.







/  PRODUCT Features



1. Fully encapsulated, high quality and fully flexible LED strips with waterproof ratings Ip67.
2. Effective heat dissipation.
3. Compact dimension of only 6*12mm.
4. High efficiency with DeRun flexible high efficiency LED strip.
5. Resistant against water, chemicals, UV radiation and abrasion.

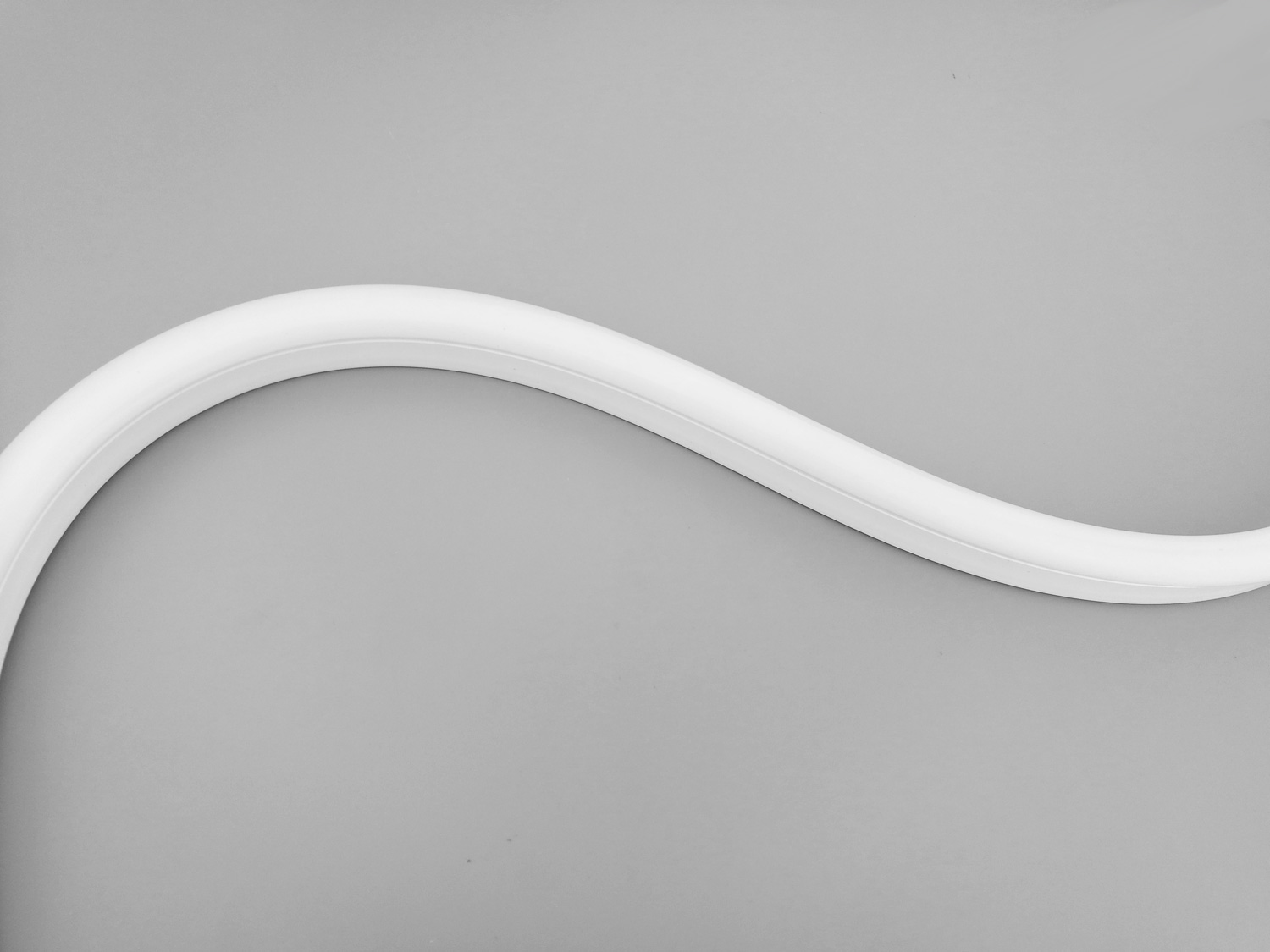

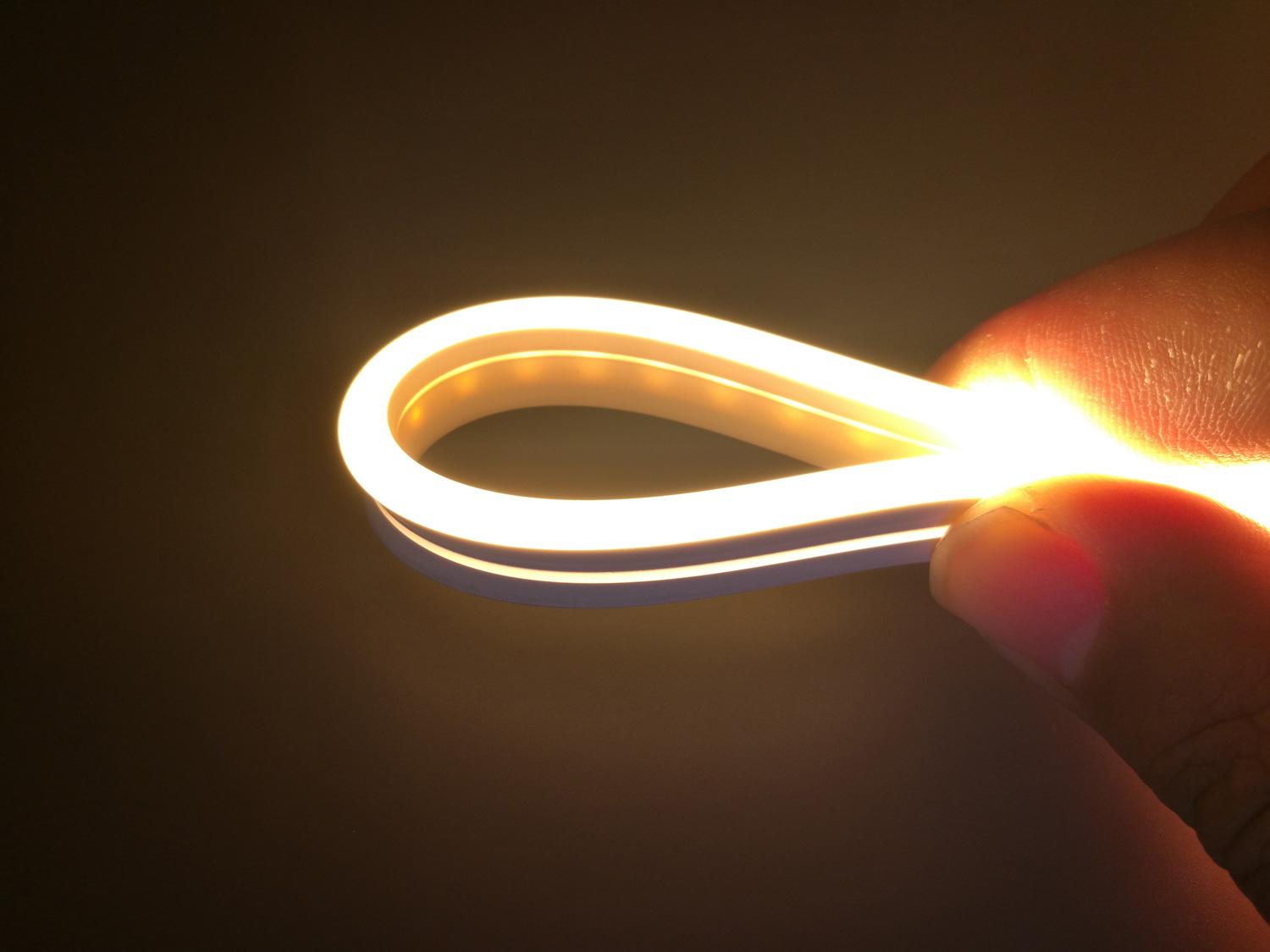

6. Small bending radius of only 15mm.
7. Non-toxic environmental protection, food grade silica just like baby pacifier.
8. Fire-protection rating V1.
9. Silica molecular structure stability ensure the coating yellowing resistant and no any changes for many years.
10. Mechanized production ensure high produc????on efficiency and avoid manual errors.
11. Punching end cap makes waterproof rating more high,give betier protection to soldering pad and it looks more beautiful.
12. 100% pure copper in FPC and high performance stable silica ensure a long LED lifetime.

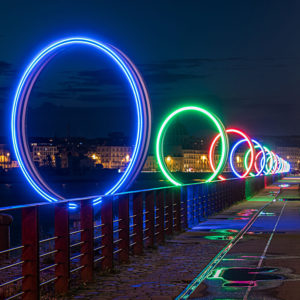

/ Application

Business premises lighting/Linear led lighting/Exhibition led lighting/Display led lighting/Bar led lighting/Home led lighting/Office led lighting/Led retail lighting/Accent led lighting/Pool led lighting/Architectural lighting/Led strip fixtures/Decorative lamp for outdoor lighting/ad. signs

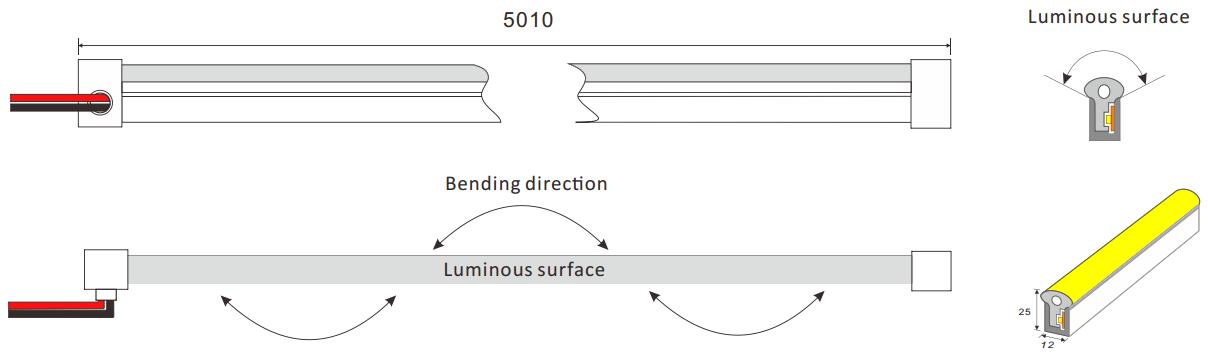

Dimension (mm)

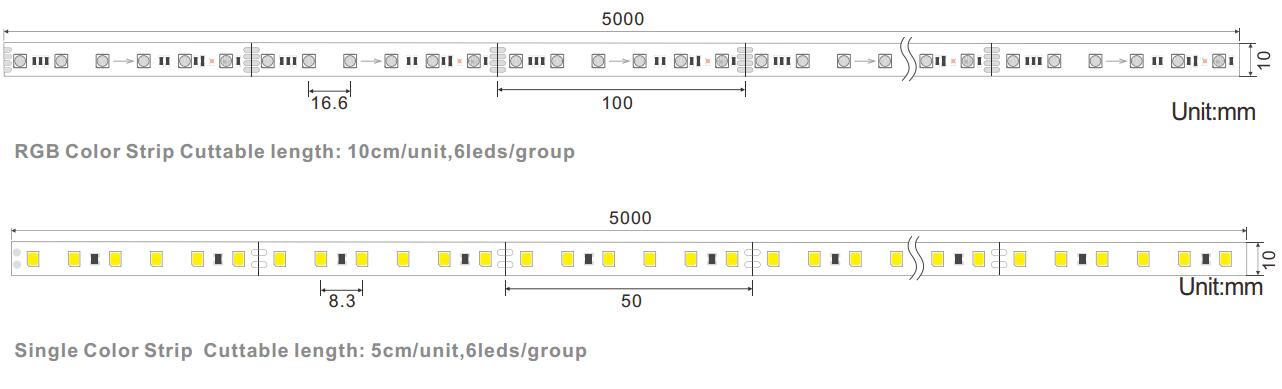

PCB Size

/  Parameter



Item No.CCT

Length

(mm)

LED QTY

Power

(W/M)

Input voltage

(V)

Lm/m

Beam

angle

IPCRI

Work

Temperature

WarrantyDimension
LG10S1225-WW3000K100012014DC24V330170°IP6783-20~45℃3 Years12*25mm
LG10S1225-NW4000K100012014DC24V380170°IP6783-20~45℃3 Years12*25mm
LG10S1225-W6000K100012014DC24V430170°IP6783-20~45℃3 Years12*25mm
LG10S1225-RRED100012014DC24V/170°IP67/-20~45℃3 Years12*25mm
LG10S1225-GGREEN100012014DC24V/170°IP67/-20~45℃3 Years12*25mm
LG10S1225-BBLUE100012014DC24V/170°IP67/-20~45℃3 Years12*25mm
LG10S1225-RGBRGB10006014DC24V/170°IP67/-20~45℃3 Years12*25mm





/  Accessories

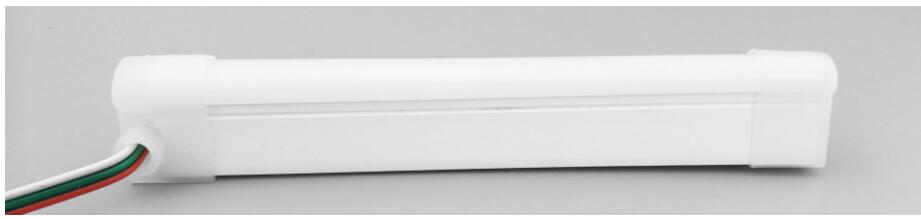

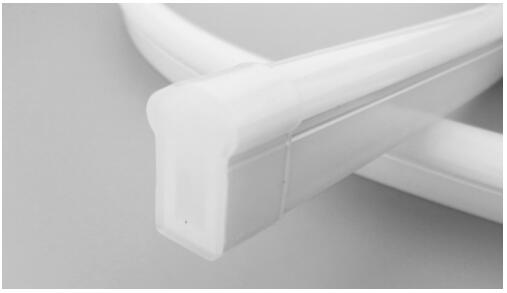

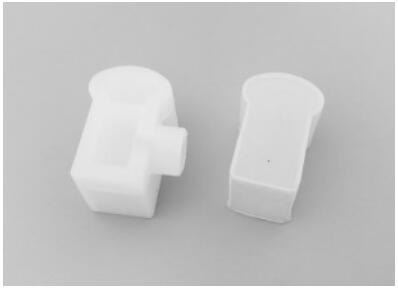

End caps

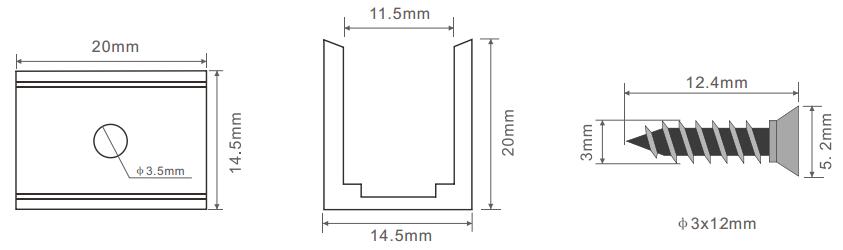

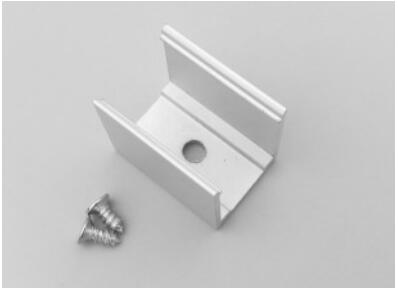

Install Clips





/  Installation instructions



Prepare the screws and fixed clips

Adjust the fixed clips to the Appropriate Place, use a screwdriver to fix the screw.

Put the light emiting surface Upwards, then insert the led strip Into the fixed clips.

Fix neon strip completely into the Fixed clip. LED Strip surface must be parallel to the top edge of fixed Clip.

Wiring diagram

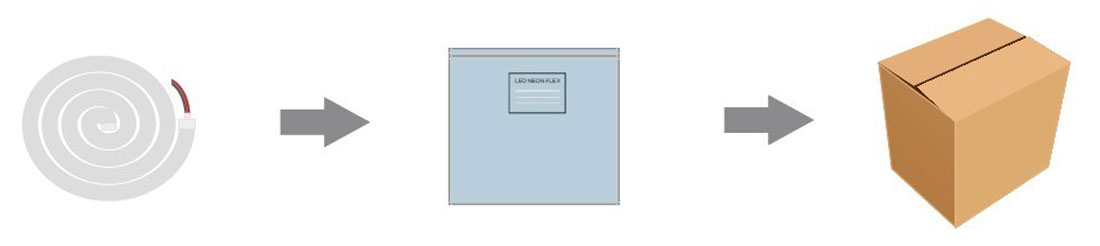

/ Packing
Different lengths are available!
Standard packing:
5m(16.4’) per roll. Gross weight: 0.55kg per roll. 10m(32.8’) per roll. Gross weight: 1.1kg per roll.
TypeItemNO.Neno Flex sizeCarton sizeEsdbagWeight/CartonQuanity/Carton
Neon StripLG10S122526x26cm30x60x60cm28x28cm0.55kg12kg





/ Fault inspection



No.Fault phenomenonPossible reasonsSolutions









1









All LEDs dark or discoloration

No power supply from driverPower delivery
Strip with reverse polarityCorrect wiring
External power supply bus short circuit,switching supply automatic short circuit protection powerExcluding short-circuit fault, re-transmission
Power fuse burnedReplace fuse



2



Parts led units dark or discoloration

No power supply from parts of driverCheck the power supply system, troubleshooting
Part of the light string supply line errorCheck the power supply circuit, troubleshooting





3





Uneven lumen output or short brightness

Overload powerAdd power
Switching power line lossyBold power wires, or adjust the power supply position(the distance light with closer position)Make sure the line voltage into the lamp every five meters in 95% of the rated voltage of the above
Excessive number of light strings connectedAdjusting the quantity of each supply branch of the lamp,Meet the requirements of each power supply circuit with the largest lamp
4LED flickerBad wiring contactsFind the bad element point, troubleshooting



5



Individual LED dark

Electrostatic breakdownDiscover the associated electrical and well grounded,replace the SMD.
Induction equipment breakdown (or leakage)Discover the associated electrical and well grounded,replace the SMD.





/ Disclaimer
Application notes for led flexiable strip

●  Please use 24VDC isolated power supply to drive the led strip, and the constant voltage source ripple less than 5%. Can't step-down the power by resistancecapacitance and nunisolated power supply driver led strip, etc.
  To ensure the longevity and reliability of the strips, please do not bend the arc diameter 60mm or less, do not fold to avoid damaging the lamp beads or broken.
  To ensure the life and environment of lights, in the use of force can not pull the power cord to avoid damage to prohibit collision LED lights.
  During the installation of positive and negative atiention to the power cord, do not pick the wrong voltage power supply and the product are the same, so as to avoid damage to the product.
  LED lights should be stored in dry sealed environment, the proposed storage period should not be too long before using unpacking, the working temperature: -20 ~ + 45 ,Storage temperature: -0 ~ + 60 , not waterproof lights band indoor use, relative humidity ℃ ℃ ℃ ℃ not higher than 70%.
  In practical applications, the power supply should leave 20% margin (recommend using only 80% of the power) in order to ensure a sufficient amount of voltage drive products
  Do not use any acidic, alkaline adhesive securement products (including not limited to glass, plastic, etc.)
