Product Details
CS-856 High-intensity obstruction light is designed for Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions over 150 meters to air traffic with a flashing white safety light. Optional multi lamp flashing using GPS synchronization or control panel.
Product Specifications
| Light intensity | 2,000cd (Night) , 20,000cd (Twilight), 200,000cd(Daytime) |
| Operation mode | Flashing 40-60 fpm |
| Light source | LED |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | ＜29W |
| Overall size(mm) | 389 by 153 by 326 |
| Mounting size | 190 by 80 by φ10 |
| Vertical Beam Spread | 3°~7° |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 7.5Kg |
| Emitting color | White |
| GPS sync flashing (optional) | Supports multi lamp flashing using GPS synchronization |
| Synchronized flashing (optional) | Supports multi lamp flashing with control panel |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
Product Features
◆ ICAO Certificate from USA Intertek. No.:103453730CRT-001TVOC.
◆ IP65 waterproof rating.
◆ Long life LED light source.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.
◆ 5KA/5 times, IMAX 15KA so that the light is suitable to harsh environment.
◆ Built-in circuit protect LED, extremely reliable and cost saving.
◆ Integrated design with built-in photocell.
◆ Supports multi lamp flashing using GPS synchronization or control panel (optional).

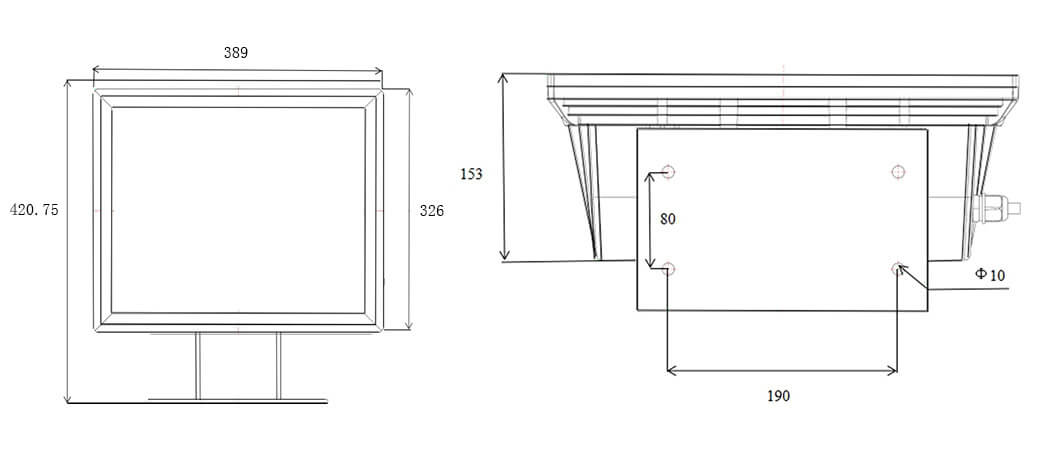

Product Dimension
Production Process
Electrical Test
Electrical Test of high intensity type A aviation light.
