Product Details
1.Product Description

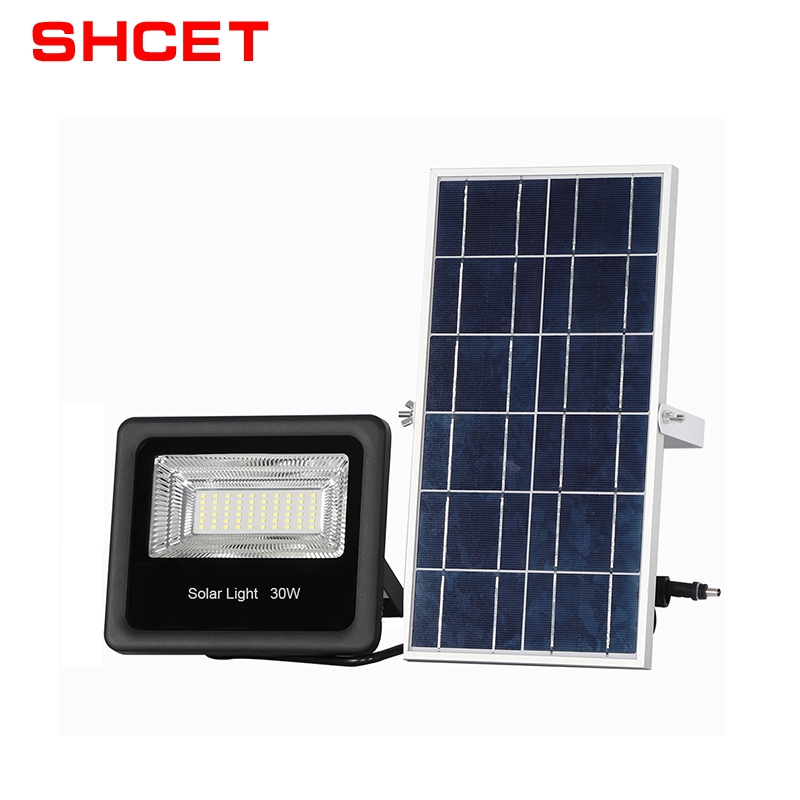

The solar powered LED flood light is designed for extended lighting operations. It can illuminate your space from dusk to dawn. This multifunctional LED floodlight can be equipped with different solar panels. It is often applied for outdoor lighting along roadways, gardens, farms, etc.
The solar LED flood light is available in 10W, 30W, 50W, 60W and 100W. Among them, the 10W LED floodlight features a lumen of 480lm, which equals to that of 100W incandescent light bulbs. You can choose your solar LED floodlight based on your actual requirements.
In mines, buildings, stadiums, overpasses, monuments, parks and other areas.
2.Specification
Solar LED Floodlight
| Model | CET-8810 | CET-8825 | CET-8840 | CET-8860 | CET-88100 |
| Solar Panel Voltage/Power | 6V 8W Polycrystalline Panels | 6V12W Polycrystalline Panels | 6V 16W Polycrystalline Panels | 6V 20W Polycrystalline Panels | 10V35W Polycrystalline Panels |
| Solar Panel Using Time | 25 years | 25 years | 25 years | 25 years | 25 years |
| Battery Type | 3.2V 4500MAH LiFePO4 | 3.2V 5000MAH LiFePO4 | 3.2V 10000MAH LiFePO4 | 3.2V 20000MAH LiFePO4 | 3.2V 30000MAH LiFePO4 |
| Battery Cycle Time | 2000 Times | 2000 Times | 2000 Times | 2000 Times | 2000 Times |
| LED lamp Power | 10W | 25W | 40W | 60W | 100W |
| LED Light Source | 5730SMD | 5730SMD | 5730SMD | 5730SMD | 5730SMD |
| LED Lamp Size | L265xW175mm, A128xB160mm | L340xW175mm, A158xB205mm | L290xW340mm, A200xB252mm | L350xW350mm, A225xB280mm | L580xW360mm, A262xB326mm |
| LED Color Temperature | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K |
| LED Lamp IP Grade | IP65 | IP65 | IP65 | IP65 | IP65 |
| LED Lamp Material | Aluminum Alloy+glass | Aluminum Alloy+glass | Aluminum Alloy+glass | Aluminum Alloy+glass | Aluminum Alloy+glass |
| LED Lamp Using Time | 50000 hours | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
| LED Lighting Area | 50m2 | 70m2 | 150m2 | 200m2 | 270m2 |
| Install Height | 0-8 meters | ||||
| Charging time | 5-7 hours | ||||
| Lighting time | Low power 30 hours; High power 12-15 hours | ||||
| Sensor Area | 15 meters | ||||
| Switch | Intelligent Remote Control(in the evening, the light turn on, in the day time, the light turn off Automatically) | ||||
| Mode | Light Induction+Intelligent Remote Control | ||||
Solar LED Floodlight
| Model | CET-10830A | CET-10850B | CET-108100C | CET-108150D |
| Solar Panel Voltage/Power | 6V 8W Polycrystalline Panels | 6V15W Polycrystalline Panels | 6V 20W Polycrystalline Panels | 10V 35W Polycrystalline Panels |
| Solar Panel Using Time | 25years | 25years | 25years | 25years |
| Battery Type | 3.2V 5000MAH LiFePO4 | 3.2V 10000MAH LiFePO4 | 3.2V 20000MAH LiFePO4 | 3.2V 30000MAH LiFePO4 |
| Battery Cycle Time | 2000Times | 2000Times | 2000Times | 2000Times |
| LED lamp Power | 30W | 50W | 100W | 150W |
| LED Light Source | 2835SMD | 2835SMD | 2835SMD | 2835SMD |
| LED Lamp Size | A195*B165mm | A230*B195mm | A297*B250mm | A355*B290mm |
| LED Color Temperature | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K | 3000-3500K; 6000-6500K |
| LED Lamp IP Grade | IP65 | IP65 | IP65 | IP65 |
| LED Lamp Material | Aluminum Alloy+lens | Aluminum Alloy+lens | Aluminum Alloy+lens | Aluminum Alloy+lens |
| LED Lamp Using Time | 50000 hours | 50000 hours | 50000 hours | 50000 hours |
| LED Lighting Area | 130m2 | 180m2 | 230m2 | 270m2 |
| Install Height | 0-8 meters | |||
| Charging time | 5-7 hours | |||
| Lighting time | Low power 30 hours; High power 12-15 hours | |||
| Switch | Intelligent Remote Control(in the evening, the light turn on, in the day time, the light turn off Automatically) | |||
| Mode | Light Induction+Intelligent Remote Control | |||
Solar LED Floodlight/Street Light
| Model | CET-FL-ZS 100W | |
| Solar Panel Voltage/Power | 6V18W Polycrystalline Panels | |
| Battery Type | 3.2V 20000MAH LiFePO4 | |
| Battery Cycle Time | 2000Times | |
| LED lamp Power | 100W | |
| LED Light Source | 2835SMD | |
| LED Lamp Size | 210x110x50mm | |
| LED Color Temperature | 3000-3500K; 6000-6500K | |
| LED Lamp IP Grade | IP65 | |
| LED Lamp Material | Metal+lens | |
| LED Lighting Area | 200m2 | |
| Install Height | 4-8 meters | |
| Charging time | 5-7 hours | |
| Lighting time | Low power 30 hours; High power 12-15 hours | |
| Switch | Intelligent Remote Control(in the evening, the light turn on, in the day time, the light turn off Automatically) | |
| Mode | Light Induction+Intelligent Remote Control | |
3.Intelligent remote control
1. Automatic mode light control opens at night automatically
2. Opens when dark then will close automatically after 3H
3. Opens when dark then will close automatically after 5H
4. Opens when dark then will close automatically after 8H
5. Full light mode
6. Half-light mode
7. Full light open (light control open)
8. Full light closed (light control closed)
4.Installation Guide
1.Loosen the screws on the bracket, and mark the drilling position on the installation site.
2.Drill a hole on the marked position.
3.Attach the bracket to the installation site using screws.
4.Attach the lighting fixture to the bracket using screws.
5. Technological Process
6.More Products
7.Application
Main applications: billboards, highways, railway tunnels, bridges and culverts, squares, buildings, etc.
8.Packaging&Shipping
9.CERTIFICATE
10.FAQ
Q1: Can I have a sample for testing?
A: Yes, we can offer free sample, but you should afford the shipping cost.
Q2: Can I add my logo on the products?
A: Yes, OEM and ODM are available for us.
Q3: How can I get the after-service?
A: We will send you the free spare parts if the problems caused by us. If the products cannot be repaired, we will send you new free quantity together with next order.
Q4: Do you have inspection procedures for products?
A: our products100% self-inspection and testing before packing.
Q5: Can I have a visit to your factory before the order?
A: Sure, welcome to visit our factory.Here is our factory address: #7 Tongyi Industrial Area, Zhongshan City, Guzhen.Our factory is near Guangzhou airport, and we can pick you up in the airport, Hotel booking service is available.
Q6: How about delivery time of the order?
A: 15-20 days after getting deposit.
Q7: How about payment terms?
A: 20%-30% deposit, the rest payment balance against B/L. If have regular order and good order quantity, we can give delay payment.
