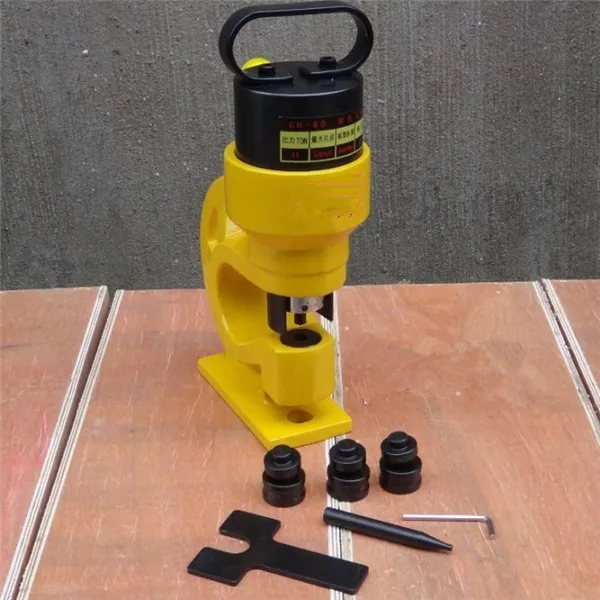

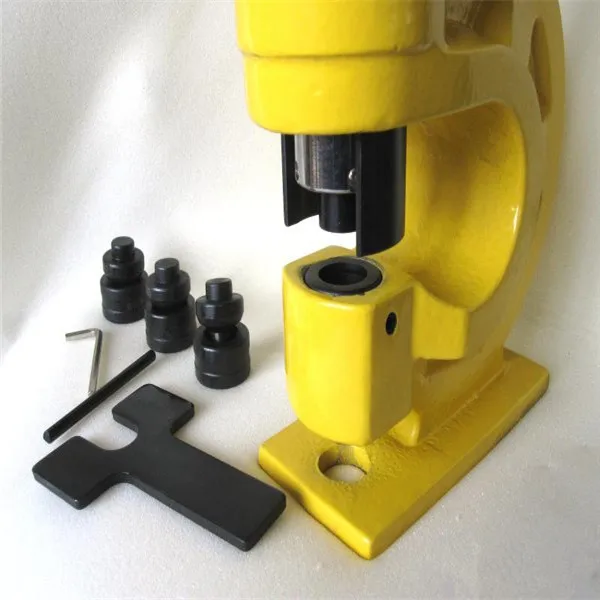

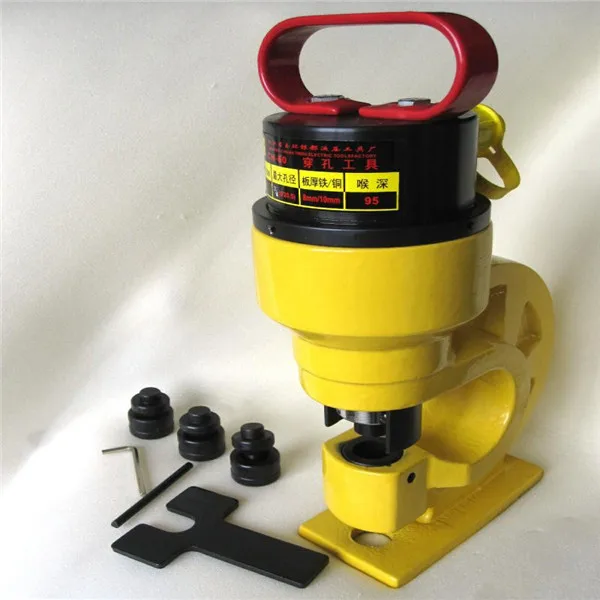

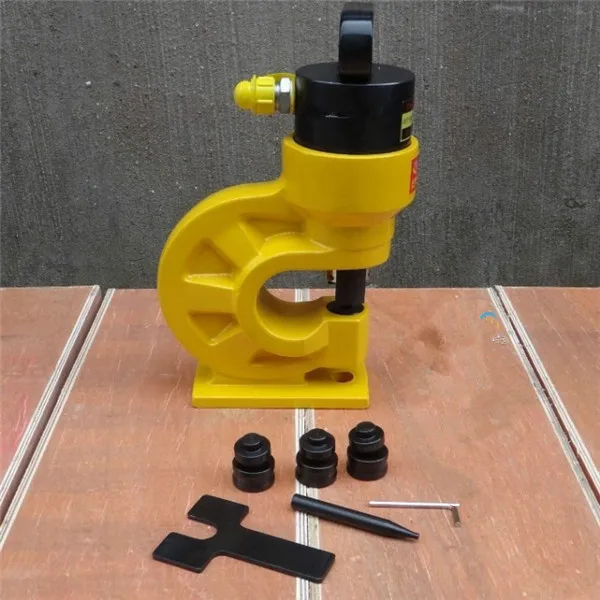

CH-60 Split-unit hydraulic puncher hole machine

CH-60 Punching the different kind of metal sheet up to 10mm

CH-60 Hydraulic punching tool for punching hole on 10mm below metal plate.

Max thickness of sheet: 10mm

Punching force:31KN

Depth of throat:95mm

Weight:approx.18kgs

ACCESSORIES:

3/8"(ø10.5mm),1/2"(ø13.8mm),5/8"(ø17mm),3/4"(ø20.5mm)

Another type

FM-YP8

Punching force:30T

Hydraulic Power required: 63MPa, 0.52 L/min

Connecting with threaded connector PT3/8”-19
Throat depth: 95 mm

Punching capacity: 8 mm mild steel, 10 mm cupper and Alumiunm

Net Weight: 15KG
Standard Accessories: 4 sets of round hole punching die for Dia. 7.0mm, 9.0mm, 11.00mm and 13.00mm
