Type：	Array

Product Details

Overview

Quick Details

Type:: LED linear high bay

Certification:: ETL DLC

Model Number:: HG-L225

Working Temperature(℃):: -25-55

Working Lifetime(Hour):: 50000

Beam Angle(°):: 106

Input Voltage(V):: 120-277

Light Source:: SMD2835

CRI (Ra>):: 80

Lamp Body Material:: Iron+PC

IP Rating:: IP20

Application:: WAREHOUSE

Support Dimmer:: 0-10V

Dimension:: 2FT 4FT

Color Temperature(CCT):: 4000K,5000K,5700K

Lamp Luminous Efficiency(lm/w):: 130

Sensor and emergency kits:: available

lamp boday meterial:: Iron sheet

Light source:: SMD2835

usage:: house, factory, store,industrial use

Output lumen:: 42250lm

certificate:: ETL DLC

Size:: 4ft

Power:: 325W

Supply Ability

Supply Ability:: 3000 Piece/Pieces per Day LED linear high bay

Packaging & Delivery

Packaging Details: 1.Standard export carton
2.pallet
3.wood case

Port: Zhongshan/Guangzhou/Shenzhen

Lead Time:

Quantity(Pieces)	1 - 1000	1001 - 3000	3001 - 5000	>5000
Est. Time(days)	30	40	48	To be negotiated

LED linear high bay Led Fixture Light

Product Description

CONSTRUCTION

Die formed of 0.6mm cold-rolled steel body

All steel surface are painted after fabrication with high gloss backed white matte powder painted

High reflectance backed white acrylic paint finished

High-diffusion light-milky PC difuser

ELECTRICAL

All electrical components are UL approved, Input Voltage from 120-277V

SMD2835 LED Chips

Nextech 120-277V 1-10VLED Driver

5 years Warranty

LABELS

CE. UL and cUL Listed. approved for dry/damp location unless otherwise noted

OPTIONS:

1-Available for dimmable version

2-Available for emergency version

3-Available for installing with sensor

LIGHT DISTRIBUTION

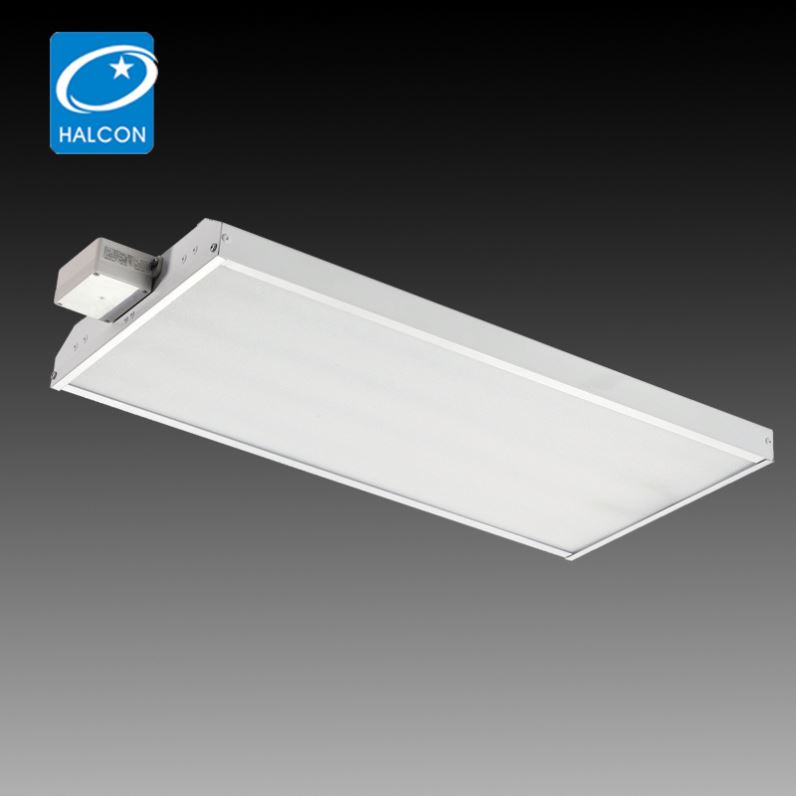

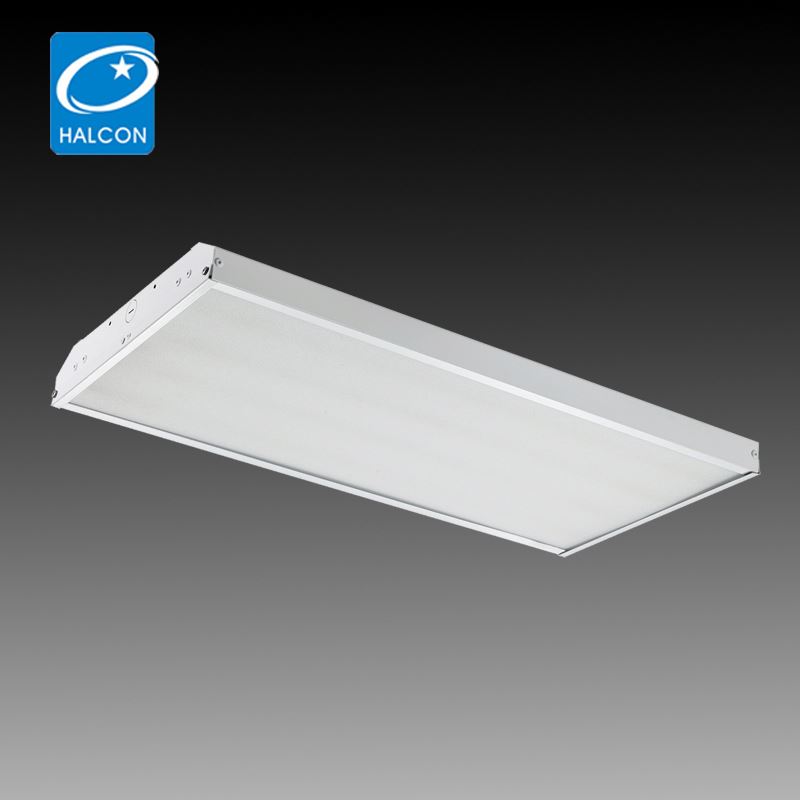

Product picture

Installation Sheet

Packaging & Shipping

PACKAGE/WEIGHT

Model No	Master Carton Size	Qty/Carton	Net Weight	Gross Weight
	(LxWxH)	(pcs)	/pcs	/pcs
HG-L225-80W/2ft	25.78"X14.37"X6.69" 655365170 mm	2	4.48kg/9.88lbs	10.20kg/22.50lbs
HG-L225-100W/2ft	25.78"X14.37"X6.69" 655365170 mm	2	4.48kg/9.88lbs	10.20kg/22.50lbs
HG-L225-140W/2ft	25.78"X19.09"X6.69" 655485170 mm	2	5.25kg/11.57lbs	12.16kg/26.8lbs
HG-L225-165W/2ft	25.78"X19.09"X6.69" 655485170 mm	2	5.25kg/11.57lbs	12.16kg/26.8lbs
HG-L225-165W/4ft	47.83"x14.37"x6.69" 1215365170 mm	2	6.80kg/14.99lbs	17.14kg37.79lbs
HG-L225-225W/4ft	47.83"x14.37"x6.69" 1215365170 mm	2	6.80kg/14.99lbs	17.14kg37.79lbs
HG-L225-320W/4ft	47.83"x19.09"x6.69" 1215485170 mm	2	8.80kg/19.40/lbs	21.18kg/46.69lbs

Trade Terms: FOB Zhongshan

Shipping:By sea/by air/by DHL,Fedex,UPS and so on

Ports: Zhongshan, Shenzhen, Yantian, Shekou, Guangzhou

Payment terms:T/T /L/C at sight

Sample: availiable

Production capacity:3000pcs/day

MOQ:100PCS

Sampe lead time:7-10 working days after receipt of payment

Delevery time:30-35 working days after receipt of deposit

Packing:Export carton with foam
