Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Daier

Model Number:: GQ12H-10EM

Protection Level:: IP67, IP67

Max. Current:: 5A, 5A

Max. Voltage:: 250VAC, 250VAC

Item:: IP67 High Ring Illuminated 12mm Mini Automotive Push Button Switches

Material:: Metal

Function:: Momentary

LED Color:: Red/Yellow/Green/Blue/White

Housing Color:: Sliver/Black

Electrical Life:: 100,000Cycles

Free Sample:: YES

Packaging & Delivery

Selling Units:: Multiple of

Package size per batch:: 18X15X5 cm

Gross weight per batch:: 1.8 kg

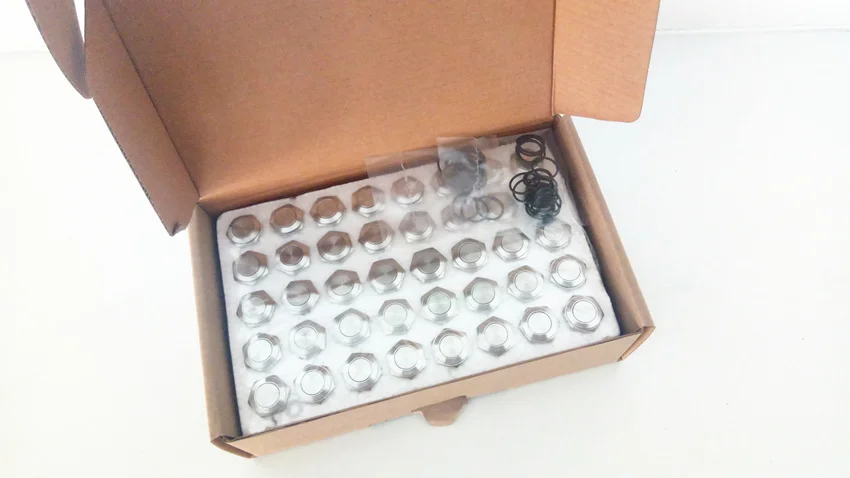

Package Type:: 40pcs/box of IP67 1NO High Button Ring Illuminated 12mm Mini Automotive Push Button Switches

Picture Example:

Lead Time:

Quantity(Piece)	1 - 40000	>40000
Est. Time(days)	10	To be negotiated

Product Description

Model	GQ12H-10EM
Operation Type	Momentary
Material	Metal
Degree of Protection	IP67
Contact Type	1NO
Maximum Voltage	250VAC
Thermal Current	5A
Light Color	Red/Green/Yellow/Blue/White
Light Voltage	2V/5V/12V/24V/36V/220V
Minimum Applicable Load	5V AC/DC,1mA
Terminal Style	.110" Solder/Quick Connect
Operating Temperature	-25°C ~+55°C
Operating Humidity	45%~85% RH
Contact Resistance	50mΩ max.
Insulation Resistance	100mΩ min. (500V DC megger )
Electrical Life	100,000 operations min. (at full rated load)

Product Show

GQ12H-10EM
IP67 1NO High Button Ring Illuminated 12mm Mini Automotive Push Button Switches

Specifications:
1. Rating: 5A 250V
2. Function: Momentary
3.Contact Resistance: 50mΩ Max
4. Insulation Resistance:100Ω Min
5. Dielectric Strength: 2000VAC
6. Operating Temperature:-20°C~+55°C
7. Electrical Life: 100,000 Cycles
8. Operating Force: 5.5N

Push Button switch is one of the most easy and quick to operate.

The Switches, buttons are more attractive in appearance and the material that are used illuminative its surface, labeled as graphic convenience, operating the switch lead to the user satisfaction, can also be used in SMART CAP system where one can input device products, this is definitely the best choice for designers
