Product Details
1.After unpacking, remove lamps, clean dust and fixing the lamp holder in installation position, connect the power line, wiring must be sealed to prevent leakage.

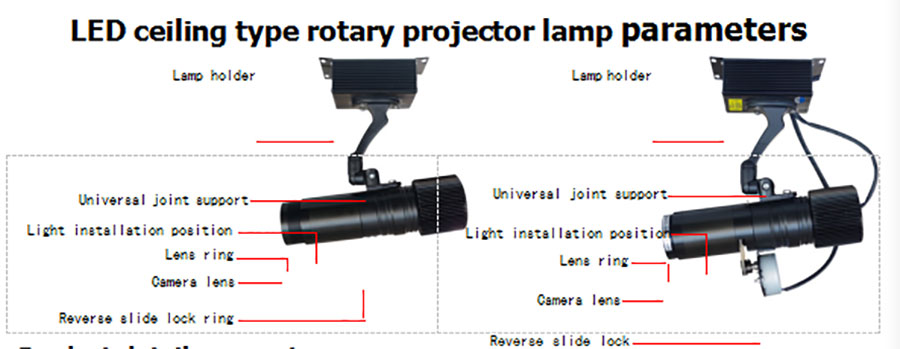

2.Loose joint support makes the camera projection plane, and then lock the universal bracket, without locking screws before please do not force the body, prevent the support links apart.
1.Pictured above will loosen the lock ring to rotate the camera lens until the pattern is clear, be careful not to touch the lens so as not to leave fingerprints, and then lock the lens ring fixed lens.
2.Adjust the direction of pattern will slide lock screw out the direction, adjusting the light tube through the installation area is the direction of pattern rotating lens barrel, and then lock the slide direction of the lock ring.
3.Careful lens and light tube installation area, in the rotation process can not be completely screwed out of the lens and the mirror, so as not to break.
The lens distance and imaging length ratio is 1:0.3, which is 1 meters projected 0.31 meters, 3 meters and 0.93 meters of projection, and so on.
Children's playground, water scenery, restaurant, cafe, tea shops, cinemas, private clubs, bars, conference and other places.
Can be placed on the table or on the floor, or ceiling installation, with screws locked on the ceiling or with a tie and wire tied to the keel.
Note: in the lamp work after a period of time, such as the need to replace the light, do not open the lid directly touch the light pattern, so that should be fully burned. After cooling operation. After the installation of lamp replacement, especially waterproof case, must be waterproof silicone and screw together tighten.
Model | HY-LED10 | Beam angle | 15°/20°/25° |
Name | LED ceiling type rotary projection lamp | Projection distance | 1-10m(Dark environment) |
Type of light source | LED(CREE)a single | Protecetion level | IP20 |
Light source power | 10W(Optional) | Light source life | 30000h |
Material | Aluminum+oxidation Surface treatment | Power type | Meanwellpowe(optional) |
Rated voltage | 100v-220v(Optional) | Weight | 1.5kg |
Luminous flux | 1000Lm | Lamp size | 39*20*15cm |
Color temperature | 3000K(Optional) | Inner packing box | 39*20*15cm(1pcs) |
Lightspecific ations | 37.5/20mm | Outer packing box | 39*40*30cm(4pcs) |
◆When using this lamp, please pay attention to the applicable places, indoor lamps and lanterns is strictly prohibited to install outdoor.
◆When the lighting installation must ensure good ventilation,so as not to affect the service life of lamps.
◆Install, check or remove the lamp before, be sure to cut off the power supply.
◆Please do not face the lamp out of the light, so as not to damage the eyes.
◆Please do not exceed the rated voltage of power supply
