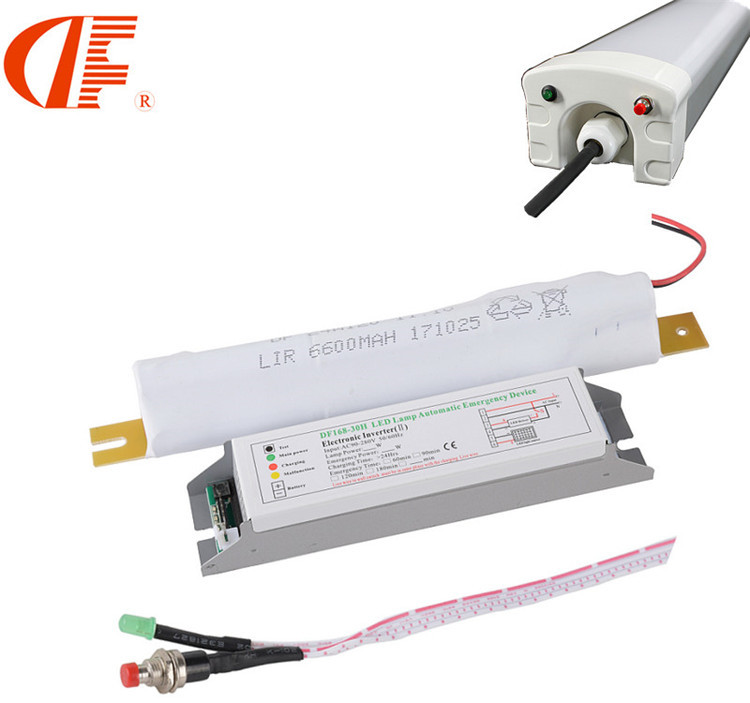

LED emergency power supply DF168-30H emergency kit for 18W led light (temergency ballast +battery)

  • Unit Price: Negotiable
  • Brand:

  • Origin:

    China

  • Categories:Emergency Lighting
  • Validity Period:

    Long Term

  • Published on:

    2019-10-16 14:53

  • Product Description
  • Company Overview

Product Information

Brand:

none

Address:

China

Min.Order:

none

Supply:

none

Valid until:

Long Term

Branch:

Array

Size:

47X33X20 cm

Product Details

Overview
Quick Details
Place of Origin:
Jiangxi, China
Brand Name:
DENGFENG
Bulb Type:
LED
Battery Type:
Ni-Cd Ni-MH
Material:
Plastic
Usage:
Office emergency lights
Certification:
CE/ROSH/FCC
Specifications:
Max 25
Input Voltage:
90V-265VAC 50/60HZ
Output Voltage:
DC18V-80V
Battery Voltage:
11. 1V
Emergency Operation Duration:
> 90minutes with Customized
Power Factor:
>0. 85
Charge Time:
>24hrs
Inverter Size:
168*38 *28mm

Packaging & Delivery

Selling Units:
Single item
Single package size:
47X33X20 cm
Single gross weight:
1.0 kg
Package Type:
Selling Units:Single item Single package size: 39X33X13 cm Single gross weight:10.0 kg Package Type:Paper Emergency packs package with single set, 5 sets for 1 carton(below 10kg)
Lead Time:
Quantity(Piece)1 - 50>50
Est. Time(days)7To be negotiated



Model Number:DF168-30H

Highlight Features
- Suit to a wide range of external driver led light.
-Suit maximum 100w light and has max 25w emergency power output.
- Support Ni-MH,Ni-Cd and Li-lon battery.





Part No.DF168-30H
Product NameLED emergency pack
Battery voltage11.1V
Emergency Output PowerMax25W
Input voltage    AC 90~265V, 50/60Hz
Charging current170-300mA
Signalling     Yes
Working Test button       Yes
Automatic Monthly TestNo
Automatic yearly TestNo
Duration     custom-made
Battery protection     Yes
Operation temperature0--50℃  , 65+20% RH
Highest Surface Temperature60°C
Battery12V Rechargeable battery pack
Charging Time>24h without break
Output VoltageDC18V-80V
Suitable light sourceLED Panel Light, LED Ceiling Lights,LED Downlight etc.
NoteThe battery size is custom-made
Product Description
  •  - DF168-30H can automatically test light chip"s series and adjust the output voltage to best match between the inverter and the load.providing 10w~25w illumination customized.

  • - DF168-30H uses IC control circuit,has constant output power,isolation circuit,no-load protection feature.
