Product Details
XH-LB(L) Low-intensity obstruction light is used in Wind Turbine, Towers, Smokestacks, High-rise Buildings and any other potentially hazardous obstructions within 45 meters to air traffic with a steady/flashing burning red safety light. There is one switch converting between flashing mode and steady-burning mode.
Product Specifications
| Light intensity | ≥32cd |
| Operation mode | Steady-burning (Customized flashing ) |
| Light source | LED |
| Service life of LED | ≥100,000hours |
| Operating voltage | AC110V-240V, DC12V-48V, 50-60Hz |
| Power consumption | <5W |
| Overall size(mm) | 124 by 124 by 209 |
| Mounting size | 160 by 160 by 193 |
| Vertical Beam Spread | 3/4inch |
| Horizontal degree | 360° |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 1Kg |
| Emitting color | Aviation Red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
Product Features
◆ ICAO Certificate from USA Intertek. No.:102968386CRT-001TVoC.
◆ IP65 waterproof rating.
◆ Low power consumption.
◆ Long life LED light source.
◆ Integrated design with built-in photocell.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV.

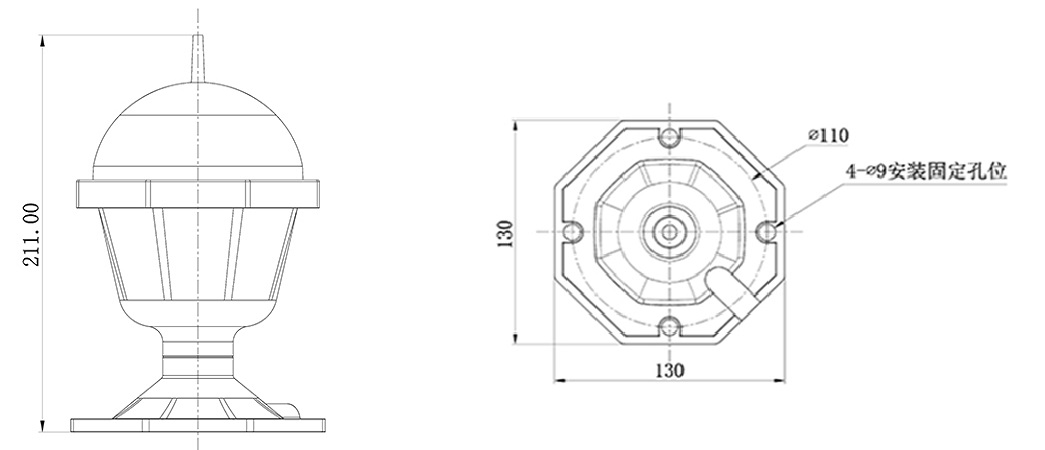

Product Dimension
Production Process

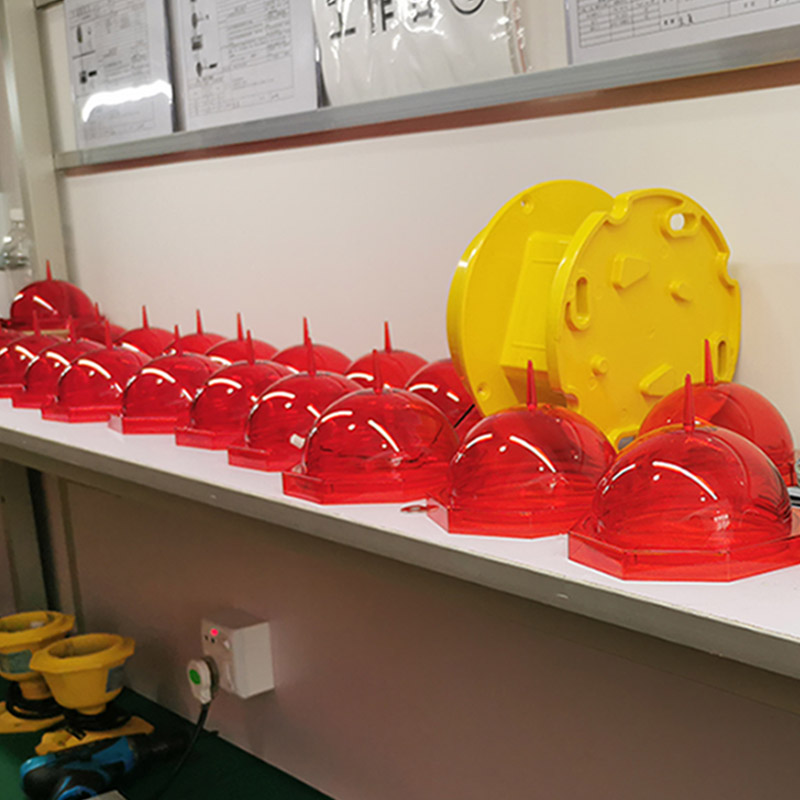

Material
We select the material with strict process.

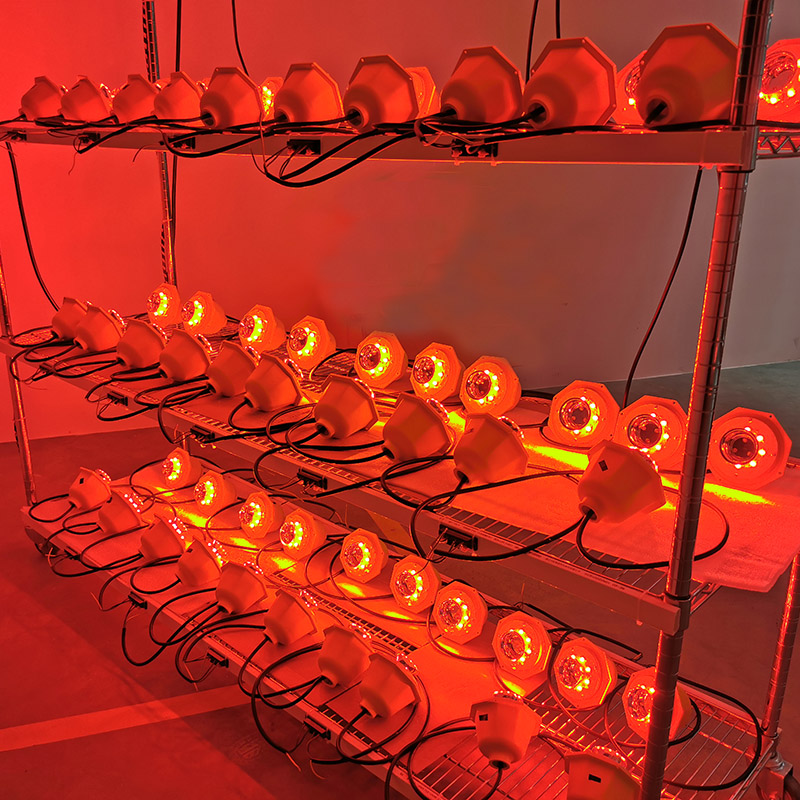

Aging Test
Aging Test of Low intensity single obstruction light
