Manufacturer price insulated blade terminal connector lugs

1. Manufacturer price insulated blade terminal connector lugs Application

Manufacturer price insulated blade terminal connector lugs is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.

2. Manufacturer price insulated blade terminal connector lugs Description and reference



Sectional area of conductor:0.5 - 1.5 mm² (A.W.G 22 - 16 )   Imax = 19A   material:Copper  thickness :0.75mm
Item No	Dimension					color
	B	L	F	H	DΦ
DBV 1.25 - 10	2.3	20.0	10.0	10.0	4.3	red
DBV 1.25 - 11	3.0	21.0	11.0
DBV 1.25 - 14	3.0	24.0	14.0
DBV 1.25 - 18	2.3	28.0	18.0

Sectional area of conductor:1.5 - 2.5 mm² (A.W.G 16 - 14 )   Imax = 27A   material:Copper   thickness :0.8mm
Item No	Dimension					color
	B	L	F	H	DΦ
DBV 2 - 10	2.4	19.0	9.0	10.0	4.9	blue
DBV 2 - 14	2.4	24.0	14.0
DBV 2 - 18	2.4	28.0	18.0

Sectional area of conductor:4 - 6 mm² (A.W.G 12 - 10 )   Imax = 48A   material:Copper   thickness :1.0mm
Item No	Dimension					color
	B	L	F	H	DΦ
DBV 5.5 - 10	2.8	22.5	10.0	13.0	5.6	yellow
DBV 5.5 - 14	4.5	26.5	14.0
DBV 5.5 - 18	4.5	30.5	18.0



 3. Manufacturer price insulated blade terminal connector lugs Category Introduction

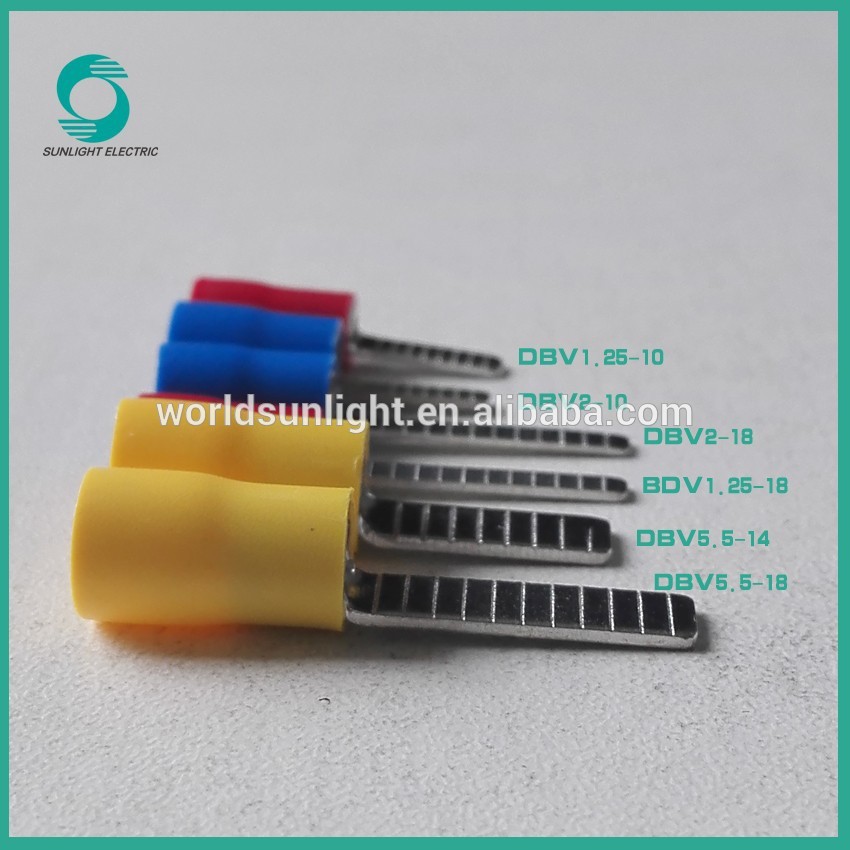

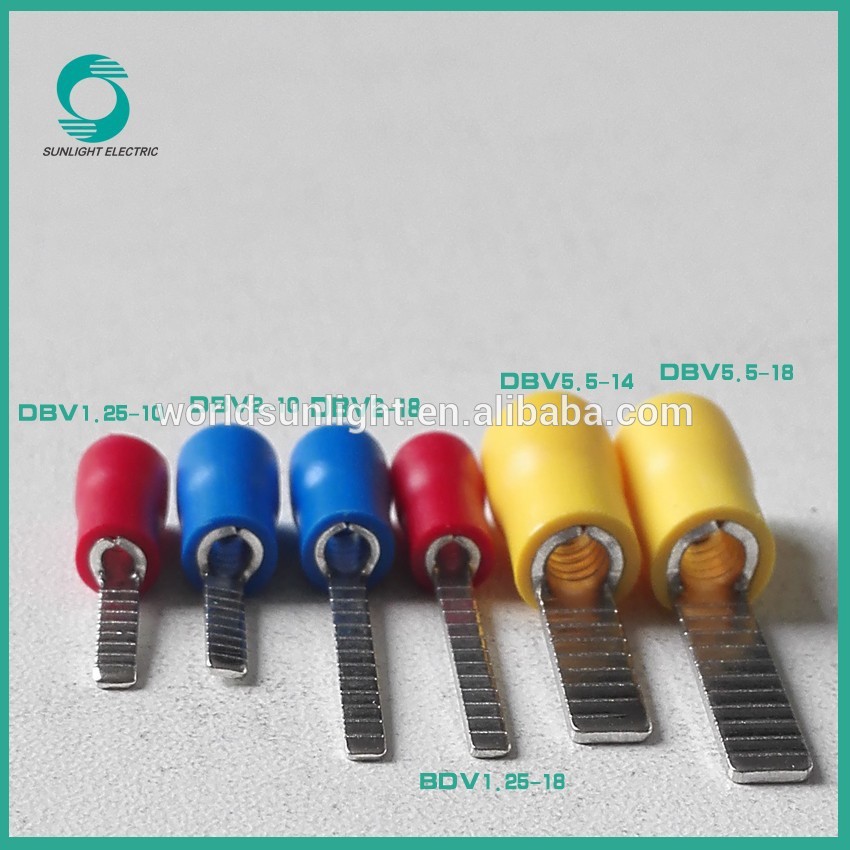

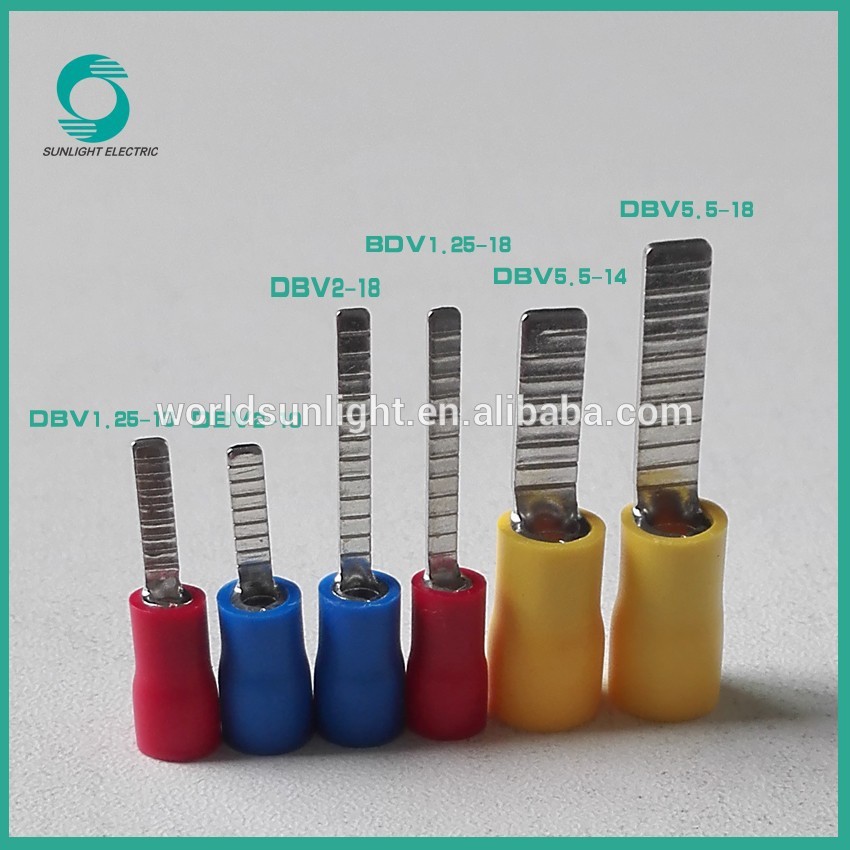

4. Manufacturer price insulated blade terminal connector lugs Pictures

5. Manufacturer price insulated blade terminal connector lugs other types Pictures

We also can supply: High quality terminal,connector and cable lugs

Types available:

RV series, RNB series, SV series, SNB series, V series, PTV series, PTN series, MPD series, FRD series, FDD series, MDD series, FDFD series, DBV series, PBDD series, BV series, BN series, E series, TE series, EN series, SC cable lugs series, GTY series

( 1 )  CAPG Copper-aluminium Aluminium Cambined Clamp

( 2 )  Insulation spade terminals

( 3 )  Non-insulation spade terminals

( 4 )  Terminals insulation

( 5 )  Insulated ring terminals

( 6 )  RNB non-insulated ring terminals

( 7 )  Insulated blade terminals

( 8 )  Insulated pin terminals

( 9 )  Insulated male buttet disconnectors

(10)  Insulated famale disconnectors

(11)  Insulated male disconnectors

(12)  Fully vinyl Insulated disconnectors

(13)  Insulated vinyl butt connectors

(14)  Non-insulated cord end terminals

(15)  Crewel tube pre-insulating terminals

(16)  Insulated cord end terminals

(17)  Wire connectors

(18)  Male and female full-insulating joints

(19)  Flag shape female insulated joints

(20)  Long fully insulated middle joints

(21)  Water proof: Heat shrink butt connectors

(22)  Among the long shape entire insulation attaches

(23)  Bullet-shaped male and female-insulating joins

(24)  Fast connecting joints

(25)  DTL Copper-aluminium connecting terminals

(26)  DT(G) JG Copper connecting terminals

(27)  GT Connecting tube (passing through)

(28)  OT Copper open connecting nose

(29)  SC Copper terminals

(30)  GTY Copper connecting tube

(31)  C45 Plug-in needle

(32)  JT JTL JL Copper,copper-aluminium,aluminium jointing clamp

(33)  PC Self-locking nylon cable ties

6. Manufacturer price insulated blade terminal connector lugs Certificates

7. Manufacturer price insulated blade terminal connector lugs Packing

8. Manufacturer price insulated blade terminal connector lugs Shipping

9. Manufacturer price insulated blade terminal connector lugs After sale services

1.Reply inquiry in 24 hours.

2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon

receipt of your new inquiry ASAP.

3.Answer your question detailed.

4.Solved the problem with you during using our products.

5.Welcome to visit to our company and technology communication.

    XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing

of Terminal products.

    We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well

received by our customers from all over the world.
