Product Details
| Model Number | C350R-ND-W |
| Wattage | 20W |
| LED Source | Fixed LED 54*2835 SMD |
| Lumen | 2000lm |
| Light Color | Daylight White |
| Color Temperature (K) | 3000K |
| CRI (Ra>) | 80 |
| Input Voltage (v) | 220-240 AC |
| Frequency (hz) | 50/60 |
| Rated lifetime (h) | 30000 |
| Dimmable | Non-dimmable / Dimmable |
| MATERIAL | Aluminum + Plastic |
| Color | White |
| Size | Dia.350 * 43 mm (13.6 inch) |
| MOQ | 100 pieces |
| Applications | Home, Office, Hotel, Exhibition Hall, Kitchen etc. |
| LOGO | Mylight or Custom |
| Design | Mylight or Custom |
| OEM / ODM | Accept |
| Payment | T/T, L/C, Western Union, Paypal, Trade Assurance, |
| Certificate | GS, CE, LVD, EMC, RoHS |
| Warranty | 3 Years |
Product Description
1

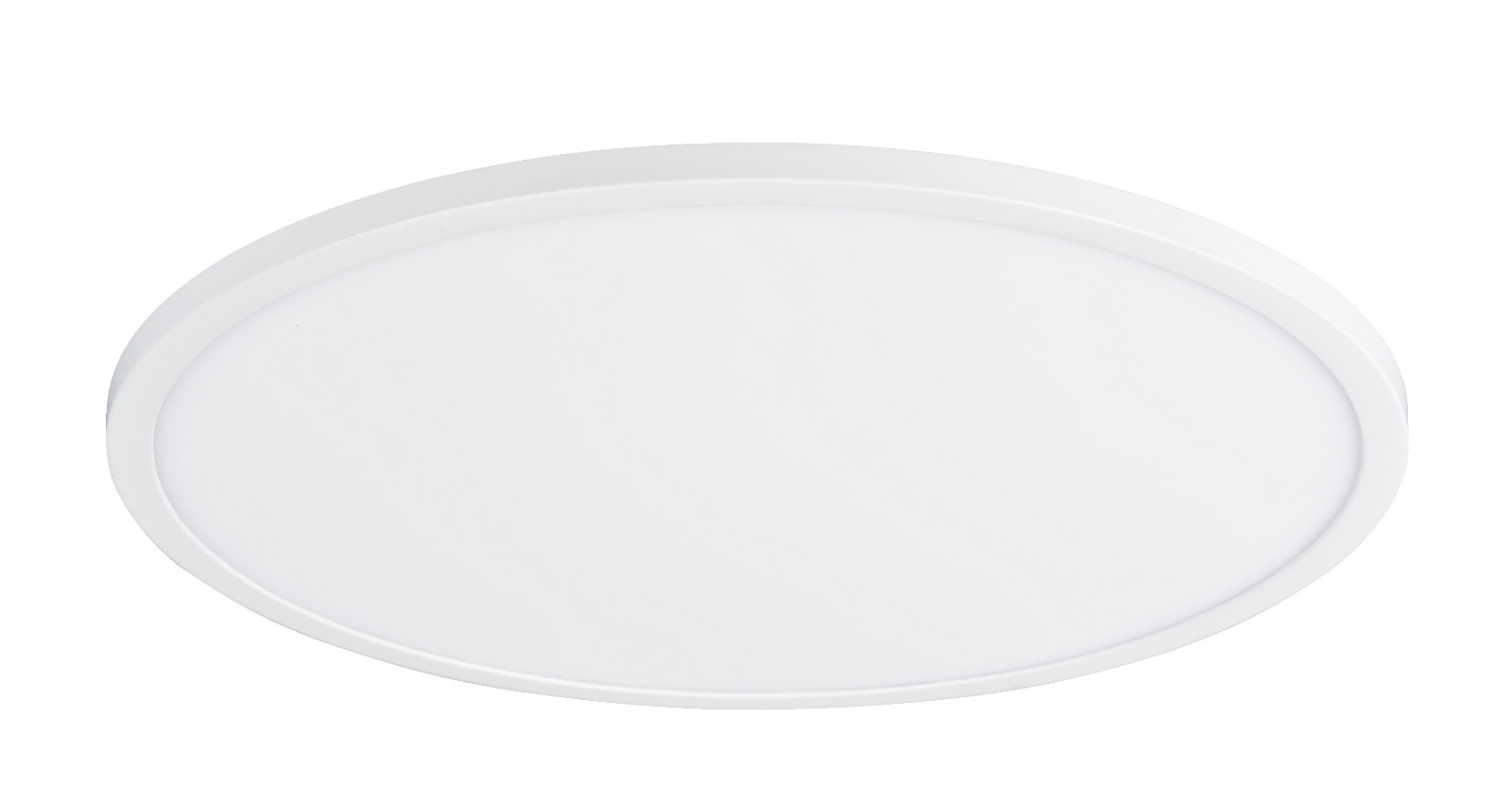

1. Product name: 13.6 Inch Hot Sale Indoor Decorative Modern White Surface Mounted Led Ceiling Lamp 20W
2. Material: Aluminum+ Plastic.
3. Dimension: Dia.350*43 mm
4. Packing: inner box: 370*70*370 (mm), standard export outer carton: 385*295*390 (mm), 4pcs / ctn.
2. Material: Aluminum+ Plastic.
3. Dimension: Dia.350*43 mm
4. Packing: inner box: 370*70*370 (mm), standard export outer carton: 385*295*390 (mm), 4pcs / ctn.
2

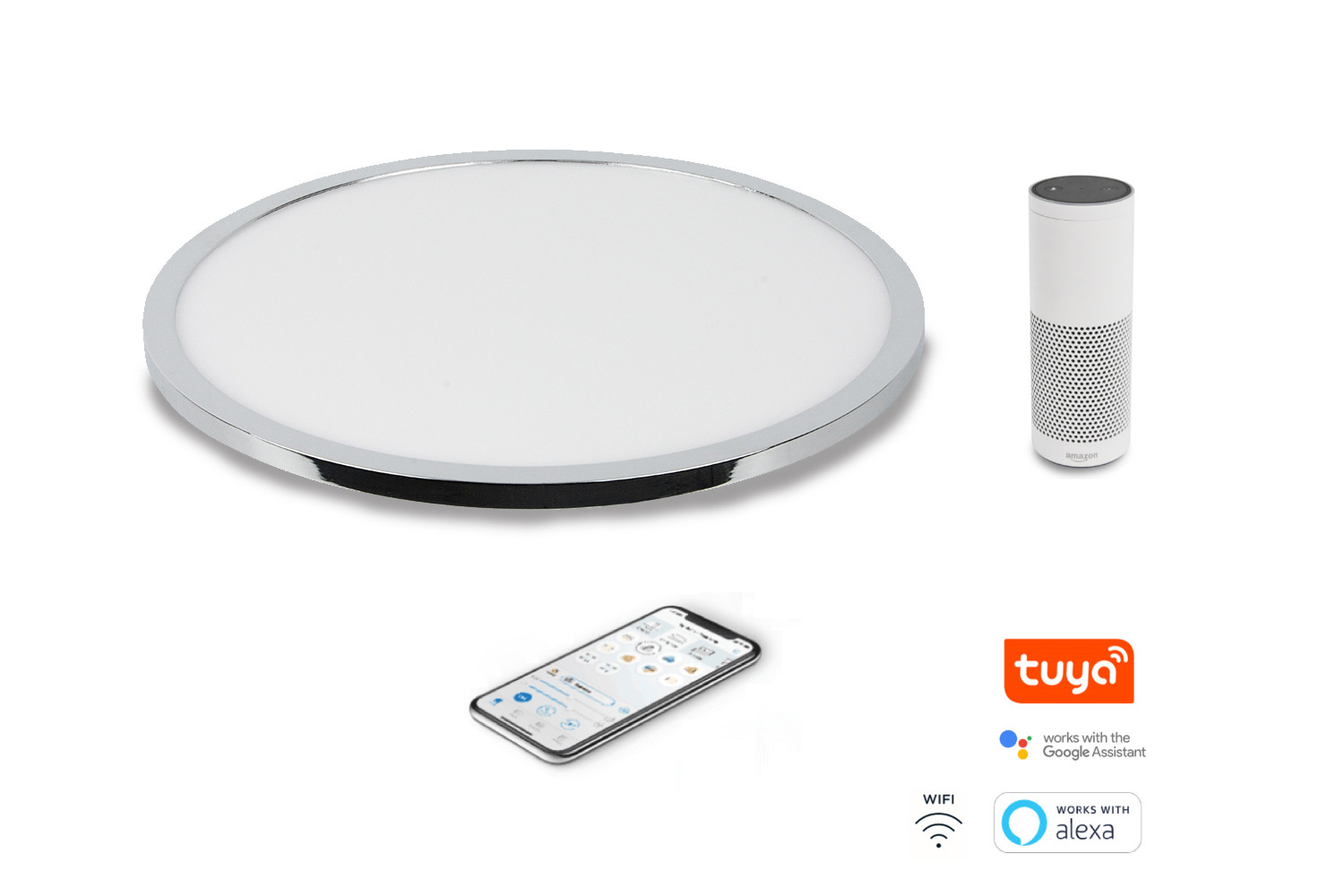

Dimmable, alexa, tuya functions are available.
3

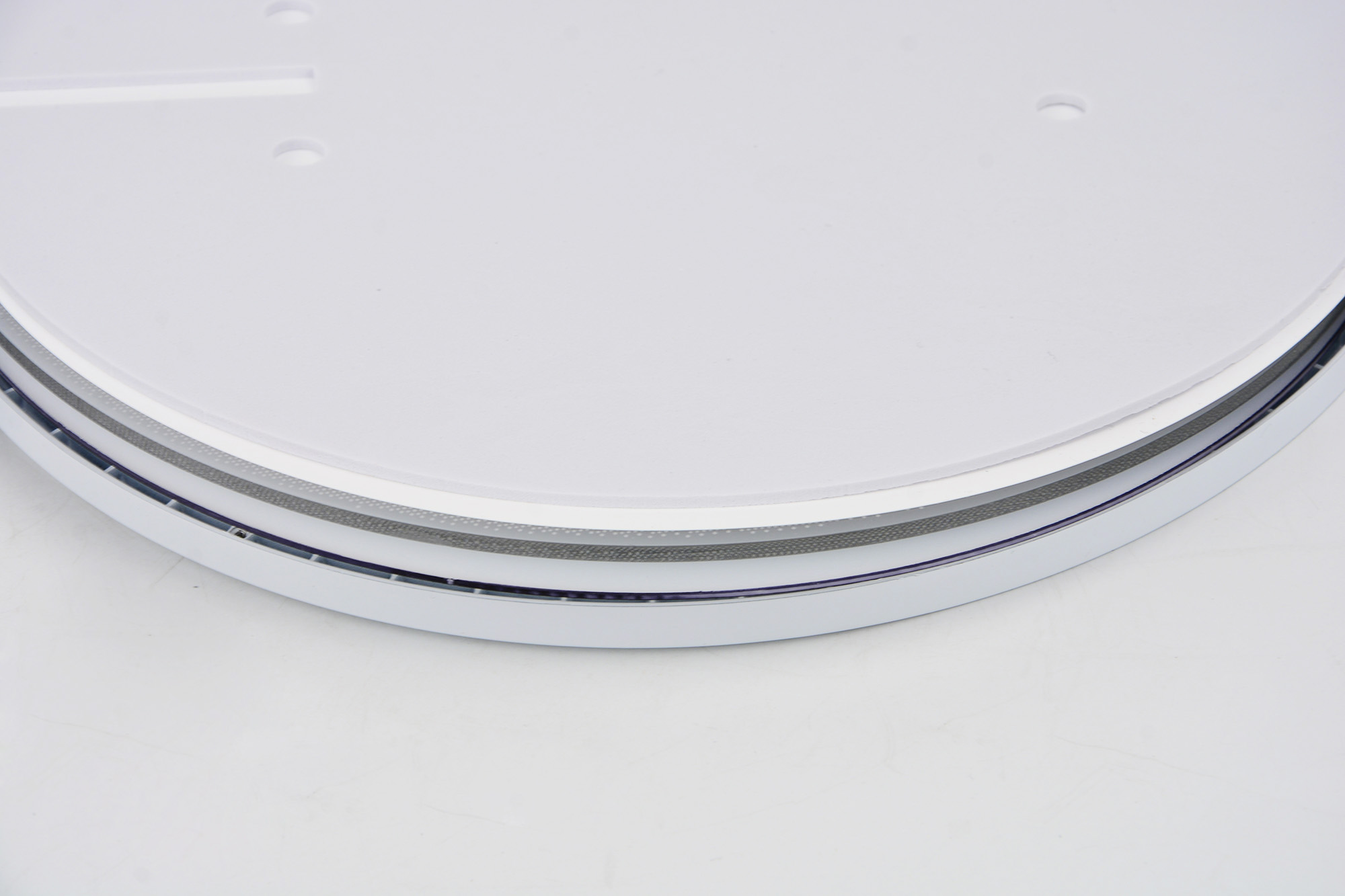

The ceiling lamp is make of different materials at different layer.
4

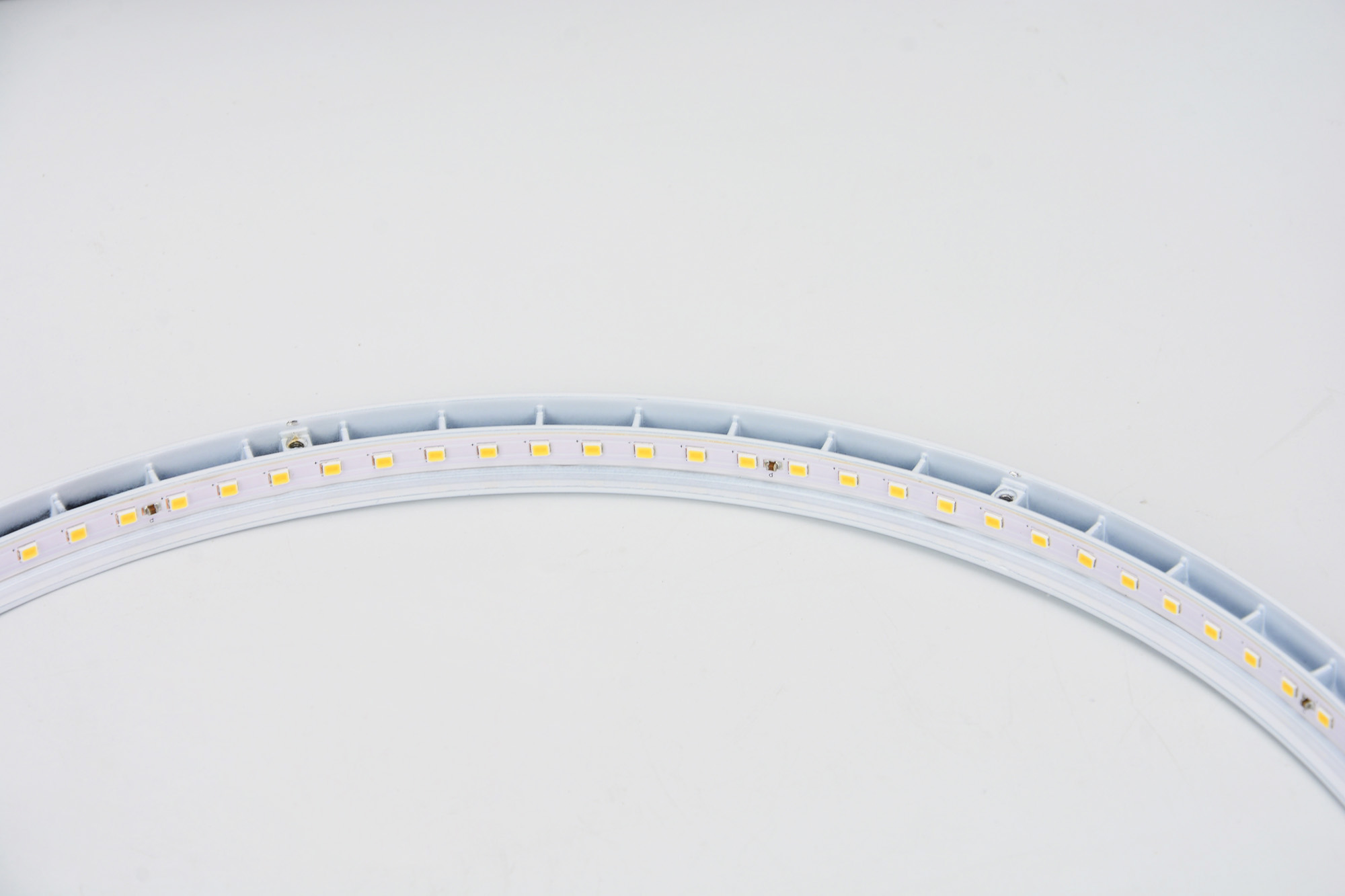

1.The first is the aluminum round frame with LED strip.
2. The second layer is the PS diffuser plate.
3.The third layer is light guide plate.
2. The second layer is the PS diffuser plate.
3.The third layer is light guide plate.
5
Then the reflective plate.
6

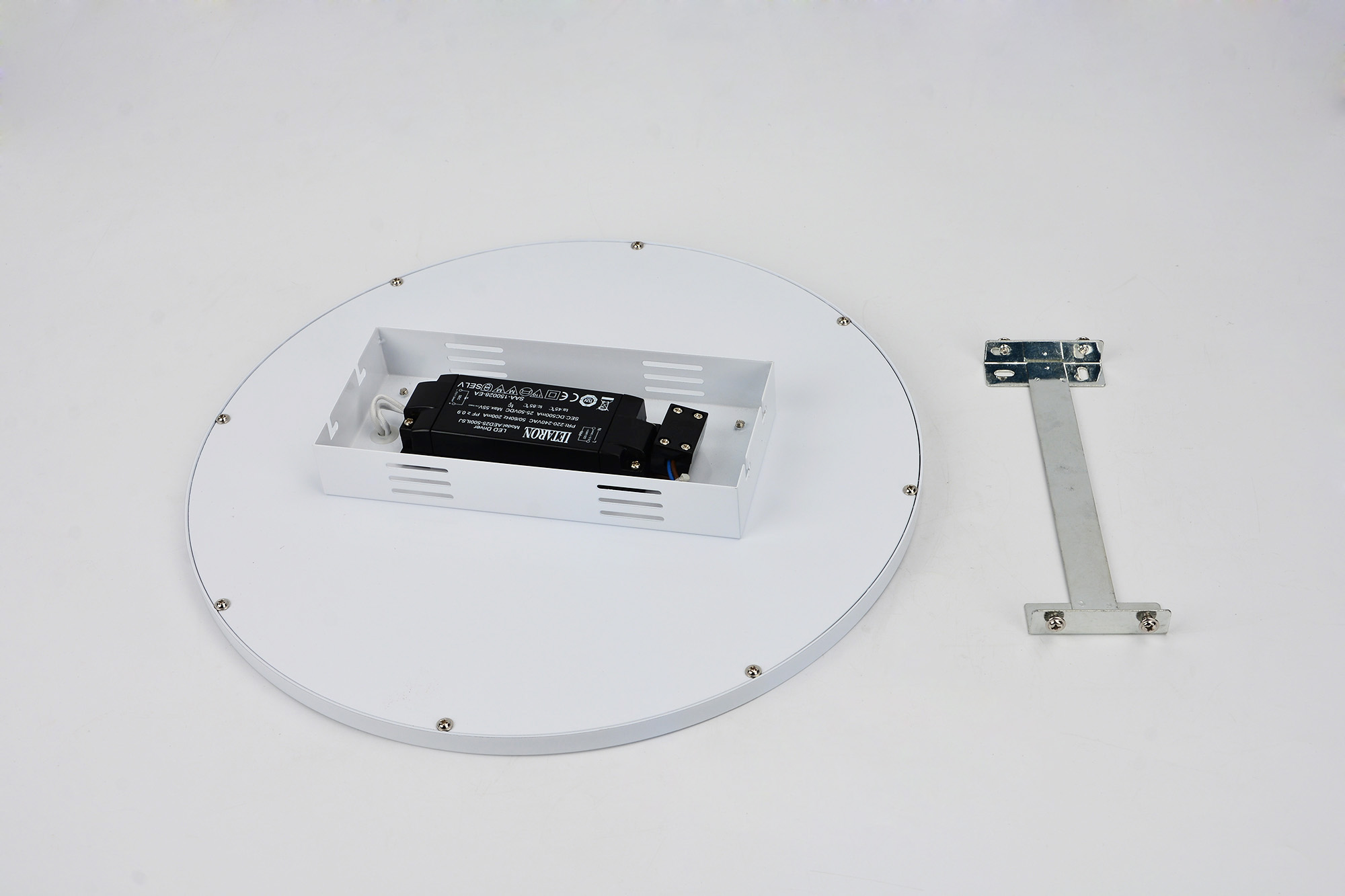

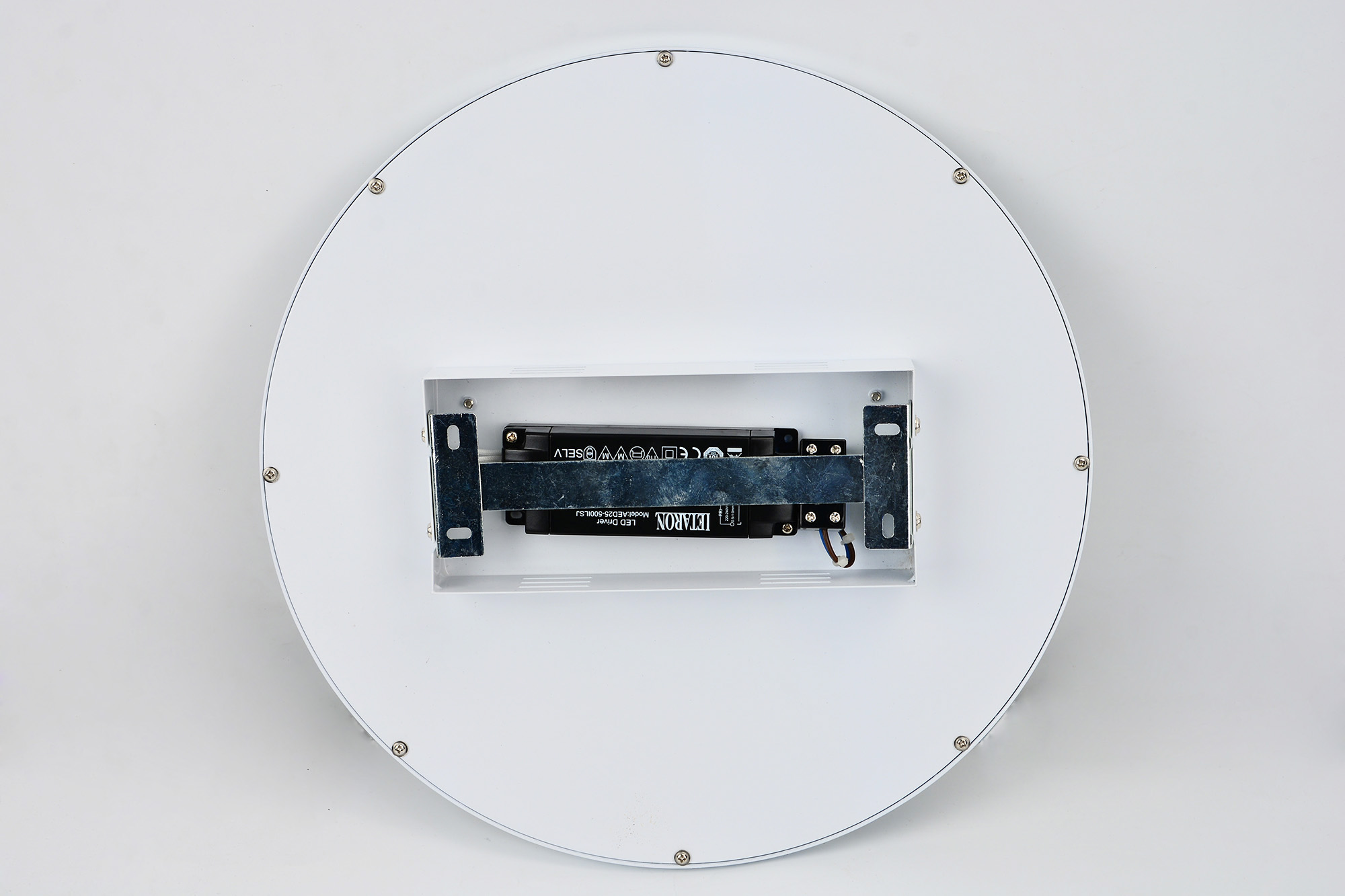

Finally the round metal back plate and the base. Y can see the good quality from this steps.
7
1.The driver can print with customer’s logo, and the label is stick inside the base.
1. Surface mounted with a ceiling iron, very convenient.
1. Surface mounted with a ceiling iron, very convenient.
8

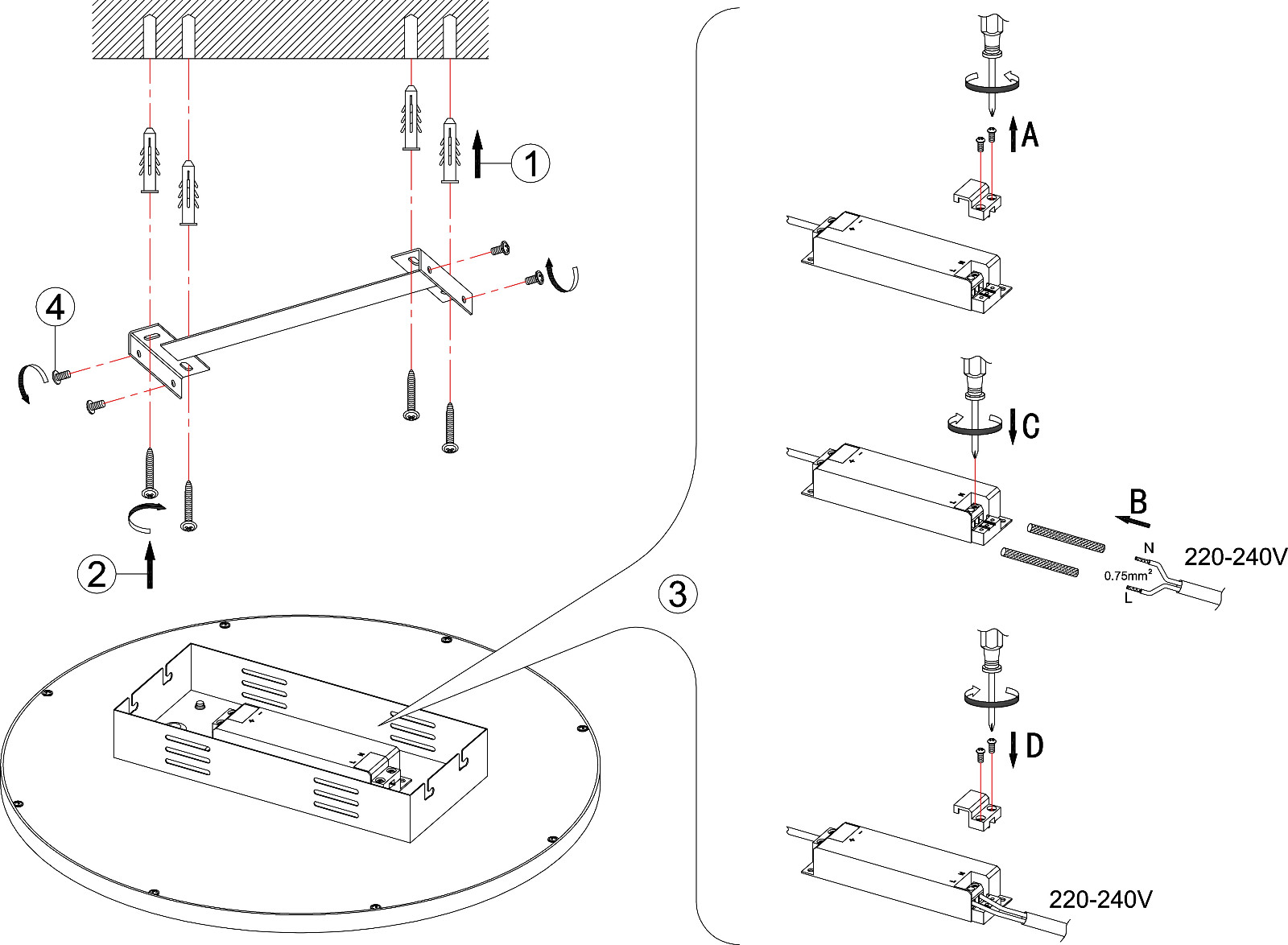

Installation instructions
The whole series display
| Specification | |
| Item No | C350R-ND-W |
| Power | 20W |
| LED | Fixed LED 54*2835 SMD |
| Lumen | 2000lm |
| CCT | 3000K |
| Finish | White |
| Item size | Dia.350*43 mm |
| Specification | |
| Item No | C350R-ND-C |
| Power | 20W |
| LED | Fixed LED 54*2835 SMD |
| Lumen | 2000lm |
| CCT | 3000K |
| Finish | Chrome |
| Item size | Dia.350*43 mm |
| Specification | |
| Item No | C350R-ND-N |
| Power | 20W |
| LED | Fixed LED 54*2835 SMD |
| Lumen | 2000lm |
| CCT | 3000K |

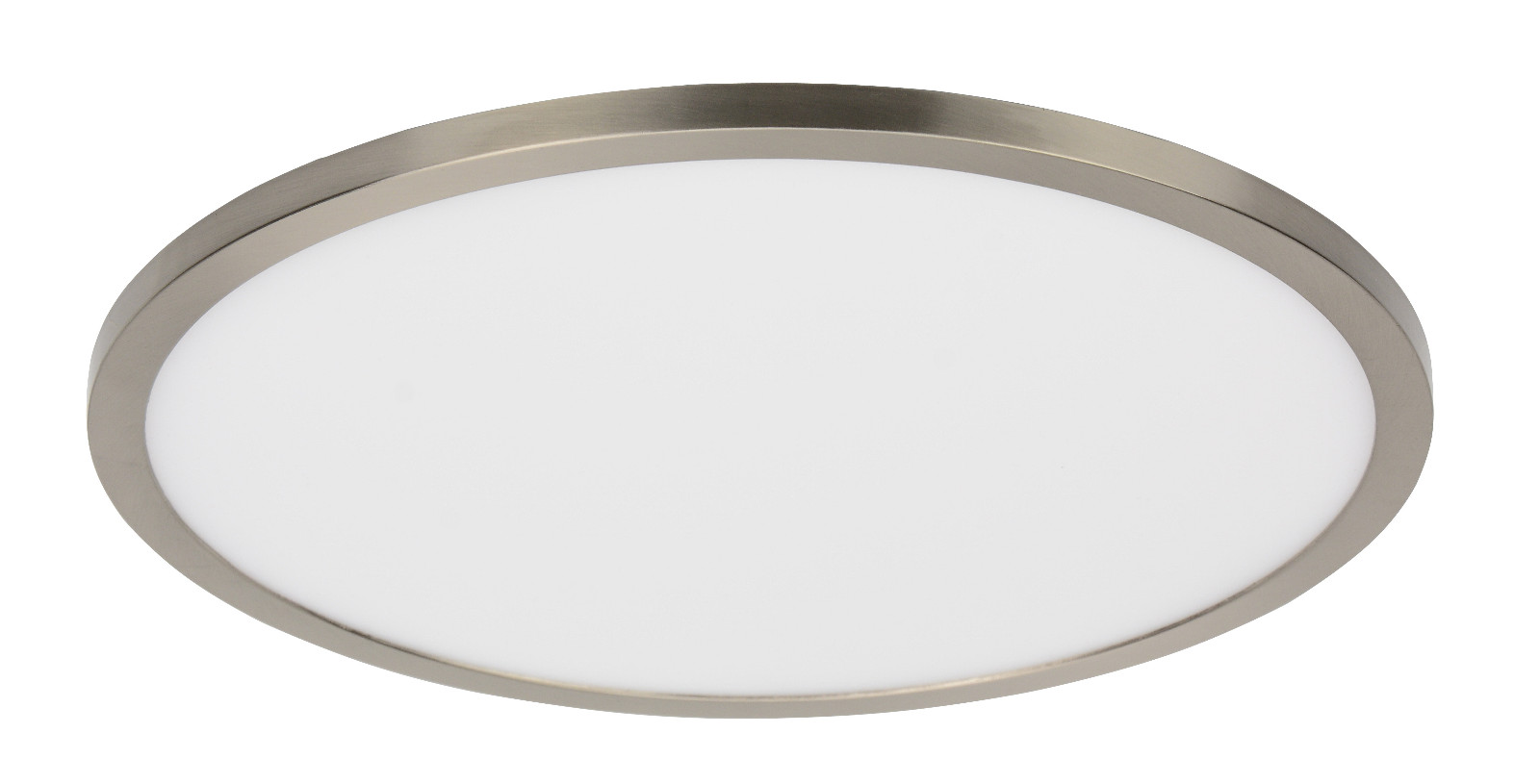

| Finish | Satin nickel |
| Item size | Dia.350*43 mm |

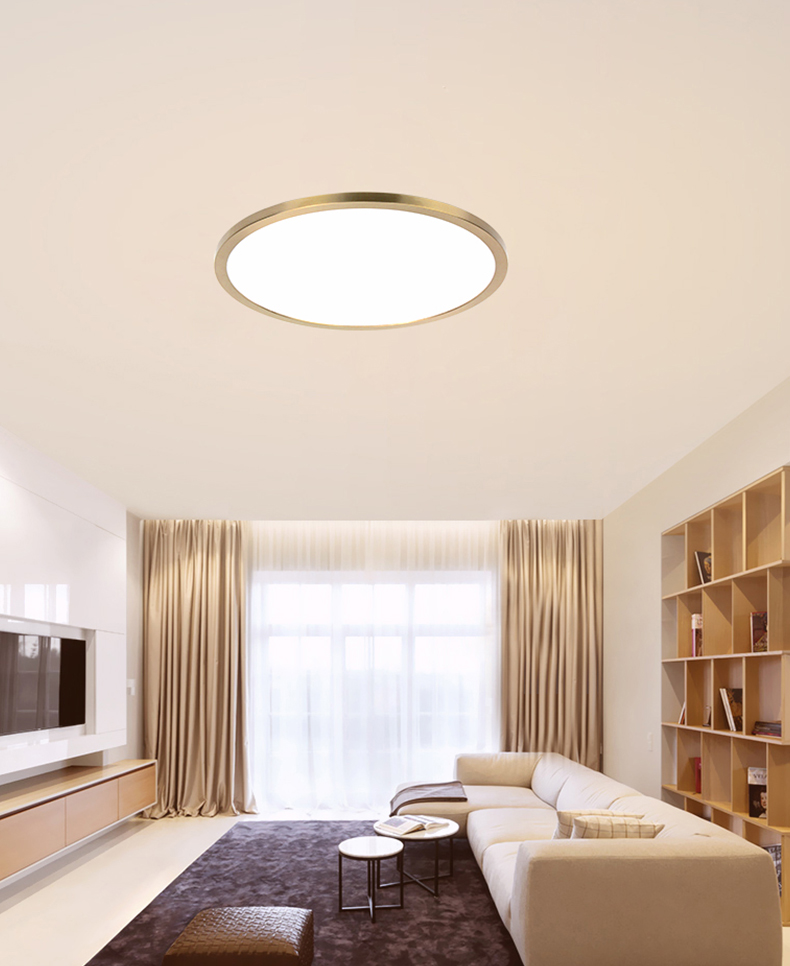

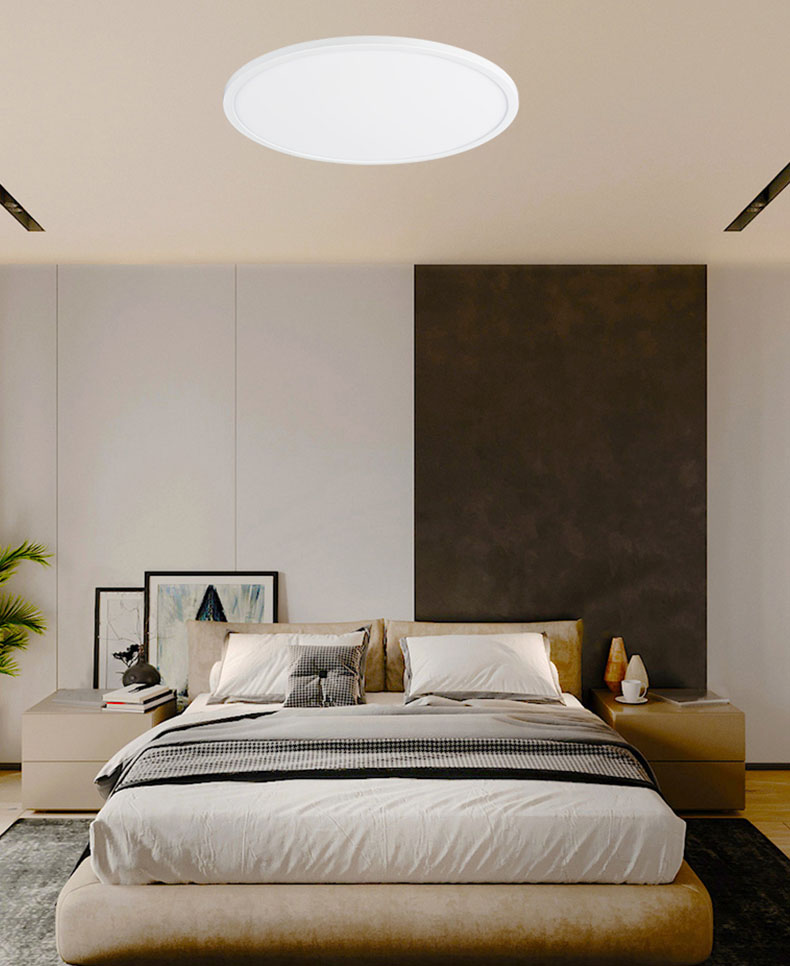

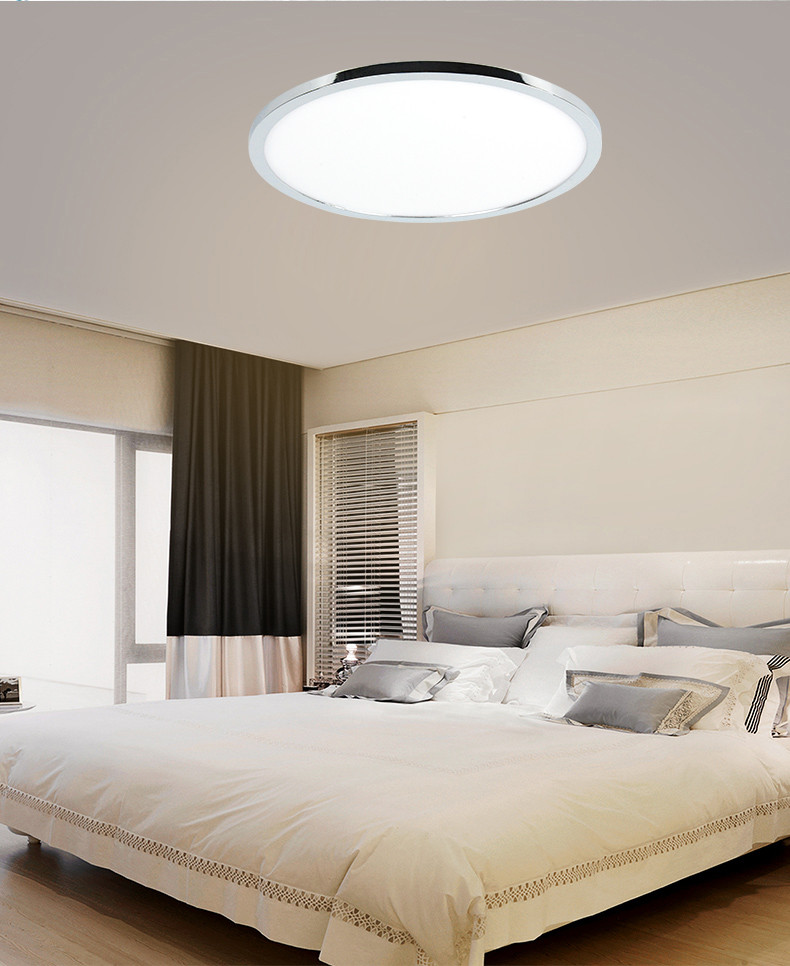

Applications
