Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: NEATA

Model Number:: NT12-20

Usage:: UPS

Sealed Type:: Sealed

Maintenance Type:: Free

Weight:: 5.4KG

Voltage:: 12v

Size:: 181*77*167

Certificate:: ISO CE UL ROHS

Cycle use:: 14.6-15V

Design Life:: 3

Company established year:: 2005

Standby use:: 13.5V-13.8V

Carton/pcs:: 1

initial current:: less than 6.0A

Supply Ability

Supply Ability:: 500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: as customize

Port: ZhongShan OR ShenZhen

Lead Time:

Quantity(Pieces)	1 - 5000	>5000
Est. Time(days)	30	To be negotiated

Product Details

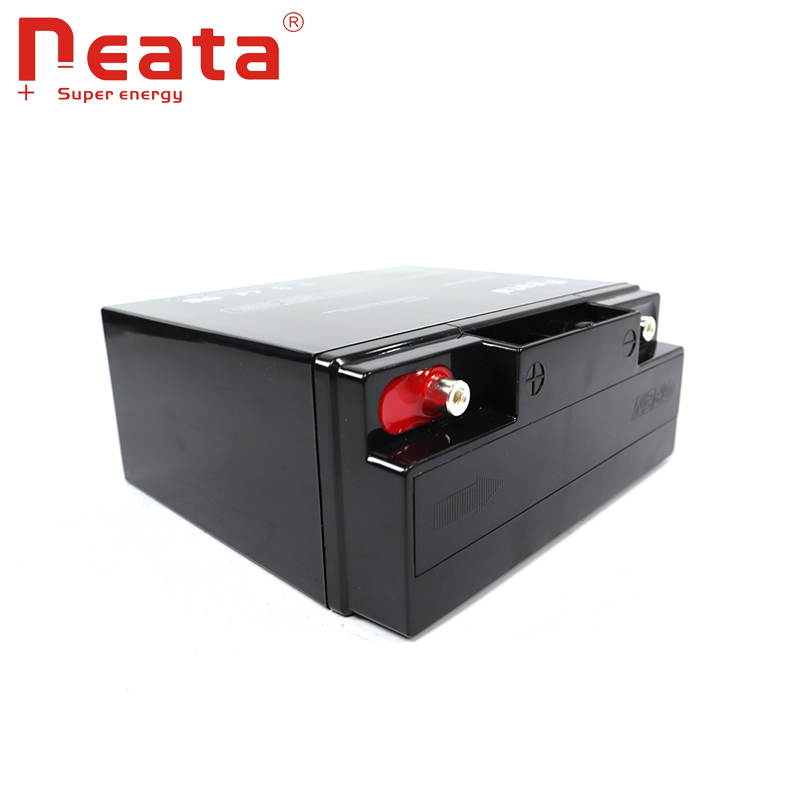

Neata AGM batterysolar battery 12V 20AHSLA Batteries

Description
Model	12V20Ah
Nominal Voltage	12V
Nominal Capacity (10 hour rate)	20Ah
Cyclic Life	50%(C20) Depth of discharge	600Times
Capacity 25℃ (77°F)	20 hour rate (1A)	20Ah
	10 hour rate (1.9A)	19.0Ah
	5 hour rate (3.2A)	16.0Ah
	1 hour rate (13A)	13.0Ah
internal Resistance	Full Charged Battery 25℃(77°F)	≤20mΩ
Capacity Affected By Temperature (20 Hour Rate)	40℃ (104°F)	102%
	25℃ (77°F)	100%
	0℃ (32°F)	85%
	-15℃ (5°F)	65%
Self-Discharge at 25℃ (77°F)	Capacity after 3 month storage	90%
	Capacity after 6 month storage	80%
	Capacity after 12 month storage	62%
Float Life	25℃(77°F) Float charge at 13.8V	About 3 Years
Charge (Constant Voltage)25℃ (77°F)	Cycle	Initial Charging Current Less than 6.0A Voltage14.6-15.0V
Charge (Constant Voltage)25℃ (77°F)	Float	Voltage 13.5-13.8V
Float Charge(Constant Voltage)	Voltage13.5-13.8V
Usage	UPS/Solar/Wind/Alarm/Security/Telecommunication/Emergency Lighting System.
Usage	Electronic Instrument/ Fire-fighting Equipment/ Standby Power Supply/ Etc
Warranty	1 Years
OEM Service	Accept
Color	Black, Gray
Certificate	ISO/CE/UL/ROHS

Battery Construction
Component	Positive plate	Negative plate	Container	Safety valve	Terminal	Separator	Electrolyte
Raw matterial	Lead dioxide	Lead	ABS	Rubber	Copper	Fiberglass	Sulfuric acid

Dimension
Battery (L×W×H)	mm±1	181×77×167
	inch	7.13×3.04×6.58
Box (L×W×H)	mm±2	336×193×190
	inch	13.3×7.60×7.48
Quantity Per Box		4 PCS
Net weight Per Cell		5.4 Kg±50g
Net weight Per Box		21.6 Kg
Gross Weight		21.9 Kg

Product Introduction

Battery Curve

Product Processing

Application

APPLICATION OF OUR PRODUCTS

Germany technology

Mainly applied for electric systems, security systems, medical equipment, shipping systems, telecommunications equipment, various testing machines, radio transceiver, the banking uninterruptible power supply system, railway locomotives, railway communications, emergency lighting systems, small lamps, large UPS and computer backup power, fire extinguishing systems, electronic equipment ,solar power system (off-grid solar power system, solar street light system, solar garden light system) and wind power system, non-traction battery.

Quanlity Guarantee

12V 1.2Ah-28Ah, 6V1 Ah-14Ah, 4V3Ah-8Ah
(1 year warranty since shipping day)
12V 33Ah-250Ah, 6V100Ah-220Ah
(2 years warranty since shipping day)

packaing & shipping

1.Neata Packing

2.Neutral Packing or Customize Packing

Shipping

1.Express

2.Air shipping

3.Sea shipping

Payment Term

1.T/T (Wire Transfer)

2.Western Union

3.L/C

Why Choose Us

1.100%manufacturer & Customized

Neata Battery manufacture Co., Ltd. Is a professional VRLA BATTERY include 6V&12V produces, located in Zhongshang and have office in Guangzhou and Shenzhen, can offer very convenient transportation access.
Neata Develop corresponding product series, such as UPS battery, solar deep cycle battery, gel battery according to customer"s different applications. We can OEM customer"s LOGO according to customer"s authorization.

2.High-tech content & Quality control

Neata enjoys high reputation by set up a complete system with a group of experienced technology engineers, strong R&D sources, integrate QC system and production management system, we do control the product quality and production efficiency very well.
We possess the following certificate CE, UL, ISO9001, ROHS Certification.
We mark code on each solar battery; so as long as you have any questions, we can check product production information. Customize a NPP special identity card number for each product.

3.High-efficient skillful staffs & Perfection salesman

We have an excellent team with over 10 years experiences on VRAL BATTERY and more than 200 skilled workers.
Each salesman has been trained about professional product knowledge to provide thoughtful and careful follow-up service for each customer order.

4.Economy & Environment

We dedicated to provide economy and environment friendly battery products and create a new widespread field for storage battery products with our customers by joint efforts.
