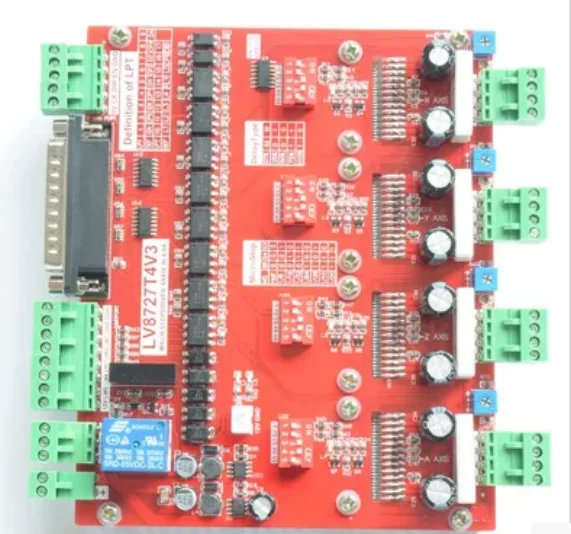

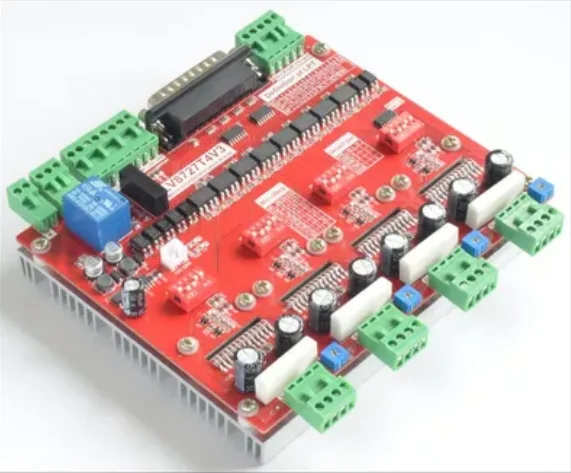

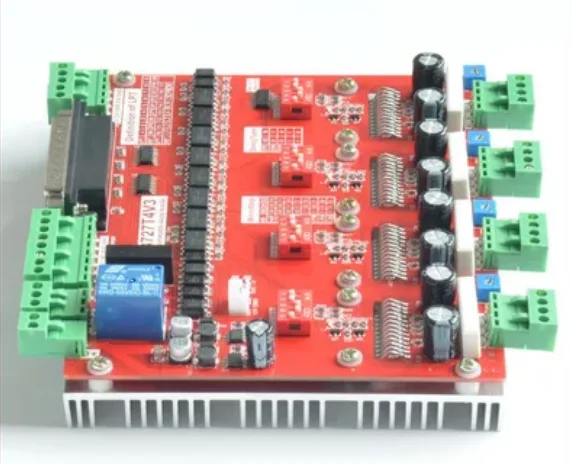

New CNC 200KHZ 4 Axis Stepper Motor Driver Control Board LV8727 Support Mach2 Mach3 KCAM4
Product Description
Package included:
- 1 X 4 axis drive card
- 1 X Cable
- 1 X CD
Feature:
1. Can drive 4 pieces 4A stepper motors at the same time and have the 5th axis extension interface.
2. High-speed opt coupler (DCDC) enables complete isolation, which protects your computer indeed.
3. Spindle relay output enables to use mach3 software to control start and stop of main axle easily.
4. Half-current control function enables current reduce to the minimum when motor stop.
5. Have fan interface and can add some fans.
6. Have 8 current choices (0.6-4.8A) of output two phase bipolar stepper motor drive.
7. Normal parallel port, support a series of MACH2, MACH3 and KCAM4 software
8. Have 4 limiting inserted connectors, can connect them conveniently.
9. Have 4 types work mod, mixed mode, fast mode, slow mode and general mode.
10. have 8 subdivisions--281632641281020;
11. 12-36V one power suppl y, adopt switch power supply chip, voltage 5V, stabilization and low temperature.
Requirement of computer system:
the basic requirement:
1) CPU: 1GHz
2) RAM: 512MB
3) 500MB available disk space
4) USB 2.0 interface
Recommendation:
1) CPU: 2GHz dual-core
2) RAM: 2GB
3) 1G available disk space
4) USB 2.0 interface
