Product Details

Overview

Quick Details

Dimension(Long * Breadth * High):: 6500mm*2280mm*2800mm

Warranty:: 1 Year

After-sales Service Provided:: Video technical support, Online support, Engineers available to service machinery overseas

Applicable Industries:: Construction works

Condition:: New

Brand Name:: HW

Place of Origin:: Shandong, China

Type:: Backhoe Loader

Moving Type:: Wheel Loader

Certification:: ISO

Hydraulic Pump Brand:: Parker

Engine Brand:: WEICHAI

UNIQUE SELLING POINT:: High operating efficiency

Color:: Customer's Requiement

Capacity of bucket:: 1.2m3

Rated power:: 38KW

Max. excavating height:: 3500mm

Max. excavating depth:: 2600mm

Max.excavating radius:: 4500kg

Dumping height:: 2000mm

Min. turning radius:: 4500mm

Grade ability:: 25%

Supply Ability

Supply Ability:: 50 Set/Sets per Month

Packaging & Delivery

Packaging Details: Standard export package or as your requirement ,for New backhoe loader

Port: QINGDAO or any port in China

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	5	To be negotiated

Product Description

Good quality wheel backhoe loaders with competitive price in China

Multi-functional engineering machinery incorporating and loading into an organic whole. It adopts the complete machine is rationally distributed and compact; it is comfortable and convenient to handle, the turning radius is small and the cost performance is high. It is widely used in municipal administration, the construction of projects such as the building, the oil field, water conservancy, the forest farm, the military project, and so on.
It also can be used in excavating, carrying and leveling and can carry on the flexible and swift homework to scarp heap and waste residue of the large and medium-sized enterprise. It is the ideal model of realizing machine with multi-functions. the wheel type excavators a loader is to fight pair, unhitch in the front, articulate, type style excavators a loader.
Match with high quality engine, low, low blow off of noise, driving force forceful, twist from when reserve is big. ·The driving force excavating loader special use fixing an axis changes the gear speed change box, structure is compact, drive is efficient, structure stiffness is big, life-span is long. ·The dyadic center equidistance hinge joint fleet of carriage, makes turn the radius is small, the expedient function is good. ·Excavating a part is that dyadic structure of box, load support capability are strong, the intensity is tall, the stability is good. ·The drive"s cab, wide vision, air-conditioning, operation environment sealing off subtraction vibrating, allocating are comfortable, safe.
Various machines and tools such as may select and use for –in-one bucket, breaking a hammer to pieces, the function are especially all in readiness.

Specification:

size	650022802800mm
Operating weight	6200kg
Reted power	4108 pressurize 83
Backhoe capacity	0.15m3
Bucket capacity	1.2m3
Max.digging force	28kn
Walking speed	0-28km/h
Grade ability	25%
Min.turning radius	4500mm
System working pressure	16mpa
Max.digging radius	4600mm
Max.digging depth	2600mm
Max.backhoe dumping height	2000mm
Max.front shovel dumping height	3500mm
Max.front shovel dumping distance	900
Front shovel moving time	12s
Tread	1630mm
Wheel base	2620mm
Tyre model	16/70-20
Tyre pressure	350mpa
Drive mode	hydraulic
Braking system	Air resistance

Detailed Images

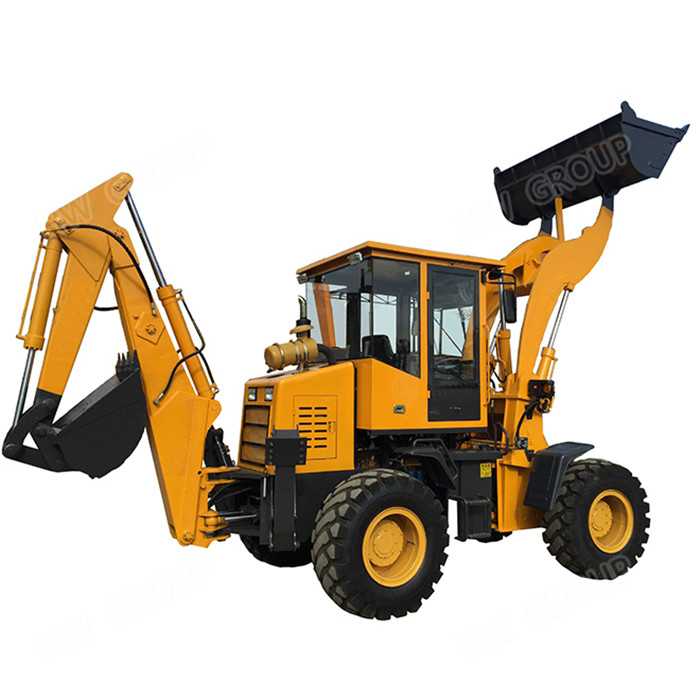

HW Backhoe Loader

Our company has large-scale, various tonnage, also the full supply of adequate, we can make sure you will choose to satisfactory machine, there is always a will for you!

HW10-20J Backhole Loader

Total operating weight: 3300kg
Transporation dimension: 5500*1720*2650mm
Bucket capacity: 0.5m³
Backhoe bucket capacity: 0.1m³
Digging up capacity: 25KN
Power and speed: 37kw 2400r/m

HW15-26 Backhole Loader

Total operating weight: 4800kg
Transporation dimension: 5800*1850*2800mm
Bucket capacity: 0.9m³
Backhoe bucket capacity: 0.2m³
Digging up capacity: 28KN
Power and speed: 55kw 2400r/m

HW15-28 Backhole Loader

Total operating weight: 5400kg
Transporation dimension: 5800*1960*2800mm
Bucket capacity: 1.0m³
Backhoe bucket capacity: 0.2m³
Digging up capacity: 28KN
Power and speed: 60/76kw 2400r/m

Certifications

Our Service

Packing & Delivery

Our Company

Welcome to visit our factory! For evey visitor we will offer :

- Airport pickup.
- Product visit and operation instruction
- Production line visit
Connect with global customers with professional and high quality !

Action now !!!

- To send an inquiry or message to us online.
- To get one set powerful machhine in so many kinds of product.
- To get more details.
- To know our more warranty, guarantee and responsibility.
- To know every kinds of our products..
- We will provide best service and timely response for your any questions.

* Inquiry Title
* Content
* E-mail
* Security Question	[Another problem]

Newest high quality clearance mini tractor backhoe loader for sale

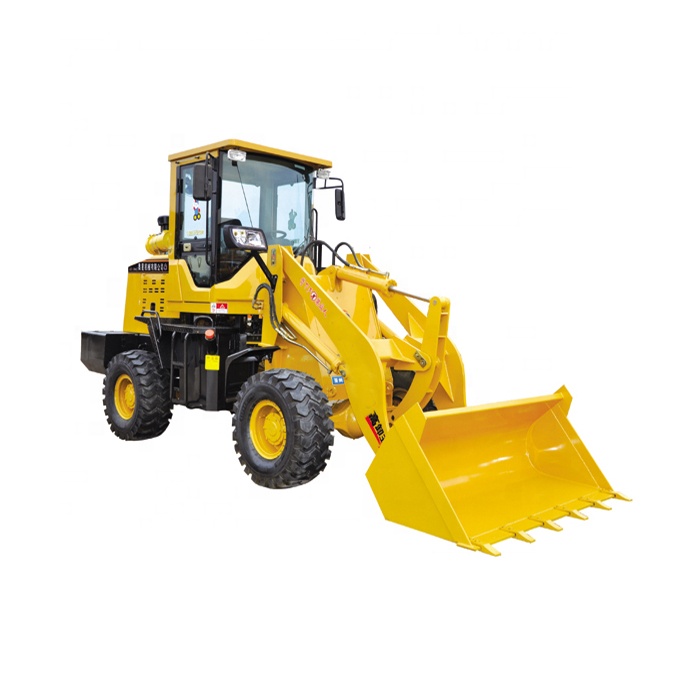

Construction machinery wheel

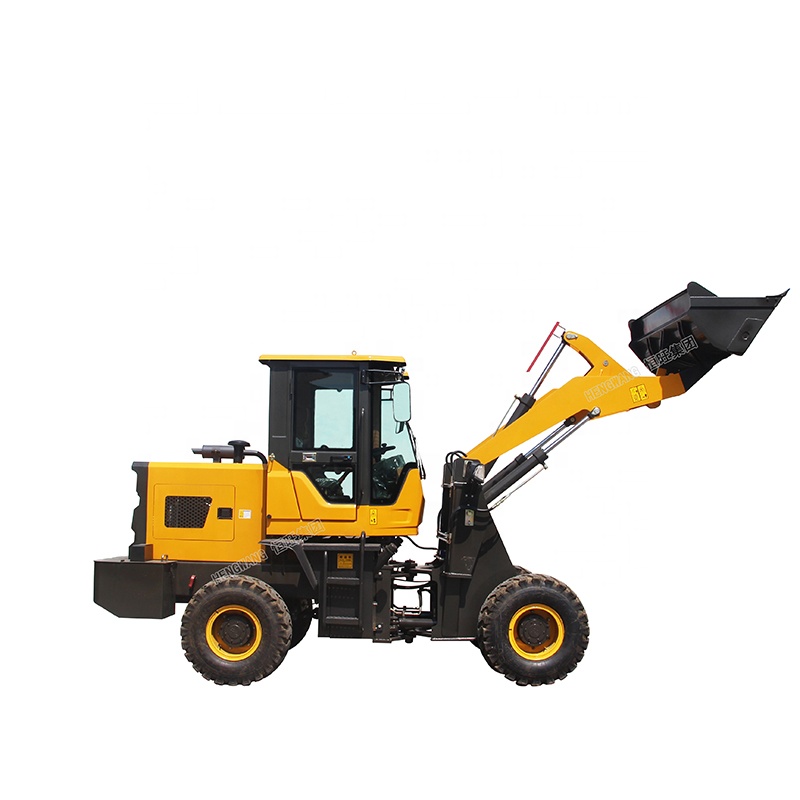

Mini tractor backhoe front e

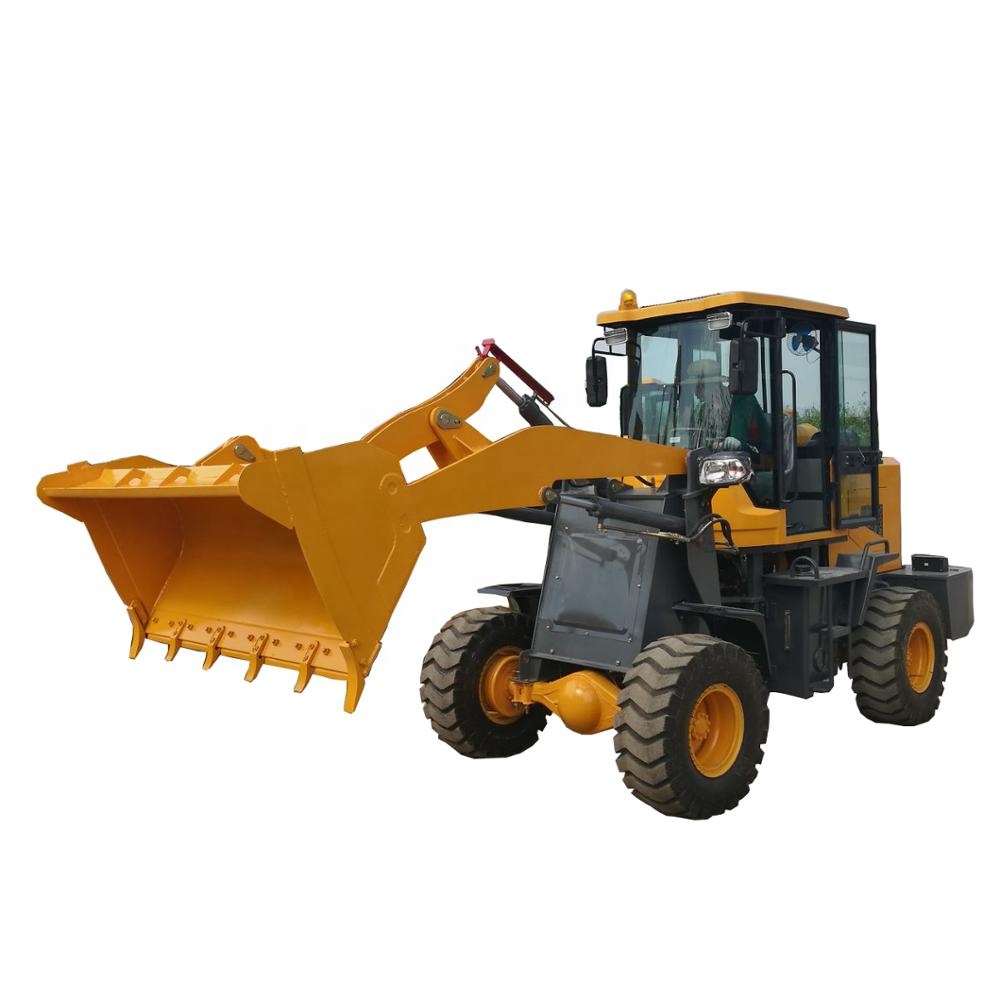

Good price small front end z

Small mini tractor backhoe w

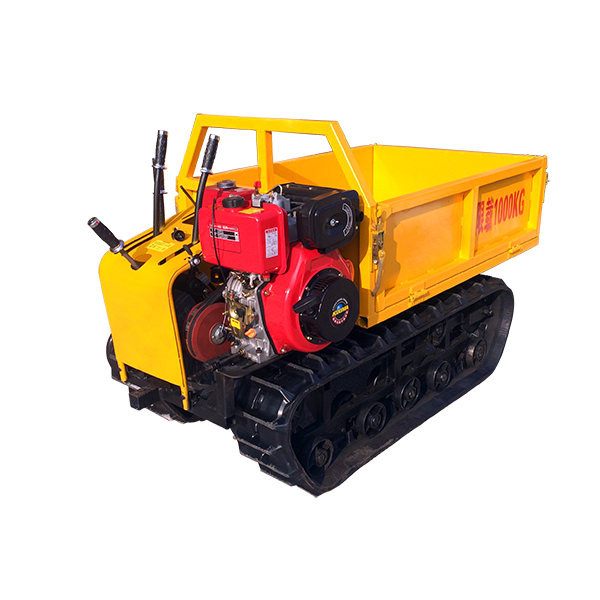

Mini dumper truck 4x4 transp
