OKT 65 Watt 2x4 Ultra Shallow Recessed cul led panels Retrofit Kit 4000K Description of cul led panels
The DLC cul led panels delivers high lumens while achieving 90 lumens per watt in 10
0~277 VAC Input with fired rated junction box. This 2*2FT square 600x1200mm flat panel is available in 4000k, 5000k DLC CCT Options and has 0-10V dimming, which is perfect for new construction applications or retrofitting existing fluorescent troffer light fixtures with,widely used in office spaces, major retail stores, education, government, healthcare, and hospitality.
Specification of cul led panels
| Model | Item NO. | Input Power | Luminous Flux | DLC CCT Option | Input Voltage | Dimming | Certificate |
| cul led panels 600x600 | VS22-DM** | 40 Watts | 3700LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
cul led panels 600x600 | VS22-DH** | 55 Watts | 4900LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
cul led panels 600x1200 | VS24-DM** | 50 Watts | 4600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
| dimmable 1200 x 600mm led panel light | VS24-DH** | 63 Watts | 5600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
| dimmable 1200 x 300mm cul led panels | VS14-DM** | 40 Watts | 3600LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL |
dimmable 1200 x 300mm cul led panels | VS14-DH** | 50 Watts | 4500LM | 4000K 5000K | 100-277V AC | 0-10V Dimming | UL,DLC |
Advantage of cul led panels
OKTdimmable cul led panels are UL, CUL , DLC listed, which is capable of retrofit application to existng fluorescent fixtures or new architectural recessed, Main characters:
- cULus, DLC Listed, LM79 Report Available
- More than 90lm/w

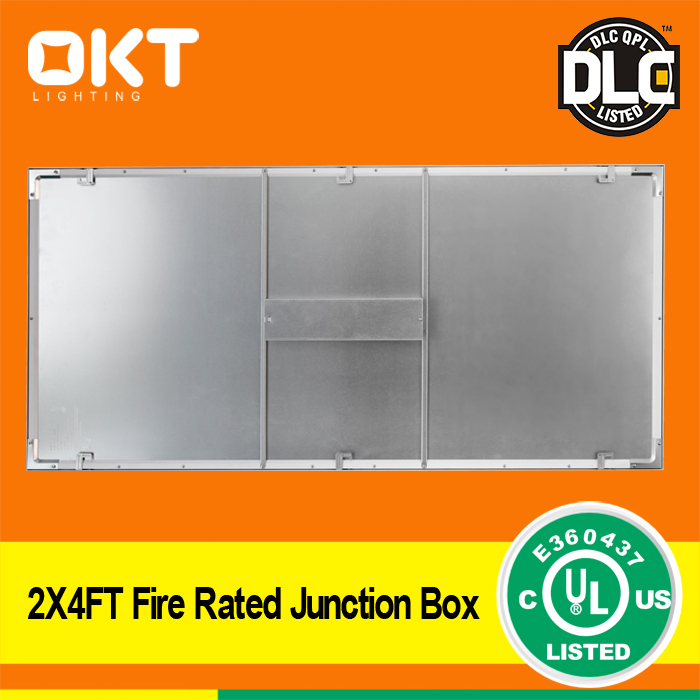

- Fire rated design with Junction box
- 0-10V dimming available
- 5 Years Warranty
- White or Silver Trim Color Options
- Suitable for Damp locations
- Accessary: Driver Box And Clips for T-Bar Included
Details Display
Customer Feedback
- We are happy with dimmable drop ceiling panel lights and quality, let’s work on more. --- Luca (from NY,USA)
- 100% love the dimmable cul led panels I will be ordering more this week. ----Kody(from LA,USA)
- Thank you for your help and for the photos, are very explicit---Jose from Mexico
- We are very pleased with the quality of cul led panels and the performance.------Richard from CANADA
- the cul led panels has arrived and is excellent------John from Canada
Packing Infomation
| Model | Item No. | Sample Pack | Mass Pack | ||||
| QTY/CTN (pcs) | Carton Size (cm) | G.W(KG) | QTY/CTN (pcs) | Carton Size (cm) | G.W(KG) | ||
| cul led panels 600x600 | VS22-DM** VS22-DH** | 2 | 70*69*17 | 14 | 4 | 70*69*17 | 21 |
| cul led panels 600x1200 | VS24-DM** VS24-DH** | 2 | 129*70*17 | 27 | 4 | 129*70*17 | 45 |
| cul led panels 300x1200 | VS14-DH** | 2 | 129*40*17 | 16 | 4 | 129*40*17 | 26 |
| VS14-DM** | |||||||
Warranty
5 years since the date of purchase for cul led panels ,welcome to viist our web to download OKT warranty terms.
More detailed info for OKT dimmable cul led panels, pls do not hesitate to inquiry now!
