Application-1
The neon LED strip can be freely placed in any shape, any DIY, various slogans, and various billboards.
Brand： |
none |
Address： |
Guangdong Shenzhen |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Product Details
❈ Product description
Product Features

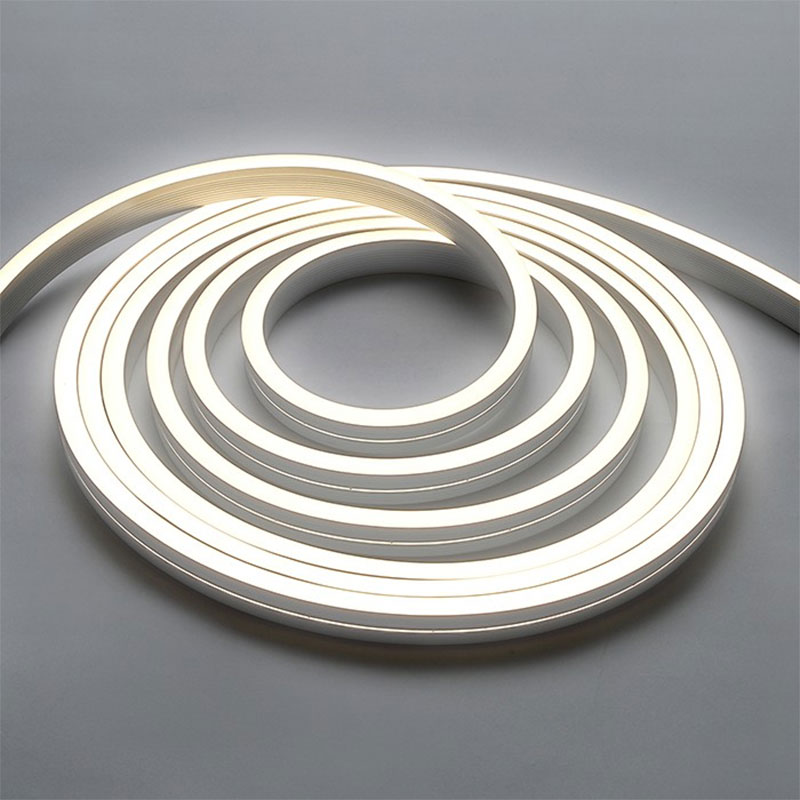

◪Our Neon LED Strip Light Anti-yellowing and heat resisting silicon glue, chemical resistance acid and alkaline.
◪The neon LED strip can be placed in any shape, free DIY, advertising slogan, house number, or everything you think of.

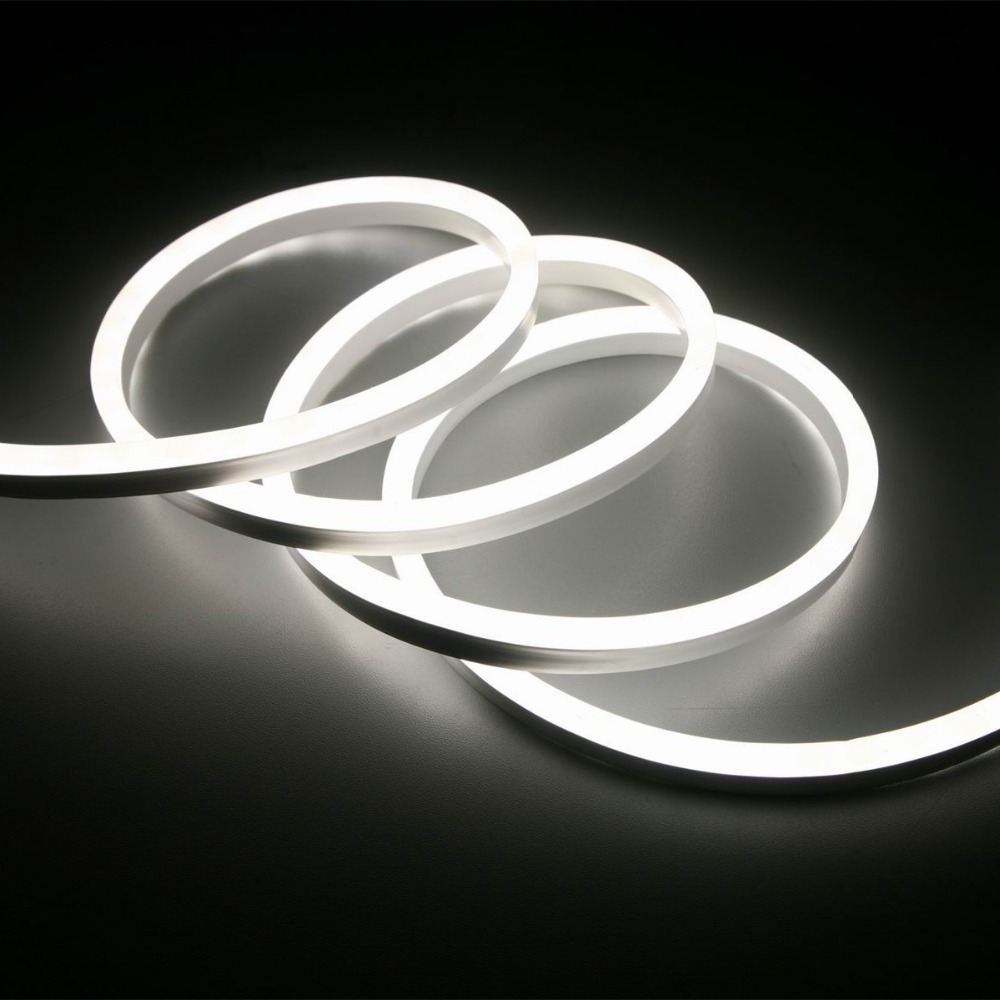

◪Uniform and soft luminance, no light spot.
❈ Product parameters
| Part Number | UN-FPC-E2835x-xxN-24V |
| IP Rating | IP67 |
| Colour | Warm White, Nautral White, Cool White, RGB |
| Voltage | DC 24V |
| Light beads | Edison 2835 |
| Power rating | 12W or difference power for choice |
| CRI (Ra>) | 80, 90 |
| LED Light Source | Edison SMD 2835 |
| LED Qty(LEDs/m) | 120leds |
| Beam Angle(degree) | 120 |
| CCT/nm | 2700-3000k, 4000k, 5700k, 6000-6500k |
| Min. Cutting | 5cm/6LEDs |
| Max. Length | 5, 10M |
| Operating Temperature | -20-50℃ |
| Storage temperature | 0-60℃ |
| Environment humidity | 40%-70%RH |
| Dimmensions(mm): | 16.5*8mm |
| PCB Width | 8mm |
| Certification: | CE, FCC, RoHS |
| PCB Color: | White PCB |
| Working Lifetime(Hour): | 50000 |

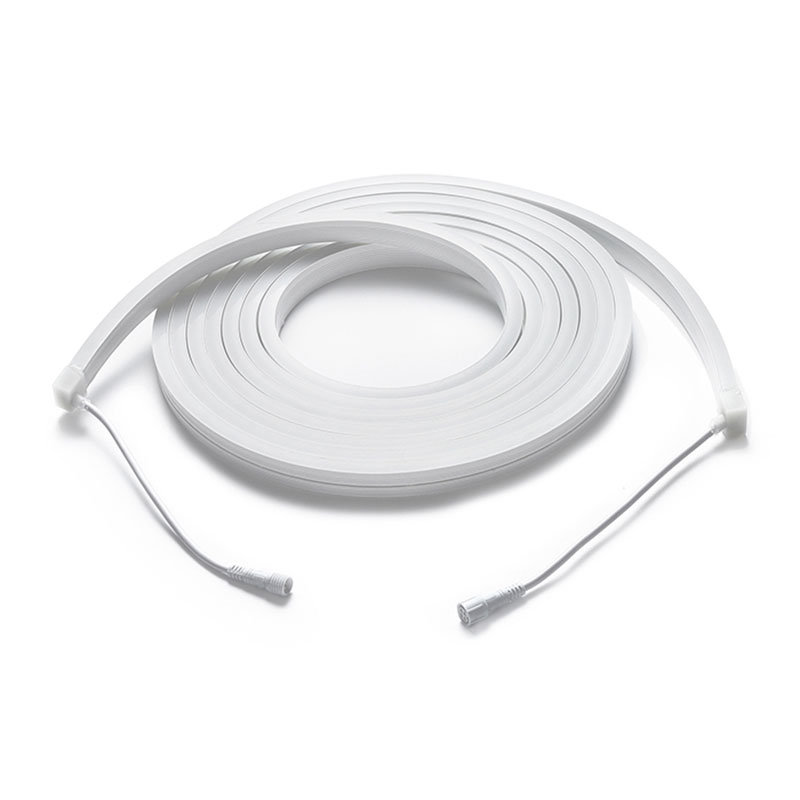

| Packeting: | 5 Meters/Roll, 10 Metres/Roll |
| Warranty: | 2 Years |
| Service | OEM, ODM , Customization |

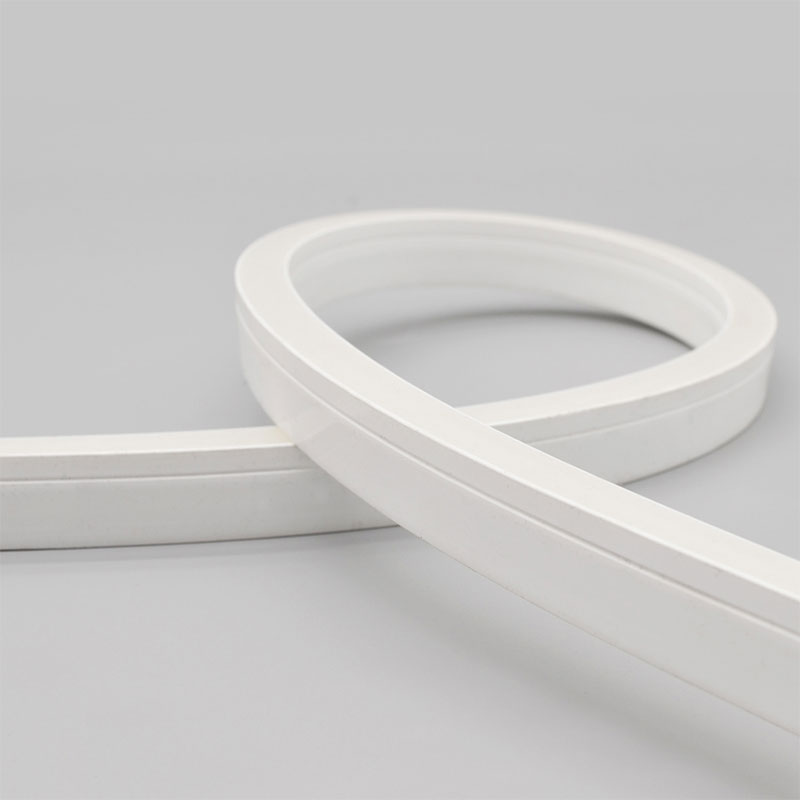

Our Neon LED Strip Light Anti-yellowing and heat resisting silicon glue, chemical resistance acid and alkaline. Excellent flexibility to shape optionally. Uniform and soft luminance, no light spot.
❈ product details
01
CUTTING OUT

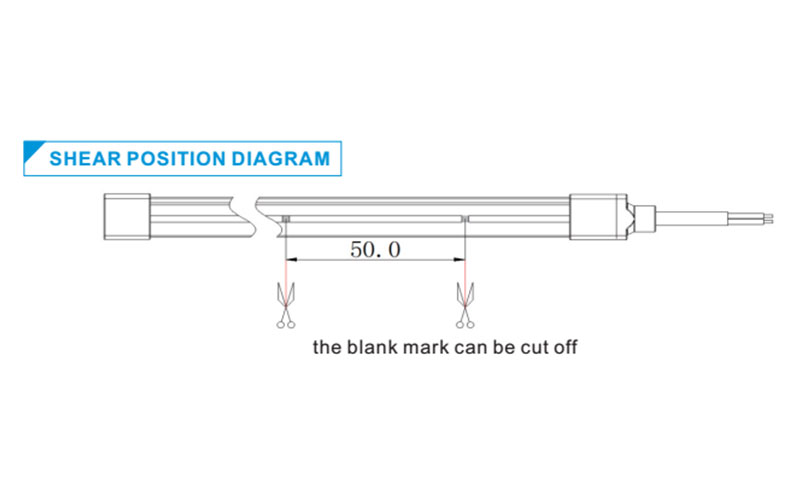

When you need to cut, the neon LED strip is marked and cut along the mark.
02
CIRCUIT BOARD

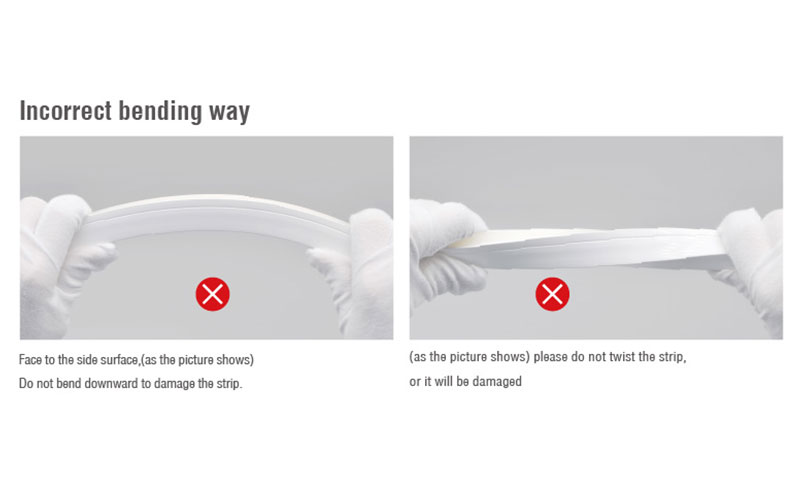

Picture 1, Face to the side surftace.,Do not bend downward to damage the strip.Picture 2, please do not twist the strip, or it will be damaged.
03
BACKING

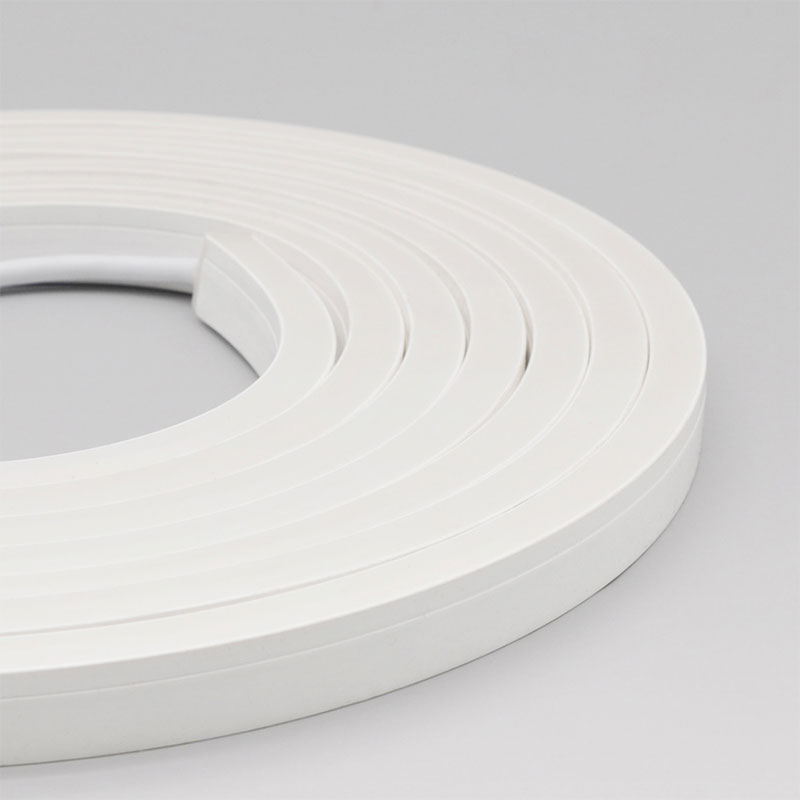

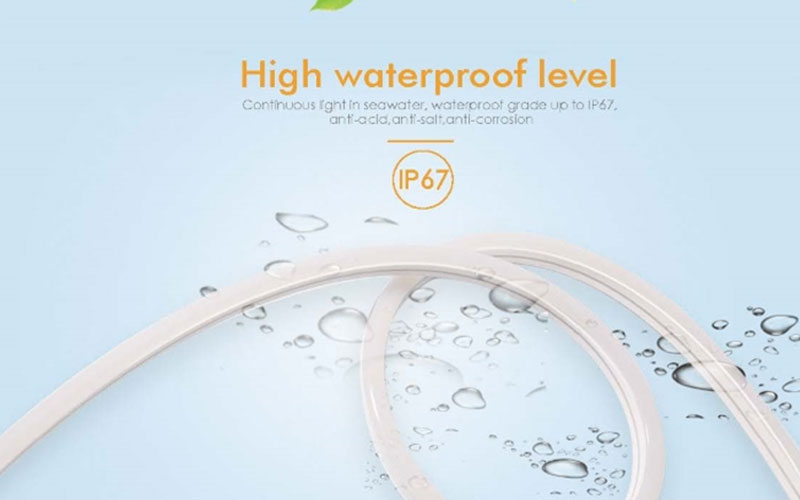

Anti-yellowing and heat resisting silicon glue, chemical resistance acid and alkaline, Waterproof rating of IP67, Soaking in the water for a short time without any problems.
❈ product Applications
Application-2

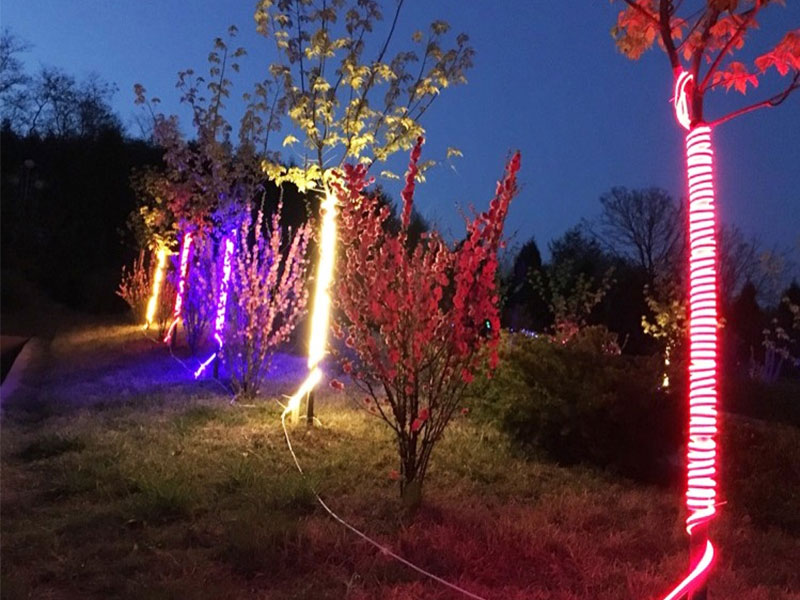

The neon LED strip can be wrapped around the tree, lit at night, with the soft light of the neon LED strip, and another beautiful scenery.
Application-3

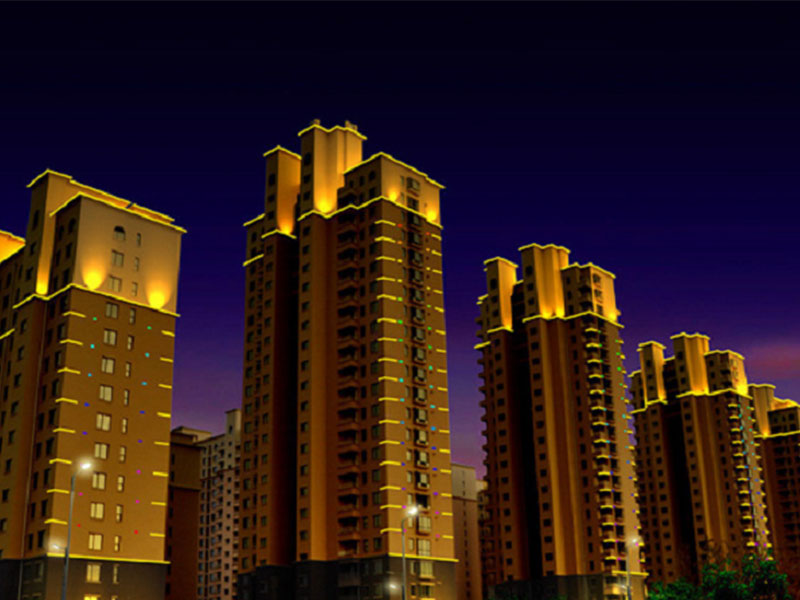

Neon LED strip can be installed on the outer edges of buildings such as hotels, apartments, plazas, etc. It looks stylish and full of technology.
Application-4

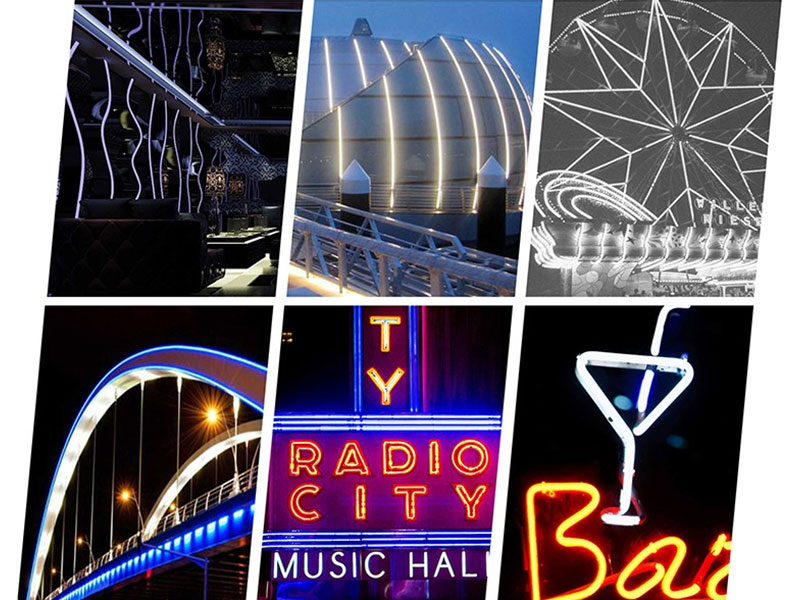

The neon LED strip can be installed in a large playground, the outer edge of the bridge, park steps, stair steps and more.
