Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price
1. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Quality and safety
1. Rigorous quality control meets the highest international standards.
2. High-transmissivity low-iron tempered glass, strong aluminium frame.
3. Using UV-resistant silicon.
4. IS09001/14001/CE/TUV/UL
2. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Warranties
1. 10 years limited product warranty
2. 15 years at 90% of the minimal rated power output
3. 25 years at 80% of the minimal rated power output
3. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Technical Data
Module type |
|
| XLxxxC-30b (xxx=Pmax)
| ||||
Power output | Pmax | W | 280 | 275 | 270 | 265 | 260 |
Power output tolerances | ΔPmax | W | 0 / + 5 | ||||
Module efficiency | ηm | % | 17.2 | 16.9 | 16.6 | 16.3 | 16.0 |
Voltage at Pmax | Vmpp | V | 31.3 | 30.9 | 30.5 | 30.1 | 29.7 |
Current at Pmax | Impp | A | 8.96 | 8.91 | 8.85 | 8.79 | 8.74 |
Open-circuit voltage | Voc | V | 39.1 | 38.8 | 38.6 | 38.3 | 38.1 |
Short-circuit current | Isc | A | 9.50 | 9.47 | 9.43 | 9.37 | 9.35 |
STC: 1000W/m2 irradiance, 25°C cell temperature, AM1.5g spectrum according to EN 60904-3.
Average relative effi ciency reduction of 1.9% at 200W/m2 according to EN 60904-1.

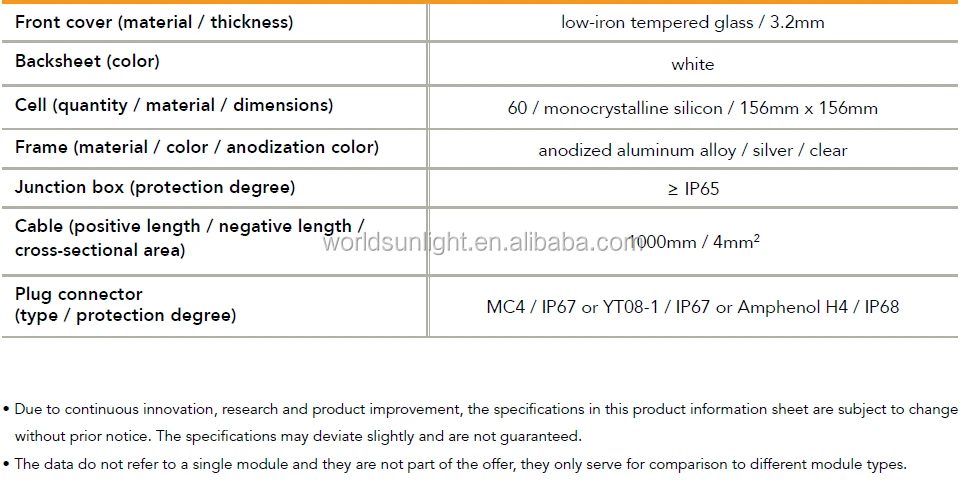

4. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Construction Materials
 |

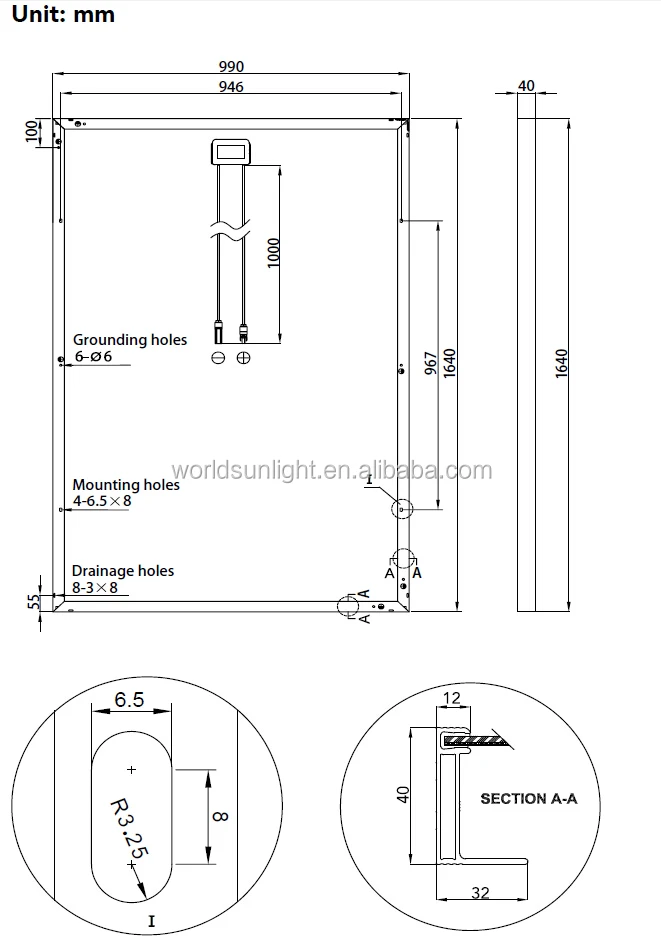

5. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Dimensions
|
6. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Certificates
|

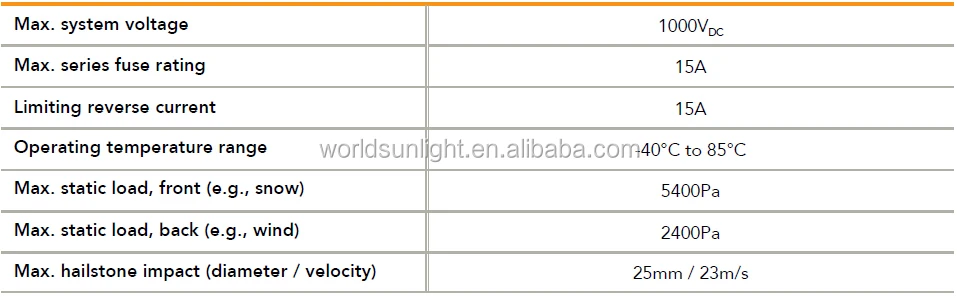

7. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Operation conditions
|

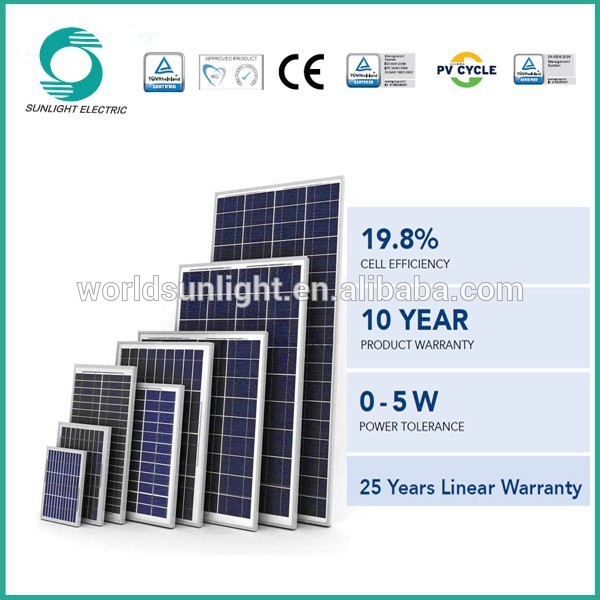

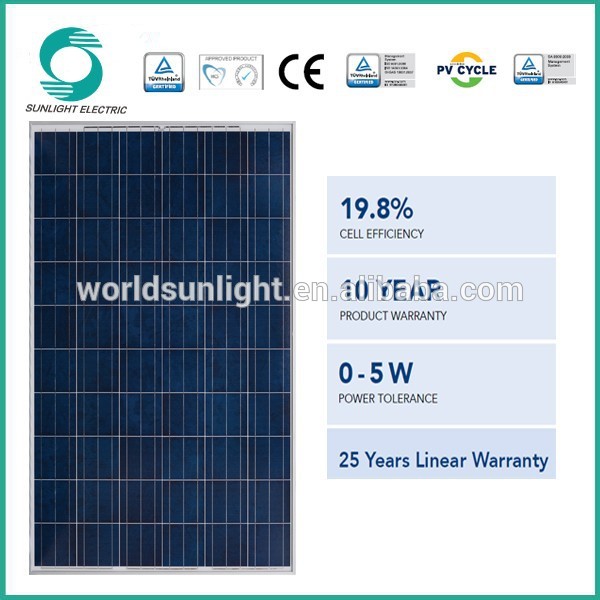

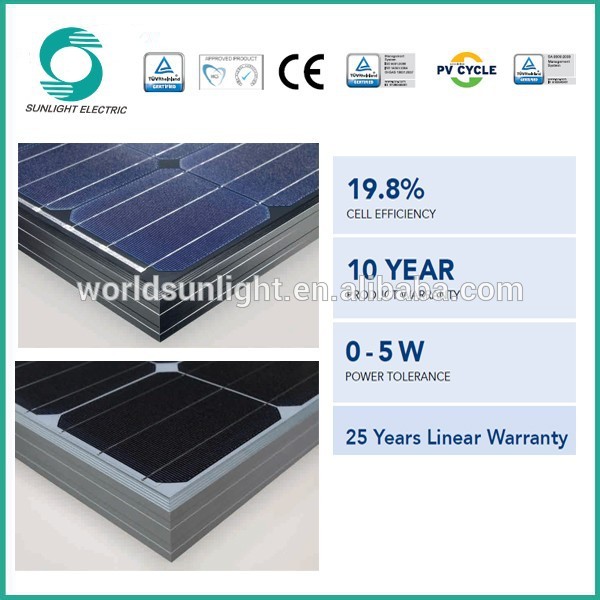

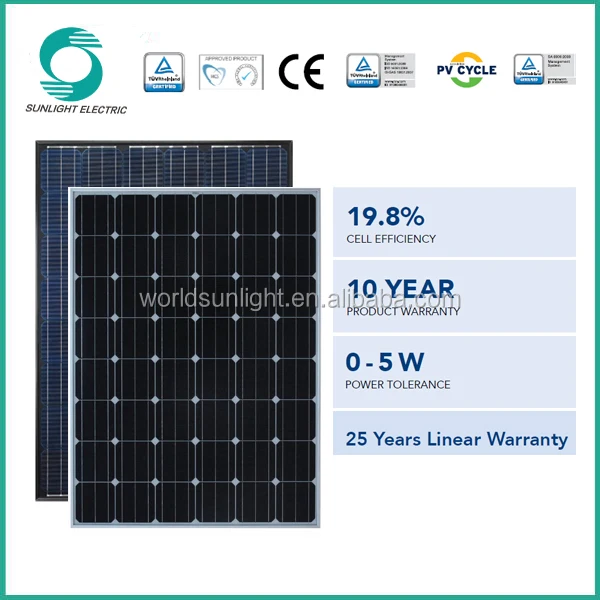

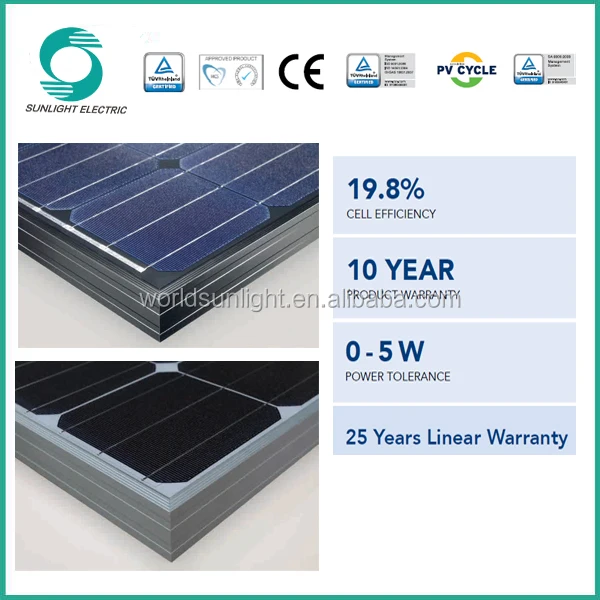

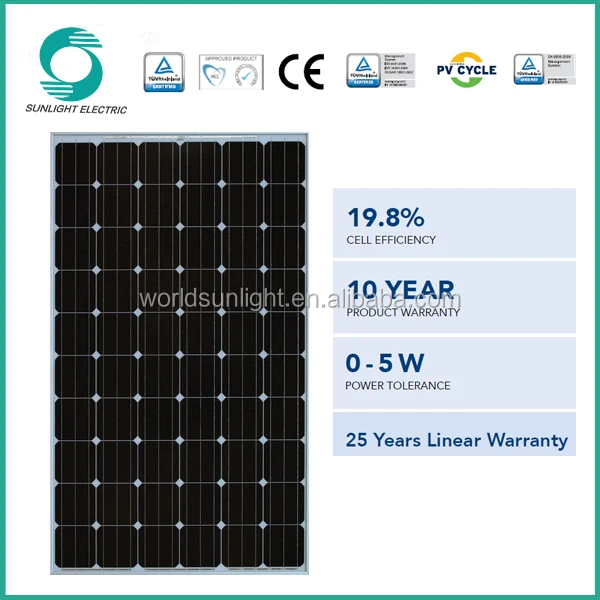

8. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Pictures
|
|
|
|

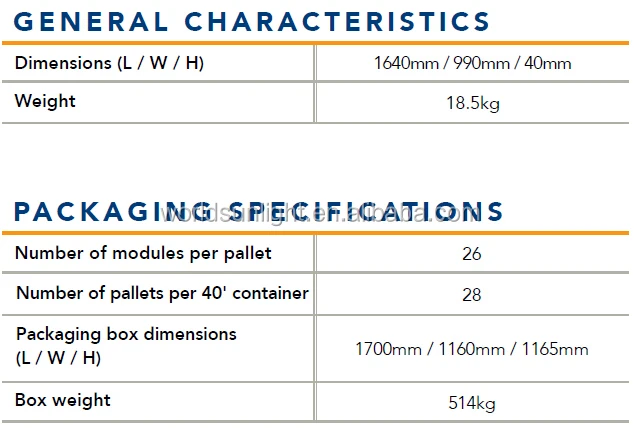

9. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Packing
|
|
10. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price Shipping
|
11. Photovoltaic system monocrystalline silicon 260w-280w solar pv panel price After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of solar products and electronic environmental protection products.
These lines cover solar panel, solar charge controller, on/off solar inverter, solar home system, solar light kit, solar cable etc. We focus on all types of solar products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
|
Q1: Are you a manufacturer?
A1:yes. We have 3 years export exprience.
Q2: Delivery time?
A2:Will send the goods out within 72 hours after the order confirmed.
Q3: After Sales Service?
A3: if u have any questions about the receuved product, we will try our best to solve it.
Q4: Return the goods?
A4: If the product really has quality problem, we will accept return the old one and send again.
