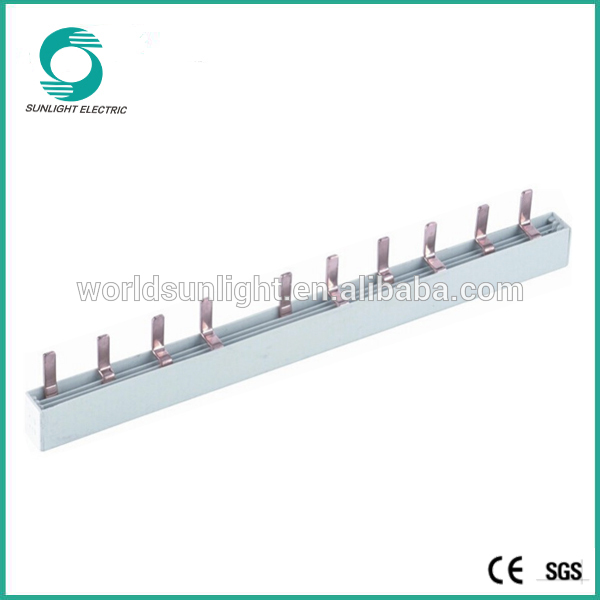

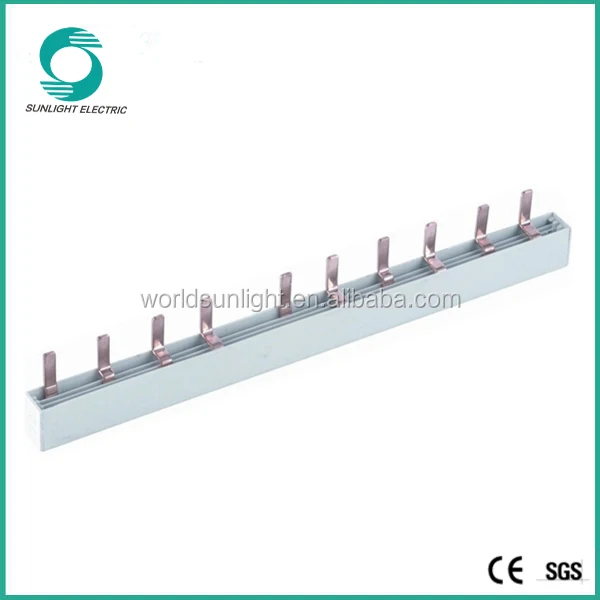

SUNLIGHT/OEM PIN insulated copper busbar
Product Descrption of PIN insulated copper busbar
The present of Busbar changed the outdated connection ways of Miniature circuit breaker(MCB) to a new connection way with yhe characteristics of wider contact area,low power consumption aand low temperature-rise.
Our company produces almost all kinds of busbars for MCB,which have good versatility and practibility.It has advantages of security and convenience to install and widely used in construction electrical devices such as low-voltage power box,distribution box,illuminated box and so on.
Technical features of PIN insulated copper busbar :
1. Material is of fire-resistant PVC and redl copper
3. Rated voltage is up to 415V
4. Applicable ambient temperature -25~+50
5. Standard length 1m, other length tol be made upon request.
| Regulations | VDE 0660,Teil/part/§500 |
| Regulation of style | IEC 664 |
| Material busbars | E-CU-F25 |
| Material of insulation | PVC,PC/ABS |
| Short-circuit strength | 50KA/ 250Agl |
| Cross-section of busbars | 6-10-13-16-22-33-45m2 |
| Disruptive strength | 36kvmm |
| Clima stability | IEC 58-2 |
| Nominal voltage | 415V |
| Operating voltage | max.500V |
| Surge voltage | 4kV |
| Group of insulation | nach/acc.to VDE 0110,Teil/part/§1;4/1997(IEC 664) |
| Overvoltage category | Ⅲ |
| Degree of soiling | 2 |
 | ||||||||
| PIN type 1P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| PIN | 1P | 1.5 | 4 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| PIN | 1P | 1.8 | 4 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| PIN type 2P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| PIN | 2P | 1.5 | 4 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| PIN | 2P | 1.8 | 4 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| PIN type 3P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| PIN | 3P | 1.5 | 4 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| PIN | 3P | 1.8 | 4 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| PIN type 4P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| PIN | 4P | 1.5 | 4 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| PIN | 4P | 1.8 | 4 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| |||||||||
| FORK type 1P copper busbar | |||||||||
| Specification | Model | A | B | C | D | E | F | Cross-sectional area | Reference current |

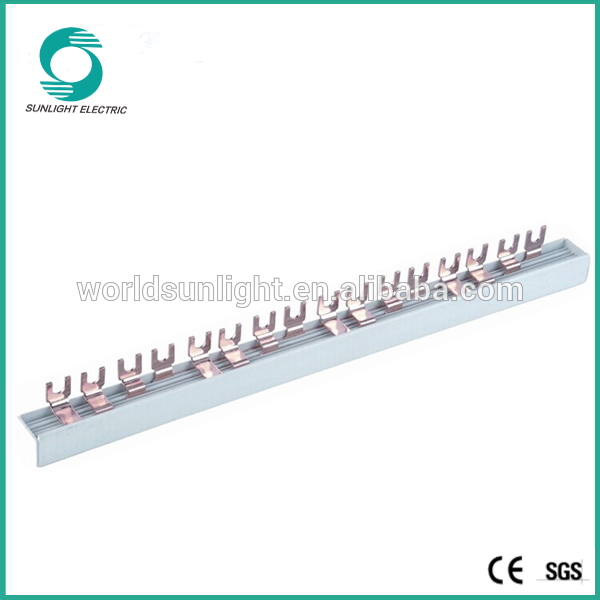

| FORK | 1P | 1.5 | 17.8 | 9 | 12 | 6 | 12 | 13mm2 | 80A |
| FORK | 1P | 1.8 | 17.8 | 9 | 12 | 6 | 12 | 16mm2 | 100A |
| FORK type 2P copper busbar | |||||||||
| Specification | Model | A | B | C | D | E | F | Cross-sectional area | Reference current |
| FORK | 2P | 1.5 | 17.8 | 9 | 12 | 6 | 12 | 13mm2 | 80A |
| FORK | 2P | 1.8 | 17.8 | 9 | 12 | 6 | 12 | 16mm2 | 100A |
| FORK type 3P copper busbar | |||||||||
| Specification | Model | A | B | C | D | E | F | Cross-sectional area | Reference current |
| FORK | 3P | 1.5 | 17.8 | 9 | 12 | 6 | 12 | 13mm2 | 80A |
| FORK | 3P | 1.8 | 17.8 | 9 | 12 | 6 | 12 | 16mm2 | 100A |
| FORK type 4P copper busbar | |||||||||
| Specification | Model | A | B | C | D | E | F | Cross-sectional area | Reference current |
| FORK | 4P | 1.5 | 17.8 | 9 | 12 | 6 | 12 | 13mm2 | 80A |
| FORK | 4P | 1.8 | 17.8 | 9 | 12 | 6 | 12 | 16mm2 | 100A |
| ||||||||
| C45 type 1P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| C45 | 1P | 1.5 | 6 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| C45 | 1P | 1.8 | 6 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| C45 type 2P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| C45 | 2P | 1.5 | 6 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| C45 | 2P | 1.8 | 6 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| C45 type 3P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| C45 | 3P | 1.5 | 6 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| C45 | 3P | 1.8 | 6 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
| C45 type 4P copper busbar | ||||||||
| Specification | Model | A | B | C | D | E | Cross-sectional area | Reference current |
| C45 | 4P | 1.5 | 6 | 9 | 17.8 | 11.5 | 13mm2 | 80A |
| C45 | 4P | 1.8 | 6 | 9 | 17.8 | 11.5 | 16mm2 | 100A |
|
Please note that: More details about SUNLIGHT/OEM PIN insulated copper busbar, please e-mail me or visit our official website.
* FAST SHIPPING!
* Item shipped in 25 working days after payment is received depends on the quantity of the order.
* Item shipped by TNT,DHL and so on, depending on size and weight of total order.
* Tracking number will be sent to you as soon as we shipped the goods.
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of busbar.

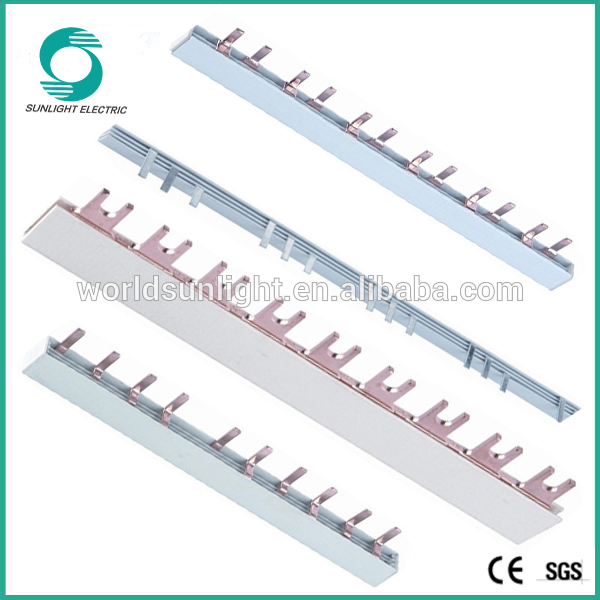

These lines cover PIN type busbar, Fork type busbar, C45 type busbar, etc.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have SGS, CE, UL, ISO9002 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
