EQuick installation led vapor tight fixtures 20w 40w 50w surface mount remote control battens
Production Description
Quick - Fit Led Batten Multi-Function WP Led Tri-Proof Battens - 40W / 50W
Replaces 2x36W/72W fluorescent batten
Exclusive Quick-Fit design
Bright white light - 100lm/w
Emergency pack up >3hours with self-testing
Microwave sensor dim 0%, 25% ,100%-25%-0%; Sensor range 0.5-10M, Sensing time 10s-5min
Non flicker driver. not need open led cover more functional and convenient
CE/SAA IP65 tri-proof 2ft 4ft 5ft 20w 40w 50w for carparks, stairs, tunnels,warehouse
Quality diffused LED batten
Linear-style - no tubes Extra-bright 100lm/w output
36,000+ hours service life with 3 year warranty.
Exceptional value for money
Low purchase cost for quality LED batten
Energy efficient - saves up to 60% compared to fluoro batten.
Exclusive Quick-Fit design for faster installation
Unique two part batten with quick release connectors
Fast installation and easy access for any future maintenance.
Production Model
| Model no. | Size(mm) | Watts | Function |
| GL2F2008CA | 600*120*86 | 20W | standard (no E/S) |
| GL2F2008SA | 100-25% MW Sensing | ||
| GL2F2008EA | 3 hours Emergency | ||
| GL2F2008ESA | 100-25% MW Sensing & 3 hours Emergency | ||
| GL4F4008CA | 1200*125*85 | 40W | standard (no E/S) |
| GL4F4008SA | 100-25% MW Sensing | ||
| GL4F4008EA | 3 hours Emergency | ||
| GL4F4008ESA | 100-25% MW Sensing & 3 hours Emergency | ||
| GL5F5008CA | 1500*125*85 | 50W | standard (no E/S) |
| GL5F5008SA | 100-25% MW Sensing | ||
| GL5F5008EA | 3 hours Emergency | ||
| GL5F5008ESA | 100-25% MW Sensing & 3 hours Emergency | ||
| GL4F1808CA | 1200*90*80 | 18W | standard (no E/S) |
| GL4F1808SA | 100-25% MW Sensing | ||
| GL4F1808EA | 3 hours Emergency | ||
| GL4F1808ESA | 100-25% MW Sensing & 3 hours Emergency | ||
| GL5F2508CA | 1500*90*80 | 25W | standard (no E/S) |
| GL5F2508SA | 100-25% MW Sensing | ||
| GL5F2508EA | 3 hours Emergency | ||
| GL5F2508ESA | 100-25% MW Sensing & 3 hours Emergency |
Technical parameters
| Format | Diffused WP LED Batten | Format | Diffused WP LED Batten | |
| Power consumption | 40W | Power consumption | 50W | |
| Fluorescent T8 equivalent | 2 x 36W plus ballasts Lumen output 3800 lm | Fluorescent T8 equivalent | 2 x 72W plus ballasts | |
| Lumen output | 3800lm | Lumen output | 4750 lm | |
| Colour rendering index (CRI) | 85 | Colour rendering index (CRI) | 85 | |
| Input voltage | 220-240V AC, 50/60Hz | Input voltage | 220-240V AC, 50/60Hz | |
| Power Factor / THD | ≥0.90 / ≤15% | Power Factor / THD | ≥0.90 / ≤15% | |
| Service life | 36,000+hours | Service life | 36,000+hours | |
| Operating temperature | 10 to 40 | Operating temperature | -10 to 40 | |
| Construction - Diffuser | PC | Construction - Diffuser | PC | |
| Construction - Tray | ABS base | Construction - Tray | ABS base | |
| IP rating | IP65 | IP rating | IP65 | |
| Weight | 3.05kg | Weight | 3.35kg | |
| Emergency & sensor & Remote control | Yes | Emergency & sensor & Remote control | Yes |

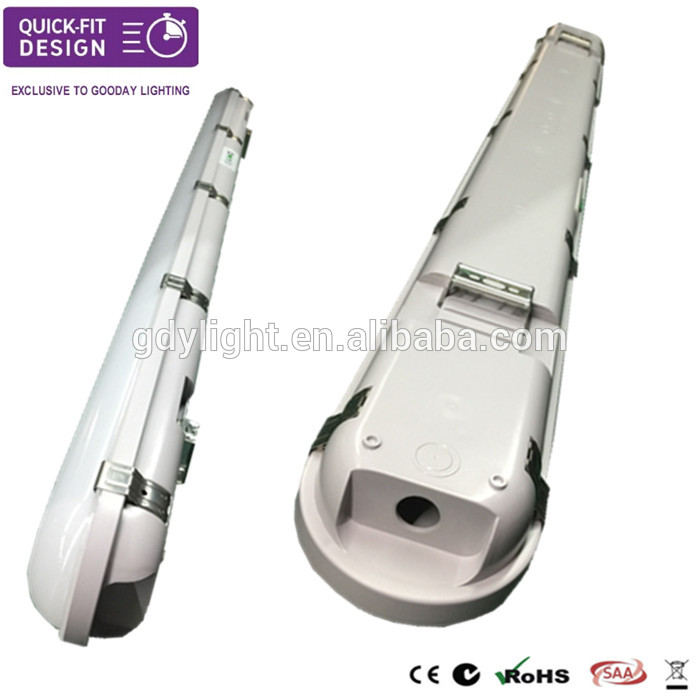

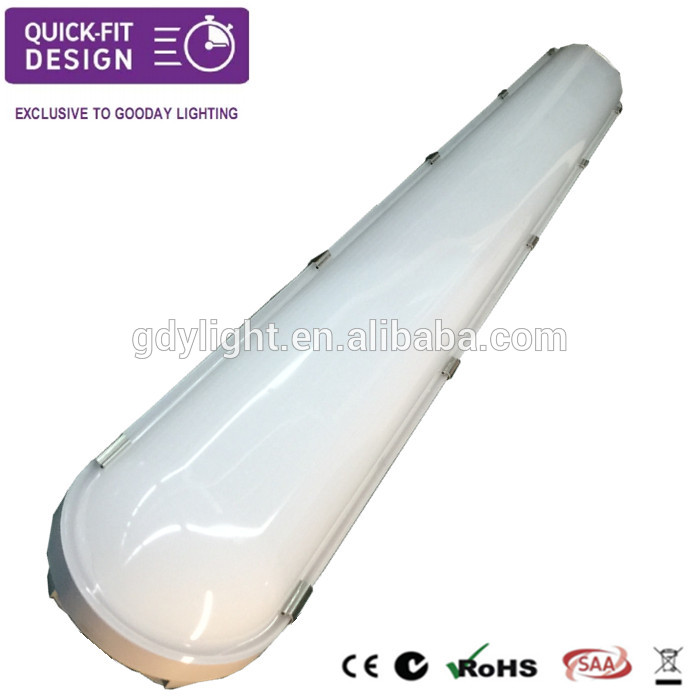

Production Picture
Production Installation
1.Ceiling and connect the base
•Fix base section of the batten to the ceiling
•Connect the AC power cable to the terminal block, either through the top or via the end cap.
2.Join the two halves
•Connect the LED module to the base section with the two wire ropes to support the weight
•Join the ends of the internal power cable together
•Test the light.
3.Lock the two halves together
•Match diffused led module together with gear tray base and then lock the clips to secure the batten
Applications
Multi-purpose, energy-efficient diffused batten for internal use. Surface mounted or suspended
Where speed of installation is important. For warehouses & factories, offices, schools, libraries, car parks, restrooms, corridors,basements, food preparation areas.
