Product Details
Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp
1. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Application
Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp is applied for kinds of industrial and mining enterprises such as steel smelting,prtrochemical industry,electric power,electron ,railway,construction,airport, mine,stope,water supply and drain processing factory ,port,store,hotel and so on . And it is also for mating and maintenance fittings of device power and connectors imported from abroad. So it is a new generation ideal power supply unit . The products are sold to over 20 provinces,municipalities and autonomous regions in our country ,and sortheast Asia,European ,Americal and so on areas as well,they are quite enjoyed by clients.
2. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Description and reference
Item No. | Dimension | Color |
|
|
|
|
|
|
Bolt NO. | Bolt Diameter | B | L | F | H | D |
|
|
d2 | mm | mm | mm | mm | mm |
|
|
|
RV1.25-3 | #4 | 3.2mm | 5.7 | 17.8 | 4.95 | 10 | 4.3 | Red |
RVS1.25-3.5 | #6 | 3.7mm | 5.7 | 17.8 | 4.95 |
|
|
|
RVM1.25-3.5 | #6 | 3.7mm | 6.6 | 20.1 | 6.3 |
|
|
|
RVL1.25-3.5 | #6 | 3.7mm | 7.2 | 21.2 | 7 |
|
|
|
RVS1.25-4 | #8 | 4.3mm | 6.6 | 20.1 | 6.3 |
|
|
|
RVL1.25-4 | #8 | 4.3mm | 8 | 21.5 | 7 |
|
|
|
RVS1.25-5 | #10 | 5.3mm | 8 | 21.5 | 7 |
|
|
|
RVL1.25-5 | #10 | 5.3mm | 9.5 | 23.3 | 8 |
|
|
|
RVLL1.25-5 | #10 | 5.3mm | 11.6 | 27.5 | 11.1 |
|
|
|
RVS1.25-6 | 1/4 | 6.5mm | 9.5 | 23 | 8 |
|
|
|
RV1.25-6 | 1/4 | 6.5mm | 11.6 | 27.5 | 11.1 |
|
|
|
RV1.25-8 | 5/16 | 8.4mm | 11.6 | 27.5 | 11.1 |
|
|
|
RV1.25-10 | 3/8 | 10.5mm | 13.6 | 31.6 | 13.9 |
|
|
|
RVL1.25-10 | 3/8 | 10.5mm | 19.2 | 35 | 16 |
|
|
|
RV1.25-12 | 1/2 | 13.0mm | 19.2 | 35 | 16 |
|
|
Item No. | Dimension | Color |
|
|
|
|
|
|
Bolt NO. | Bolt Diameter | B | L | F | H | D |
|
|
d2 | mm | mm | mm | mm | mm |
|
|
|
RV2-3 | #4 | 3.2mm | 6.6 | 17.8 | 4.3 | 10 | 4.9 | Blue |
RVS2-3.5 | #6 | 3.7mm | 6.6 | 17.8 | 4.3 |
|
|
|
RVM2-3.5 | #6 | 3.7mm | 6.6 | 21 | 7 |
|
|
|
RVL2-3.5 | #6 | 3.7mm | 8.5 | 22.5 | 7.75 |
|
|
|
RVS2-4 | #8 | 4.3mm | 6.6 | 21 | 7 |
|
|
|
RVL2-4 | #8 | 4.3mm | 8.5 | 22.5 | 7.75 |
|
|
|
RVS2-5 | #10 | 5.3mm | 8.5 | 22.5 | 7.75 |
|
|
|
RVL2-5 | #10 | 5.3mm | 9.5 | 22.5 | 7.25 |
|
|
|
RVS2-6 | 1/4 | 6.5mm | 9.5 | 25 | 10 |
|
|
|
RV2-6 | 1/4 | 6.5mm | 12 | 27.6 | 11 |
|
|
|
RV2-8 | 5/16 | 8.4mm | 12 | 27.6 | 11 |
|
|
|
RV2-10 | 3/8 | 10.5mm | 13.6 | 30.2 | 13.9 |
|
|
|
RVL2-10 | 3/8 | 10.5mm | 19.2 | 35 | 16 |
|
|
|
RV2-12 | 1/2 | 13.0mm | 19.2 | 35 | 16 |
|
|
Item No. | Dimension |
|
|
|
|
| Color | |
| Bolt NO. | Bolt Diameter | B | L | F | H | D |
|
|
| d2 | mm | mm | mm | mm | mm |
|
SNYB 2-3 | #4 | 3.2mm | 5.7 | 21.2 | 6.5 | 10 | 4.9 | Blue |
SNYBS 2-3.5 | #6 | 3.7mm | 5.7 | 21.2 | 6.5 |
|
|
|
SNYBL 2-3.5 | #6 | 3.7mm | 6.4 | 21.2 | 6.5 |
|
|
|
SNYBS 2-4 | #8 | 4.3mm | 6.4 | 21.2 | 6.5 |
|
|
|
SNYBM 2-4 | #8 | 4.3mm | 7.2 | 21.2 | 6.5 |
|
|
|
SNYBL 2-4 | #8 | 4.3mm | 8.1 | 21.2 | 6.5 |
|
|
|
SNYBS 2-5 | #10 | 5.3mm | 8.1 | 21.2 | 6.5 |
|
|
|
SNYBL 2-5 | #10 | 5.3mm | 9.5 | 21.2 | 6.5 |
|
|
|
SNYBS 2-6 | 1/4 | 6.5mm | 9.5 | 21.2 | 6.5 |
|
|
|
SNYBL 2-6 | 1/4 | 6.5mm | 12 | 27.2 | 11 |
|
|
|
SNYB 2-8 | 5/16 | 8.5mm | 14 | 29 | 12.5 |
|
|
|
3. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Category Introduction
 |
|

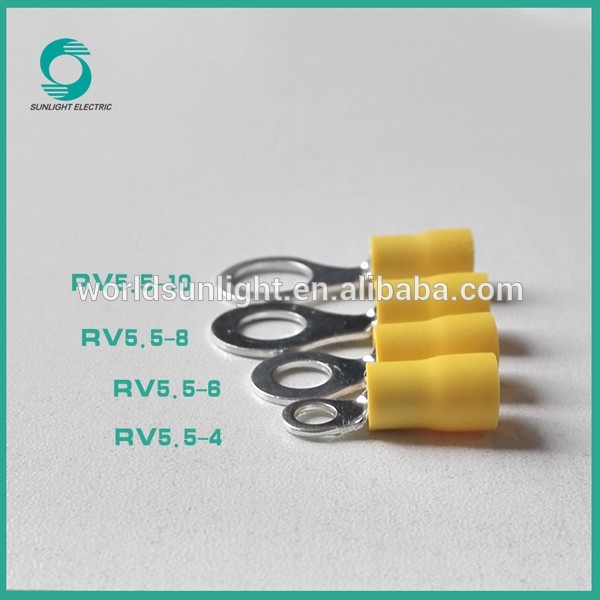

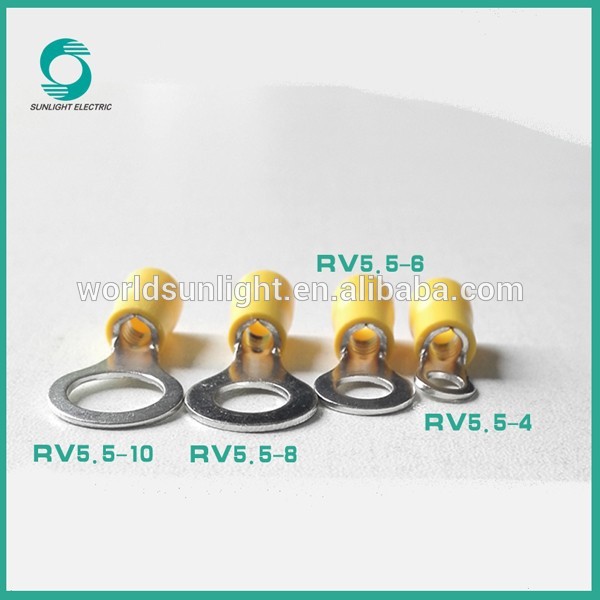

4. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Pictures
|
|
|
|
5. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp other types Pictures
|
6. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Certificates
|
7. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Packing
|
8. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp Shipping
9. Red, Blue, Yellow, Black RV stainless steel insulated ring terminal clamp After sale services
1.Reply inquiry in 24 hours.
2.Please kindly inform us which items you are interested & the reasonable price will be provided to you upon
receipt of your new inquiry ASAP.
3.Answer your question detailed.
4.Solved the problem with you during using our products.
5.Welcome to visit to our company and technology communication.
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing
of Terminal products.
We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well
received by our customers from all over the world.
|
|
