RoHS approval LW12 380V or 220V selector switch
1. RoHS approval LW12 380V or 220V selector switch application:
LW12 switches apply to change over of circuits,also for control of electrical measuring in struments and control of motors. |
2. RoHS approval LW12 380V or 220V selector switch features:
1) rated current:16A
2) function:control and changeover switch of motor and instrument.

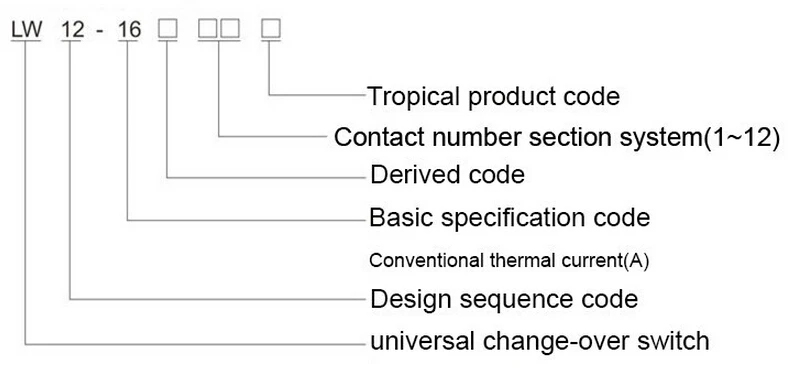

The meaning of the type:
 |
3. RoHS approval LW12 380V or 220V selector switch technical parameters:
Rated insulation current | Ui | V | 500 | ||
Rated thermal current | ITH | A | 16 | ||
Rated working voltage | Ue | V | 220 | 380 | |
Rted working current | Le | ||||
AC-15 | A | 4.6 | 2.6 | ||
DC-13 | A | 0.27 | |||
DC-3 | A | 12 | |||
DC-4 | A | 12 |
Mechnical life:
Mechanical life without load:300000 times,operation frequency is 120 times/h.
Mechanical life with load:AC-15
is 100000 times operation frequency is 300 times/h.
DC-13 is 100000 times operation frequency is 300 times/h.
AC-3 is 100000 times operation frequency is 300 times/h.
AC-4 is 100000 times operation frequency is 120 times/h.

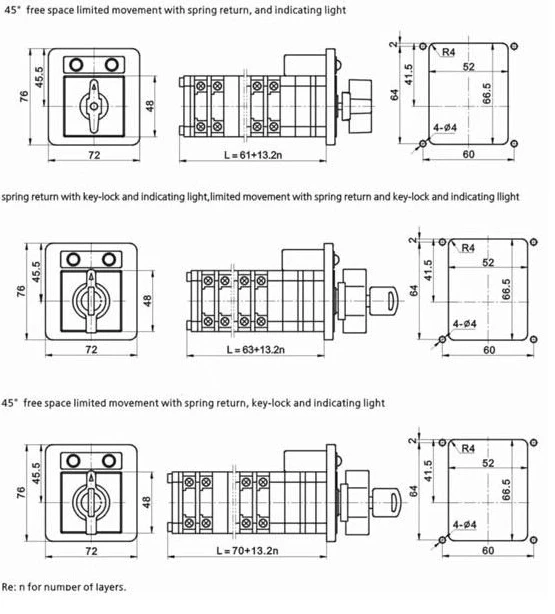

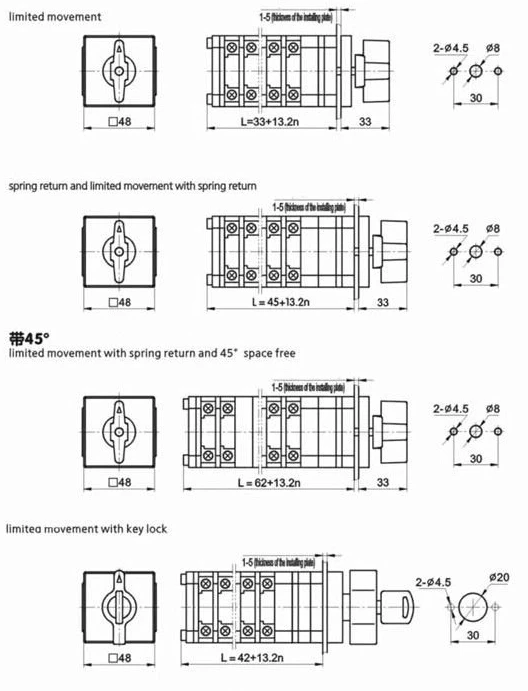

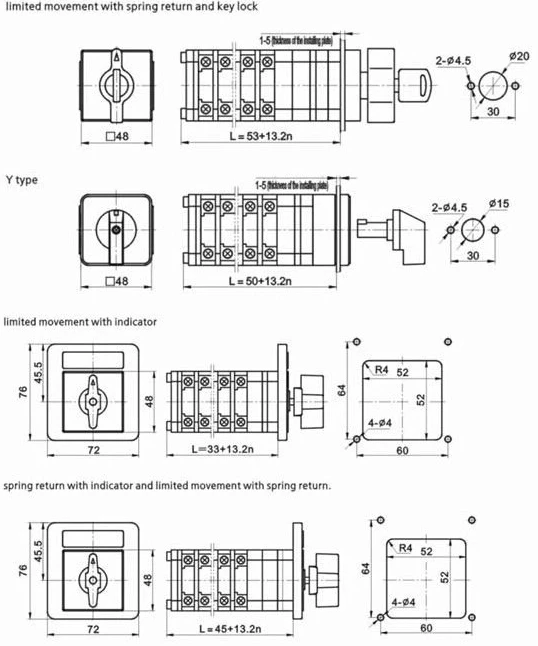

4. RoHS approval LW12 380V or 220V selector switch dimension and installation:
|
|
|

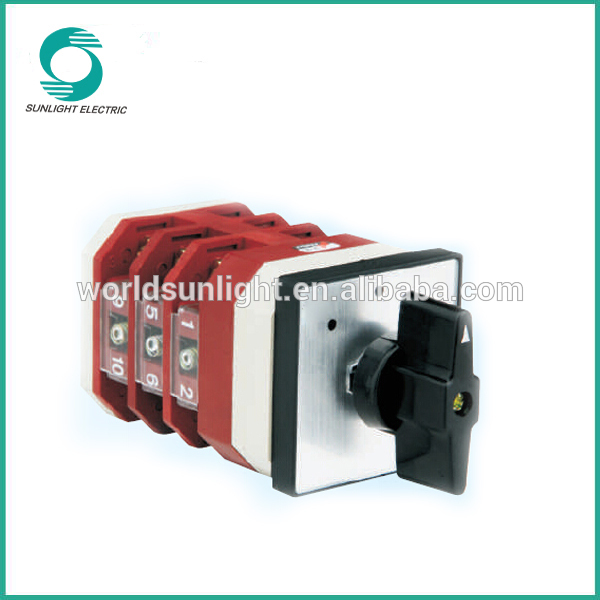

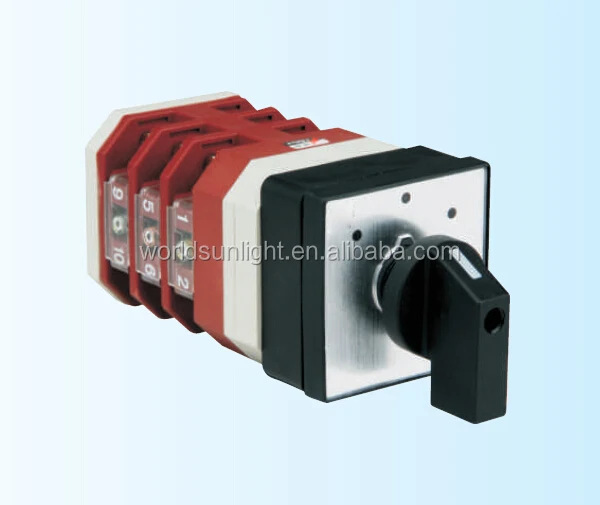

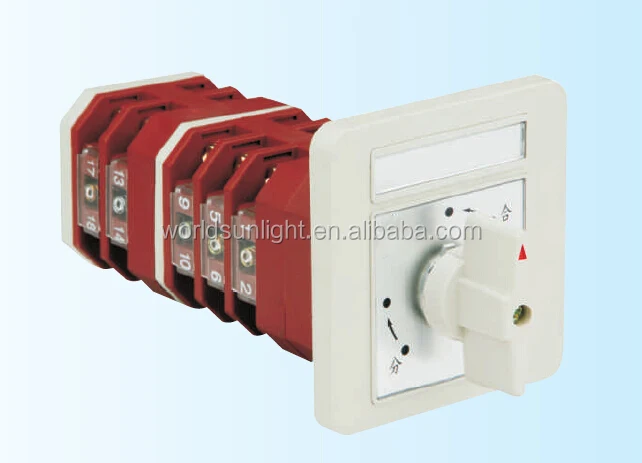

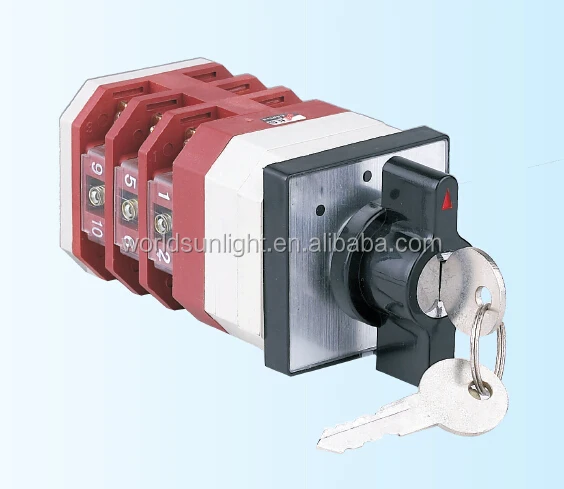

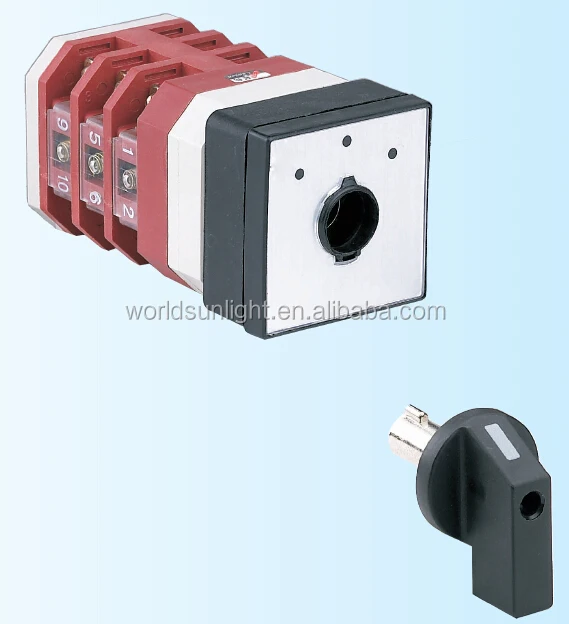

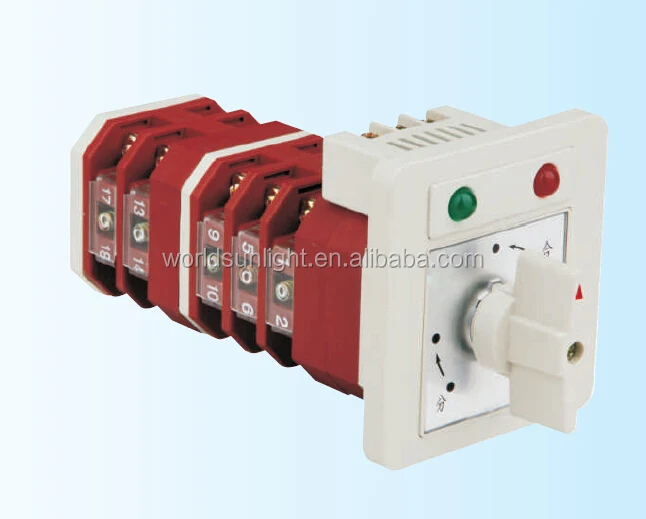

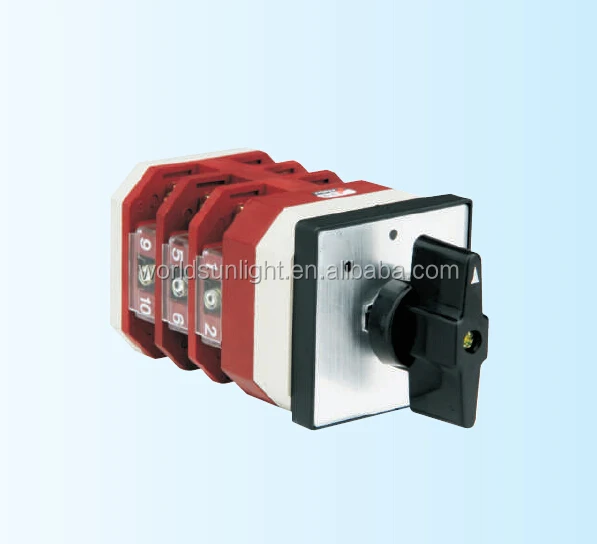

5. RoHS approval LW12 380V or 220V selector switch pictures:
|
|
|
|
|
|
|
|
6. RoHS approval LW12 380V or 220V selector switch packaging:
Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)
|
XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.
|
