Shenzhen Asenware Test And Control Technology Co., Ltd

a leading Chinese fire alarm panel & relevant fire detector manufacturer (a technology oriented company)

We have 3 series fire alarm control systems with time-tested performance:
1. 2166 Series: Conventional fire alarm system with optional 1-32 zone panels.
2. 2188 Series: Addressable fire alarm system for middle fire project with optional 100/200/324 addresses.
3. 2100 Series: Addressable fire alarm control system for big fire project with minimum addresses starting from 648,648*2,648*N.

A professional and experienced R&D team will offer all-around technical support before, during and after sales, they can also provide professional technical solutions for your items, even arrive in customer’s country to direct projects personally. Our aim is to provide our customers with all-weather and all-around satisfying service.

Profile:  Shenzhen 10-years supplier of addressable 324 address/loop control panel

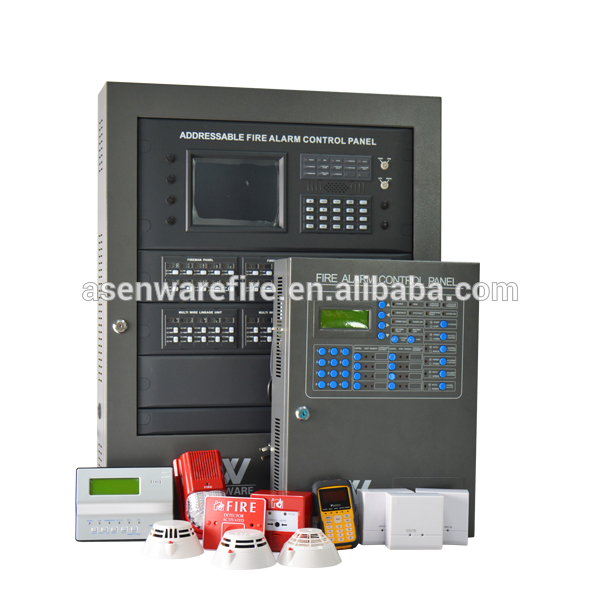

1. The fire alarm control panel AW-AFP2100 (linkage type) is a new generation intelligent fire alarm and linkage integrated control panel, which is a dual wire analog bus system and can replace the conventional fire alarm control system to save 50% or more cables.
2. The fire alarm control panel has a modular design and is characterized by great functions, large capacity, flexible configurations and an excellent price-performance ratio.
3. Each detector, module, manual call point, horn, strobe, hydrant has its own independent address, the fireman or the guard can find the exact fire alarm address instead of a wide area in conventional system.
4. Application: high-grade office buildings, big residence communities, department stores, gymnasiums, exhibition halls, libraries,factory buildings, supermarkets, hotels and other large and medium-sized fire protection projects.

Shenzhen 10-years supplier of addressable 324 address/loop control panel
Characters:
♦ 32-bit MCU.
♦ 2-wire communication between detector/module
♦ Each detector sensitivity adjustable
♦ Field-programmable with PS/2 standard PC keyboard and mouse
♦ 7.4’’ LCD back-lit display
♦ Windows menu and interface
♦ English interface and panel display
♦ CF card duplicate or reset system setup file and history file to facilitate maintenance
♦ Communicate with PC via USB
♦ Single point start/stop of module(Menu operation)
♦ Single point test of detector/module
♦ Zone, building or floor display
♦ CRT visually display the location of fire and trouble
♦ Eleven users each with a password and selectable access levels
♦ Field software upgrade
♦ Flexible collocation by modularized combination
♦ Multiple high-speed CAN-bus interfaces, ensuring quick and reliable data transmission.

Standards that reaches:
GB 4717 - 2005—General Technical Conditions for Fire Alarm Control Units
GB 16806-2006—Automatic Control Systems for Fire Protection
EN 54-2 and EN 54-4—Requirements of European standards

Capacity:
1.  Non-polarity two-bus intelligent alarm linkage mode & a total of 324 intelligent detectors or modules for a single circuit.
2.  Super high single-machine capacity (maximum single-machine capacity: 40×2×324=25,920 alarm points).
3.  Each I/O-board has two loops, with 324 alarm/control points of each loop(Max. control points-324), the capacity of each I/O- board:2*324=648points.
4.  Each AW-AFP2100 can connect maximum 3 I/O-boards, the capacity of each AW-AFP2100: 3*648=1944(points). Over 1944 points, the wall-mounted panel turn to cabinet panel, each cabinet panel can connect maximum 40 I/O-boards:40×2×324=25,920 (points).
5.  Connected with a multi-line linkage control unit and has a maximum capacity of 4,000 points for a standalone linkage control unit.

Maximum simultaneous alarm of each host:
Fire alarm:500
Trouble:500
Feedback:500

Operating environment:
Temperature: -10℃~+50℃
Relative humidity:≤95%  (40℃±2℃, non-condensing)
AC Power: 220VAC, 50Hz, 3A
DC Power: 24VDC, 7.0Ah

The packing:
CBM: 0.133m³/pc
GW.: 21.78kg/pc (no battery);

         26.10kg/pc(including battery)Shenzhen 10-years supplier of addressable 324 address/loop control panel

Addressable Optional Accessories:

Exhibition hall:   Shenzhen 10-years supplier of addressable 324 address/loop control panel

Wide Application:

1. Pre-sales: we have independent R&D center which can offer free technical support and project budget.

2. Sales: 24-hour online prompt reply as well as standard quotation.

3. After-sales: one year warranty and technical maintenance.

Shenzhen 10-years supplier of addressable 324 address/loop control panel

1. Payment terms: T/T ,  L/C , Western union , Money Gram

2. Delivery time: Usually about 2 to 5 days.
3. Warranty: One year.
4. Certificate: CE  ISO9001.
5. Technical support: Yes
