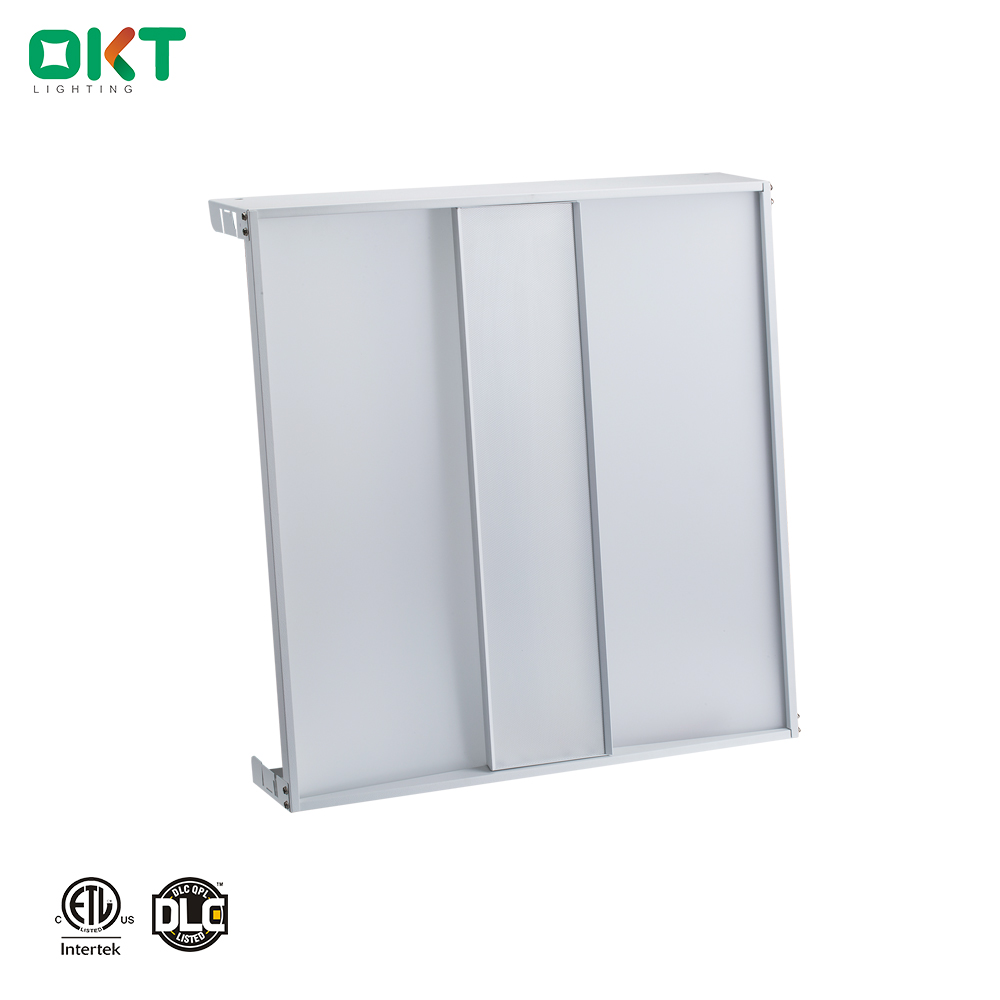

Name: Smart Design OKT LED Troffer for Housing Lighting
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term

Product Details

Overview

Quick Details

Input Voltage(V):: 100-277VAC,340-480VAC

Lamp Luminous Flux(lm):: 4560

CRI (Ra>):: 80

Working Temperature(℃):: -20 - 50

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum

IP Rating:: IP20

Certification:: BV, CE, ETL, FCC, RoHS

Place of Origin:: Guangdong, China

Brand Name:: OKT LIGHTING

Model Number:: TR22-DM-XXX

Light Source:: LED

Power Options:: 27W,40W,65W

Size Options:: 2x2ft

Chip:: passed LM80

DLC CCT Options:: 4000K 5000K

Light efficacy:: Up to 110lm/W

Driver:: Fire rated design with Junction box

Mounting:: Recessed

Certificate:: UL,DLC,Lighting Facts,LM79

Function available:: 0-10V Dimming

Product Name:: led housing troffer

Item Type:: Panel Lights

Color Temperature(CCT):: Pure White

LED Light Source:: LM80 Chip

Warranty(Years):: 5

Lamp Power(W):: 40

Lamp Luminous Efficiency(lm/w):: 110

Supply Ability

Supply Ability:: 30000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details: Standard Export Box and Carton or as Client's Design
Quantity Per Carton:1PCS/CTN
Carton Size: 63.2*63.2*11.2CM

Port: Shenzhen

Lead Time:: 3 days

Smart Design OKT LED Troffer for Housing Lighting

Performance Summary

Model	TR22-DL-XXE	TR22-DM-XXE	TR22-DM347-XXE
Input Wattage	27 Watts	40 Watts	40 Watts
Input Voltage	100-277V AC	100-277V AC	120-347V AC
Delivery Lumens	2700 lm	4400 lm	4400 lm
Efficacy	100 lm/w	110 lm/w	110 lm/w
Color Rendering Index ( CRI )	Ra>80	Ra>80	Ra>80
Power Factor	PF>0.9	PF>0.9	PF>0.9
Dimmable	0-10V Dimming	0-10V Dimming	0-10V Dimming
Function Optional	Motion Sensor and Emergency Backup	Motion Sensor and Emergency Backup	N/A
Warranty	5 Years	5 Years	5 Years
UL	YES	YES	YES
ETL	YES	YES	YES
DesignLights Consortium®	YES	YES	N/A
Damp Rated	YES	YES	YES
