Product Details
CS-864/T Medium-intensity Double Solar-Powered Aviation Obstruction Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations such as High-rise Building, Marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Product Specifications
| Light intensity | 2,000cd±25% |
| Operation mode | Flashing 20-60fpm |
| Service life of LED | ≥100,000hours |
| Battery | 26mAh, DC12V, Replaceable battery |
| Operating voltage | DC12V(Solar powered Way) |
| Power consumption | 20W |
| Overall size(mm) | 472 by 525 by 490 |
| Mounting size | 200 by 322 by M10 |
| Autonomy | at least 7 days (Option 20days) |
| Material | Housing: PC, Base: die casting aluminum |
| Weight | 22Kg |
| Emitting color | Aviation red |
| Ambient temperature | -40℃~+70℃ |
| Wind load | 80m/s |
| Protection standard | IP65 |
| Working way of two lights | Two light flashing by Main-standby way， Two light flashing synchronously |
Product Features
◆ ICAO Certified.
◆ IP65 waterproof rating.
◆ Long life LED light source.
◆ Free maintenance and aluminum alloy material.
◆ Major maintenance cost saving, Surge protection device inside light.
◆ Corrosion resistance, Shock and Vibrations protection and UV protection.
◆ LED aviation lens with 360° Omnidirectional LED Reflector.
◆ Built-in circuit protect LED, extremely reliable and cost saving.
◆ International advanced solar panel reaching at least 10 years service life.
Product Dimension
Case

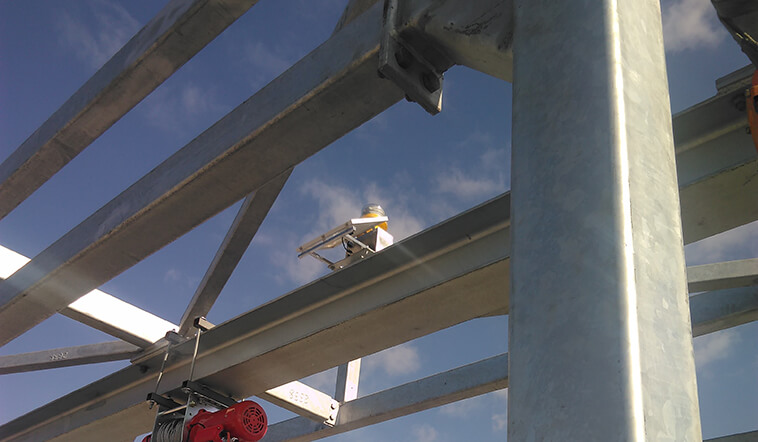

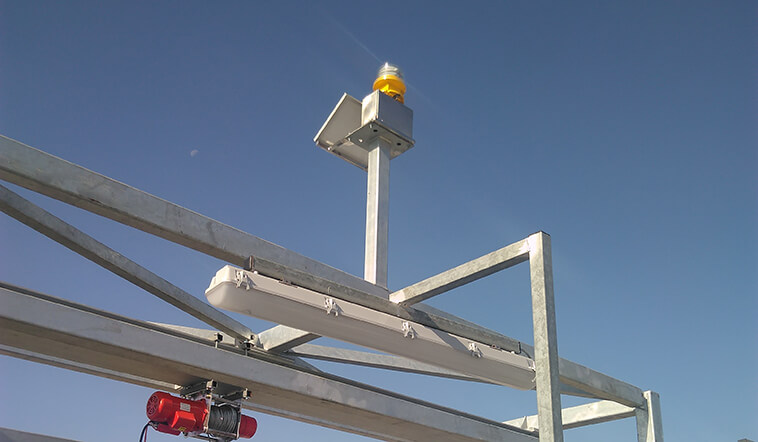

Medium intensity Double Solar Aviation Light CS-864/S for Qatar High-rise Building
Medium intensity Solar Aviation Light CS-864/T can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
Medium intensity Double Solar Aircraft Warning Light CS-864/S for Qatar High-rise Building
CS-864/T Medium intensity Solar Aircraft Warning Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations, Electric Tower, High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV), High Pole, Tower Crane, Wind Turbine, etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.
