Product Description

1. Solar hydraulic hammer pile driver, using a new hydraulic technology, low consumption, large rotary torque,move the hole and shift the position is convenient.
2. The solar hydraulic hammer pile driver structure is compact, it has a telescopic compensation function when promoting the slide carriage, the slide carriage supported on the ground when drilling, the drilling stability is very good.

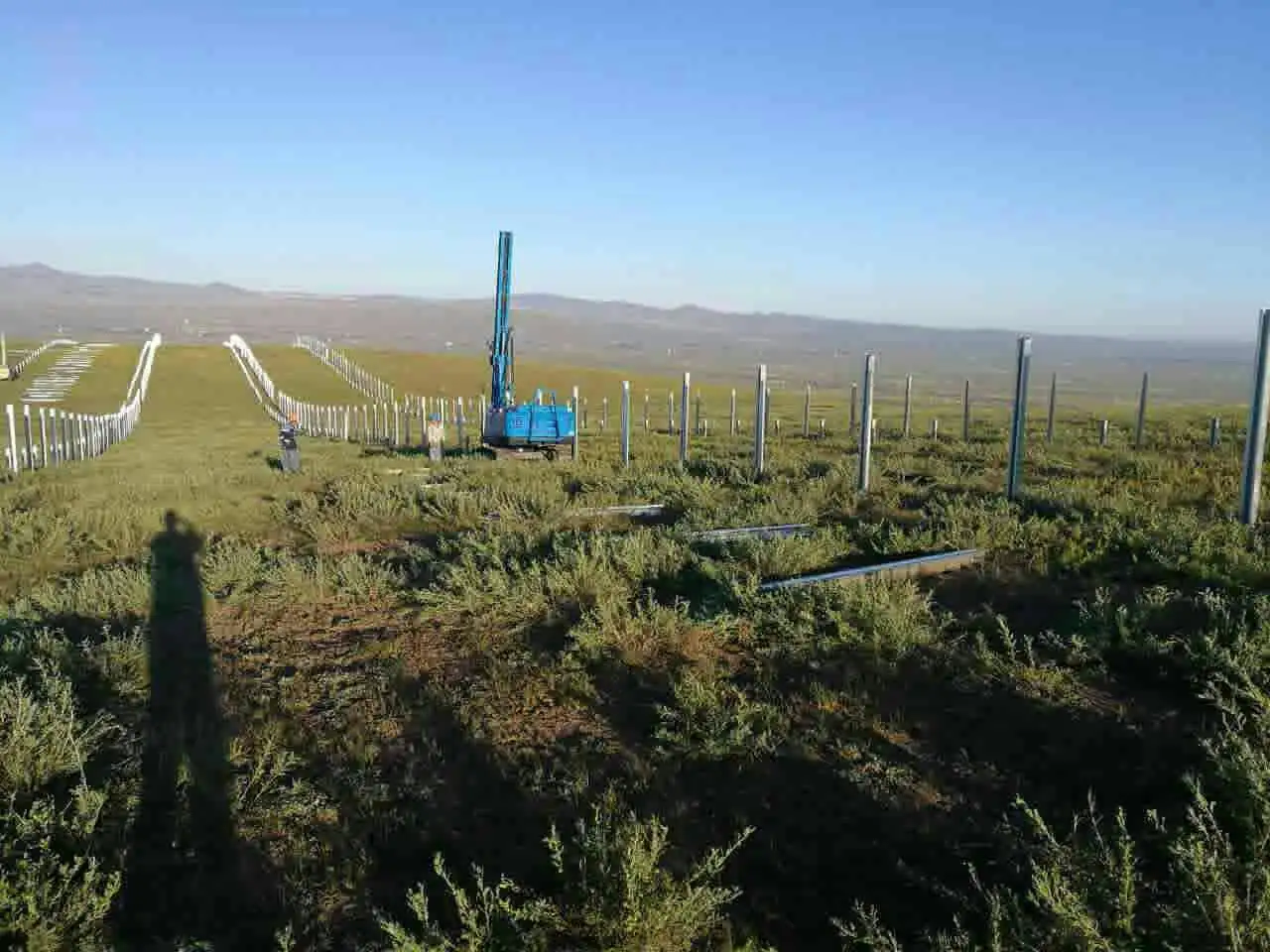

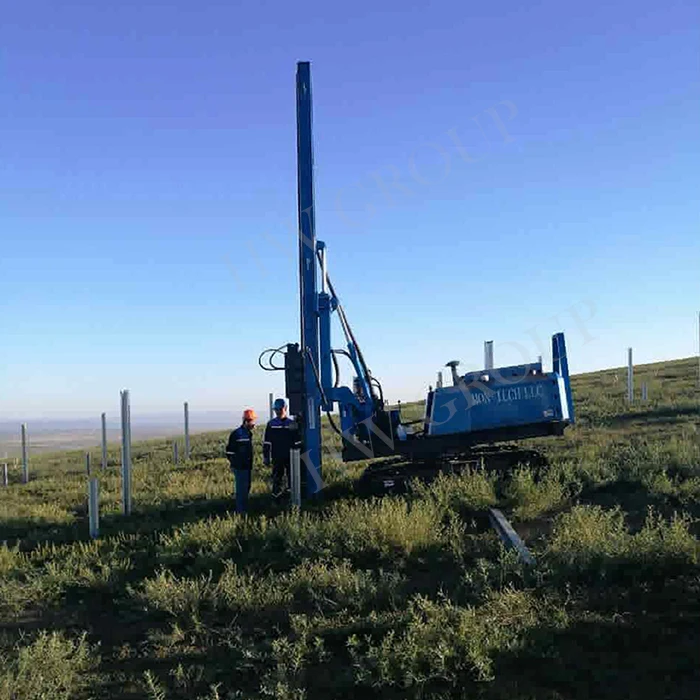

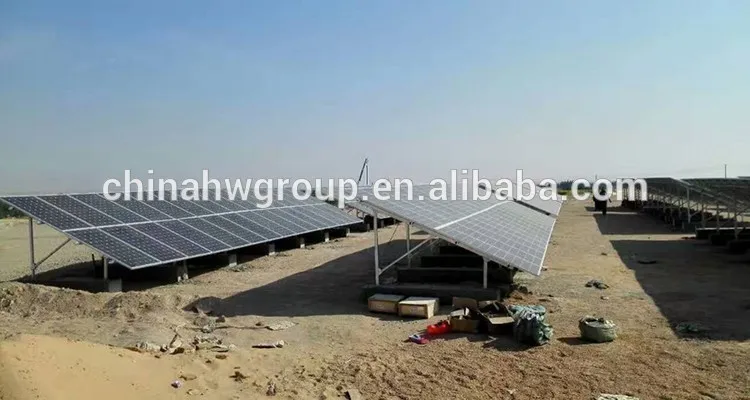

3. The drilling rig is mainly used for piling anchoring, well ,photovoltaic solar rotating pile and water conservancy, power plants, open-air mining, road construction and other stonework blast hole drilling and so on.

Solar hydraulic hammer pile driver is composed of the chassis, guide rail, hydraulic arm, hydraulic system, hydraulic hammer, diesel engine, electrical, cooling and control systems, pile extracting equipment and pile drilling equipment.

Its characteristics include quick and exact positioning, compact size, lightweight, self-propelled, agile, ergonomic design, easy operation, high efficiency .
This pile driver fuel-efficient,is a common driver uses around half of a year ,then will save one driver money for you.
Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.
This pile driver with crawler walking,own high walking and climbing ability.

The frame can be moved back and forth,bit can be adjusted,high piling position accuracy.



Product Parameter



SPECIFICATIONS FOR HAMMER PILE DRIVER
Pile driver part	Engine power	Kw	80
	No. of cylinders	PCS	4
	Engine brand		Weicai engine
	Working pressure	MPA	16-20
	Working flow	L/Min	120
	Wheel distance	M	2
	Machine size	mm	4100×2000×2200
	Machine weight	T	3.5
Track shoe part	Working pressure	MPA	20
	Rubber track weight	T	5
	Total displacement	1860
	Total bearing weight	KGS	5000
	Walking speed	kw/h	0-3
	Ground connection beta ratio		0.036
	Pulling capacity	KGS	4300
	Clambing ability		≤ 30
Hydraulic hammer Part	Drill rod diameters	mm	70
	Drill rod weight	KGS	19
	Hydraulic hammer weight	KGS	230
	Working flow	L/Min	40-70
	Working pressure	bar	110-140
	Impacting frequency	bpm	500-900
	Pile height	M	4500mm

Multifunction full hydraulic solar pile driver

• Pile driving speed,the average 2 minutes can realize piling 6 meters deep,namely a hole 3 minutes to play.Oil province,is a common driver uses around half of a year can be a driver left money for you.
• Bit using manganese steel manufacturing,through processing,are suitable for all kinds of geological environment.Crawler walking,high walking and climbing abilityThe frame can be moved back and forth,bit can be adjusted,high piling position accuracy.
• 360 degree hydraulic rotation, pile travel is 6m, the highest domestic military hydraulic system configuration, imported gas,oil dual use power head, 8 tons of chassis. Can configured with a set of piling function, a set of drilling function.

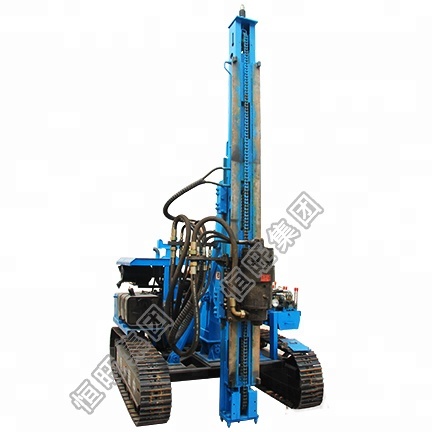

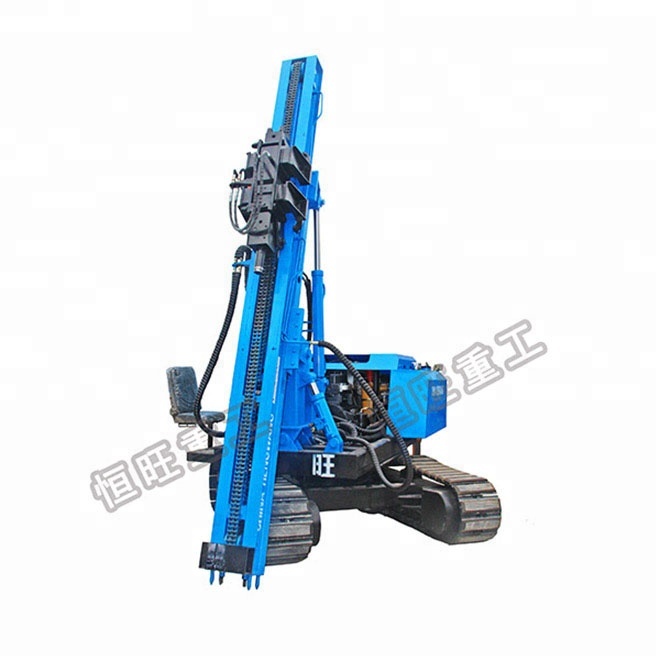

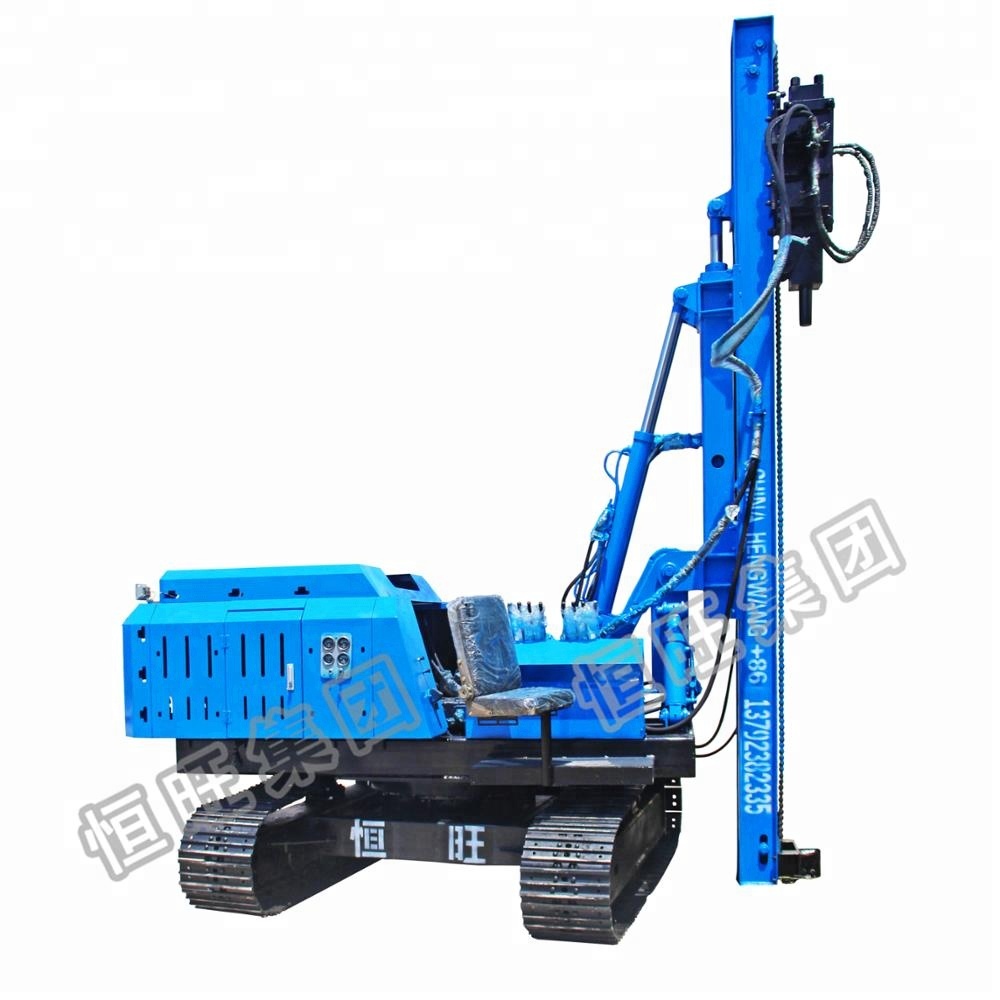

Product Images
