Product Details
BQS mine Malaysia submersible pump :
1.The water quality conditions: water temperature is not higher than 40 °C,
water PH 4 ~ 10, medium heavy is not more than 1300 kg/m3.
2. Installation form: vertical
3. Motor works: continuous run (SI)
4.Submerge depth (as a benchmark for submersible pump bottom plane) is not more than 5 m
Parameters for submersible pump:
Model | Flow m³/h
| Lift m | Power kw | voltage/ current V/A | Outlet diameter mm | Size mm | Weight kg | MA |
BQS15-22-2.2/N |
15 |
22 |
2.2 |
380V 5.2A 660V 3.0A 1140V 1.7A |
50 |
282*643 |
70 |
MBB 100188 |
BQS25-12-2.2/N |
25 |
12 |
2.2 | |||||
BQS20-22-3/N | 20 | 22 | 3 | 380V 6.8A 660V 3.9A 1140V 2.3A |
75 |
MBB 100177
| ||
BQS25-15-3/N | 25 | 15 | 3 | |||||
BQS15-30-4/N | 15 | 30 | 4 |
380V 6.8A 660V 3.9A 1140V 2.3A |
80 |
MBB 100170
| ||
BQS20-25-4/N | 20 | 25 | 4 | |||||
BQS25-20-4/N | 25 | 20 | 4 | |||||
BQS50-15-4/N | 50 | 15 | 4 |

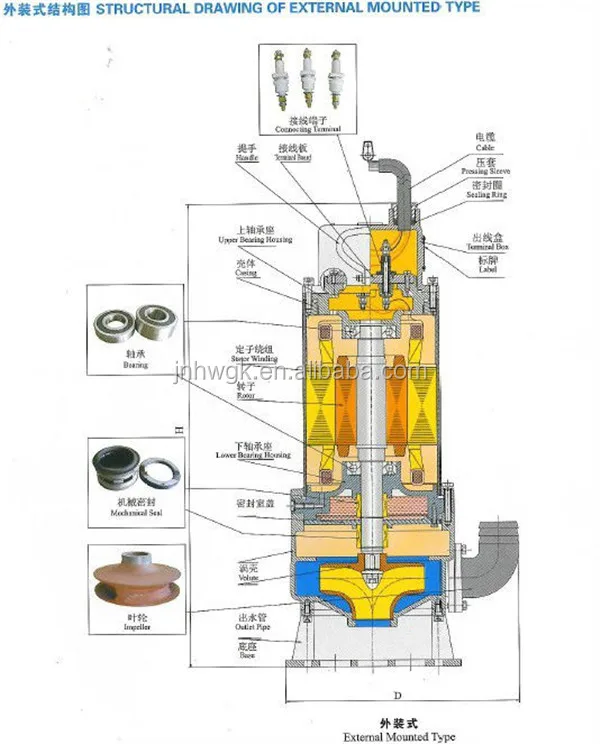

Drawing for submersible pump:

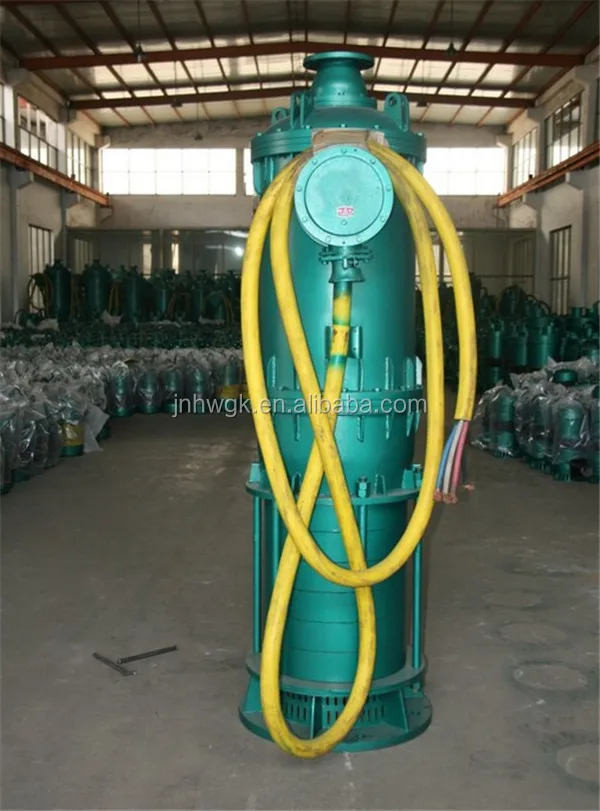

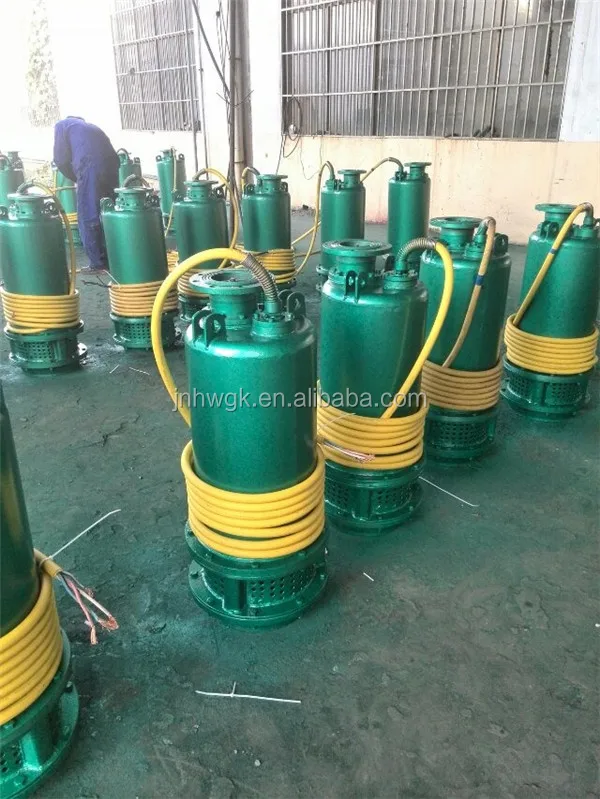

Photos for submersible pump:

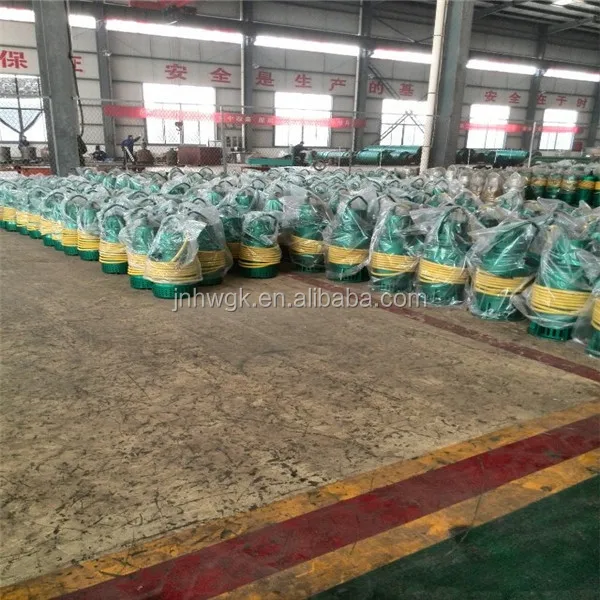

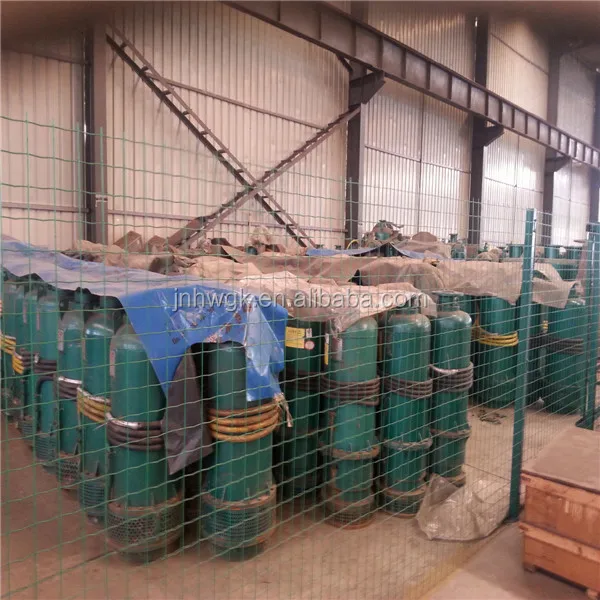

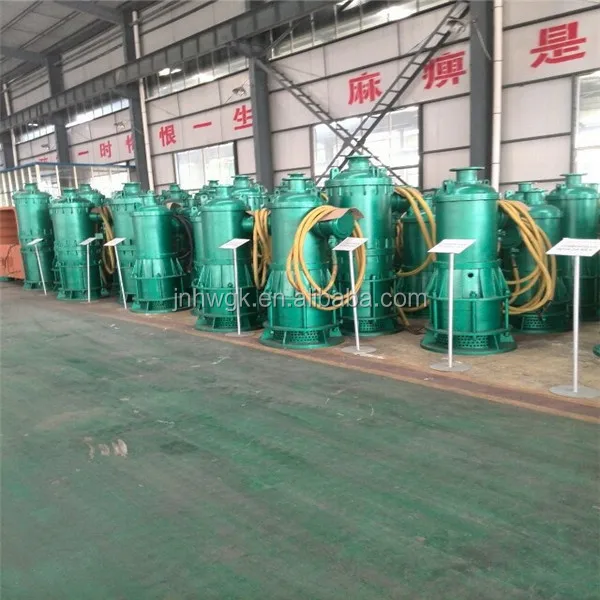

Clients factory inspection:

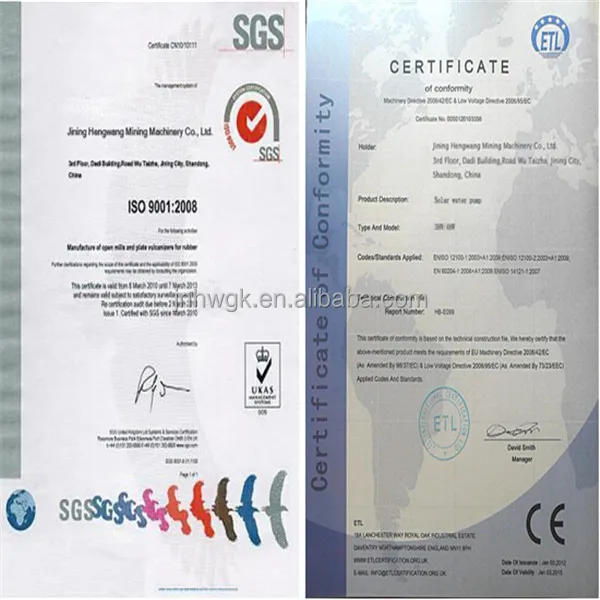

Qualification & Certification

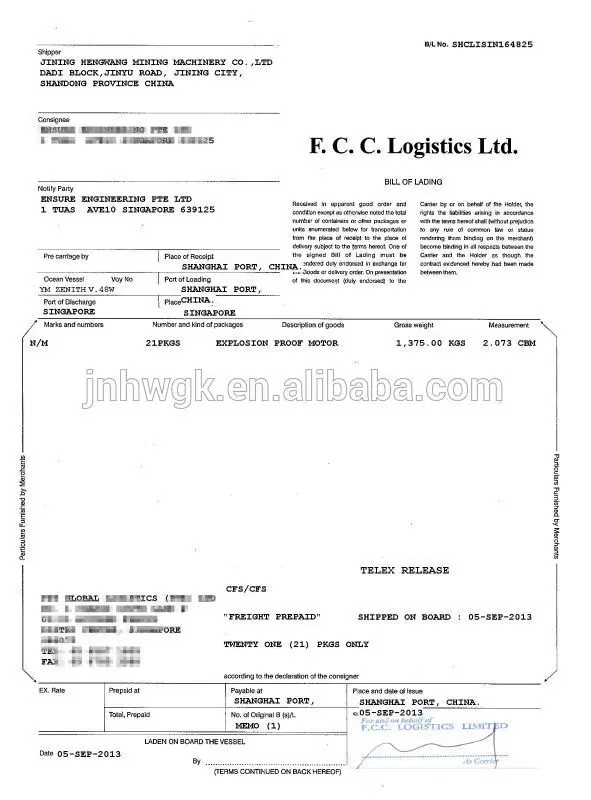

History order
