TUV approval LW26 series rotary switch with protective cover

1. TUV approval LW26 series rotary switch with protective cover application:

The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,changeover of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and changeover switch of machinery and welding machine.

2. TUV approval LW26 series rotary switch with protective cover features:

1) We can equip protective box for 20A, 25A, 32A and 63A.

2) Function: protective box can anti-dust

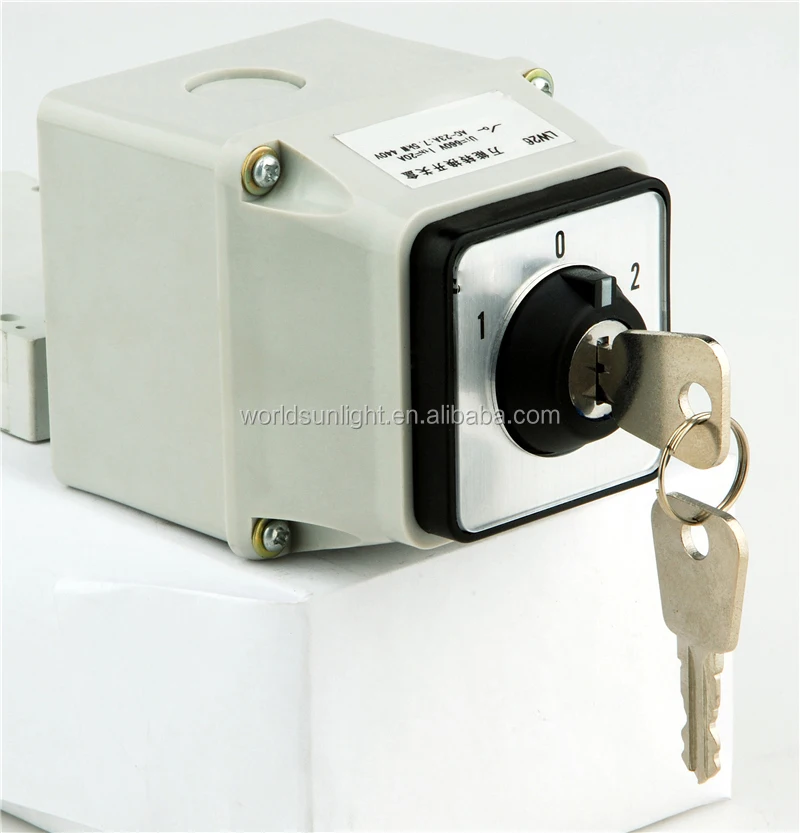

3) We can equip I knob, R knob,and key.
4) comply with the GB 14048.3, GB 14048.5 and IEC 60947-3, IEC 60947-5-1

Certificate: CCC,CE, RoHS;

Diagram for the  type of plate and handle:

Introdution for the type and meaning of products:

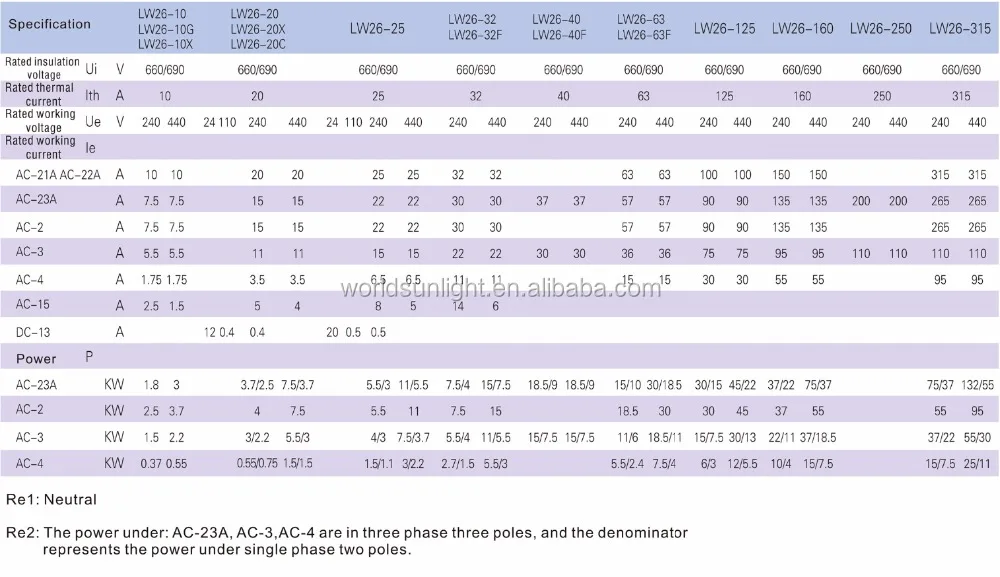

3. TUV approval LW26 series rotary switch with protective cover technical parameter:

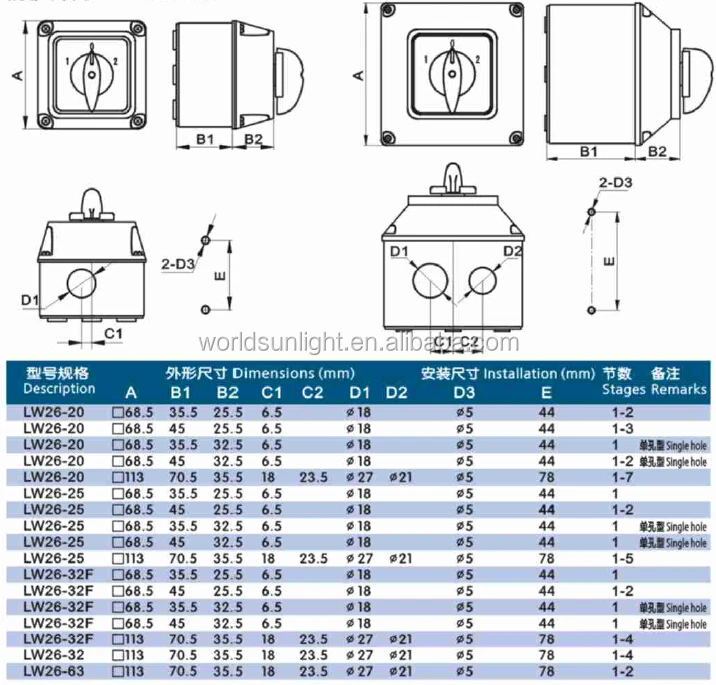

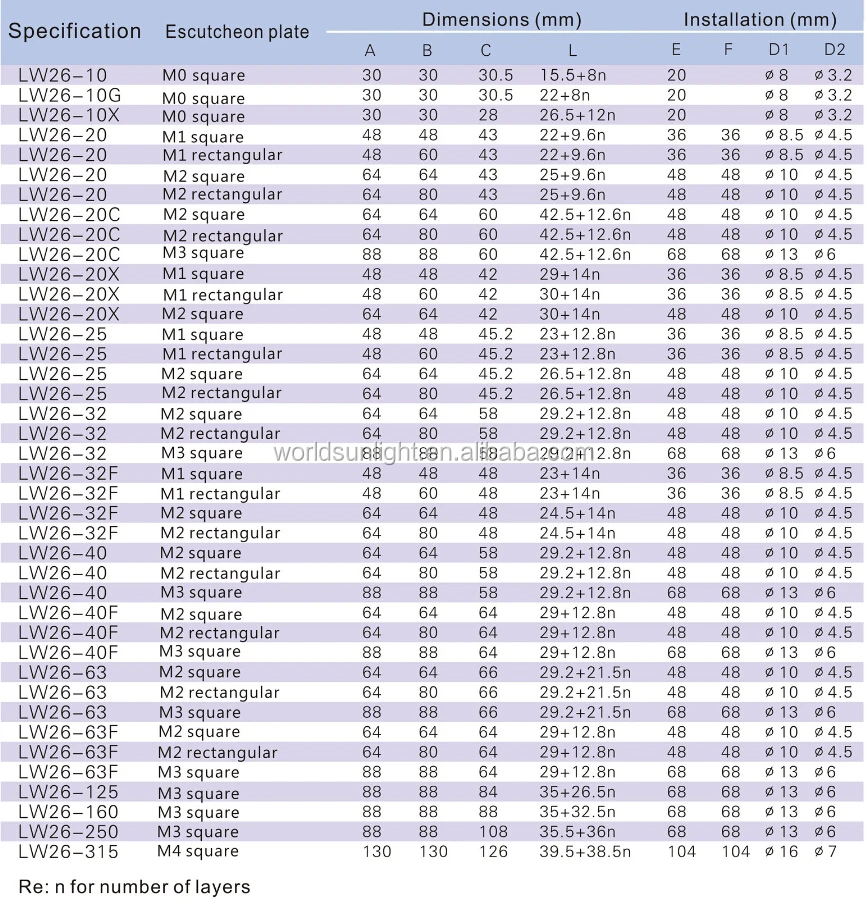

4. TUV approval LW26 series rotary switch with protective cover dimension and installation:

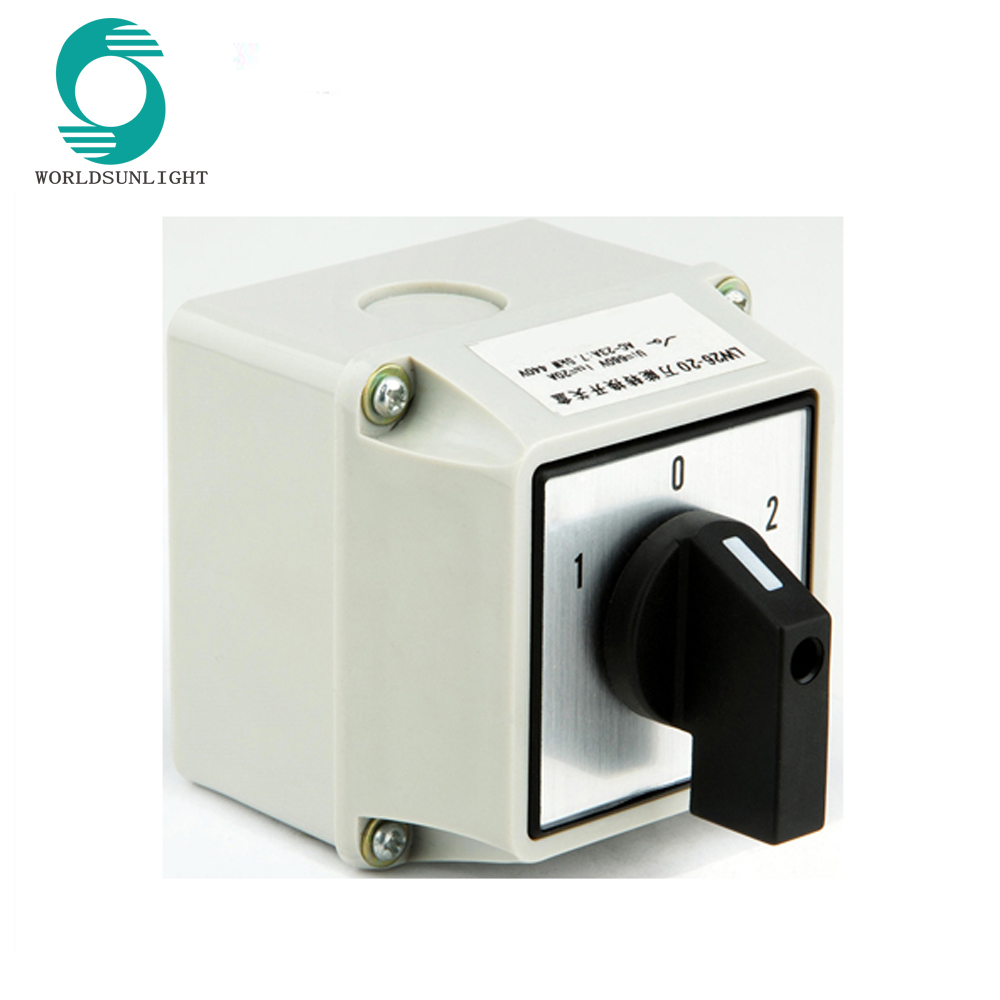

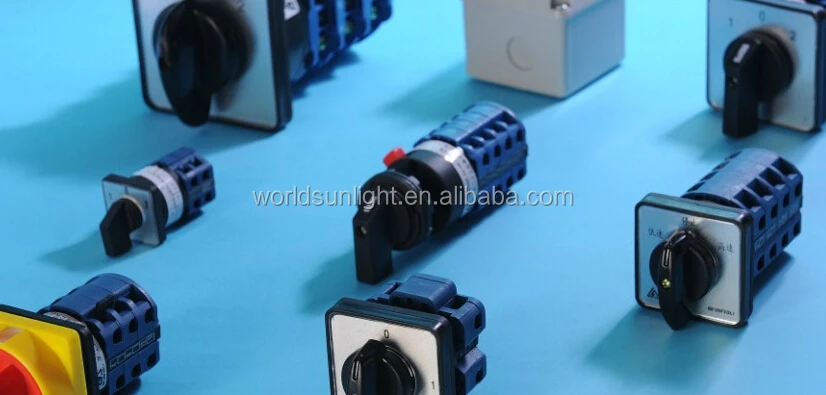

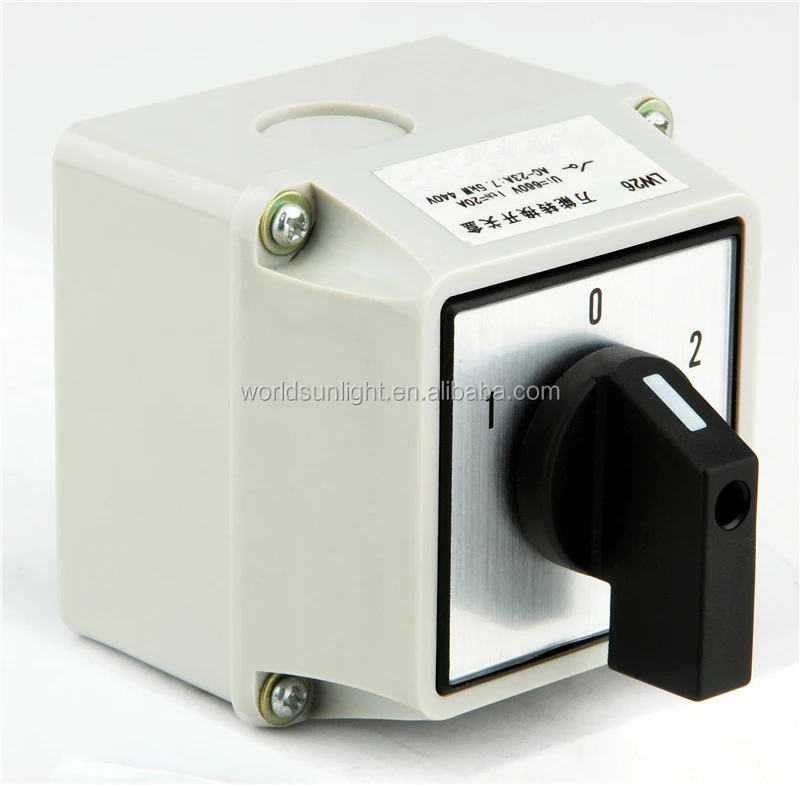

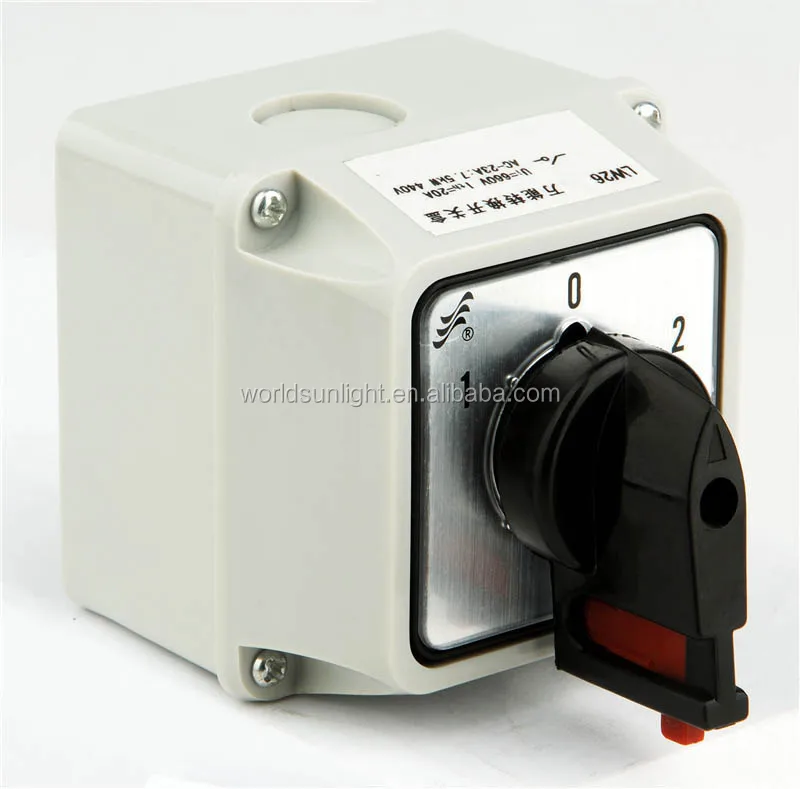

5. TUV approval LW26 series rotary switch with protective cover pictures:

6. TUV approval LW26 series rotary switch with protective cover packaging:

Packaging Details: Standard export packaging, also can do as customers" order
Delivery Detail: 3-15 days(depend on your order quantity)

7. TUV approval LW26 series rotary switch with protective cover shipping:

TNT/EMS/UPS/DHL/FEDEX

   XiangLang Electric Co,ltd. is specialized in the research, development, design, production and marketing of rotary switch. We have long term business relations with our suppliers and we offer the cheapest prices to customers. Our products have ICE, CE, TUV, UL, RoHS, ISO9001 approvals, and are widely exported to 43 countries in the world. Our products are innovative, with high aesthetic value and competitive prices, so they are very well received by our customers from all over the world.

Q1: Are you a manufacturer?

A1:yes. We have 3 years export exprience.

Q2: Delivery time?

A2:Will send the goods out within 72 hours after the order confirmed.

Q3: After Sales Service?

A3: if u have any questions about the receuved product, we will try our best to solve it.

Q4: Return the goods?

A4: If the product really has quality problem, we will accept return the old one and send again.
