Product Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- WESTDEER
- Material:
- Aluminum
- Type:
- Traditional
- Light Source:
- Energy Saving
- Number of Lights:
- Other
- Lamp Luminous Flux(lm):
- 9750
- Working Lifetime(Hour):
- 50000
- Beam Angle(°):
- 150
- Input Voltage(V):
- 120-277V
- CRI (Ra>):
- 80
- Support Dimmer:
- Yes
- Application:
- WAREHOUSE, home, hallways, closets, stairwells, kitchens, offices, garages
- Product name:
- WESTDEER LED linear high bay light fixture
- Warranty:
- 3 Years
- Power:
- 65W
- Voltage:
- 120-277V
- Size:
- 2ft
- CCT:
- 3000/4000/5000K
- Working temperature:
- -25 to 55℃
- Certification:
- ETL,DLC
- Keyword:
- Hang Lamp
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- 1pcs/ctn
- Port
- Shenzhen

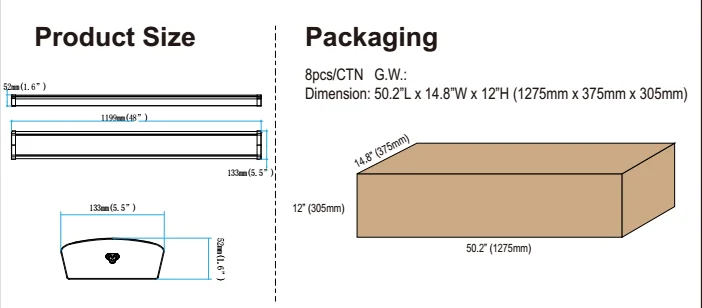

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 50 51 - 1000 >1000 Est. Time(days) 15 30 To be negotiated

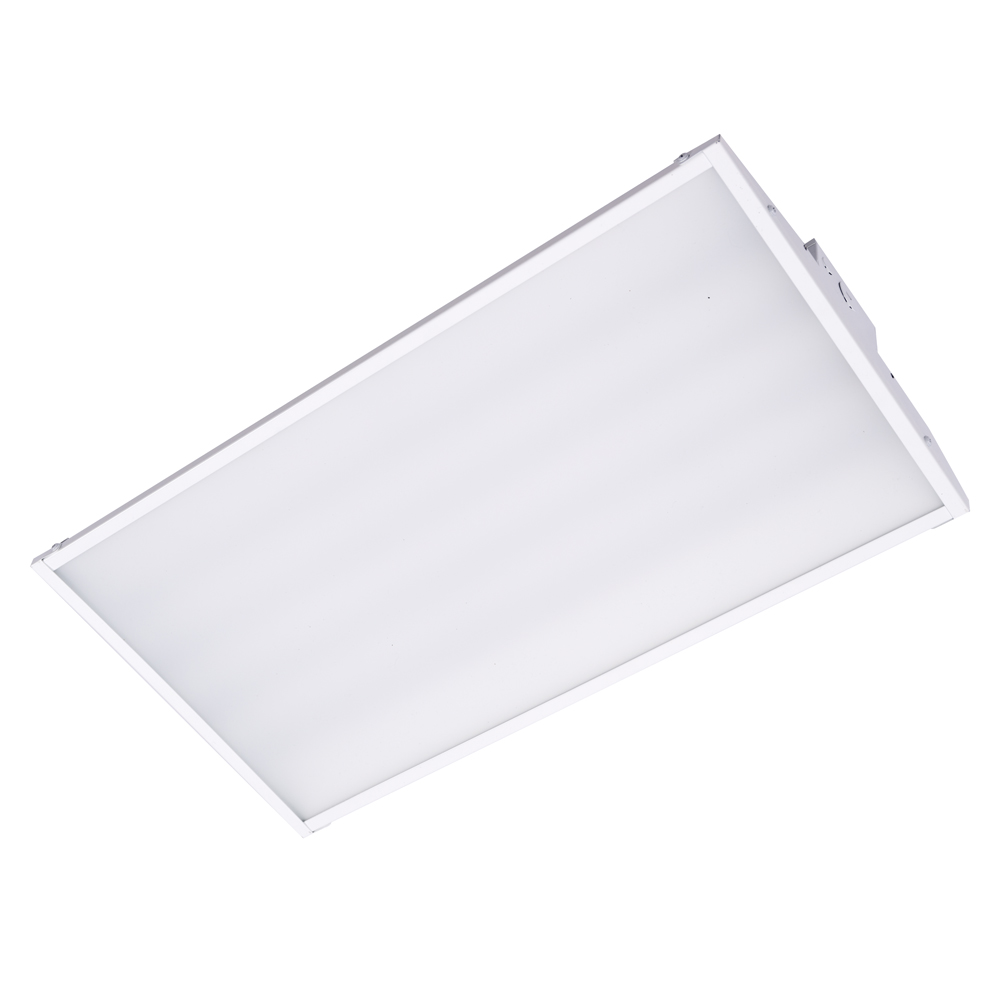

WESTDEER LED linear high bay 65W 2ft Shenzhen manufacturer
Driver Info Type: |
Constant Current | LED Info Watts: |
65W |
120V: | Yes | Color Temp: | 5000K |
277V: | Yes | Color Accuracy: | 80CRI |
480V | No | L70 Lifespan: | 50000 |
Input Watts: | 65W | Lumens: | 9750 |
Efficiency: | 86% | Efficacy: | 150LPW(W/O Lens) |
|
|
| 130LPW(With Lens)
|
Technical Specifications Listings
ETL Listing:
Suitable for damp locations. ETL code: 4007551
DLC Listed
This product is on the Design Lights Consortium(DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
IESNA LM-79 &IESNA LM-80 Testing:
This product has been tested by an
independent laboratory in accordance with IESNA LM- 79 and 80, and have received the Department of Energy" Lighting Facts" label.
Electrical Driver:
Constant Current, Class 2, 100-277Vac,50/60HZ, 0.95Amp@100Vac,XIEZHEN Brand.
THD:
<20%
Power Factor:
>0.95
Dimming Type:
0~10 Dimmable : requires separate 0~10V DC dimming circuit, dimming as low as10%
Emergency Battery Backup:
Optional
LED Characteristics Lifespan:
50,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
LEDs:
Long-life,high-efficiency SMD2835, patent free.
Color Stability:
Comply with DLC"s requirements.
Color Uniformity
CCT(Correlated Color Temperature)
follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting( SSL) Products, ANSI C78.377- 2015.
Construction
Operating Temperature:
-20°C (-4°F) - 55°C (131°F)
Housing:
Die formed painted steel
Lens:
Frosted PC Cover
Reflector:
Specular, high-reflectance aluminum with 95% reflectivity
Mounting:
Suspension Mount/Pendant/Surface Mount(J box)
Finish:
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals
Green Technology:
Mercury and UV free RoHS compliant components Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Other
5 Yr Limited Warranty:
Fixture operation and paint finish are covered for a period of 5 years.
Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter
of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,
with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,
led ceiling light,led wall pack light,led linear high bay,ufo led high bay light,led grow light and christmas lights .
Hope westdeer could find a way to cooperate with you .
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .
Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
