Product Details

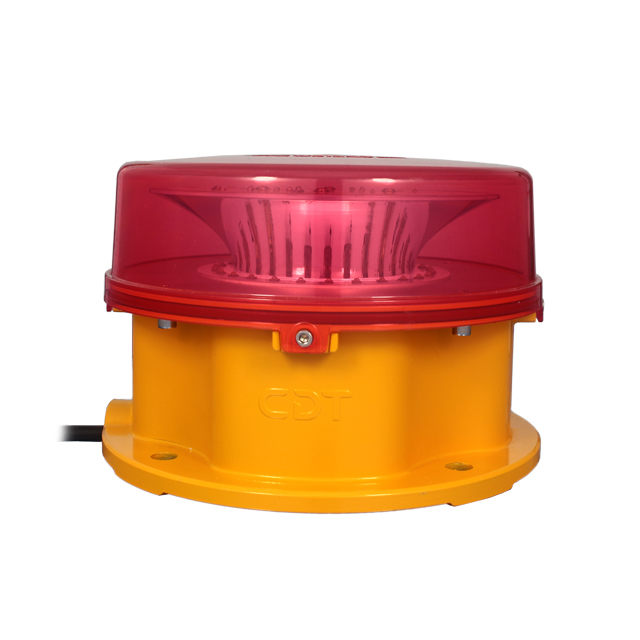

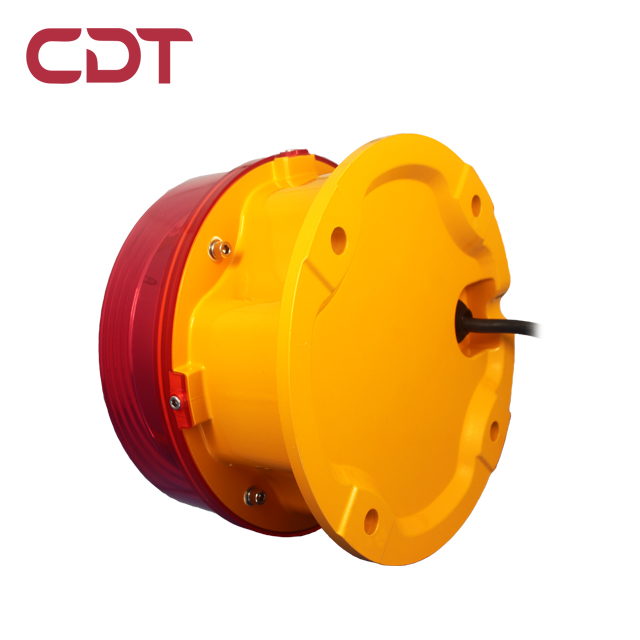

CM-13 Medium Intensity AVIATION OBSTRUCTION LIGHT type B
ITEM | Parameter |
Model | CM-13 |
Operating voltage | AC220V |
Power consumption | ≤15W |
Flashing frequency | 20~60times/min. |
Peak light intensity | ≥1600cd |
Light source | RED LED |
Lifespan | 500000 hours |
Emitting color | RED |
Beam angle | 360° horizontal beam angle ≥4° vertical beam spread |
Overall size(mm) | 212*204*175mm |
Installation size(mm) | 162-4*10.5 |
Ingress protection | IP65 |
Lightning protection level | 15KA |
Light controlled sensitivity | 50lux |
Operating temperature | -55℃~55℃ |
Net weight | 4kg |
Wind load | 80m/sec. |
Specification
1. Lamp shade of the light adopts PC with anti-UV which is high efficiency light transmission up to 95%,
quite high impact resistance and fit the bad environment very well.
2. House of the light is made of aluminum alloy and painted by spraying plastics, the structure is high
strength, resistance to corrosion;
3. Using parabolic reflector optical design, range further;
4. Light source adopts high quality LED, low power consumption, long lifespan, high brightness;
5.Based on the single chip computer control, automatic identification sync signal, do not distinguish the
main light and auxiliary light, and also could be controlled by controller;
6.Same power supply voltage with synchronous signal, integrate in power supply cable, eliminate the damage
by error installation caused;
7.Used the photosensitive probe fit for the natural light spectrum curve, automatic control light intensity level;
8.The circuit of the light has surge protection whose lightning proof ability is In 7.5KA/5 times, Imax 15KA so
that the light is suitable to harsh environment;
9. Integral structure, protection lever of IP65;
10. Ignitability rate UL-94V0, fit for all kinds of industrial situation;
11. GPS synchronizingfunction is available.
Hunan Chendongtech is an integrated high-tech enterprise with solar and LED technology. We are specialized in
the research, development and manufacture of Led lights, solar lights and solar generating systems and so on.
Our productsare widely applied to lighting, sea navigation, solar road stud , solar warning light , coal mine, gas
station and other professional industrial fields

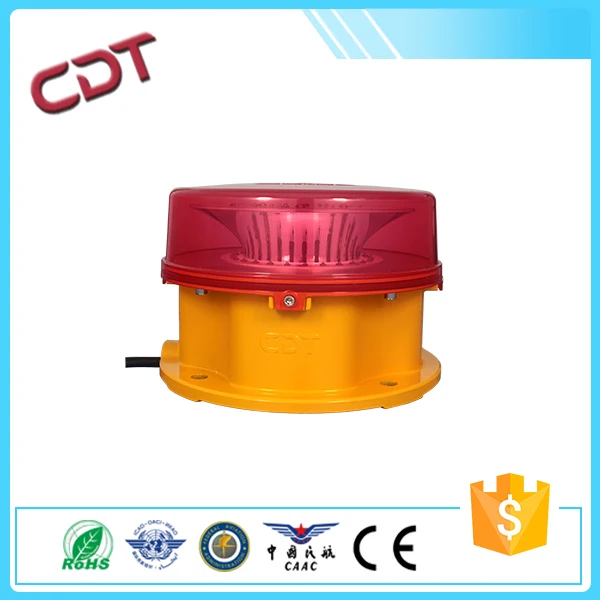

Our products meet ICAO /CAAC Certification and CE /ROHS
We have more than 10 years proven products technique
ODM/OEM are welcome
100% raw material , Extremely low defective rate
100% true factory
Our certification
| 1.Synchronized Flashing Units Can"t work Simultaneously | |
| A. Monitor Function Type Requires Power Line seperate from signal line,the power circuit of each unit can be independently connected,pls check signal circuit was connected by corresponding color when ensure power supply works normally. | |
| B. Check if there"s short circuit or leakage phenomenon with the signal circuit after excluding the condition above. | |
| 2.Light-operated switch can"t work normally | |
| A.The Unit can"t work at day: Pls check if the light-operated detector is closed over by dust; | |
| B. The Unit can"t work at night: Pls check if light-operated detector is influenced by direct light or strong reflective light; | |
| C. esting the unit at day: Most of customers test the unit by Closing over the light-operated detector using their hands.Since the strong Radiation of sunshine,the light-operated function can"t work.The proper method is using 3 layers of black opacity adhesive tapes. | |
| 3.Are you the Manufactory or Trading? | |
| Our company is professional Manufactory to produce the Aviation Obstruction light. | |
| 4.What Kind of Package you choose? | |
| As usual,we use the Carton Box; If delivery by sea,we will use the Wooden case to pack. | |
| 5.What’s your warranty? | |
| Full Warranty:2 Years. | |
| 6.Do you accept OEM/ODM service? | |
| Yes.We can supply you OEM/ODM service to you. Cause we are the manufacturer. There is professional R&D team in our company. | |
