Name: widely used in coal seam gas, mining and other engineering exploration holes drilling rig machine
Availability: InStock

Brand：	none
Address：	China
Min.Order：	none
Supply：	none
Valid until：	Long Term
Branch：	Array
Type：	Array
Size：	460X220X285 cm

Product Details

Overview

Quick Details

Condition:: New

Type:: Rotary Drilling Rig

Power Type:: Diesel

Place of Origin:: Shandong, China

Brand Name:: HENG WANG

Usage:: Water Well

Voltage:: 380V

Dimension(L*W*H):: 4.6*2.2*2.85 m

Weight:: 13T

Certification:: ISO

Warranty:: 2 Years

After-sales Service Provided:: Video technical support, Free spare parts, Online support, Field installation, commissioning and training, Overseas service center available

Drilling depth:: 200-1500 m

Name:: Multifunction Hydraulic Drilling Rig

Spindle Speed:: 100r/min

Drilling angle:: 90~75

Working pressure:: 1.05-3.45mpa

Air consumption:: 16-55m3/min

Feature:: Multifunctional

Drilling diameter:: 100mm-800mm

Max drilling depth:: 1500mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 460X220X285 cm

Single gross weight:: 3000.0 kg

Lead Time:

Quantity(Set)	1 - 1	>1
Est. Time(days)	7	To be negotiated

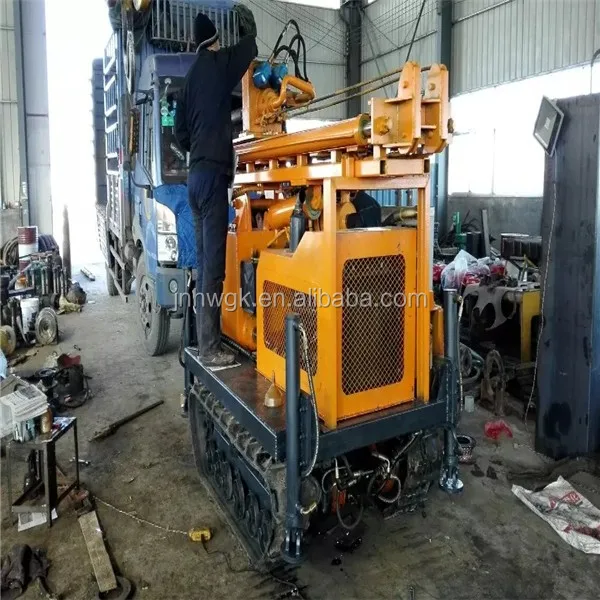

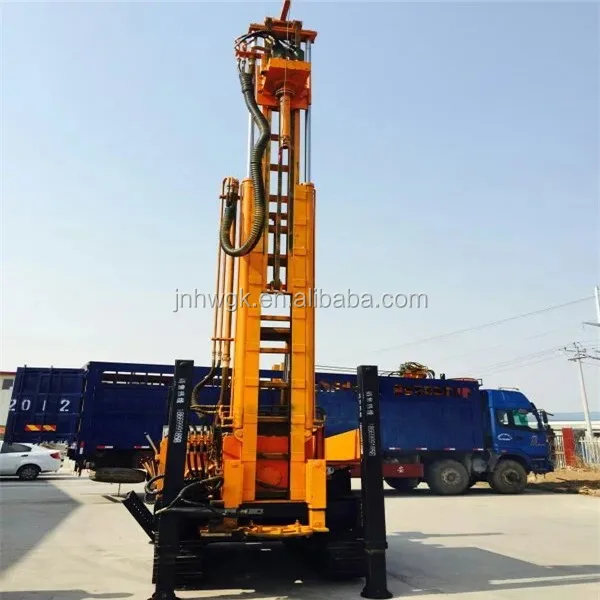

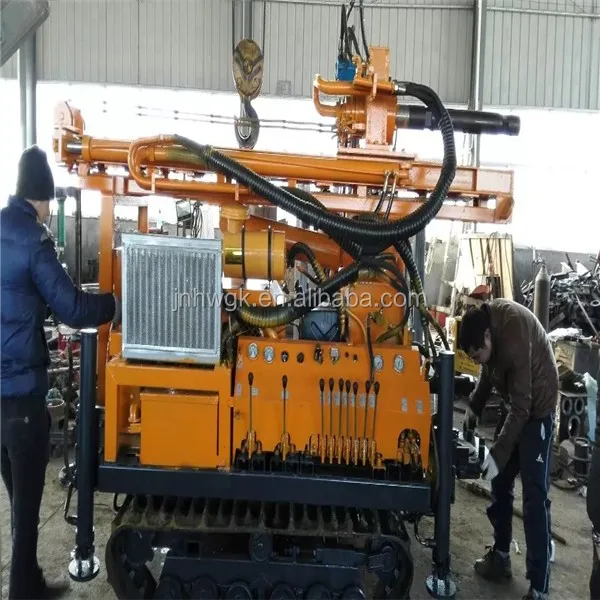

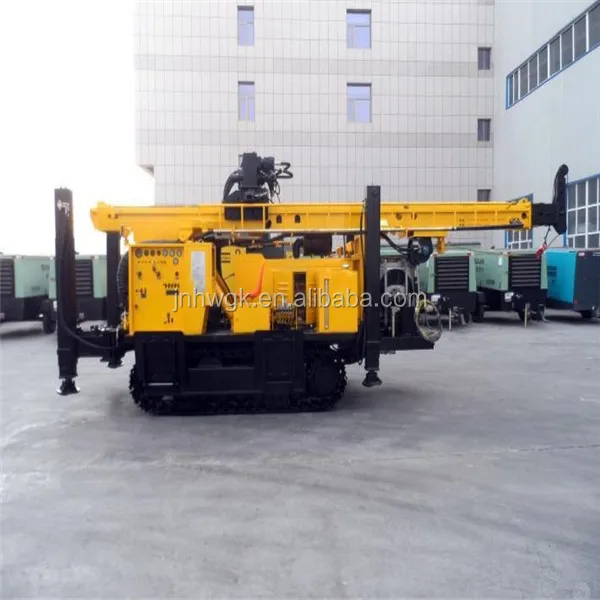

widely used in coal seam gas, mining and other engineering exploration holes drilling rig machine

Product Description

Technical Parameters	unit	Hwqz500
Max final hole diameter	M	800
Drill hole diameter	mm	100-600
Working pressure	Mpa	1.05-3.45
Air consumption	m³/min	16-55
Drill pipe length	m	3
Recommended drill pipe diameter	mm	102/114
Axial pressure	T	15
Lifting force	T	35
Fast lifting speed	m/min	30
Fast forward speed	m/min	65
Maximum rotary torque	Nm	14000
maximum rotation speed	r/min	100
Mate winch lifting force	T	-
Small Auxiliary hoist lifting force	T	1.5
High leg trip	m	1.7
Efficiency footage	m/h	10-35
Walking speed	Km/h	3
Gradeability	slope	21°
Weight	T	13
Dimensions	m	4.62.22.85
Adapt to conditions	Loose layers and bedrock
Drilling mode	Hydraulic rotary top drive and propulsion, DTH hammer drilling rig or mud
Impactor	Middle and high pressure series
Optional accessories	After circulating means, mud pumps, centrifugal pumps, generators, foam pump
