XY-1 Core Drilling Machine Mining,Core Drilling Rig 100m,Mini Portable Diamond Core Drill Rig
Model | Diamond Core Drilling Rig(XUL-100) |
Drilling depth( m) | 100 |
Drilling rod diameter.(mm) | Φ42 |
Head angle range | 360 |
Movable cylinder stroke (mm) | 300 |
Spindle speed( r/min) | 144 264 590 1083 |
Spindle hole diameter( mm) | Φ54 |
Spindle output torque max(N.M) | 800 |
Spindle stroke(mm) | 370 |
Lifting power max( KN) | 30 |
Driving force max(KN) | 23 |
Lifting speed( m/s) | 0.36 0.7 1.49 2.9 |
Lifting capacity(single) max(KN) | 10 |
Steel wire rope diameter (mm) | 11 |
Mode of chuck | Hand lever chuck |
Weight(power unit excepted)(Kg) | 550 |
Overall dimensions(mm) | 1200*650*1300 |
Diesel engine model | Zs1100 ( 12.1KW) |
Electromotor model | Y160M-4 ( 11KW) |

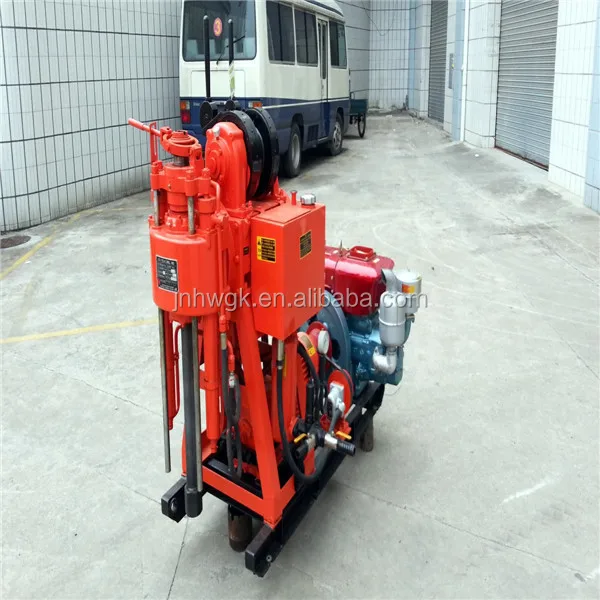

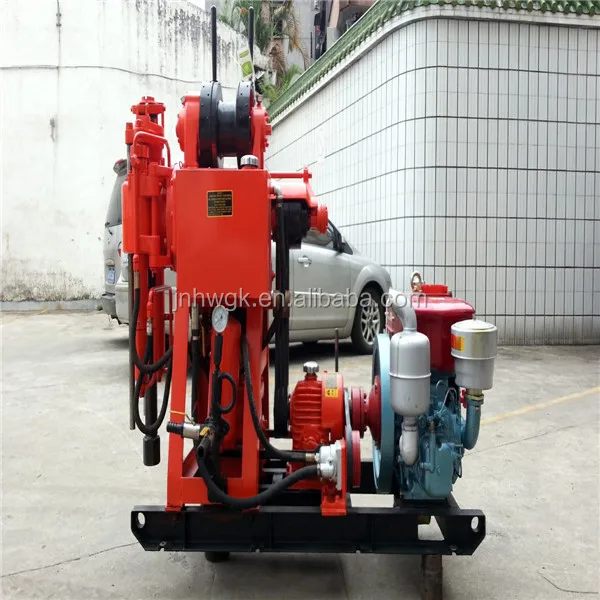

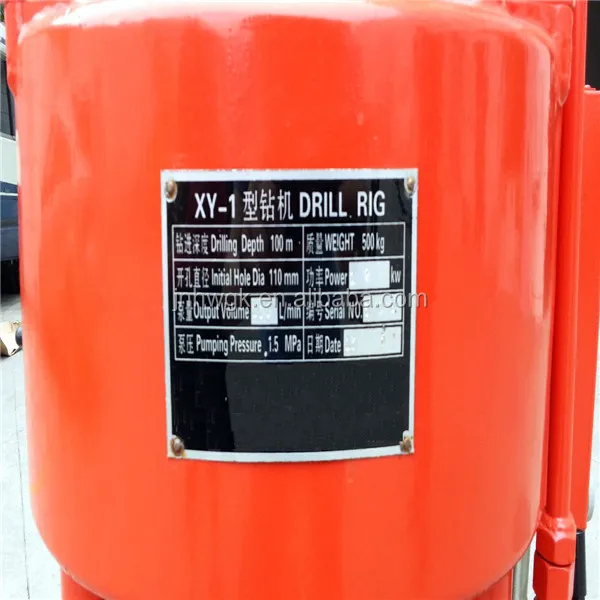

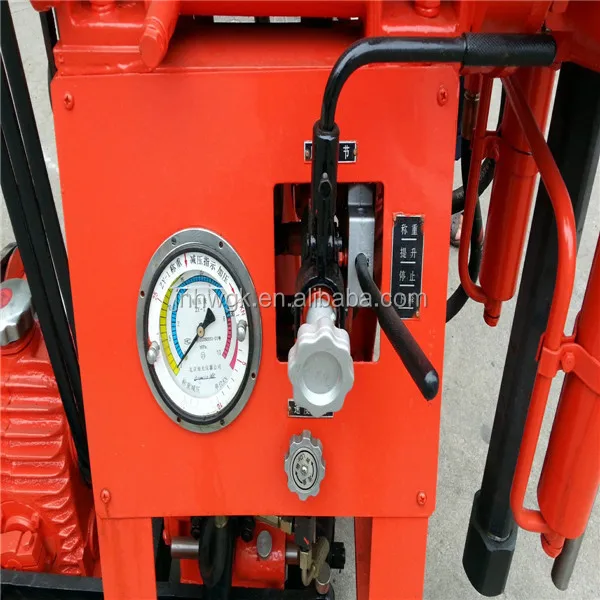

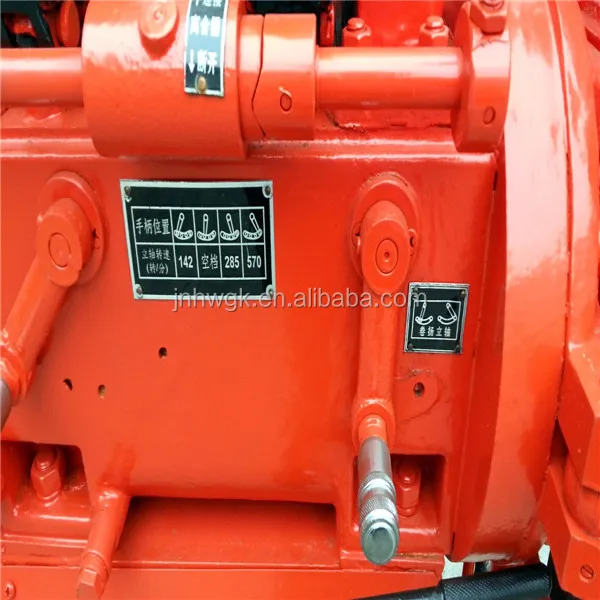

XY-1 mining core drilling machine picture
