Product Details

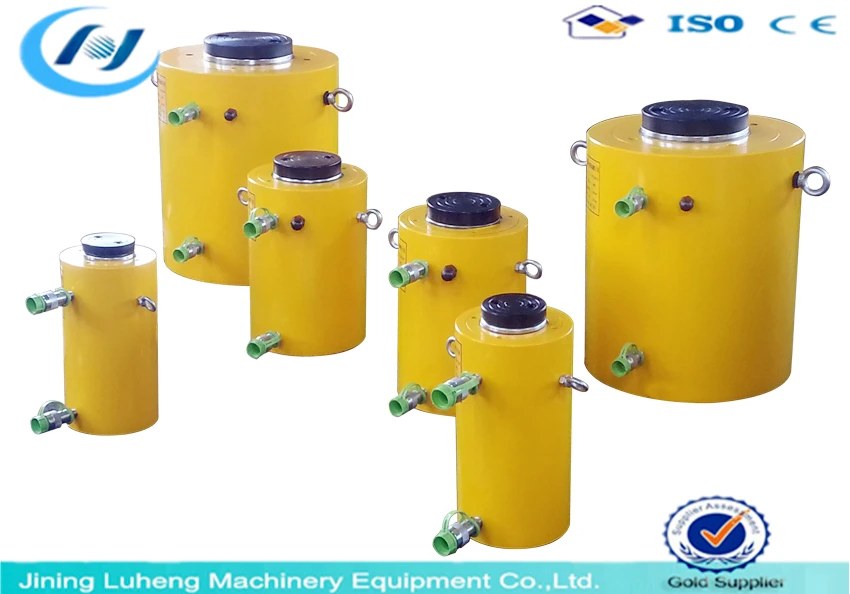

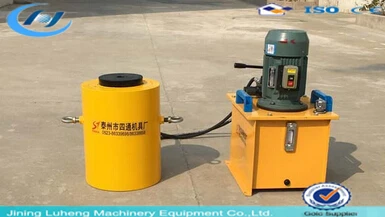

1000T electric hydraulic jack,disconnect-type jack,double acting jack
| model | Tonnage T | Body height A mm | Stroke BA mm | Stretch height B mm | Cylinder diameter mm | Piston rod diameter mm | Cylinder diameter mm | Pressure Mpa | Weight KG | Recommended pumping station |
| LHQ50 / 100 | 50 | 225 | 100 | 325 | 127 | 70 | 100 | 63MPA | 35 | 50T-200T Optional 0.55KW 0.75KW 1.5KW 3KW 4KW 5.5KW |
| LHQ50 / 160 | 285 | 160 | 445 | 39 | ||||||
| LHQ50 / 200 | 325 | 200 | 525 | 46 | ||||||
| LHQ50 / 300 | 425 | 300 | 725 | 48 | ||||||
| LHQ50 / 500 | 625 | 500 | 1125 | 140 | 63 | |||||
| LHQ100 / 100 | 100 | 250 | 100 | 350 | 180 | 100 | 140 | 63MPA | 58 | |
| LHQ100 / 160 | 310 | 160 | 470 | 63 | ||||||
| LHQ100 / 200 | 350 | 200 | 550 | 78 | ||||||
| LHQ100 / 300 | 450 | 300 | 750 | 96 | ||||||
| LHQ100 / 500 | 650 | 500 | 1150 | 194 | 130 | |||||
| LHQ150 / 100 | 150 | 260 | 100 | 360 | 219 | 125 | 180 | 63MPA | 58 | |
| LHQ150 / 160 | 320 | 160 | 480 | 69 | ||||||
| LHQ150 / 200 | 360 | 200 | 560 | 86 | ||||||
| LHQ150 / 300 | 460 | 300 | 760 | 103 | ||||||
| LHQ150 / 500 | 660 | 500 | 1160 | 245 | 255 | |||||
| LHQ200 / 100 | 200 | 285 | 100 | 385 | 245 | 150 | 200 | 63MPA | 96 | |
| LHQ200 / 160 | 345 | 160 | 505 | 103 | ||||||
| LHQ200 / 200 | 385 | 200 | 585 | 116 | ||||||
| LHQ200 / 300 | 485 | 300 | 785 | 161 | ||||||
| LHQ200 / 500 | 685 | 500 | 1185 | 273 | 221 | |||||
| LHQ320 / 100 | 320 | 310 | 100 | 410 | 330 | 180 | 250 | 63MPA | 196 | Optional 1.5KW 3KW 4KW 5.5KW |
| LHQ320 / 160 | 370 | 160 | 530 | 240 | ||||||
| LHQ320 / 200 | 410 | 200 | 610 | 258 | ||||||
| LHQ320 / 300 | 510 | 300 | 810 | 311 | ||||||
| LHQ320 / 500 | 710 | 500 | 1210 | 352 | 456 | |||||
| LHQ400 / 100 | 400 | 355 | 100 | 455 | 380 | 200 | 290 | 63MPA | 198 | Optional 3KW 4KW 5.5KW 7.5KW |
| LHQ400 / 160 | 415 | 160 | 575 | 231 | ||||||
| LHQ400 / 200 | 460 | 200 | 660 | 264 | ||||||
| LHQ400 / 300 | 555 | 300 | 855 | 367 | ||||||
| LHQ400 / 500 | 755 | 500 | 1255 | 395 | 456 | |||||
| LHQ 500/100 | 500 | 360 | 100 | 460 | 430 | 200 | 320 | 63MPA | 323 | Optional 3KW 4KW 5.5KW 7.5KW |
| LHQ500 / 160 | 420 | 160 | 580 | 330 | ||||||
| LHQ500 / 200 | 460 | 200 | 660 | 420 | ||||||
| LHQ500 / 300 | 560 | 300 | 860 | 581 | ||||||
| LHQ500 / 500 | 760 | 500 | 1260 | 599 | ||||||
| LHQ630 / 100 | 630 | 417 | 100 | 517 | 500 | 250 | 360 | 63MPA | 560 | Optional 5.5KW 7.5KW 11KW |
| LHQ630 / 160 | 477 | 160 | 637 | 633 | ||||||
| LHQ630 / 200 | 517 | 200 | 717 | 696 | ||||||
| LHQ630 / 300 | 617 | 300 | 917 | 898 | ||||||
| LHQ630 / 500 | 817 | 500 | 1317 | 1250 | ||||||
| LHQ800 / 100 | 800 | 488 | 100 | 588 | 560 | 300 | 400 | 63MPA | 896 | Optional 7.5KW 11KW |
| LHQ800 / 200 | 598 | 200 | 798 | 1040 | ||||||
| LHQ800 / 300 | 698 | 300 | 998 | 1380 | ||||||
| LHQ800 / 500 | 898 | 500 | 1398 | 1520 | ||||||
| LHQ1000 / 100 | 1000 | 530 | 100 | 630 | 600 | 320 | 450 | 63MPA | 1286 | Optional 7.5KW 11KW |
| LHQ1000 / 200 | 630 | 200 | 830 | 1332 | ||||||
| LHQ1000 / 300 | 760 | 300 | 1060 | 1663 |
