Model: HWH260
Power head: 65#
Engine power: 40kw
Drilling diameter : 0-250mm
Pile max diameter:50-260mm
Pile max height: 2800mm
Drilling depth:2.5m
Overall dimension:3.3*2.2*3.6m
Machine weight:3000kg
Brand： |
none |
Address： |
China |
Min.Order： |
none |
Supply： |
none |
Valid until： |
Long Term |
Branch： |
Array |
Size： |
100X50X30 cm |
Product Details
Overview
Quick Details
- Piling Speed(m/min):
- 3m/min
- Efficiency:
- High Efficiency
- After-sales Service Provided:
- Online support
- Warranty:
- 1 Year
- Applicable Industries:
- Construction works
- Condition:
- New
- Place of Origin:
- china
- Brand Name:
- Hengwang pile driver
- Weight:
- 6000kg
- Dimension(L*W*H):
- 7200*2100*4300 mm
- Certification:
- ISO,CE
- UNIQUE SELLING POINT:
- Fully hydraulic system
- Product Name:
- 6 meter column drilling head from 10 cm to 35 cm pile driver
- Application:
- Solar Photovoltaic
- Usage:
- Pressing Pile
- Pile height:
- 6000mm
- Drill diameter:
- 90-500mm
- Drilling depth:
- 3500mm
- Engine power:
- 80kw
- Walking motor output torque:
- 4300N.M
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 100X50X30 cm
- Single gross weight:
- 68.0 kg
- Package Type:
- nude package fortracked post press machine solar mounting pile driver
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Set) 1 - 1 >1 Est. Time(days) 10 To be negotiated
Product Description
Product Application
1).6m hydraulic rotary press piling machine is multifunctional pile driving machine for mine, with 360 degrees of freedom to rotate, multi angle pile function. The machine with diesel powered, hydraulic mechanical transmission, with high efficiency, convenient shift, multi angle multi angle pile, high precision, durable, time-saving, labor-saving and, especially for engineering construction in the field.
2).Full hydraulic rotary press piling machine by R & D engineers and field service member composed of hypercoagulable cohesion, high-quality elite team of engineers, according to the situation of equipment used in various kinds of working conditions of practice, through constant revision and improvement to under various complex site and all kinds of soil in a state of the equipment. Can be adapted to round pile, square pile, rectangular pile and various special-shaped pile.
3.)QC coupled with strict detection means for the product to provide first-class quality assurance, piling machine is now is the national quality the first, market share rate of the first brand.
Technical parameter of hammer pile driver | ||||
Model | HWL600R | / | ||
Hammer impact | 780J | Joule,Accept OEM | ||
Pile length | 0-6000 | mm | ||
Duplex gear pump pressure | 20 | Mpa | ||
Duplex gear pump displacement | 40 | ml/r | ||
Hydraulic system pressure | 20 | Mpa | ||
Main valve flow | 120 | L/Min | ||
Overall Machine weight | 6000 | KG | ||
Diesel engine power | 80 | KW | ||
Rated Speed | 2400 | R/min | ||
Starting Voltage | 24 | V | ||
Rotation angle | 360 | ° | ||
Rotation semi diameter(rotating shaft to Pod distance) | 1925 | mm | ||
Effective press pile stroke | 0-3000 | mm | ||
Dimension(LXWXH) | 6200×2200×2850 | mm | ||
Track shoe | 350 | mm | ||
Walking motor total displacement | 1575 | ml/m | ||
Walking motor rated pressure | 18 | Mpa | ||
Walking motor output torque | 4300 | N.M | ||
Walking motor rotate speed | 50 | r/min | ||
Press Pile Diameter | 0-600 | mm | ||
Drilling Depth | 0-6000 | mm | ||
Operating Speed (m/min) | 1.5 | 90s/per pile | ||
Number of impacts / strokes per 1 minute | 900 | times/min | ||
Maximum lengh of Piles to be rammed | 6 | M | ||
Walking speed | 5-10 | Km/hr | ||
Gradeability | 0-35 | ° | ||
Oil tank capacity | 200 | L | ||
Hydraulic tank capacity (L) | 500 | L | ||
Advantages(spotlight)
1.thepile driver machine can 360 degree rotary , it is very convenient for working.
2.the working speed is fast, it only takes 90s can finish one pile.
3.our pile driver machine can work on the big gradient. 4.our pile driver machine can pree post one soil ground and drill hole with DTH hammeron rocky ground

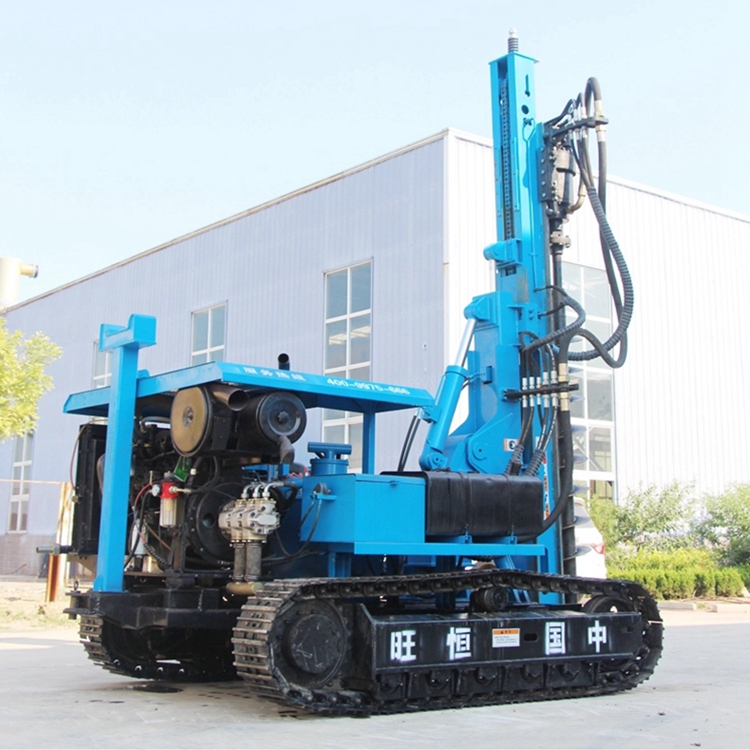

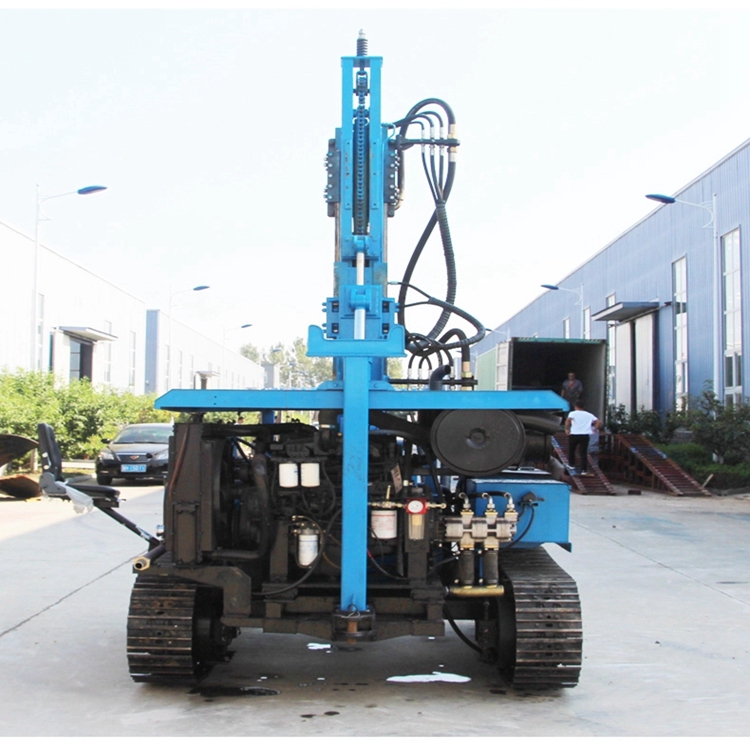

Real Images
Applications of pile driver
Hengwang pile driver in Mongolia for solar post project in 2018
6 meter column drilling head from 10 cm to 35 cm pile driver
Our Service
Pre-Sales Service
* Inquiry and consulting support of pile driver.
* Sample testing support for the pile press machine.
* View our Factory.
After-Sales Service
* Training how to instal the pile pressing machine, training how to use the pile driver machine.
* Engineers available to service machinery overseas.
FAQ
Q1.What is the main function of our pile driver?
Ans.: It has different models used for all kinds of PV post install, it is the best choice forsolar power station
construction.
Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.
Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories
broken can be changed for a new one.And we provide videos for machine install and operation.
Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
Q7. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.
Q8.Do you Preferred provide wear parts for transacted clients?
Ans.: Yes, we have recor d s for your clients, and will prefer provid ing accessories to clients.
Q9: How do you make our business long-term and good relationship?
Ans.: 1. We keep good quality and competitive price to ensure our customers benefits; 2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
Q10.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
