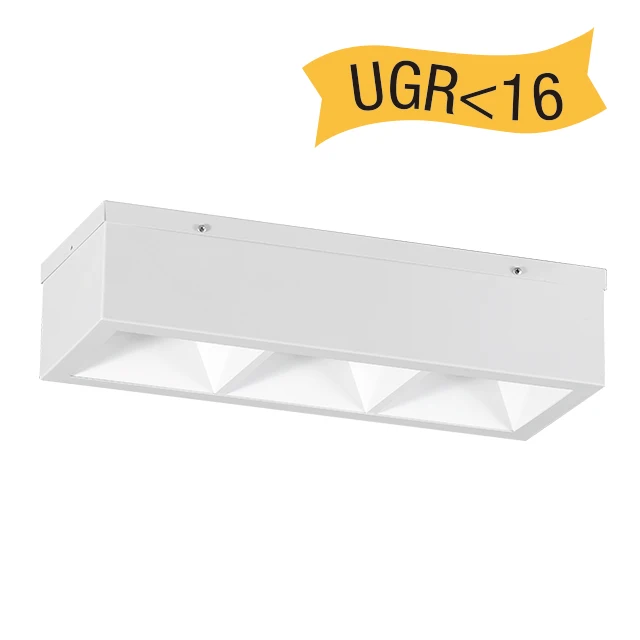

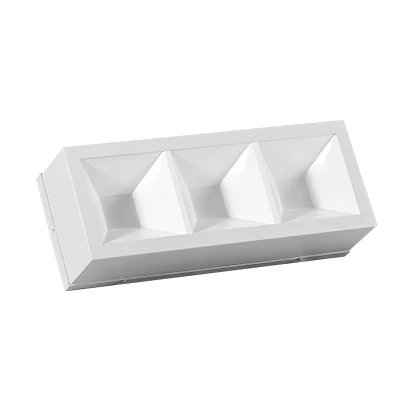

11W linear shape led 165x440 recessed grille light

Product Features

1. Flicker free, UGR<16, protect eyes by real product.

2. Energy efficient, low maintenance costs.

3. Up to 125lm/W, energy saving.

4. Easy intsallation, recessed/ suspended/surface mounted.

5. Optional Function: 0-10V or Dali dimmable, emergency or occupancy sensor

Applications

Meeting Rooms Hospitals Office Schools Metro Stations

Specification

Product Model	BL-TL11W-01A	Beam Angle	86°
Input Power	11W	Optical Cover	PC
Lumen Output	1320lms	UGR	<16
Efficacy	125lm/W	LED Driver	Meanwell
LED Lamp	SMD2835	Input Voltage	100-277VAC, 50/60Hz
CCT	3000~6000K optional	Functions	0~10V, DALI, emergency sensor
CRI	80	IP Rating	IP20
Life Time	50000hours	Package Size	200460450mm, 4pcs/ CTN,
fixture color	white	Weight	G.W.6.8KG

Dimensions

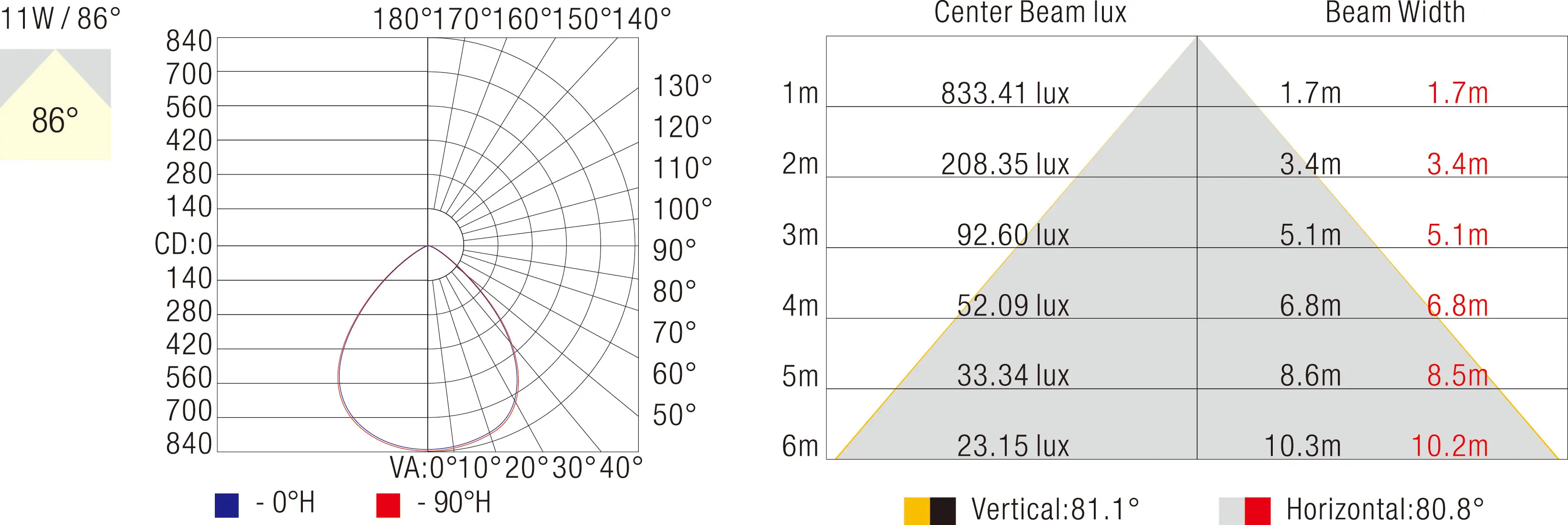

Photometrics

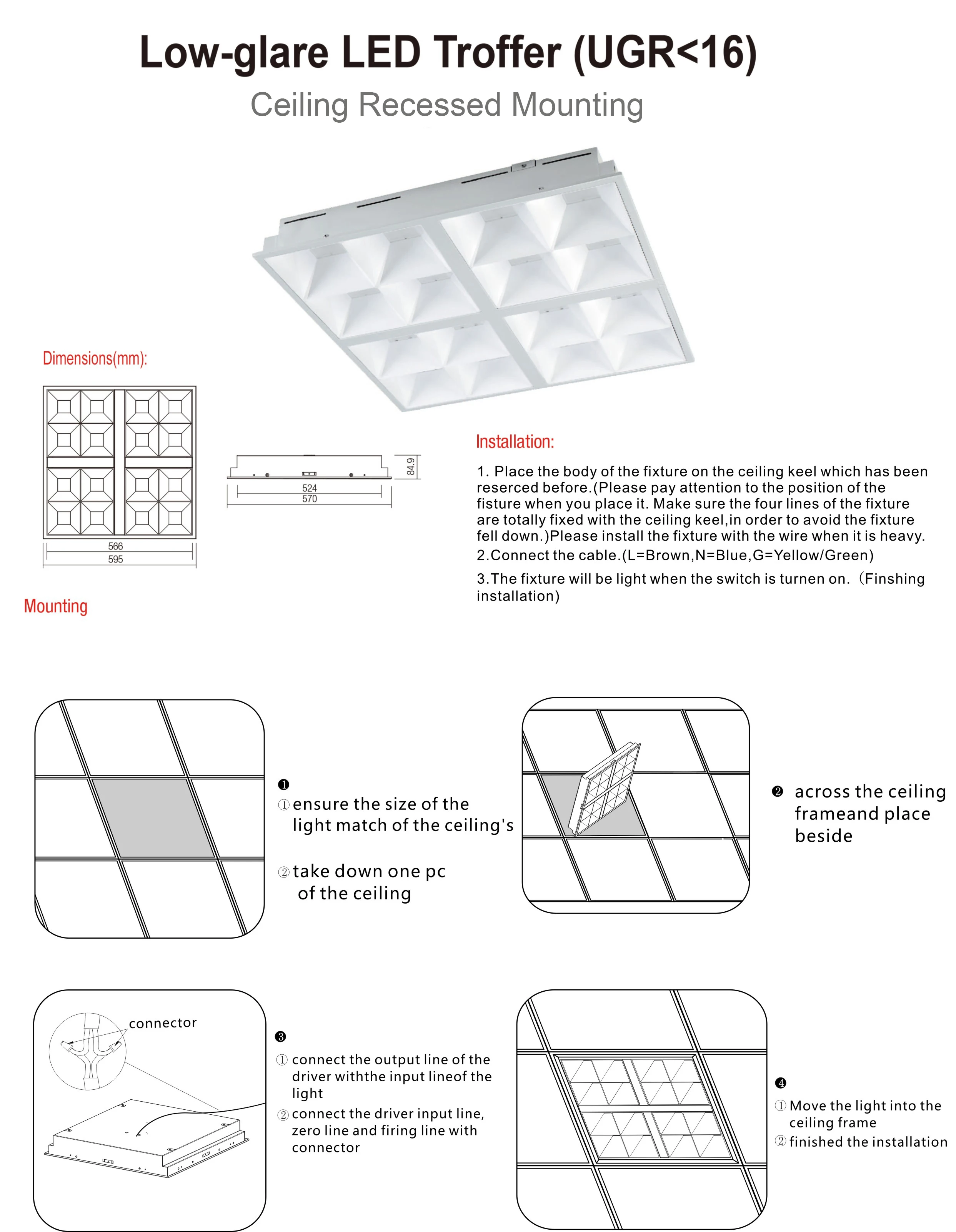

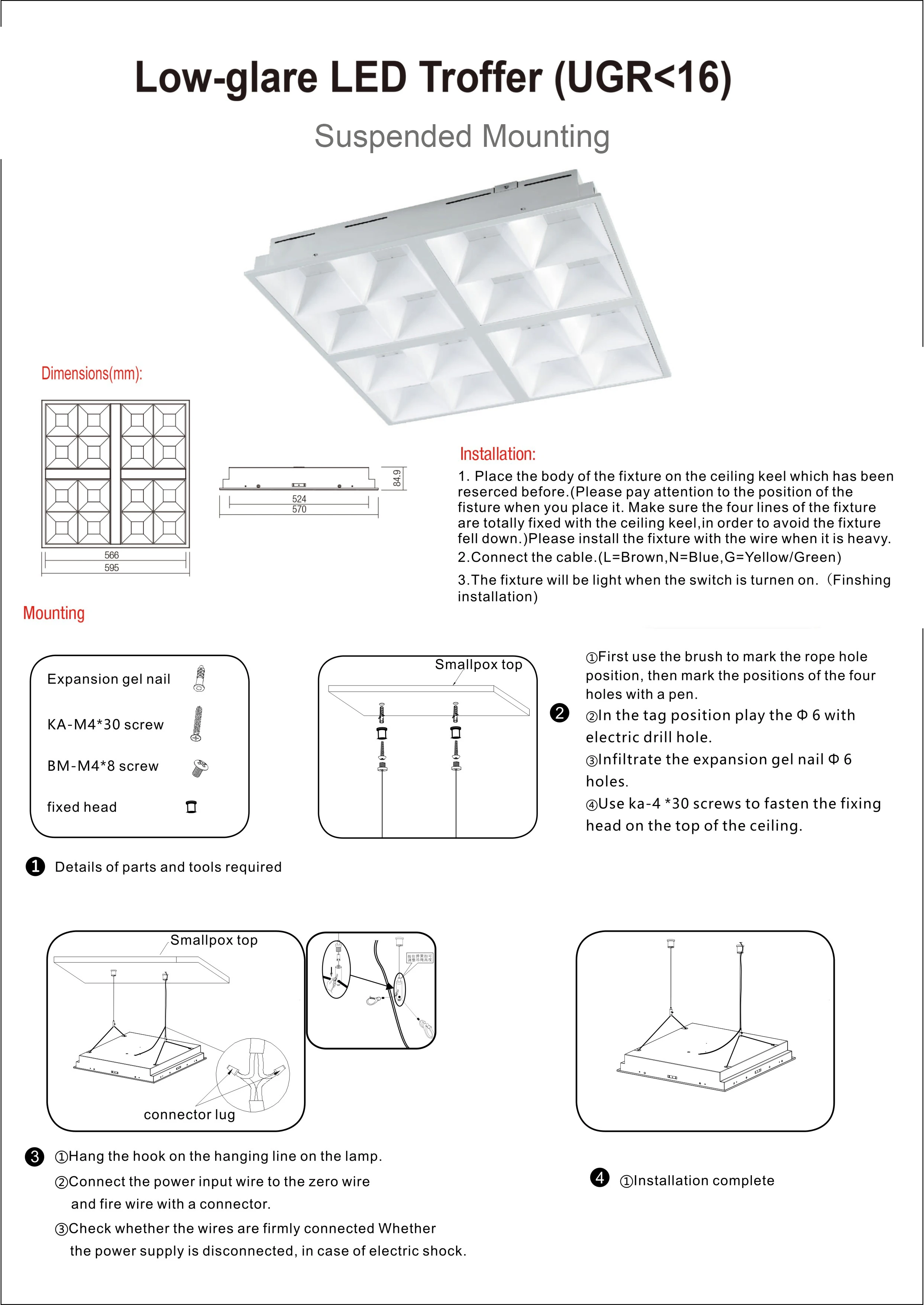

Three Installation Methods

Mass Production

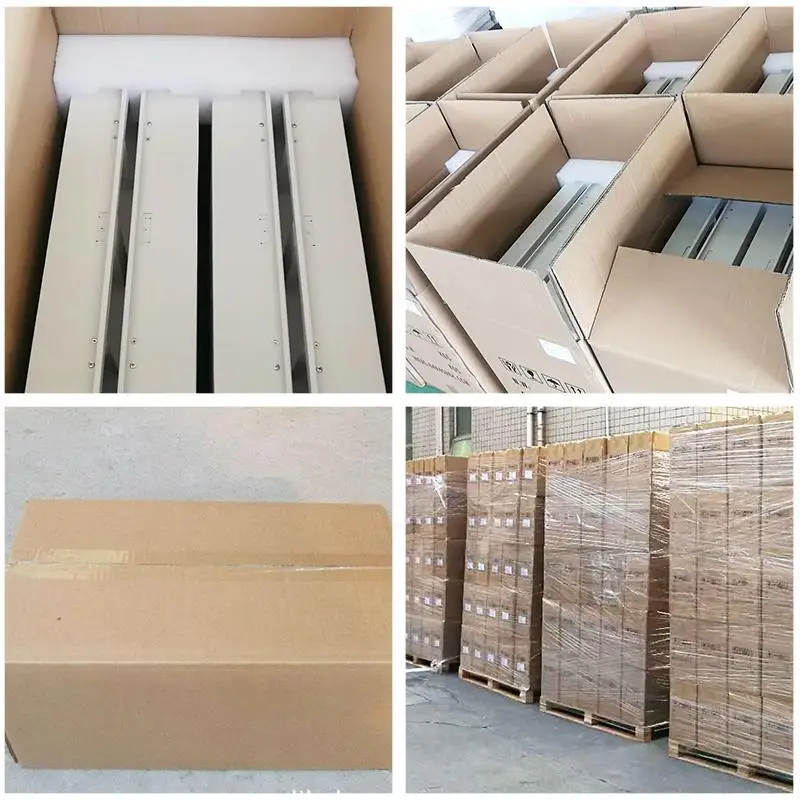

Package

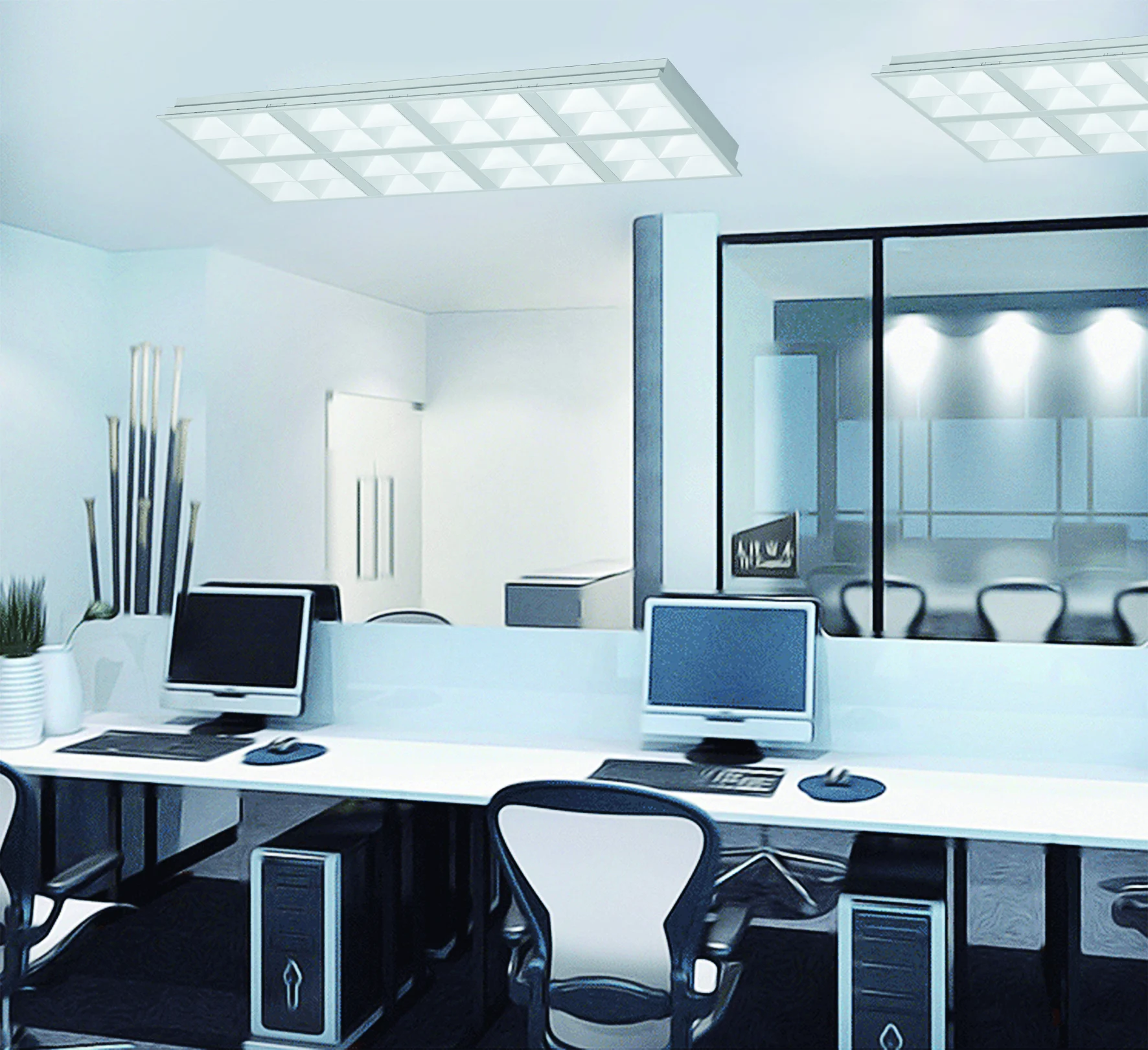

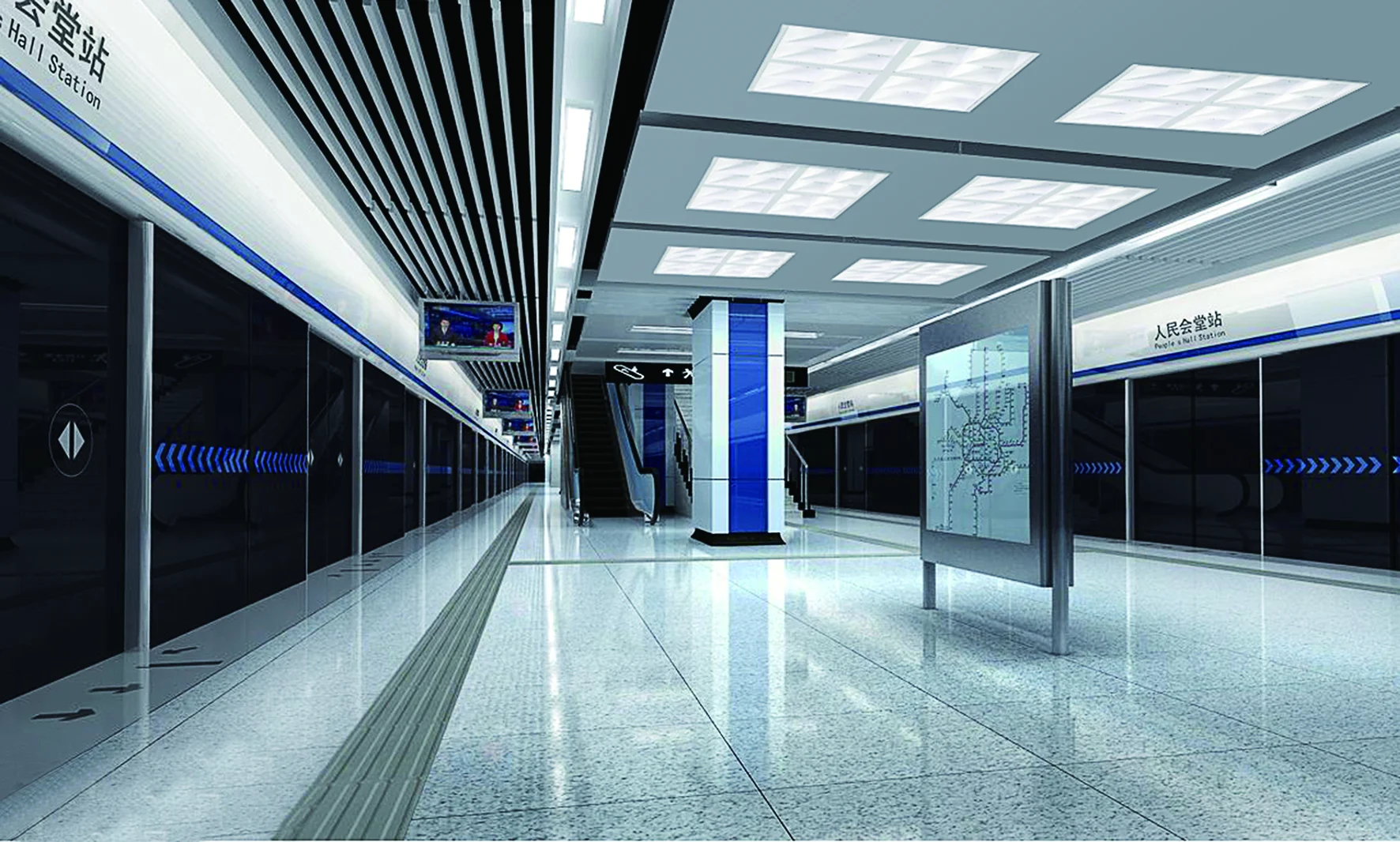

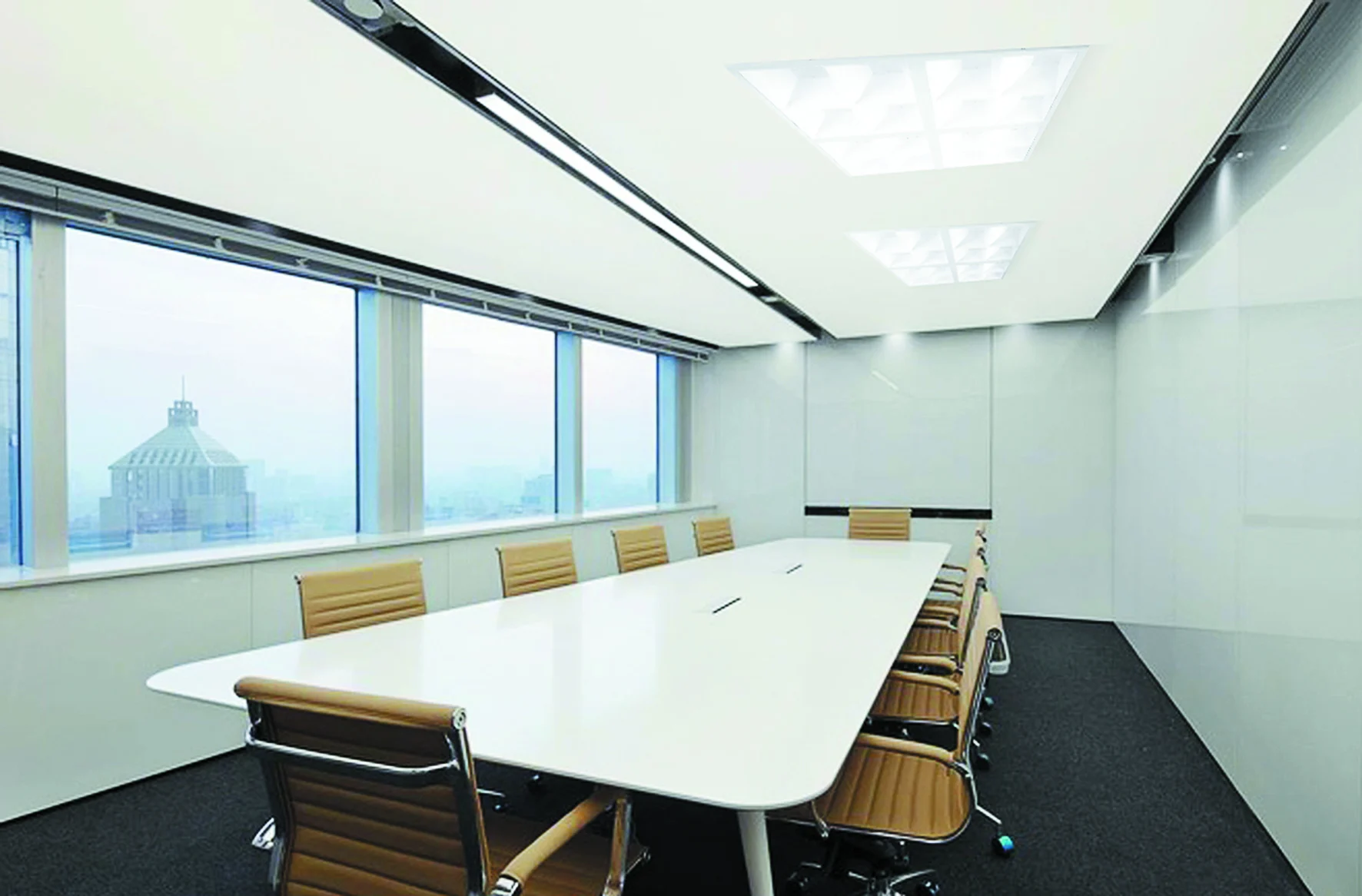

Project Reference

FAQ

Q: Will lighting effect student's conduct in classroom?

A: Some scientists have done some reseach, and research shows that lighting in schools will affect student's performance, conduct, engagement and mood. And report also show that task-appropriate lighting can have a positive impact for the students. BIGLUX professional low glare LED troffer light is no flickering lights, can protect students eyes. and from school side, the upgrading school LED light fixtures and adding smart controls can significantly reduce energy costs for school. so everyone will win when our low glare LED troffer lights not only help create an optimized learning environment in the classroom, but also reduce energy use, lower maintenance costs, and comply with codes and budgets for schools.

Q: Is it necessary for school to replace traditional troffer light with newly developed low glare LED troffer light?

A: It depends, different occasions have different requirement. But since low glare led troffer light with flickering free functions, it can protect students eyes. If school have enough budget, why not give students a better and healther study environment?

BIGLUX newly lauched 22W low glare LED troffer light can meet the varying requirements of student's different activities, for example: classrooms, cafeterias and gymnasiums lighting are different by lighting color temperature, shapes and powers.
22W low glare LED troffer light can serve following needs and more:

· writting, reading, lectures and work groups

· Audiovisual and computer study sessions

· Physical and sports activities

· Meetings and special school events
