Product Details
2020 Newest Greenhouse full spectrum 80watt double channel led grow light bar with Samsung LM301B and Deep red, IR,UV,Blue chips
Attention: this strip run with 2driver, one for white color, another for colorfull chips. it can be put as a spider light, the power can be 240watt, 320watt, 480watt, 640watt, 720watt
Specifications of products
1.Isolated standards isolated driver which is safety for everyone;
2.Full spectrum distribute most nutrient lights from vegetative growth ,flowering and fruit-bearing;
3.Channel: Samsung LM301B RA:80, CCT option: 3000k/3500K/4000K
4.Channel 2:CreeXPE/Samsung LH351H 660nm 450nm 630nm 730nm 365nm 385nm
Initiator: | Russell | Date: | 2019-10-17 |
Project Name: | Sun led grow light | New Project Code: | R2T-SunbarV2-80w |
Function Request | |||
Electronic Requirement): | 80W 900*35mm strips with heatsink: 1pcs each strip with 150pcs Samsung LM301B chip ,channel one with 150pcs Samsung LM301B match HLG-80H-48B driver, channel 2 with 8pcs LH351H Deep red 660nm ,2pcs Cree xpe 730nm, 4pcs Cree XPE 450nm 1pcs LG UV385nm chips match PLD-25-500 driver | ||
Optic Requirement: | total 150+15pcs chips, | ||
Mechanical & Outline Request | |||
Circuit Board Requirement: | N.Layer: | Single side LAYER | |
substrate: | Aluminum | ||
Board thickness: | 1.6mm | ||
Copper thickness: | 1oz | ||
Finishing: | HASL | ||
Solder Mask: | White | ||
silkscreen: | Black | ||
Panel | No request | ||
Special Requirement | 2.0w/m.K thermal conductivity | ||
Silkscreen Design: | Black words | ||
Location hole: | Size: | M3*8 | |
location | N/A | ||
Others |
| ||

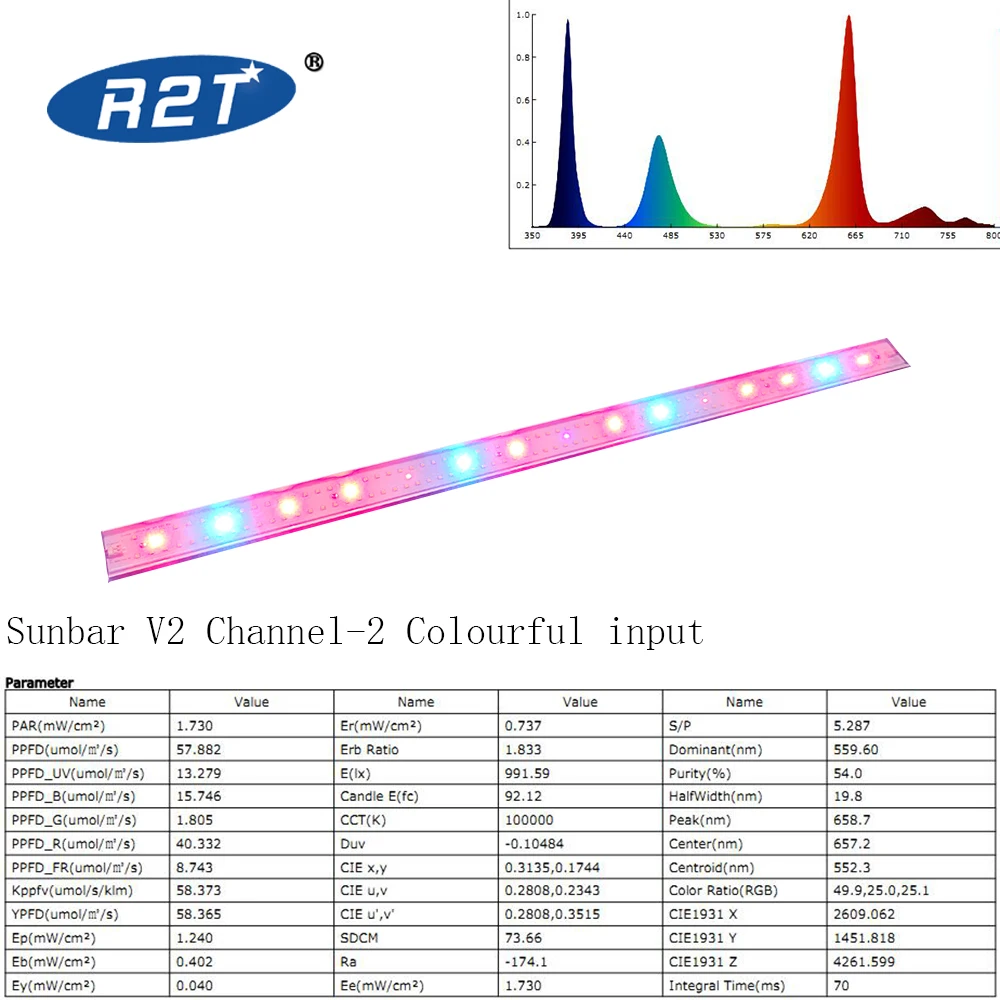

Spectrogram 1
Channel 1+Channel 2 lit on
Channel 1 3000+4000K mixed
Channel 2
Testing Data:
Channel 1: testing distance: 12inch
Channel 2: testing distance: 12inch
Channel1+channel2: testing distance: 12inch
Effectivity of Special Wavelength
Why and when need grow light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6: Do you offer guarantee for the products?
A: Yes, we offer 2-3 years warranty to our products.
Q7: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
