Product Details

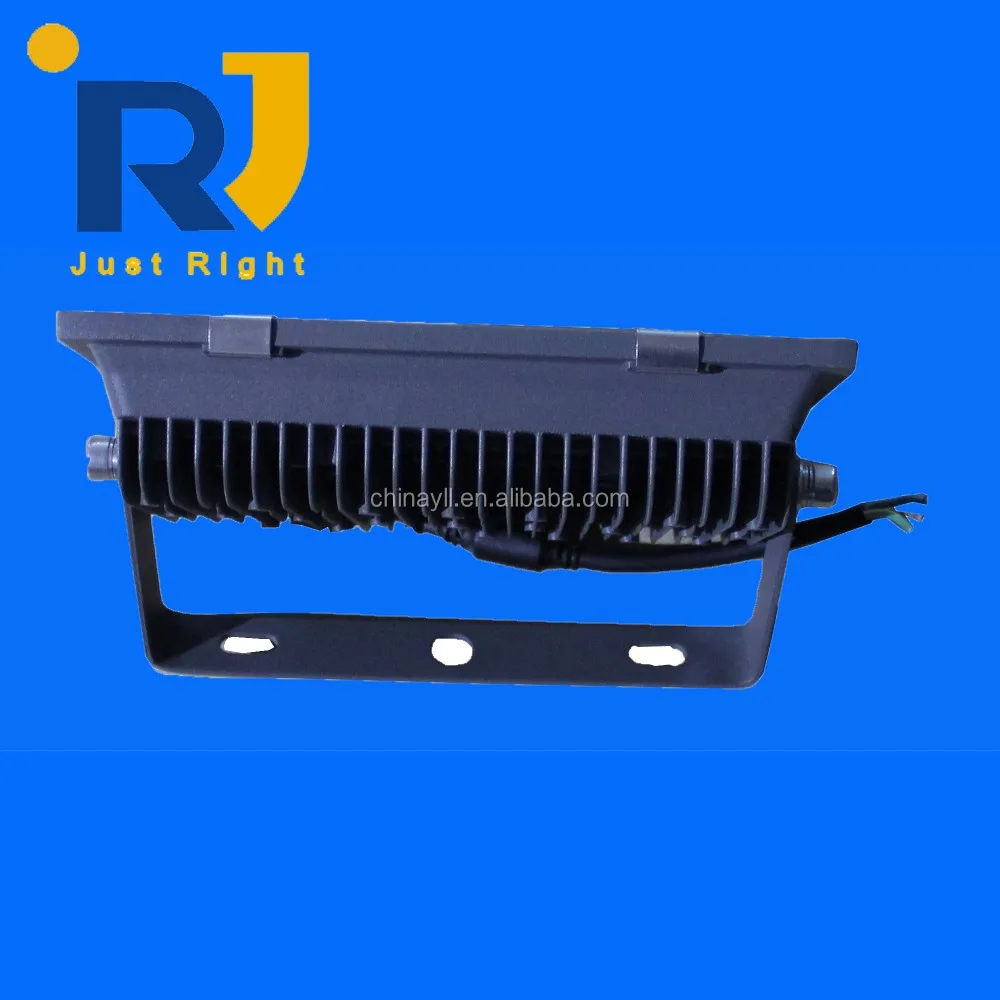

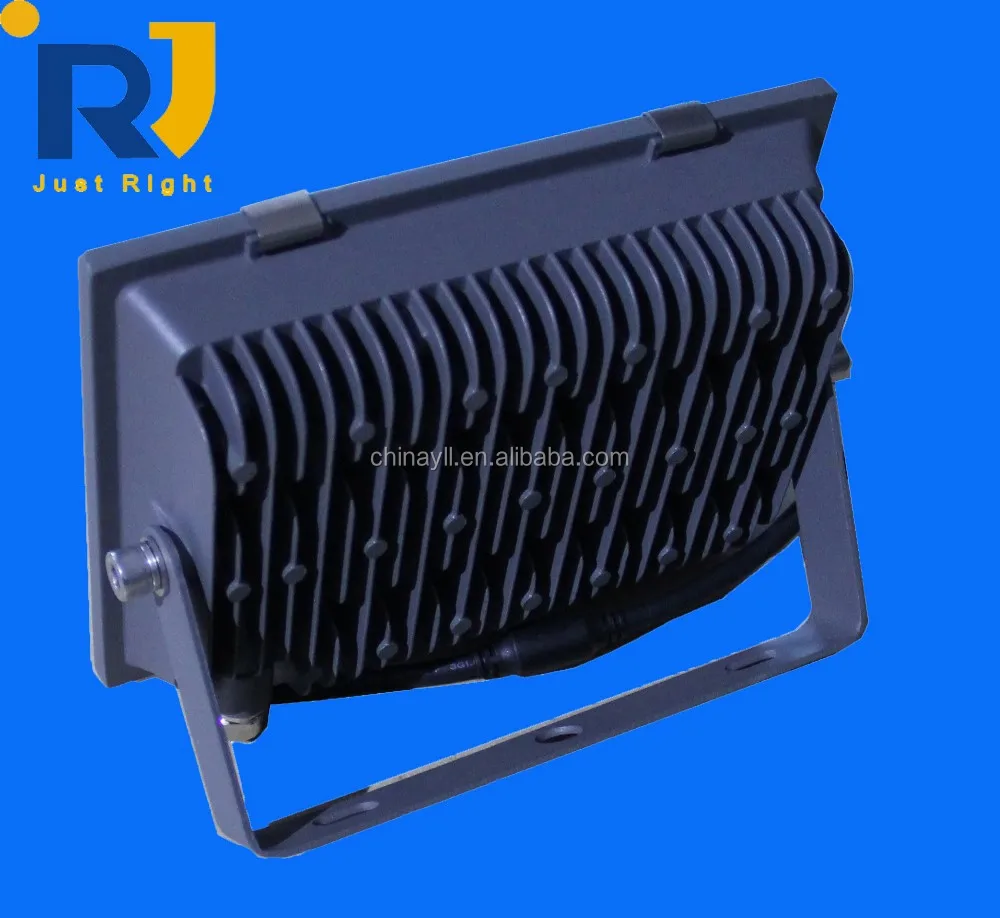

flood lights, outdoor lighting
Using AC new technology, no external power supply, no electronic interference;
The most advanced industrial heat sink design, ultra light lamps, 1/2 installation interface;
High purity aluminum reflector, high reflectivity, uniform illumination;
Reasonable optical distribution curve to meet the optical requirements of various occasions;
High efficiency LED, heat and light distribution system, the optical efficiency of >90lm/W;
Unique non screw fixation lens technology to achieve IP65 protection, elegant appearance
Application sites: facade wash wall, Bridge Road and Garden Plaza and other places
HZY500-20W | ||||
Product spacification | ||||
Product photo | TYPE | NAME | SPACIFICATION | |
Base information | Product Name | Flood lights | ||
performance standards | GB7000 | |||
certification | CCC CE ROHS | |||
Body date | size | 209*156*47 mm | ||
Material | Aluminium | |||
Net weight | 1.1kg | |||
colour | the true colours | |||
Product size
| IP Grade | IP65 | ||
Adjustment angle | NA | |||
installation | bracket | |||
dimmer | / | |||
life | >25000H | |||
ambient temperature | -20℃~+45℃ | |||
Source date
| LED Brand | Osram | ||
LED type | 3030 | |||
LED quantity | 20 Pcs | |||
Optical parameter | luminous flux | 1800lm-3000K,1900-4000K,2000lm-5700K | ||
Beam angle | 120° | |||
colour temperature | 4000K/5700K | |||
color rendering index | >70 | |||
Electrical parameters | conceptual design | AC-HV | ||
Power | 20W | |||
voltage / frequency | AC220V~240V 50HZ | |||
Light distribution curve | Out voltage | / | ||
starting current | 0.092A | |||
Power Efficiency | / | |||
power factor | ≥0.95 | |||
grade level | I Grade | |||
control mode | / | |||
Star IP | / | |||
drive | built-in | |||
Packing material | Inner Box size | / | ||
Weight | / | |||
Installation fitting | / | Packing size | 530*445*315 mm | |
G.W | G.W= 15.5 Kg | |||
attachment | Specification certificate | |||
Packing quantity | 12pcs | |||
