Product Details
58cc gasoline Chinese chainsaw, gasoline chain saw chain
Product Introduction
Specification:
1.Engine:Air-cooling,two-stroke,single,cylinder gasoline
2.Displacement: 58CC
3.Engine power: 2.5kw/7000rpm
4.Idle speed: 2700rpm
5.Fuel/Oil mixture ratio: 25:1
6.Fuel tank capacity: 550ml
7.Oil tank capacity: 260ml
8.Guide bar size:18’’/20’’/22""
9.Saw Chain: Carlton(oregon,chinese chain is optional)
10.Chain pitch: 0.325’’
11.G.W/N.W:8.2kg/7.2kg 12.Packing size: 530*260*290mm junction box
Technology Parameters
| Product | Gasoline Chain saw, chain saw | ||
| 1 | Model: | LH-CS5800 | |
| Specification: | |||
| 2 | Engine Type: | Air Cooled Single Cylinder, Two Stroke | |
| 3 | Displacement: | 58cc | |
| 4 | Rated Output Power: | 2.3kw/8500r/min | |
| 5 | TwoCycle Oil/Gasoline Mixing Ratio: | 1:25 | |
| 6 | Lading speed | 2800r/pm | |
| 7 | Fuel Tank Capacity | 550ml | |
| 8 | Engine oil Tank Capacity | 260ml | |
| 9 | Chain saw Gague: | 0.058" | |
| 10 | Carburetor | Diaphragm type | |
| 11 | Oil Feeding system | Automatic pump with Adjuster | |
| 12 | Guide Bar size(inch) | 22" | |
| 13 | General Accessories | Guide bar, Chain, File, socket wrench | |
| 14 | Lube type | Automatic chain oiling pump | |
| 15 | G.W./N.W. | 8.5/7.5KGS | |
| 16 | packing type | 1pcs/1 Carton | |

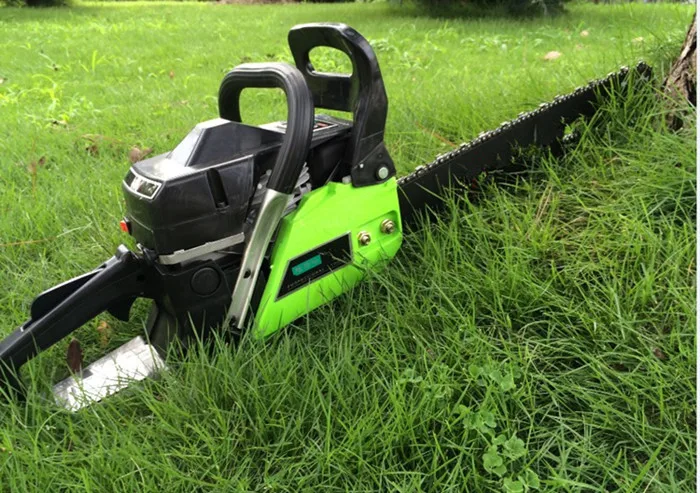

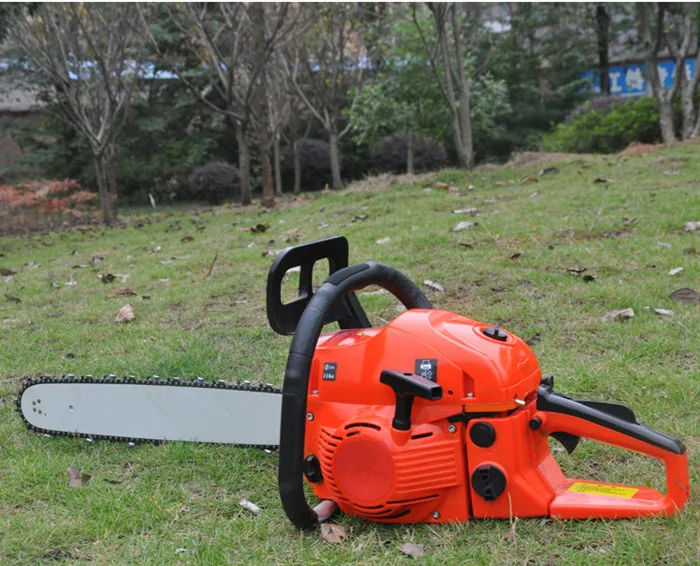

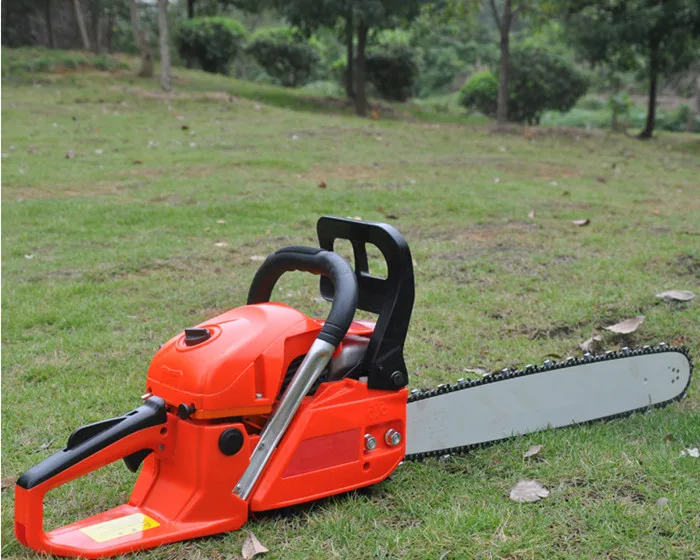

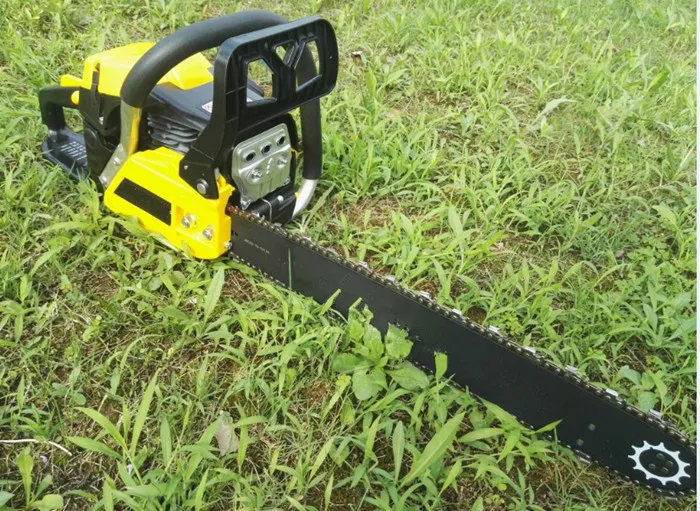

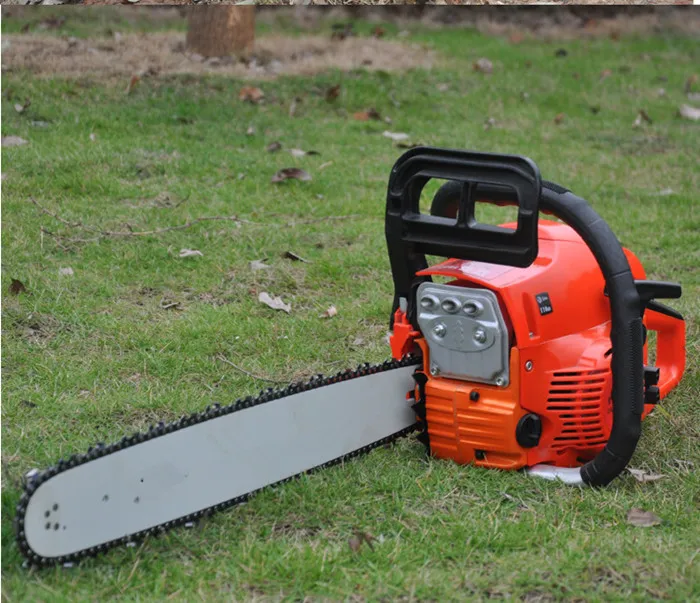

The real details photo
