Product Details
60W & 90W PoE switch for PoE LED/ lighting bt standard Utra PoE++ unmanaged switch

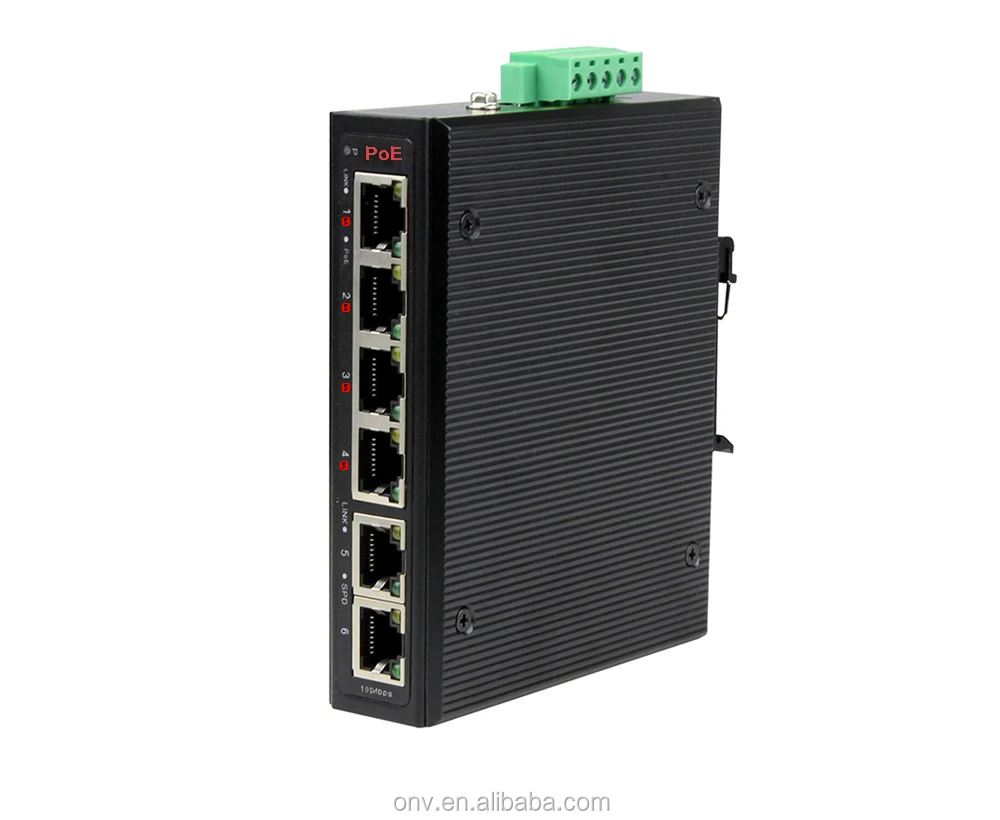

The IPS33064P-bt is a 10/100/1000M unmanaged bt industrial PoE fiber switch. It has 4*10/100/1000Base-TX RJ45 ports and 2*RJ45 ports. Port 1-4 can support 71W PoE super high power output and backward compatible with the IEEE802.3af/at PoE standard. Single-port PoE power output is 95W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It provides stable and safe terminals for PTZ network domes, high-power wireless AP, high-power network multimedia speakers, and high-power POE lighting, etc. through a network cable to meet the network environment that needs high-density PoE power supply. It is suitable for intelligent transportation, rail transit, electric power, mining, metallurgy and green energy. Industrial scenes such as construction set up a cost-effective and stable communication network.
* 10/100/1000Mbps RJ45 port
* Support non-blocking wire-speed forwarding.
* Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Powerful port lightning protection, ultra-wide voltage input
— Contact discharge 8KV, air discharge 15KV; port lightning protection common-mode 4KV, differential mode 2KV;

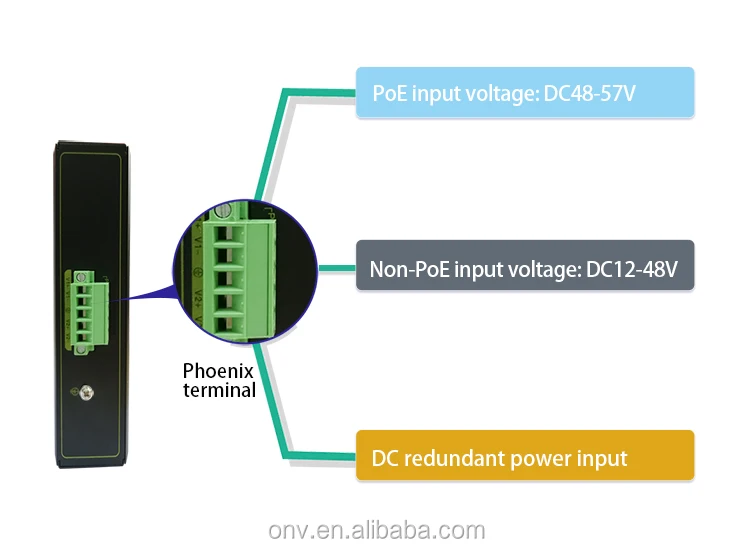

— Industrial dual power input
— DC INPUT: 48V-57V, non-PoE DC INPUT: 12-48V.
Intelligent PoE power supply
— 4*10/100/1000Base-T RJ45 ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
— IEEE 802.3bt PoE standard, without damaging non-PoE devices.
— Priority system for PoE port, it will supply power to the high priority level port first when the power budget is insufficient and avoid overwork of the device.
Stable and reliable
— Low power consumption, fan-less design, aluminum shell.
— Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
— CE, FCC, RoHS.
— The user-friendly panel, it can show the device status through the LED indicator of PWR,SYS, Link, PoE.
Model | ONV-IPS33064P-bt | |||
Interface Characteristics | ||||
Fixed Port | 4*10/100/1000Base-T PoE ports (Data/Power) 2*RJ45ports, 10/100/1000M (Data) 2 sets of V+, V- redundant DC power port (5P Phoenix terminal) | |||
Ethernet Port | 10/100Base-T,Auto-sensing,Full/half duplex MDI/MDI-X self-adaption | |||
SC Port | 100M SC optical fiber interface, default matching optical modules | |||
Twisted Pair Transmission | 10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-T: Cat5e or later UTP(≤100 meter) | |||
Optical Cable | Multimode: 850nm 0 ~ 550M, singlemode: 1310nm 0 ~ 40KM, 1550nm 0 ~ 120KM. | |||
Chip Parameter | ||||
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-X, IEEE802.3x | |||
Forwarding Mode | Store and Forward(Full Wire Speed) | |||
Switching Capacity | 1.6Gbps | |||
Forwarding Rate@64byte | 0.744Mpps | |||
MAC | 1K | |||
Buffer Memory | 768K | |||
Jumbo Frame | 1636bytes | |||
LED Indicator | Power: PWR (green);Network :Link, Link/Act (yellow); PoE : PoE (green) | |||
PoE & Power | ||||
PoE Port | Port 1 to 4 IEEE802.3bt @ POE | |||
Power Supply Pin | Default: 1/2 (+), 3/6 (-), 4/5 (+), 7/8 (-) | |||
Max Power Per Port | 95W; IEEE802.3af/at | |||
Power Consumption | Standby<6W, Full Load<240W | |||
Working Voltage | 48-57VDC, 5 Pin industrial Phoenix terminal, support anti-reverse protection. | |||
Power Supply | No, 48V/240W industrial power supply | |||
Physical Parameter | ||||
Operation TEMP / Humidity | -40~+80°C;5%~90% RH Non condensing | |||
Storage TEMP / Humidity | -40~+85°C;5%~95% RH Non condensing | |||
Dimension (L*W*H) | 119*100*30mm | |||
Net /Gross Weight | <0.5kg / <0.7kg | |||

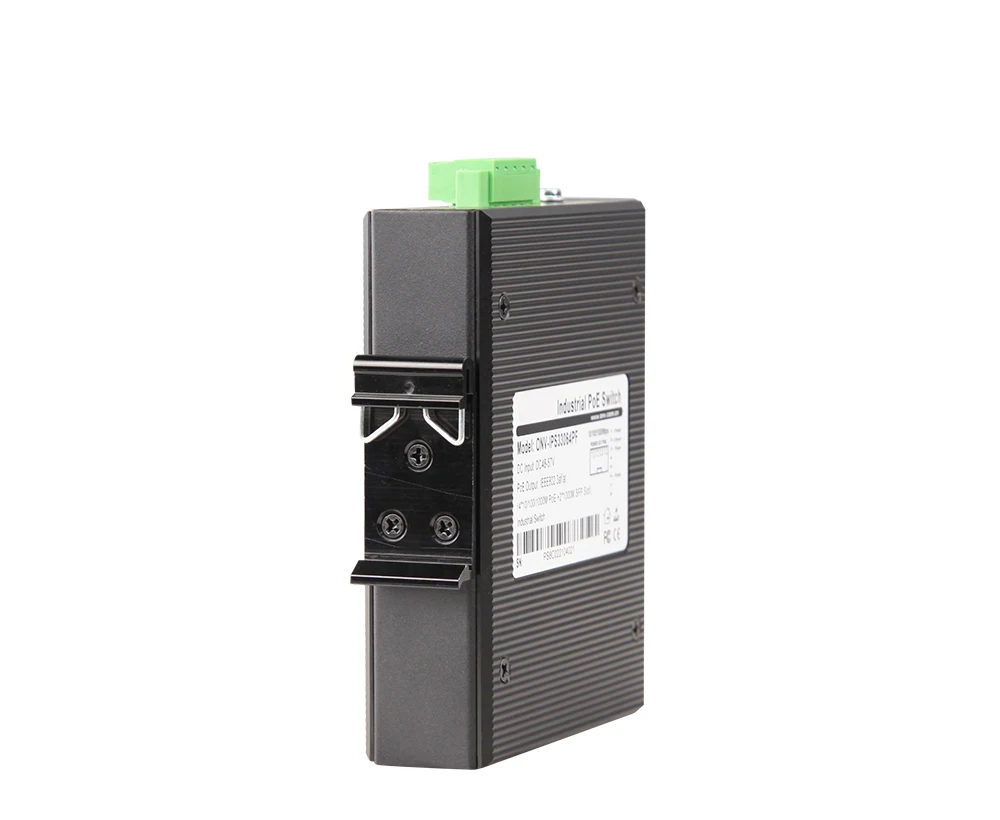

Installation | Desktop, DIN rail | |||
Certification & Warranty | ||||
Lightning protection / protection level | Lightning protection: 6KV 8/20us; Protection level: IP40 IEC61000-4-2(ESD):±8kV contact discharge,±15kV air discharge IEC61000-4-3(RS):10V/m(80~1000MHz) IEC61000-4-4(EFT): power cable:±4kV; data cable:±2kV IEC61000-4-5(Surge):power cable:CM±4kV/DM±2kV; data cable:±4kV IEC61000-4-6(radio frequency transmission):10V(150kHz~80MHz) IEC61000-4-8(power frequency magnetic field):100A/m;1000A/m ,1s to 3s IEC61000-4-9(pulsed magnet field):1000A/m IEC61000-4-10(damped oscillation):30A/m 1MHz IEC61000-4-12/18(shockwave):CM 2.5kV,DM 1kV IEC61000-4-16(common-mode transmission):30V; 300V,1s FCC Part 15/CISPR22(EN55022):Class A IEC61000-6-2(Common Industrial Standard) | |||
Mechanical Properties | IEC60068-2-6 (anti vibration)，IEC60068-2-27 (anti shock)， IEC60068-2-32 (free fall) | |||
Certification | CCC;CE mark, commercial; CE/LVD EN60950;FCC Part 15 Class B; RoHS; | |||
Warranty | 5 years , lifelong maintenance. | |||
Model | Description | Recommended power supply | ||
IPS33064P-bt | Unmanaged industrial PoE fiber switch with 4*10/100/1000M RJ45 ports and 2 *10/100/1000M RJ45 port, Port 1-4 can support IEEE802.3bt PoE. Support DC dual power supply input and DIN rail mounting. | 240W | ||
Note: Industrial PoE switch does not match the SFP optical module and power supply. | ||||
PACKING LIST | CONTENT | QTY | UNIT |
6-port 10/100/1000M industrial PoE switch | 1 | SET | |
User Guide | 1 | PC | |
Warranty Card | 1 | PC |

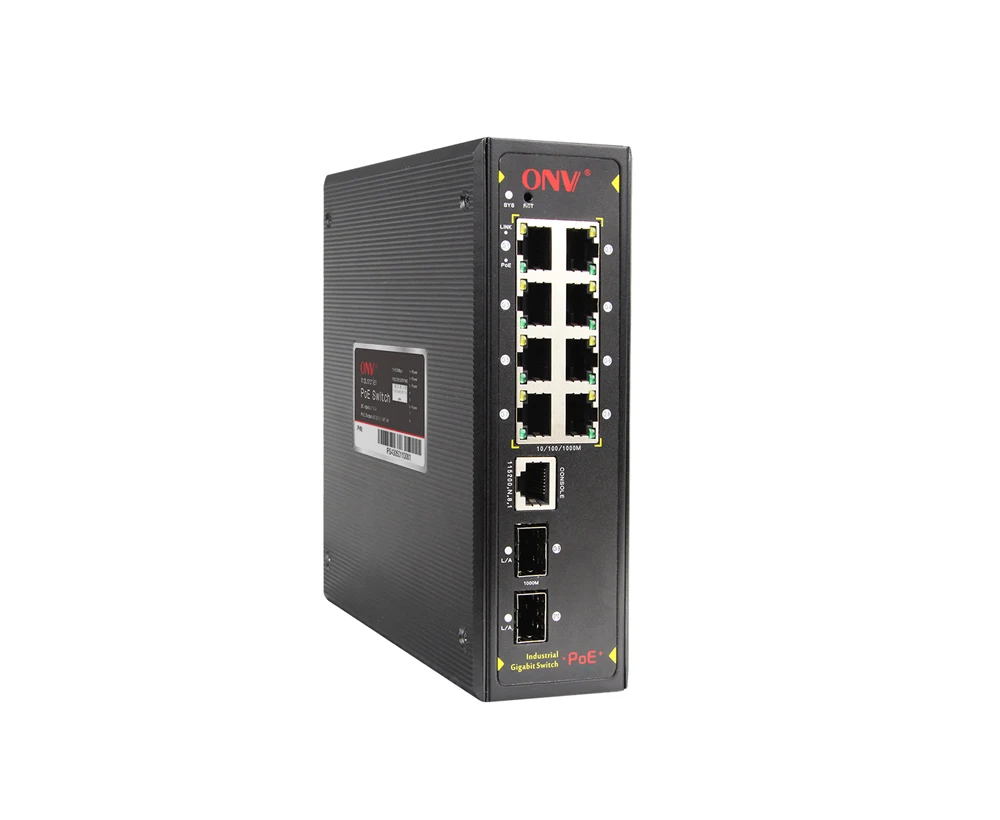

ONV-IPS33108PF
