Addressable emergency light central system With backup battery
Brief Introduction:
The Asenware Centralized Monitoring Emergency Luminaire System is designed for managing, testing, monitoring and controlling emergency lights automatically. It can timely discharge the battery of the emergency lights and charge again, to monitor the battery capacity. It can switch on or switch off the emergency lights by address or by emergency zone. It can monitor the light fault, power fault, battery fault of the emergency lights. It can help the maintenance staff to inspect all the status of the emergency lights in one building.
Function Description:
This system has the following features:
1. Friendly HMI with 7 inch colorful LCD touchscreen;
2. Maximum 500 lightings per loop;
3. Simultaneously and remotely control one or more lightings;
4. Real-time monitoring system operating condition and displaying the latest fault;
5. More than 500 history events record;
6. Up to 16-way non-source emergency zone input
7. Up to 16 testing group;
8. Detecting battery fault, LED source fault, AC fault and communication fault for single emergency lighting;
9. Automatic testing function, user can set the condition based on actual conditions;
10. Detecting fuse fault, AC fault, grounding fault and battery fault;
11. Quiescent condition;
12. Disablement condition(Inhibit all corresponding mandatory indication as required);
Product Images & Parameters:
| Product | Emergency Light Monitoring System Control Panel |
| Model | AW-CELP500 |
| AC input | 220VAC 50HZ ( +10% or -15% ) |
| DC output | 24VDC |
| Battery parameters | 2*12V/ 2.3Ah |
| 2*12V/ 7Ah | |
| Battery protection voltage | 22.2V |
| 220V AC input cable | 4mm2 |
| Power board fuse | 3A/ 250V/ 5*20(mm) |
| EMI board fuse | 2A/ 250V /5*20(mm) |
| Operation ambient | Temperature: -5 ~ 40°C |
| Humidity: 5 to 95% RH | |
| Features | Single loop |
| Maximum 500 emergency lights per loop | |
| Up to 16 non-source emergency zone input | |
| Up to 16 non-source emergency zone input |

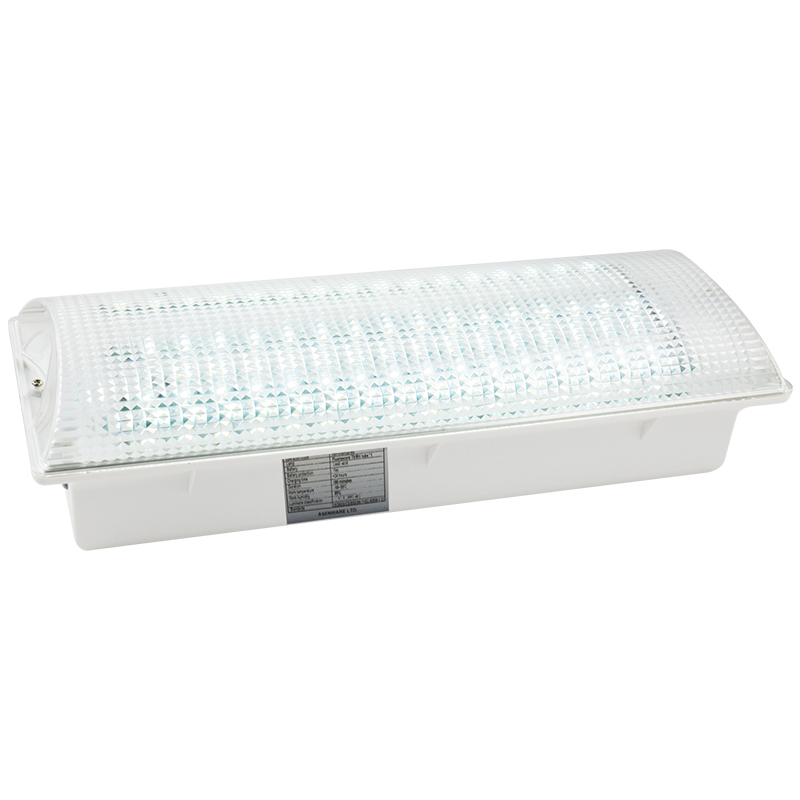

| Product | Emergency Light Monitoring System Lights |
| Model | AW-CEL101 |
| Ac input | 220VAC 50HZ ( +10% or -15% ) |
| Batter parameters | 4.8V/ 500mAh |
| Battery protection voltage | 3.8V~4.1V |
| 220V AC input cable | 0.5mm2 |
Switching voltage under emergency mode | 140VAC~180VAC |
Switching time under emergency mode | < 2s |
| Light output | Lumen:>50Lm |
| Operation ambient | Temperature: -5 ~ 40°C |
| Humidity: 5 to 95% RH | |
| Features | 3 Hours battery discharge time |
| 48pcs LED lights |

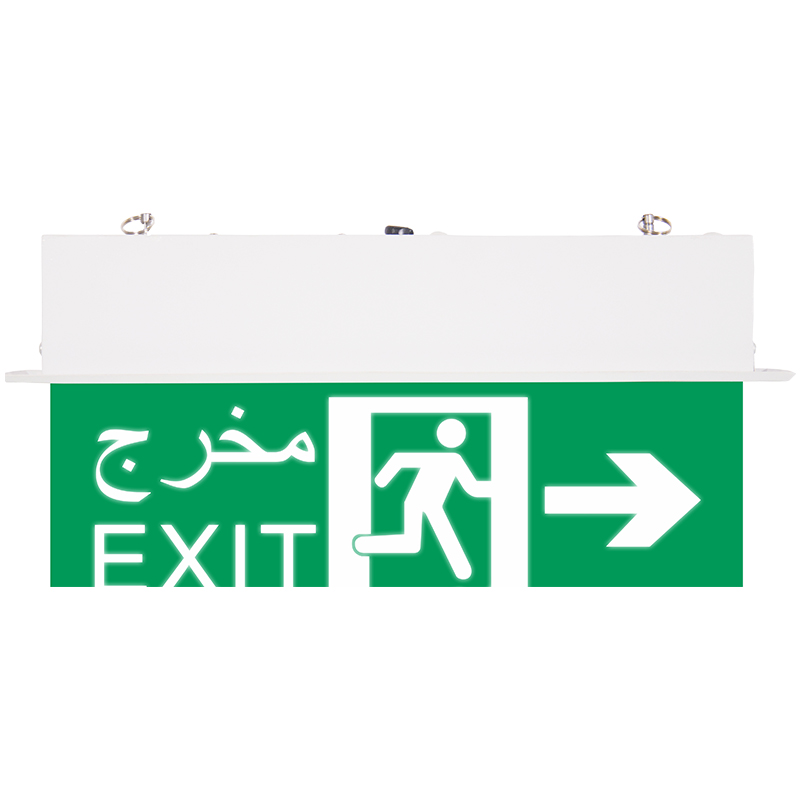

| Product | Emergency Light Monitoring System Exit Sign |
| Model | AW-CEL301 |
| AC input | 220VAC 50HZ ( +10% or -15% ) |
| Battery parameter | 4.8V/ 500mAh |
| Battery protection voltage | 3.8V~4.1V |
| 220V AC input cable | 0.5mm2 |
| Light output | Lumen:>50Lm |
| Operation ambient | Temperature: -5 ~ 40°C |
| Humidity: 5 to 95% RH | |
| Features | 3 Hours battery discharge time |
| 6pcs LED lights | |
| Double side |
| Product | Emergency Light Monitoring System Programmer |
| Model | AW-PR100 |
| Usage | Program the address to the lights |
Easy Installation (two types):
ASENWARE was established in 2005. We have focused on the Fire Alarm and BMS(Building Management System) over 11 years. Our headquarter is in London, UK.
We develop and manufacture addressable fire alarm system, conventional fire alarm system, fire extinguisher, CCTV camera and DVR, and DDC for HVAC system.
Based on our ISO9001 quality control system and our experiences in BMS and NDT, we integrated a series of products in our E-Shop; they are cost-effective and guaranteed quality.
We keep our best service for our customers, and have a rich experienced engineer team to design and install for overseas projects.
We have a trusted goodwill; we are striving to provide to our customers with satisfying service before, during and after sales.
* Over 10 years" experience.
* Prompt response.
* OEM & ODM availabl
* Support factory inspection.
* Standard qulity control system.
* Different choices of payment and delivery.
* Independant R&D dept, designing dept,to meet your special need.
* Whole set of technical supports and with abroad projects experience.
* We are manufacturer, offer better price better service.
* Direct control on materials, production status, quality checking.
* Sample order, customized order, bulk order are supported.
* Reliable after-sales service, with one year waranty.
* Is Asenware Company a factory ?
Yes, we have Factory in Zhongshan, Office in Shenzhen, Headquarter in London.
* What is our payment term ?
T/T; L/C; Western union.
* How long is the delivery time ?
Usually about 2 to 7 days. Mass production about 3 weeks.
* Do we have technical support ?
Yes, we have a professional engineering team.
* How to assure the quality ?
Firstly, our materials and components pass the serious China Quality Standard and Control.
Secondly, our finished products only can pass Asenware Quality Check System, then can export.
Thirdly, our products can be provided to test and certify by Authories according to customer"s special need.
* Do we have warranty ?
Yes, One year or more depends.
* Sample for testing ?
Yes, Stock sample or Customized sample is available.
* Procedure to Purchase our products ?
Inquiry --- Offer --- Dicssion --- Confirmation --- Order --- Deposit --- Production --- Payment --- Shipment --- Arrival --- Finished --- Feedback --- Repeat Order.
* The ways to contact us ?
Offical web "asenware.en.alibaba.com"; Domestic and Abroad Exhibitions; Factory Tour; Email & Phone etc.
