Product Details
adjustable torque impact wrench
Product Introduction

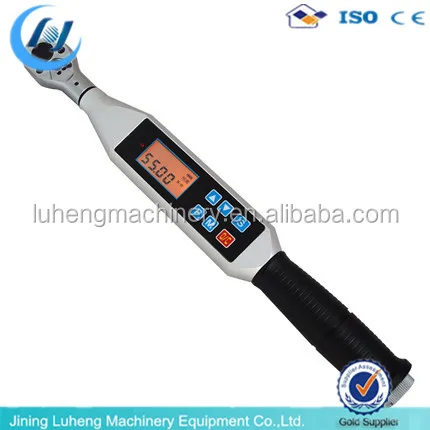

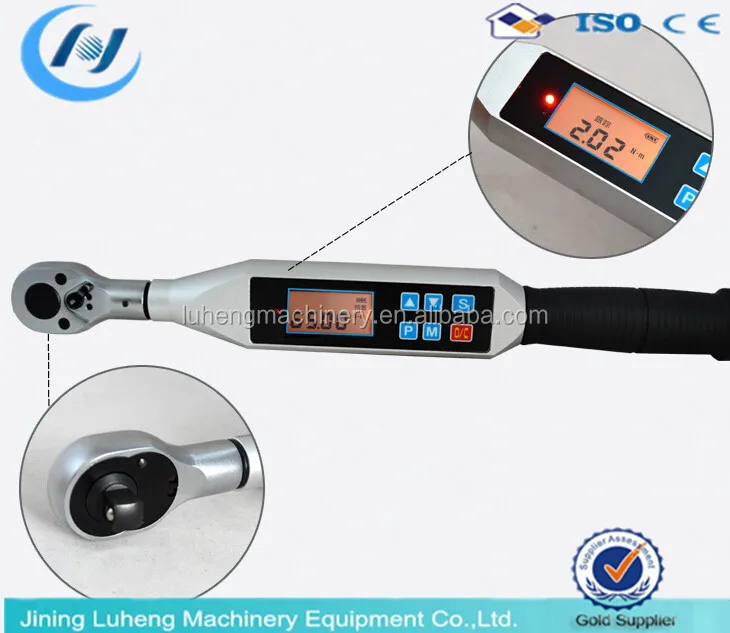

2015 Fashion digital electronic torque wrench from China Factory
1. Unique, stay-in-place,Lock Ring makes adjustments easier and secures selected
torque from accidental change.
2. Metric scale with fine increments and reference English scales are easy to read and
set.
3. The identity code marked on each wrench makes it possible to keep accurate record.
Main Parameter
Type | Test range | Dividing value | Precision | Arm length | Total length | Wrench head width | Tenon size | Weight |
N.m | N.m | % | mm | mm | mm | in | kg | |
HWD-10 | 2~10 | 0.01 | ±1 | 242 | 290 | 26 | 1/4" | 0.35 |
HWD-20 | 4~20 | 0.02 | ±1 | 242 | 290 | 26 | 3/8" | 0.35 |
HWD-50 | 10~50 | 0.05 | ±1 | 285 | 350 | 32 | 3/8" | 0.75 |
HWD-100 | 20~100 | 0.1 | ±1 | 340 | 410 | 42 | 1/2" | 0.95 |
HWD-200 | 40~200 | 0.2 | ±1 | 410 | 480 | 42 | 1/2" | 1.30 |
HWD-300 | 60~300 | 0.2 | ±1 | 573 | 650 | 52 | 1/2" | 1.75 |
HWD-500 | 100~500 | 0.5 | ±1 | 725 | 800 | 52 | 3/4" | 2.55 |
HWD-800 | 160~800 | 0.5 | ±1 | 1001 | 1097 | 60 | 3/4" | 6.00 |
HWD-1000 | 200~1000 | 1 | ±1 | 1227 | 1257 | 67 | 1" | 6.10 |
HWD-1500 | 300~1500 | 1 | ±1 | 1200 | 1310 | 67 | 1" | 7.10 |
HWD-2000 | 400~2000 | 2 | ±1 | 1900 | 1998 | 72 | 1" | 11.50 |
HWD-3000 | 600-3000 | 2 | ±1 | 2102 | 2200 | 72 | 1" | 14.70 |
