Product Details
Product Description
| Specification |
Parameters | Symbol | Value | Units | Notes | ||
| Min | Typ. | Max | |||
Supply Voltage | Vin | 5 | 5 | 18 | V | |
Current Consumption | I | - | 35 | 50 | mA | Vin=5V |
Radiated Power | Pout | -20 | - | 5 | dBm | Adiustable by software |
Frequency Setting | ƒout | 5.725 | - | 5.875 | GHz | Adiustable by software |
Antenna BeamWidth(3dB)-Azimuth | θ | - | 170 | - | ° | |
Output control | Vout | - | 5V | 18 | V | |
Speed Measurement | Vdet | 0.1 | - | 3 | m/s | |
Time Delay | ΔT | 0 | - | ΔT | s | Adiustable by software |
| Detection Range | L | 0 | - | 20 | m | Adiustable by software |
Operating Temperature | TA | -30 | - | 100 | ℃ | |
Storage Temperature | TSTG | -40 | - | 150 | ℃ | |

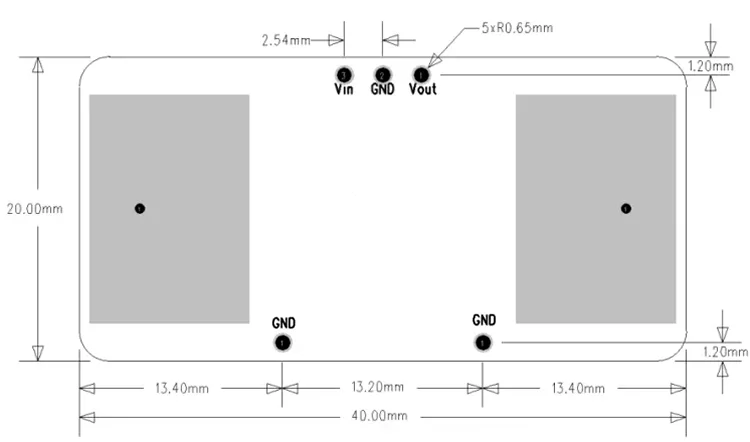

| Outline Diagram |
Length:40mm Width:20mm Thickness:1.6mm
| Interfaces | ||
| No. | Name | Feature |
| 1 | Vin | 5V Voltage input(sypport 6~18V) |
| 2 | GND | Gound |
| 3 | Vout | Support raw data and high-low-level pulses |
