Product Details

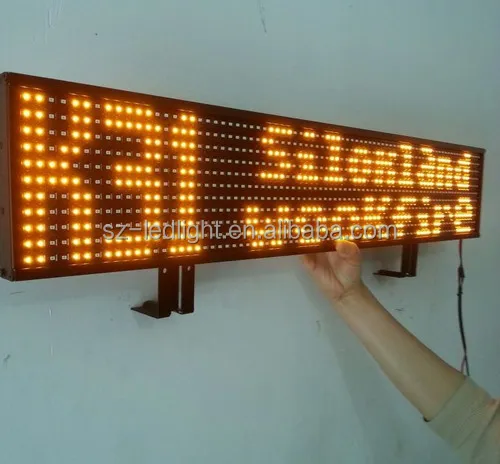

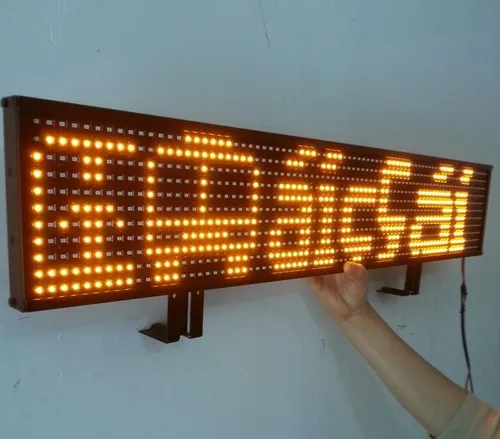

Alibaba panel led electronic billboard bus led strip display screen
With years of experience aiming at English, Spanish, French, German, Russian, Latin and other countries market, our company launch a new kind of TAXI car display with high brightness SMD LED lamp beads.Driver board, power supply and panel are made three-in-one, highly integrated, super anti-knock, ultra-thin, ultra light, with beautiful appearance.The product which has passed test from market is improved on the basis of bus screen,
good adaptability,stable and reliable.
Common Specifications:
Frame parameter | Size | 820mm×152mm×25mm(length *width*thickness ) |
Color | Shell:black bracket:black | |
Luminotron core parameter | Specification | 10*14mil(white)yellow 10*10mil |
Color | Single white or yellow(amber) | |
brightness | 800-1200mcd(yellow),2500~3000(white) | |
Wavelength | 592-595nm(yellow) | |
LED display parameter | Net | Length 800mm× width 138mm |
Resolution | 80dot ×11dot | |
Pitch | broadwise10 mm,endwise12.5mm | |
Max visible distance | 70m | |
Horizontal viewing angle | 50°~70° | |
Working temperature | Low temperature -40~80℃ | |
storage temperature
| Low temperature -45~85℃ | |
Drive mode | Constant current (Taiwan accumulate MBI5024) | |
Voltage | 7~40V | |
Nominal working voltage | 12V | |
Way to update the content on display | U disk /GSM message (only one can be chose ) | |
Life-span of luminotron | ≥50 thousand hours | |
The standard delivery | Display | one |
Aluminum alloy Shell | 1set | |
bracket | 1set | |
| M5bolt | 16PCS |
wire rod | One | |
Packing specification | Carton size | 860 mm×240 mm×65 mm |
Mount of packed display | one | |
Gross weight | 3.5KG(net weight of display is 2.3KG) |
