Product Details
Product Description

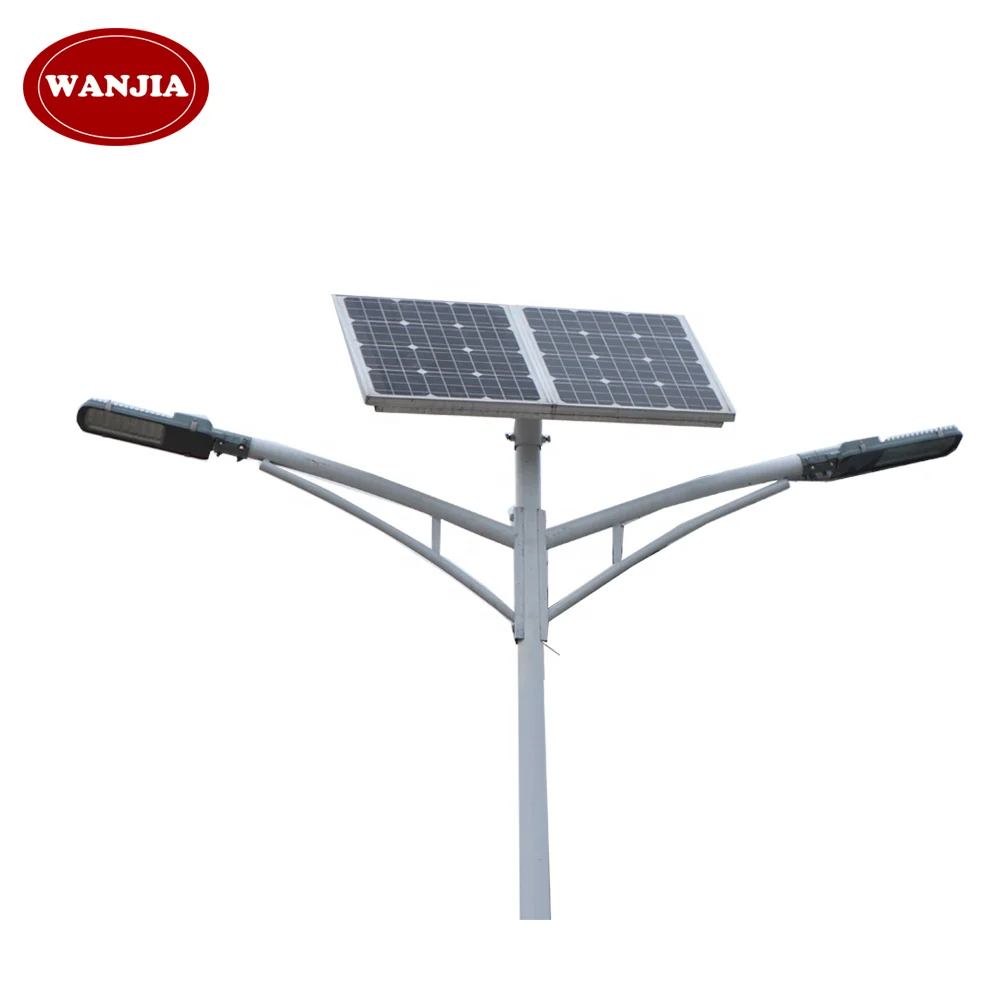

| Solar Street Light Spec | |||
| Item | Detail | Spec | Lifespan |
| Solar Panel | 18.5% Efficiency;Poly Crystalline Silicon;High Efficiency;Adding Aluminum Frame, Tempered Glass. | 30W ~310W | 20~25 years |
| Lithium Battery | Sealed Type;Deep cycle;Maintenance Free. | 24Ah~250Ah | 5~8 years |
| Intelligent Solar Controller | Automatic Light and Time Control;Over-charging/discharging Protection;Reverse-connection Protection;Switch on Automatically with Light Sensor;;Switch off after 11-12 Hrs later. | 10 / 15 / 20Ah | 5-8 years |
| LED Light Source | IP65,120 Degree Angle;High Power, High Brightness. | 10W~300W | 5-8 years |
| Lamp Housing | Die-casted Aluminum, IP65;High transmittance & density toughened glass. | 50cm~90cm | > 30 years |
| Pole | Steel, Hot-Dip Galvanized;With Arm, Bracket, Flange, Fittings, Cable, Etc;Plastic Coated, Rust Proof;Resistant to Wind: ≥150KM/H. | 3m~15m | > 30 years |
| Feature | |||
| 1. Above system configurations are designed working time: 11-12 hrs per night, battery capacity with continuous 2-3 days backup.The configuration is based on scientific calculation and engineering project experience. | |||
| 2. The Galvanized pole are standardized practical model recommended by us. It can be customized with more patterns according to clients specific requirement. | |||
| 3. All Parts are CE certified, with high quality level meeting European standards. | |||
| 4. Please contact us for more detailed technical specification of each part of the system. | |||

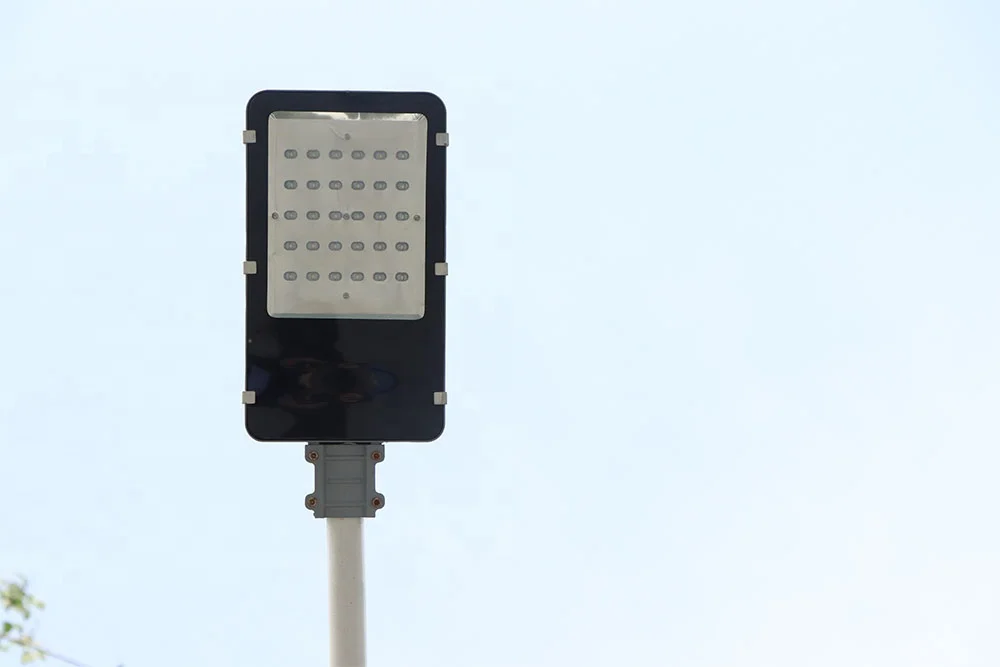

- LED Lamp:
- Modular pluggable technology, tool-free on-site maintenance;
- Control system, through lighting to achieve on-demand lighting, while reducing the entire lamp power consumption, energy saving. Dimming can also reduce the overall heating lamps, effectively extending the life of the entire lamp, reducing light failure;
- Design the appearance of high-end, fashion, atmosphere. The whole lamp is made of high-pressure cast aluminum, impact-resistant, pure polyester electrostatic spray coating, corrosion-resistant;
- Bat wing + polarized lens: Specially tailored patented lens, a substantial improvement in lighting effects, illumination uniformity better;
- Simple assembly, easy maintenance: standard modular installation, versatility, easy maintenance.
- Dimension(mm):
| MODEL | L | W | H | POWER |
| A | 495 | 210 | 55 | LED10W-50W |
| B | 550 | 257 | 80 | LED30W-80W |
| C | 650 | 270 | 105 | LED60W-120W |
| D | 750 | 280 | 105 | LED90W-150W |
- Dimension(mm):
3030 light source
| Model Number | SSL-003 | LED Life | >50000h |
| Input Voltage | DC30V-60V | Power Factor | >0.9 |
| Lamp Power | 20W~60W | Color Temperature(k) | 3000~6500 |
| Light Source | 3030 LED | Chip Type | Bridgelux, Philips |
| CRI | ≥Ra70 | Working Temperature | -40℃~+50℃ |
| Light Efficiency (lm/w) | ≥130lm | Working Humidity | 10%~90% |
| Protection Class | IP67 | Installation Diameter | Φ50 |
| Light Distribution | Bat type | Packing Size(mm) | 685*265*125 |
