Welcome to Hua Xing PCBA LTD

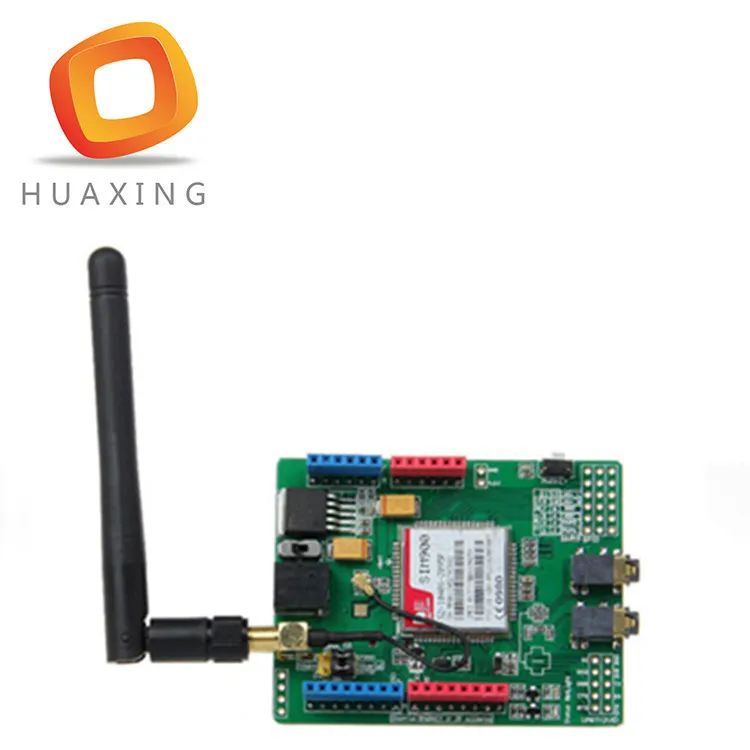

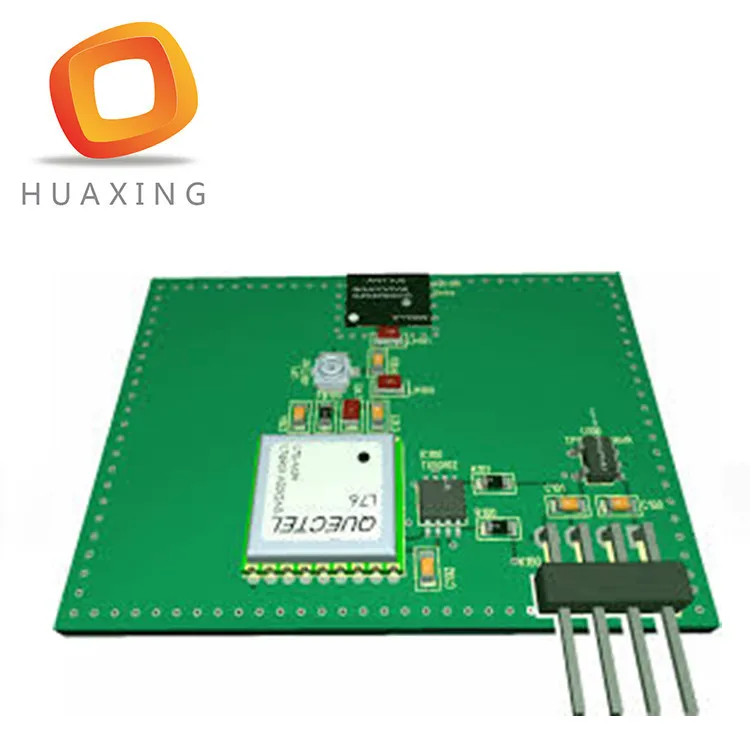

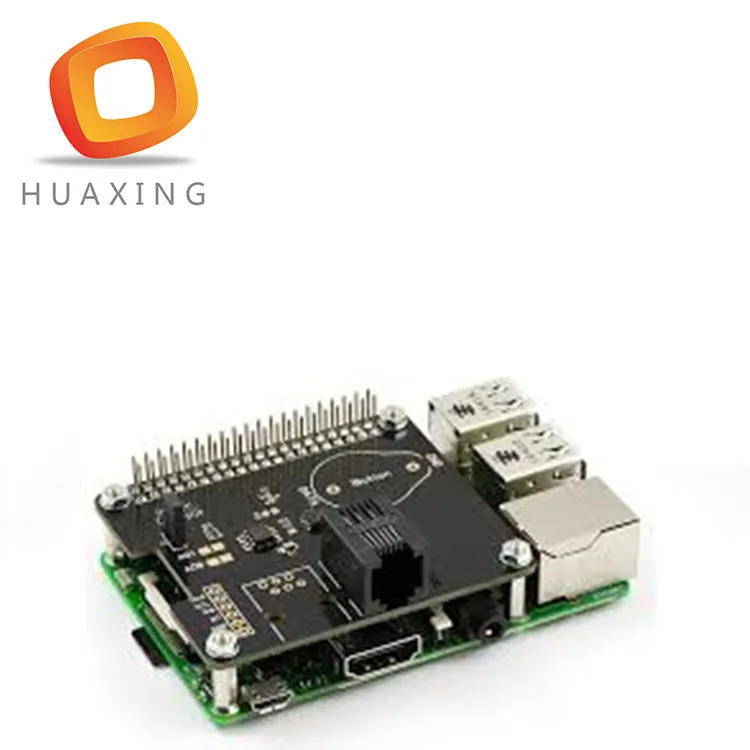

Customized Board Assembly Fast Gps Tracker Pcb Board
Specifications:
1.Fast and one-stop service
2.Accept Design,Clone,OEM,ODM service
3.PCB+Components+PCBA
4.CE,ROHS,UL
5.quote within 24hours with Chinese and US office

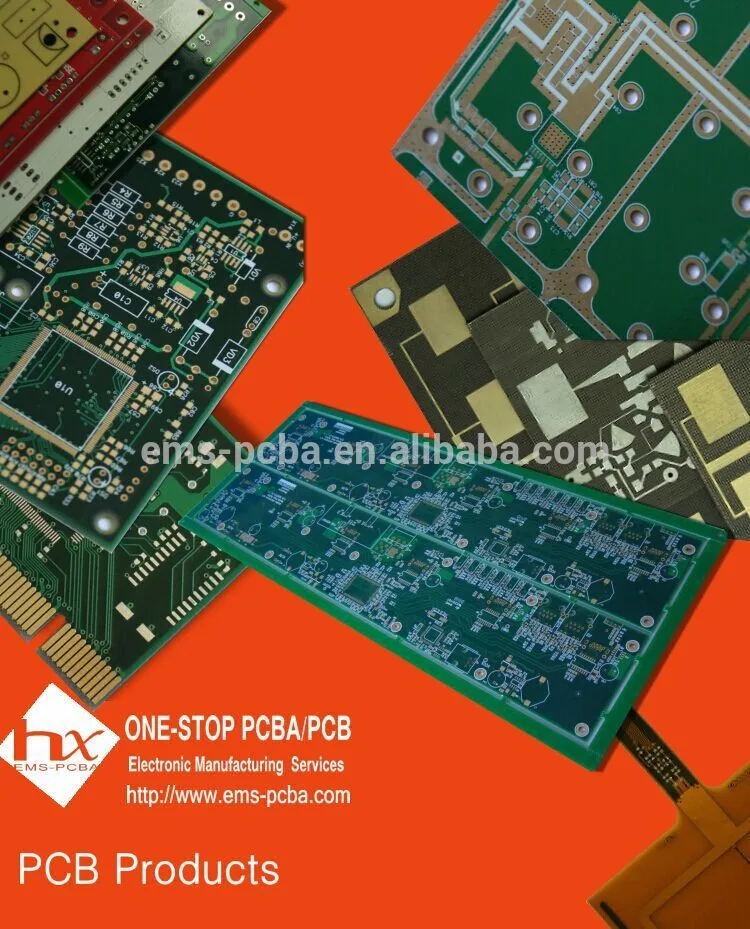

PCB Technical Capacity
| Layers | Mass production: 2~58 layers / Pilot run: 64 layers | |
| Max. Thickness | Mass production: 394mil (10mm) / Pilot run: 17.5mm | |
| Material |
| |
| Min. idth/Spacing | Inner layer: 3mil/3mil (HOZ), Outer layer: 4mil/4mil(1OZ) | |
| Max.Copper Thickness | UL certificated: 6.0 OZ / Pilot run: 12OZ | |
| Min. Hole Size | Mechanical drill: 8mil(0.2mm) Laser drill: 3mil(0.075mm) | |
| Max. Panel Size | 1150mm × 560mm | |
| Aspect Ratio | 18:1 | |
| Surface Finish |
| |
| Special Process |
Hybrid, Partial hybrid, Partial high density, Back drilling, and Resistance control. |
2) Cloning and Copy service
3) Prototyping service
4) Mold making and plastic Injection
5) FPC making
Why us?
Quality
Our UL/Rohs standards insure quality assemblies from start to finish. Whether it's a simple custom product or a complex turnkey production run, HaXing promise to give customers the highest quality standards.
Capable
HuaXing offers the best capabilities in assembly insuring that quality is high.
Experience
When it comes to your build you want a partner you can depend on. Our management team has over 10years of combined industry knowledge. Our engineering team has over 7 years experience.
Protecting your interests
Protecting your Intellectual Property is job one! Our staff of trained professionals are all working under a strict confidentiality contract and treat your important documentation as they would their own.
Flexibility
We pride ourselves on our ability to custom tailor programs around our customers' needs. We take time to listen to your unique business needs and then set out to surpass them.

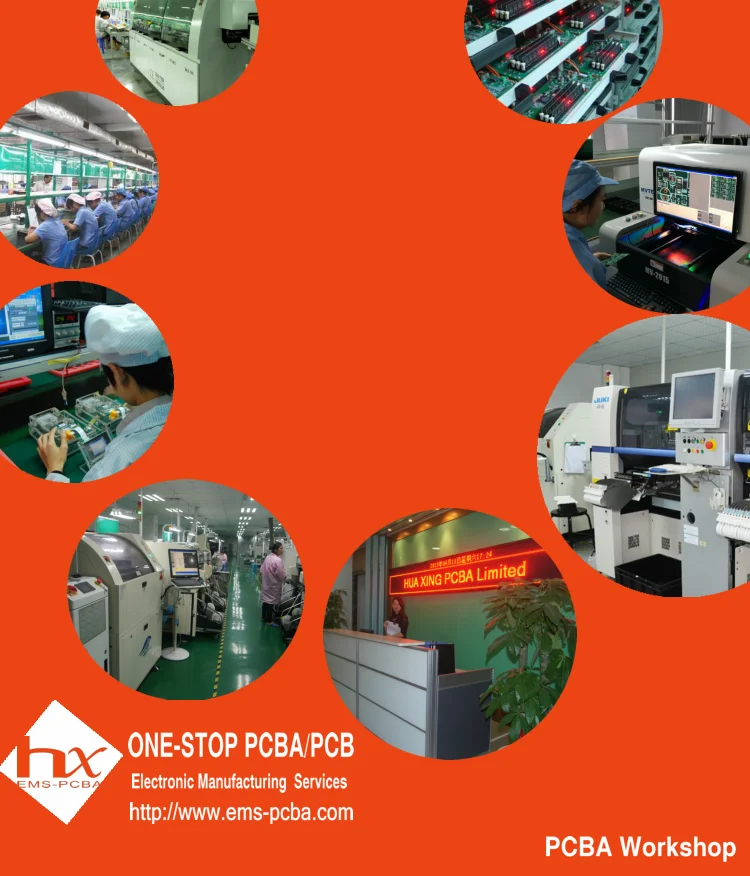

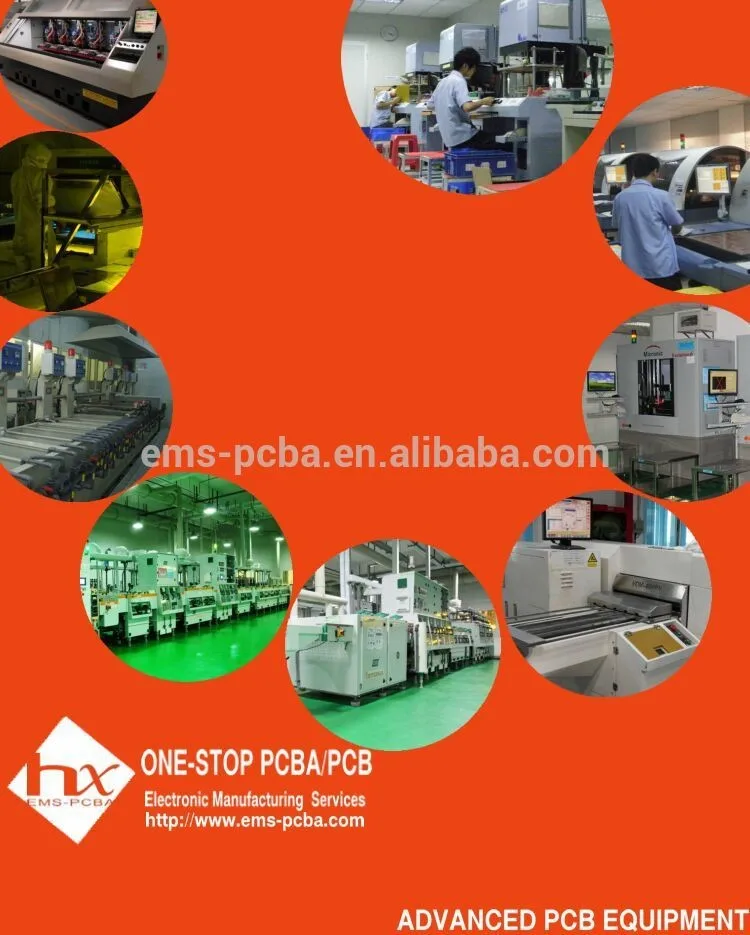

Manufacture
Our partners
Clients
Certifications
What service can you provide?
We can provide PCB gerber file design,Copy and Clone,OEM and ODM service.
Not only produce PCB,PCB Assembly,but also Plastic Enclosure,and Complete products.
Are my design files secure when I send them to you?Your files are held in complete safety and security while Hua Xing PCBA Limited is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
For small quantity orders, can you produce prototype PCBs?
Yes. Hua Xing PCBA Limited has the capability to produce PCBs in any amount. But,the greater the quantity, the greater the cost savings.
Do you have an order minimum?
We accept order with as low as a quantity of 1 (piece or panel).
What is the standard thickness of laminate that Hua Xing PCBA Limited uses?
1.6 mm (0.063″)
What are all your options for laminate thickness?
We can handle the following nonstandard thicknesses: 0.2mm (0.0079″), 0.4mm (0.016″), 0.6mm (0.024″), 0.8 mm (0.032″), 1.0 mm (0.04″), 1.2mm (0.047″), 2.0mm (0.079″), and 2.3mm (0.091″).
Do you have the capability of manufacturing high frequency materials?
While expensive, we can manufacture these materials. Contact us for pricing prior to placing an order.
What options exist for the thickness of copper?
0.5 oz, 1.0 oz, 1.5 oz, 2.0 oz, 2.5 oz, 3.0 oz, 3.5 oz, 4.0 oz, 4.5 oz and 5.0 oz.
What are the color options for PCB solder masks?
Green, black, blue, red green, yellow and white.
What are the options for surface finishes?
The options include HASL, Immersion gold, Immersion tin, Immersion Silver, OSP, and HASL lead free. Call for other options.
What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
