Product Details
Overview
Quick Details
- Place of Origin:
- Zhejiang, China
- Brand Name:
- Daier
- Model Number:
- DM-R Series
- Max. Current:
- 0.1A
- Max. Voltage:
- 50VDC
- Item:
- Electrical Low Profile SMT Type SPDT Dip Switch
- Rating:
- 0.1A 50VDC
- Model:
- Low Profile SMT Type
- Housing Color:
- Black
- Terminal Material:
- Brass With Gold Plated
- Position:
- 1/2/3/4/5/6/7/8/10/12 Position
- Operation Force:
- 8N Max
- Package:
- Tube
- Free Sample:
- Available
- Electrical Life:
- 2,000 Cycles Per Switch
Packaging & Delivery
- Selling Units:
- Multiple of
- Package size per batch:
- 50X5X5 cm
- Gross weight per batch:
- 0.5 kg
- Package Type:

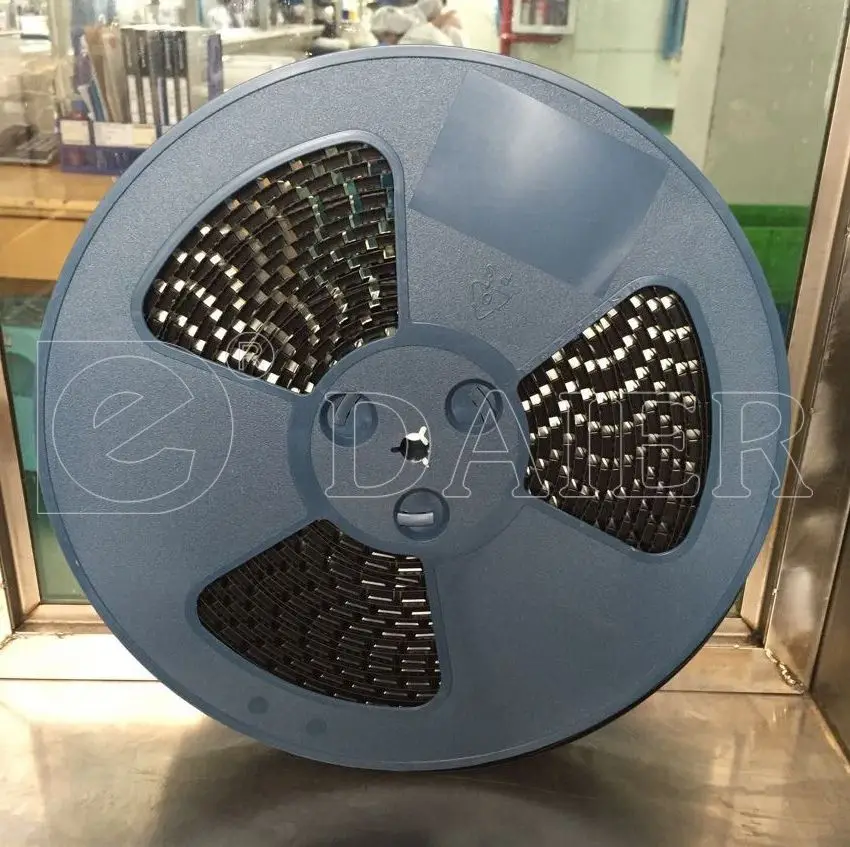

- 100Pcs A Reel Packing Of Electrical Low Profile SMT Type SPDT Dip Switch
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100000 >100000 Est. Time(days) 10 To be negotiated
Product Description
Product Show
Daier series of surface mount half-pitch DIP switches, low profile and standard profile DIP switches, rotary and coded DIP switches, coded rotary DIP switches, SIP switches and jumper switches feature a variety of extended actuator and flush actuator styles. Daier DIP switches are available in surface mount, through-hole, right angle and vertical mounting options.
Most Daier miniature and ultraminiature DIP switches are process sealed for automated assembly (some require tape seal) and are available in SMT and thru-hole termination.
Our large selection includes surface mount, through-hole, rotary, standard and half pitch, and multiple actuator designs. Consistent high contact pressure is achieved with a spring and ball contact system on select series. Other features include a low-profile, miniature versions, standard base seal, optional top-tape seal and also tape and reel packaging. Our DIP switch can be customized for your specific application.
