Product Details
Application

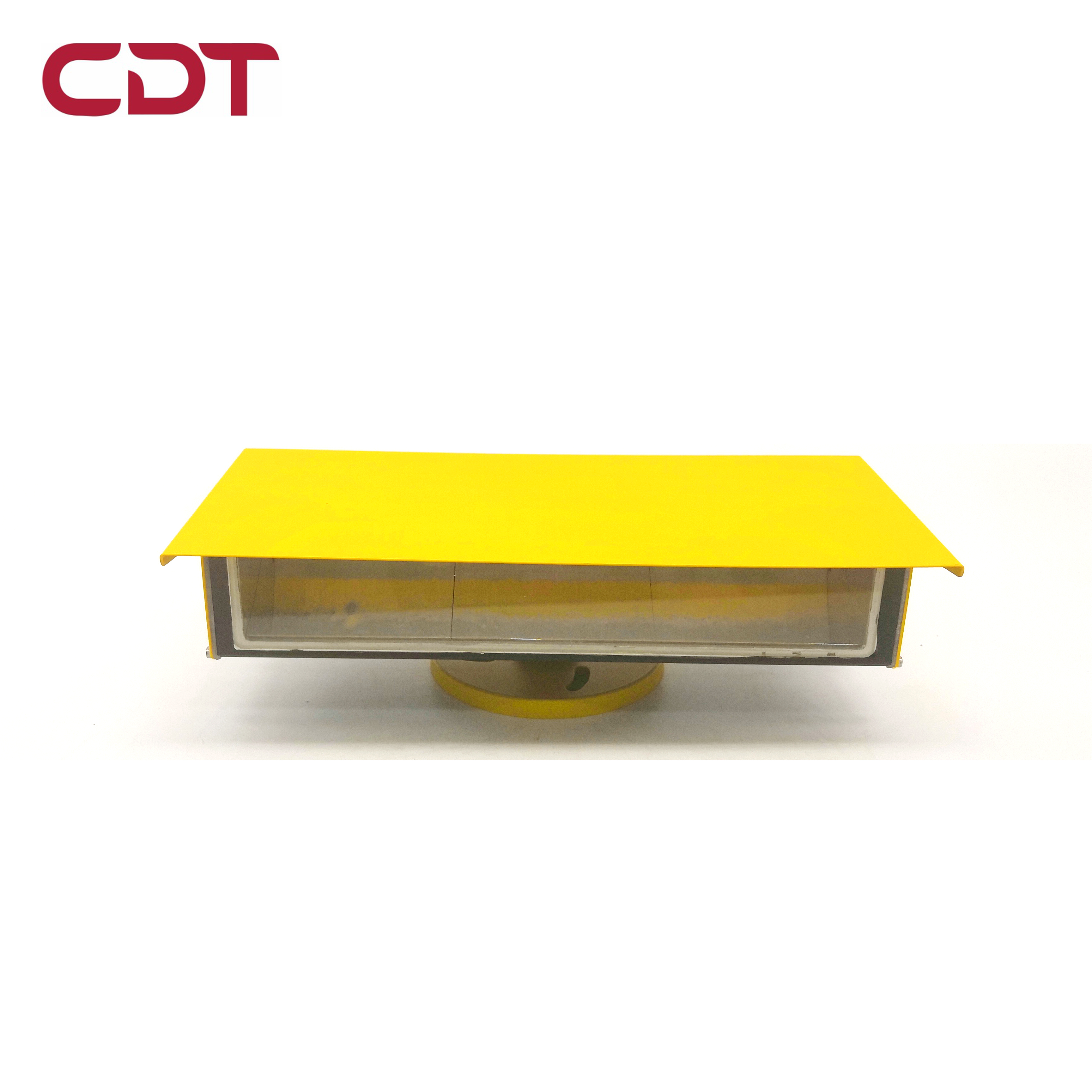

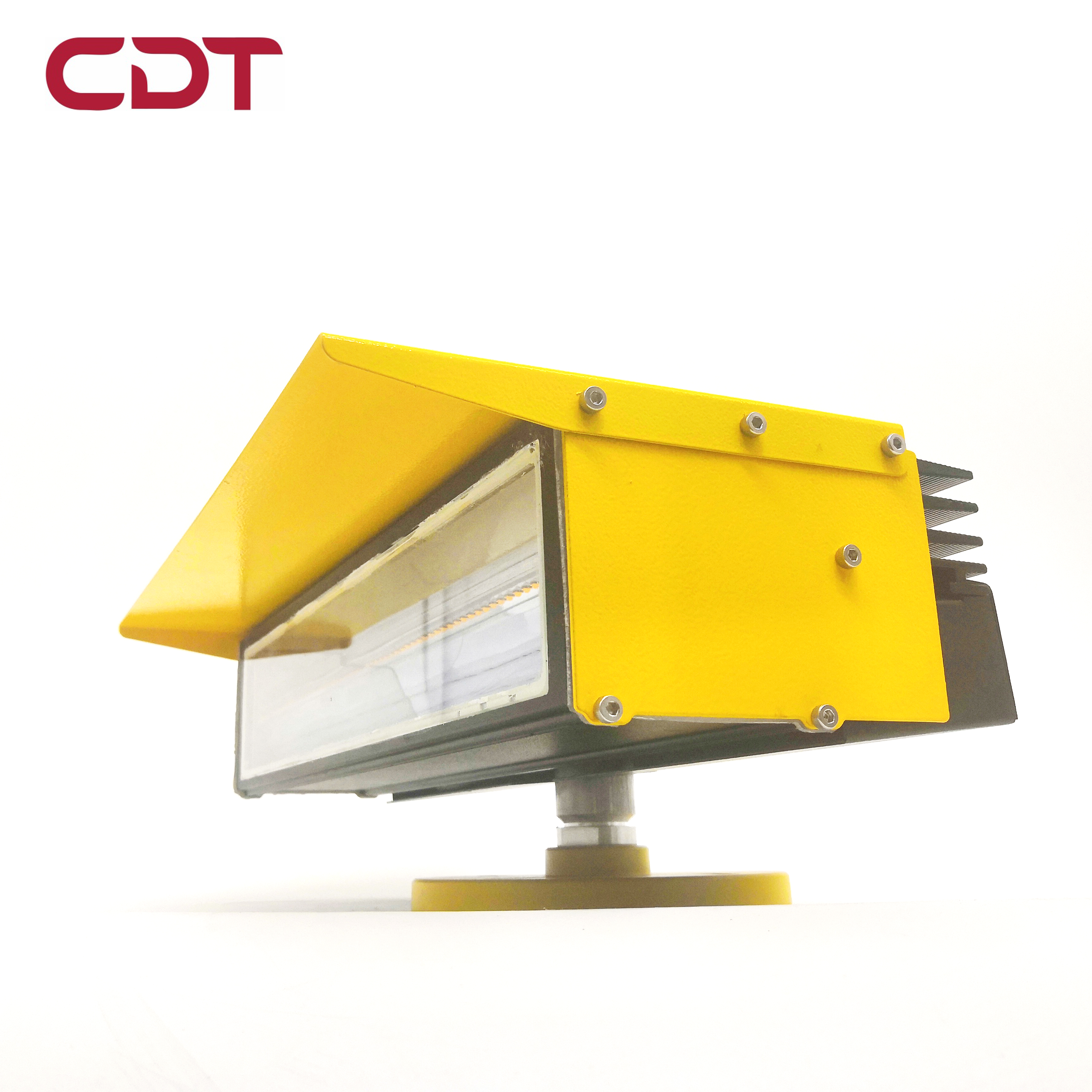

heliport flood light is a ground surface installation light. It"s used to lighten the surface of the heliport, ensuring the heliport surface illumination not less than 10 Lux, making the heliport sign easy to see and giving the landing heliport accurate guidance. Uniform illumination of the heliport make the pilot to reduce eye glare as much as possible in short distance.
Key Feature of CM-HT12/N
- Using multiple optical design of parabolic curve, point of view, the more accurate visual range further.
- Built-in LED constant current protection circuit, stable work.
- Optical lens: PMMA materials with a transmittance of 93%.
- UV - resistant PC material lamp shade, more than 95% transparency, adapt to different environment.
- Flammability level of UL94V0, applicable to various industrial situations.
| Parameter | |
| Refer | ICAO Annex 14 Low Intensity Obstruction lights |
| Light Source | Bright LED |
| Light Color | White |
| Vertical Beam Spread | ≥10º |
| Horizontal Beam Angle | 90° |
| Flashing Frequency | Steady On |
| Lifespan | >100,000hours |
| Luminous Flux | 10,000lum |
| Operation Voltage | AC110-240V 50Hz 60Hz |
| Power Consumption | ≤60W |
| Operating Temperature | -55℃~+55℃ |
| Ingress Protection | IP65 |
| New Weight | 1.5kg |
| Material | Lamp Cover:PC |
| Structure | Pictures |
|
|
| |
|
Project Pictures
Recommend Product
Windsock |
Rotating Beacon |
SAGA light |
Helipad inset light |
Why us?
1.Have 1 office and 2 factory,total 6000 square meter
2.Have Own R&D Department,We can research the new product by ourself.
3.Have own optical laboratory
4.Have own QC Team
5.Supply Communication Tower,Transimission Towers,Chimney,Building Designing for Aviation obstruction lights.
6.7/24 hours Sales Team and After-Sales Team
Product Warranty
- Full warranty 3 years: We will provide Full three years’ guarantee for free that product is problem caused by quality.
- Free Maintenance 5 years: From the 4th year to 5th year, We will provide product maintenance for free, when it’s damage by improper using or some other
reason.(Note: Client should pay the freight to send product back) - When you use our product and have a failure, please contact with us. Don"t take it apart and repair it by yourself, Otherwise, we are not responsible for warranty.
